Researchers from Carnegie Mellon University, in a significant collaboration with scientists at Stanford University and Purdue University, have unveiled a powerful new methodology for precisely controlling heat at the nanoscale. Their groundbreaking findings, recently published in the prestigious journal Nature, offer compelling experimental validation that thermal transfer can be deliberately engineered and substantially amplified through the judicious application of specially designed metamaterials. This achievement marks a pivotal step from theoretical predictions to tangible, laboratory-demonstrated control over one of the most elusive forms of energy at its most fundamental scales.
The Unseen World of Nanoscale Heat Transfer
The classical understanding of heat transfer primarily involves three mechanisms: conduction, convection, and radiation. While these principles adequately describe thermal phenomena in our everyday world, their applicability begins to wane when distances shrink to the order of nanometers—mere billionths of a meter. At these incredibly small scales, quantum mechanical effects begin to dominate, leading to behaviors that defy conventional expectations.
The research specifically centers on a phenomenon known as near-field radiative heat transfer (NFRHT). Unlike far-field radiation, which is governed by Planck’s law and involves propagating electromagnetic waves, NFRHT occurs when two objects are separated by extremely small distances, typically less than the characteristic wavelength of thermal radiation. In this regime, thermal energy can "tunnel" across the narrow gap not through propagating waves, but via evanescent electromagnetic waves. These waves, which decay exponentially with distance, carry energy efficiently between closely spaced surfaces, leading to heat transfer rates that can be orders of magnitude greater than those predicted by classical far-field radiation theory.
The concept of near-field thermal radiation has been theoretically explored for decades, with early predictions in the 1960s suggesting its potential for enhanced heat transfer. However, experimentally demonstrating and harnessing this effect in a controlled and dramatically strengthened manner has presented formidable challenges. Achieving the requisite nanoscale precision in material fabrication and maintaining stable, sub-wavelength gaps between objects in a laboratory setting are technically demanding feats. Previous experiments have shown enhancements, but the new work demonstrates an unprecedented level of control and amplification.
Pioneering a New Approach with Metamaterials
To overcome these long-standing experimental hurdles and unlock the full potential of NFRHT, the research team turned to metamaterials. Metamaterials are not found in nature; rather, they are artificially engineered materials that derive their extraordinary properties from their precisely designed, sub-wavelength repeating structural patterns, rather than solely from their chemical composition. These intricate structures allow metamaterials to interact with energy—be it light, sound, or heat—in ways that are impossible with conventional materials, such as exhibiting negative refractive index or perfect absorption.

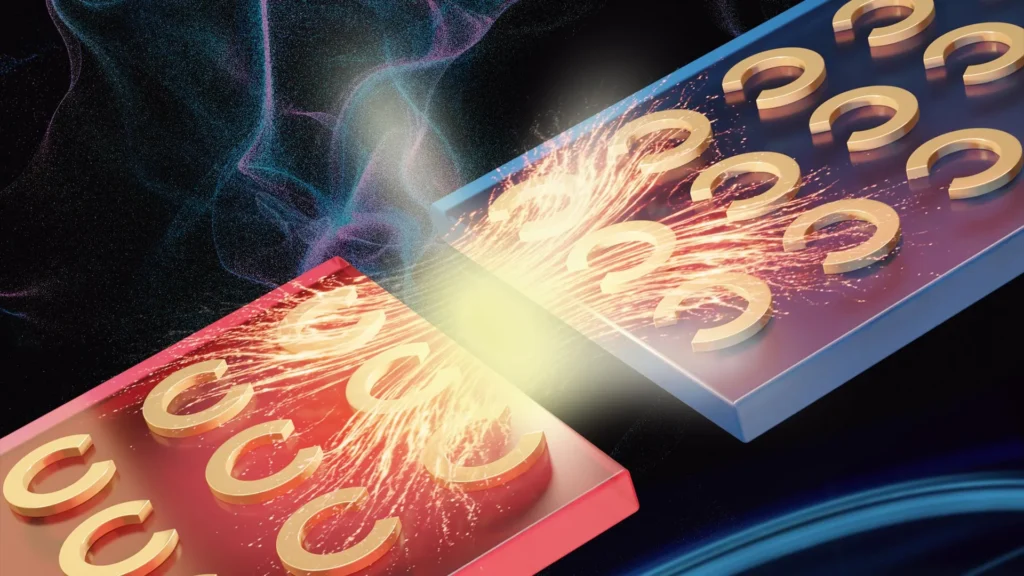

The field of metamaterials gained significant traction in the early 2000s, primarily with applications in electromagnetism, leading to concepts like "invisibility cloaks" and super-lenses. However, their application to thermal management, particularly in the near-field regime, represents a newer frontier. For this study, the researchers meticulously patterned microscopic gold structures onto ultrathin membranes. Gold, being an excellent conductor and having well-understood optical properties, served as an ideal material for crafting these resonant structures. These gold-patterned membranes were then carefully positioned face-to-face, separated by a meticulously controlled nanoscale gap of only a few hundred nanometers.
"Unlike conventional materials, metamaterials are built with tiny, repeating patterns that interact with energy in precise ways," explained Sheng Shen, a distinguished professor of mechanical engineering at Carnegie Mellon University and the senior author of the seminal study. He elaborated on the precise methodology: "We patterned microscopic gold structures onto thin membranes and positioned them face-to-face across a nanoscale gap. This intricate design dramatically increased heat transfer by as much as four times compared to similar setups without metamaterials, which is far beyond what traditional physics would predict at larger distances." This quadrupling of heat transfer efficiency in the near-field regime is a testament to the power of metamaterials in engineering thermal pathways.
The team’s rigorous experiments provided robust empirical evidence. The meticulously crafted gold-patterned structures did not merely facilitate heat movement; they substantially amplified the amount of thermal energy flowing across the nanoscale gap. The observed heat transfer rates were up to four times greater than those measured in comparable systems that lacked the engineered patterns, unequivocally demonstrating the metamaterials’ efficacy in boosting NFRHT. This quantitative leap represents a significant advancement over previous demonstrations, which often showed more modest enhancements or were primarily theoretical.
Unpacking the Mechanism: Surface Phonon Polaritons and Resonance
The enhanced heat transfer observed in these experiments is not a simple additive effect, where more pathways are merely provided for heat to travel. Instead, it arises from a sophisticated cooperative interaction between the engineered metamaterial structures and the intrinsic energy dynamics of the materials themselves.
The core of this enhancement lies in the interaction with naturally occurring energy waves within the material, known as surface phonon polaritons (SPhPs). Surface phonon polaritons are quasi-particles resulting from the strong coupling between electromagnetic waves and optical phonons (quantized lattice vibrations) at the surface of a material. These hybrid light-matter excitations are highly confined to the material surface and can propagate along it, carrying energy. They are particularly relevant in polar dielectric materials, such as silicon carbide, which was likely used as a substrate or a component in the researchers’ setup to support these polaritons.
"Rather than simply adding more pathways for heat, the gold structures interact with naturally occurring energy waves in the material, known as surface phonon polaritons, creating a resonance effect," clarified Zexiao Wang, a PhD student in Professor Shen’s research group and a co-first author of the study. He further elucidated the process: "These coupled vibrations allow energy to move more freely and efficiently across the gap, acting as highly efficient carriers of thermal energy." When the periodicity of the metamaterial’s gold structures is carefully designed to match the wavelength of these surface phonon polaritons, a strong resonant coupling occurs. This resonance effectively "tunes" the system, allowing the evanescent waves carrying thermal energy to be more efficiently excited and transferred across the nanoscale gap. It’s akin to tuning a radio to a specific frequency to receive a stronger signal. The metamaterial structures essentially act as antennas, optimizing the coupling and transfer of thermal energy via these surface excitations.
According to the researchers, this synergistic effect is crucial. The microscopic structures of the metamaterial and the material’s natural energy waves—the surface phonon polaritons—do not merely coexist; they actively work together in a finely tuned dance. "It’s a cooperative effect," Professor Shen reiterated, emphasizing the intricate interplay. "The structures and the material amplify each other, creating a powerful conduit for heat transfer that far surpasses passive material properties." This cooperative amplification is the key to achieving the unprecedented four-fold enhancement, opening new avenues for active thermal management.
Revolutionizing Thermal Management in Electronics
The ramifications of this discovery are vast and potentially transformative, particularly for the electronics industry. As electronic devices continue their relentless march towards smaller dimensions and greater computational power, the challenge of dissipating waste heat has escalated into one of the most critical engineering bottlenecks. Moore’s Law, which predicts the doubling of transistors on a microchip every two years, has driven incredible progress, but the accompanying increase in power density leads to hotspots and elevated operating temperatures that degrade performance, reduce lifespan, and consume excessive energy for cooling.
Current cooling solutions, such as heat sinks, fans, and liquid cooling systems, are often bulky, energy-intensive, or limited in their ability to handle the extreme heat fluxes generated by modern processors and graphic processing units. The ability to precisely direct and control heat at the nanoscale could usher in a new era of thermal management. Imagine computer chips that can actively channel heat away from critical components four times more efficiently, allowing for even higher clock speeds and greater integration density without succumbing to thermal throttling. This could lead to significantly improved cooling methods for everything from high-performance computing data centers to compact smartphones, enabling faster, more reliable, and more energy-efficient electronic systems. Beyond traditional silicon-based electronics, this technology could also benefit emerging fields like neuromorphic computing and quantum computing, where precise temperature control is paramount for optimal operation.
Transforming Energy Systems and Sensing Technologies
Beyond electronics, the findings hold immense promise for advancing energy technologies. One particularly compelling application lies in thermophotovoltaics (TPV). TPV systems are designed to generate electricity from heat by converting thermal radiation into usable electrical power, much like solar cells convert sunlight. However, conventional TPV systems often suffer from relatively low efficiencies due to limitations in capturing and converting broad-spectrum thermal radiation. By significantly increasing the efficiency of thermal radiation transfer in the near-field, this research could make TPV technologies far more viable and economically attractive. Enhanced NFRHT could allow TPV cells to operate at higher efficiencies and power densities, converting waste heat from industrial processes, concentrated solar power, or even radioisotope decay into electricity with unprecedented effectiveness. This could contribute significantly to sustainable energy solutions and waste heat recovery.
Moreover, applications involving infrared (IR) sensing stand to benefit substantially from stronger and more precisely controlled thermal signals. Infrared sensors are ubiquitous, used in diverse fields ranging from night vision and medical diagnostics to industrial process monitoring and environmental surveillance. By enhancing the near-field radiative heat transfer between a target and an IR detector, it becomes possible to create sensors that are more sensitive, faster, and capable of detecting fainter thermal signatures. This enhanced sensitivity could lead to breakthroughs in areas such as early detection of diseases (e.g., thermal imaging for tumor detection), advanced remote sensing for climate monitoring, and sophisticated national security applications like improved threat detection and surveillance systems. The ability to engineer thermal signals with greater precision could also enable new types of active thermal emitters for communication or camouflage purposes.
From Laboratory to Industry: Challenges and the Path Forward
While the experimental demonstrations were meticulously performed under carefully controlled laboratory conditions and currently remain limited to nanoscale systems, the work represents a monumental stride from abstract theoretical predictions to real-world, quantifiable demonstration. It validates a long-sought capability in thermal science.
However, transitioning this laboratory breakthrough into widespread industrial application will undoubtedly involve navigating several significant challenges. Scalability is a primary concern; manufacturing metamaterials with such precise nanoscale patterns over large areas, economically and reliably, requires advanced fabrication techniques. Cost-effectiveness will also be a critical factor for commercial viability. Furthermore, maintaining the exact nanoscale gaps required for optimal NFRHT in practical, robust devices under varying environmental conditions presents engineering complexities.
Despite these challenges, the foundational nature of this research positions it as a catalyst for future innovation. "If heat can be engineered with the same precision as electricity or light, it may open the door to a new class of technologies built not just to withstand heat, but to harness it," Professor Shen posited, envisioning a future where thermal engineering achieves parity with electronic and photonic engineering. This paradigm shift could lead to entirely new device architectures and functionalities, moving beyond passive thermal management to active, dynamic control of heat flow.
The potential for such transformative technologies has garnered significant attention and support. This pioneering work was made possible through crucial funding from key governmental agencies, including the Defense Threat Reduction Agency, which often supports research with potential national security implications; the National Science Foundation, a primary supporter of fundamental scientific research in the United States; and the Air Force Office of Scientific Research, which focuses on early-stage scientific research relevant to air and space power. The collaborative spirit evident in this project, involving leading researchers from Carnegie Mellon, Stanford, and Purdue, underscores the interdisciplinary nature required to tackle such complex scientific and engineering problems. Sheng Shen and Shanhui Fan are recognized as the corresponding authors for the publication, while Zexiao Wang, Renwen Yu, and Hakan Salihoglu contributed equally as co-first authors, highlighting the team effort behind this remarkable achievement. This concerted effort heralds a new era in thermal science, where heat is no longer merely a byproduct to be managed but a fundamental energy form to be engineered and exploited.
