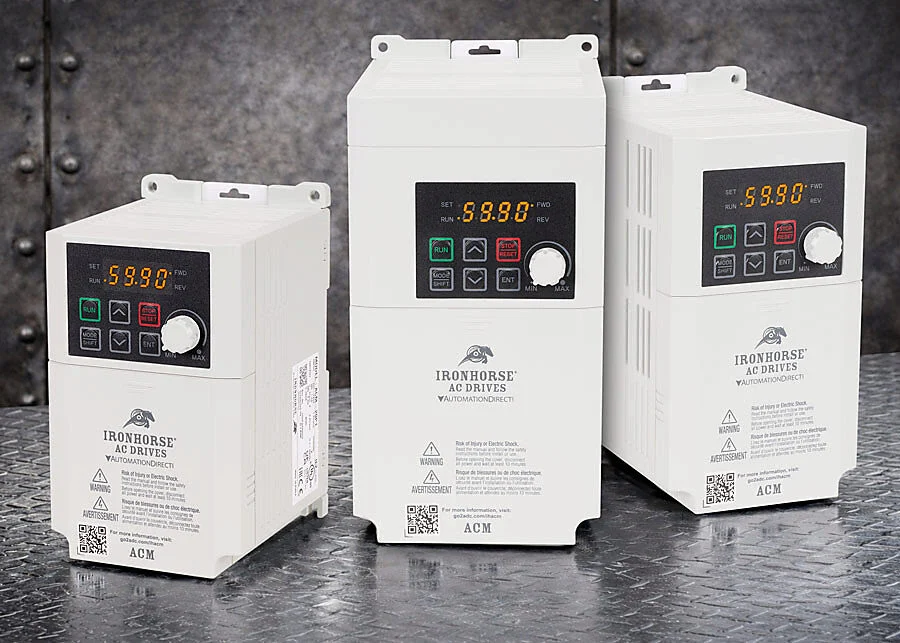

AutomationDirect, a prominent supplier of industrial control products, has announced a significant expansion of its IronHorse line of motor control solutions with the introduction of the ACM Series AC drives. These new drives are specifically engineered to cater to low-horsepower motor applications where only single-phase power is readily available, a common scenario in numerous small-to-medium industrial and commercial settings. Simultaneously, the company has launched the ACN-ECAT module, an enhancement designed to integrate existing IronHorse ACN series drives into high-speed EtherCAT motion control networks, signaling a dual-pronged strategy to address both fundamental power control needs and advanced automation requirements.
The IronHorse ACM Series AC drives represent a strategic move by AutomationDirect to provide robust, cost-effective, and versatile motor control for applications typically underserved by larger, three-phase industrial drives. These variable frequency drives (VFDs) offer essential motor control functionalities, including both basic Volts-per-Hertz (V/Hz) and more advanced sensorless vector control methods. This dual capability allows users to select the most appropriate control scheme based on their application’s precision and performance demands, from simple fan and pump operations to more intricate material handling or machine tool tasks. The VFDs are designed to accept either 120 VAC or 230 VAC single-phase input power, demonstrating their adaptability to prevalent electrical infrastructures. They are capable of controlling motors ranging from a modest 1/8 horsepower up to 3 horsepower, a range that encompasses a vast array of industrial and commercial equipment.
The Strategic Expansion: Addressing a Critical Market Need
AutomationDirect has long been recognized for its direct-to-customer business model, offering a broad spectrum of industrial automation components at competitive prices. The IronHorse brand, under its umbrella, has carved a niche for itself by providing reliable, industrial-grade motors, gearboxes, and drives that meet rigorous performance standards while maintaining an accessible price point. The introduction of the ACM Series is a testament to the company’s commitment to continuously identify and fill gaps in the market, particularly for customers operating in environments where access to three-phase power is limited or cost-prohibitive.
Many workshops, agricultural facilities, small manufacturing plants, and even commercial buildings often only have single-phase electrical service available. Historically, this has presented a challenge for integrating advanced motor control technologies that primarily target three-phase systems. Traditional solutions might involve costly phase converters or oversized, less efficient motor control methods. The IronHorse ACM Series directly addresses this by providing a purpose-built solution that allows these operations to leverage the benefits of variable frequency drive technology – such as energy savings, improved process control, and reduced mechanical wear – without requiring significant electrical infrastructure upgrades. This focus on single-phase applications underscores a broader industry trend towards decentralization and democratization of advanced automation capabilities, making them accessible to a wider user base.
Unpacking the IronHorse ACM Series: Features and Capabilities
The design philosophy behind the IronHorse ACM Series centers on combining essential control capabilities with advanced features, all packaged in a user-friendly format. The drives are equipped with a comprehensive set of inputs and outputs, ensuring seamless integration into existing control systems and providing flexibility for future expansions.
Power and Control Versatility
The ability to operate on either 120 VAC or 230 VAC single-phase input power is a cornerstone of the ACM Series’ versatility. This eliminates the need for external transformers or complex wiring configurations in many scenarios, simplifying installation and reducing overall project costs. The horsepower range, from 1/8 HP to 3 HP, is carefully selected to cover a wide array of common applications, including small conveyors, ventilation fans, circulation pumps, mixers, and light machining tools.
The inclusion of both V/Hz and sensorless vector control methods provides a significant advantage. V/Hz control, or scalar control, is a fundamental technique that maintains a constant ratio of voltage to frequency to control the motor’s speed and torque. It is known for its simplicity, robustness, and cost-effectiveness, making it ideal for applications that do not require high precision or dynamic performance, such as pumps and fans. Sensorless vector control, on the other hand, is a more sophisticated technique that estimates the motor’s rotor flux and angle without requiring an encoder, offering improved speed regulation, better torque control at low speeds, and enhanced dynamic response. This makes the ACM drives suitable for more demanding applications like material handling or certain machine operations where precise speed and torque are critical, even at varying loads.
Advanced Integrated Functionality
Beyond basic motor control, the ACM drives incorporate a suite of advanced features designed to enhance operational efficiency, safety, and system integration:
- Input/Output Configuration: Standard features include five digital inputs, which can be configured for functions such as start/stop commands, speed presets, fault resets, or external interlocks. Two relay outputs provide flexibility for signaling drive status, fault conditions, or controlling external devices. Two analog inputs allow for speed reference from potentiometers, PLCs, or external sensors (e.g., pressure transducers for pump control). A single analog output can be used to provide feedback on parameters like motor speed or current to a supervisory control system.
- Dynamic Braking Circuitry: This crucial feature allows for rapid deceleration of the motor by dissipating regenerative energy through an external braking resistor. Dynamic braking is essential in applications where quick stops or controlled deceleration are required, such as conveyor systems or indexing machines, enhancing both safety and productivity.
- PID Control: The integrated Proportional-Integral-Derivative (PID) controller is a powerful tool for maintaining process variables at a setpoint. This is particularly valuable for applications like maintaining constant pressure in a water system, regulating flow rates, or controlling temperature in industrial ovens, reducing the need for an external PLC for basic closed-loop control.
- Two-Motor Control: This feature enables the drive to alternate control between two separate motors, a common requirement in redundancy-critical applications like pumping stations where motors might be cycled to balance wear or provide backup.
- Fire Mode: A critical safety feature, "Fire Mode" allows the drive to override certain fault conditions and continue operating the motor during an emergency, such as a fire. This can be vital for exhausting smoke or maintaining essential ventilation, even if the drive detects a condition that would normally trigger a shutdown.
- Momentary Power-Loss Restart: In industrial environments, brief power fluctuations or outages are not uncommon. This feature allows the drive to automatically restart the motor once power is restored, preventing unnecessary downtime and manual intervention, crucial for continuous processes.
- Password Protection: To prevent unauthorized tampering with critical configuration settings, the drives include password protection. This ensures the integrity of operational parameters and enhances system security.
Streamlined Configuration and Installation
Ease of programming and installation is a hallmark of the ACM Series. Users can configure the drives through the built-in keypad, which offers intuitive navigation for parameter adjustment. For situations requiring remote access or enhanced safety, an optional remote keypad is available, allowing control and monitoring from a distance. For more advanced setup, monitoring, and diagnostics, AutomationDirect’s VFD Suite software provides a comprehensive PC-based interface. A notable mechanical feature is the support for zero-stack installation, meaning adjacent units can be mounted directly next to each other without requiring spacing for heat dissipation. This is a significant advantage in control panels where space is at a premium, allowing for more compact designs and efficient use of enclosure real estate.
The Broader Ecosystem: EtherCAT Connectivity for ACN Series
Complementing the launch of the ACM Series, AutomationDirect also introduced the ACN-ECAT module. This module specifically targets the existing IronHorse ACN series drives, enabling them to communicate over EtherCAT, a high-performance, real-time Ethernet-based fieldbus system. The ACN series, known for its broader horsepower range and advanced control capabilities, can now be seamlessly integrated into sophisticated multi-axis motion control systems.
EtherCAT (Ethernet for Control Automation Technology) is renowned for its speed, determinism, and flexibility, making it a preferred choice for demanding automation applications where precise synchronization and high data throughput are essential. By adding EtherCAT connectivity, AutomationDirect significantly enhances the appeal of its ACN drives for applications in robotics, packaging machinery, printing presses, and other industries requiring tightly synchronized motion. This module positions the IronHorse ACN series as a more robust solution for complex automation architectures, allowing users to leverage the benefits of EtherCAT’s decentralized clock and distributed controls for highly coordinated movements across multiple devices. This move underscores AutomationDirect’s commitment not only to foundational motor control but also to supporting the evolving landscape of industrial communication and smart manufacturing.
The Evolving Landscape of Industrial Drives
The market for VFDs is experiencing robust growth, driven by several key factors. Energy efficiency remains a primary motivator, as VFDs can significantly reduce power consumption in variable torque applications like fans and pumps by matching motor speed to actual demand, rather than running at full speed constantly. This aligns with global efforts to reduce carbon emissions and operational costs. According to various industry reports, the global VFD market is projected to continue its upward trajectory, with increasing adoption across manufacturing, infrastructure, and commercial sectors.
Beyond energy savings, VFDs are integral to modern industrial automation for their ability to provide precise process control, improve product quality, reduce mechanical stress on machinery (through soft starting and stopping), and facilitate system integration. The demand for intelligent, connected drives that can communicate with broader control systems is also on the rise, paving the way for technologies like EtherCAT. AutomationDirect, through its IronHorse line, positions itself as a key enabler for businesses looking to upgrade their legacy systems or implement new, efficient automation solutions.
Expert Perspectives and Market Implications
The introduction of the IronHorse ACM Series and the ACN-ECAT module is expected to resonate positively within the industrial automation community. Inferred statements from AutomationDirect leadership would likely emphasize the company’s unwavering commitment to empowering customers with innovative, high-value solutions. A hypothetical quote from an AutomationDirect product manager might state, "Our goal with the IronHorse ACM Series is to democratize advanced motor control, making it accessible and affordable for a wider range of single-phase applications. Coupled with the EtherCAT module for our ACN drives, we are providing our customers with both foundational control and cutting-edge connectivity options to meet the demands of today’s dynamic industrial landscape."
Industry analysts would likely view this launch as a strategic move that strengthens AutomationDirect’s competitive edge, particularly in the small-to-medium enterprise (SME) segment. An inferred analyst perspective might highlight that, "By specifically targeting the single-phase market, AutomationDirect is tapping into a significant installed base that often struggles to find cost-effective, high-performance VFD solutions. The feature set of the ACM drives, combined with their zero-stack installation capability, makes them an attractive proposition for panel builders and system integrators focused on efficiency and space-saving designs. Furthermore, the EtherCAT module demonstrates a forward-thinking approach to meet the growing demands for real-time communication in advanced motion control applications."
The implications for customers are substantial. Businesses operating on single-phase power can now easily implement VFDs to achieve significant energy savings, improve the precision of their processes, and extend the lifespan of their machinery. The added features like PID control and momentary power-loss restart contribute directly to enhanced uptime and process stability. For those utilizing the ACN series, the EtherCAT module opens doors to more sophisticated, integrated automation architectures, facilitating the transition towards Industry 4.0 paradigms where connected devices and real-time data exchange are paramount.
Looking Ahead: The Future of Automation and Motion Control
The latest additions to the IronHorse family underscore the ongoing evolution of industrial automation. As industries increasingly adopt principles of smart manufacturing and the Industrial Internet of Things (IIoT), the demand for intelligent, connected, and adaptable components will only grow. VFDs like the IronHorse ACM Series, with their integrated functionalities, serve as crucial building blocks for these advanced systems. Meanwhile, the EtherCAT module for the ACN series exemplifies the trend towards high-speed, deterministic communication networks that form the backbone of complex, synchronized automation processes.
AutomationDirect’s continued investment in its IronHorse line, by introducing both accessible single-phase solutions and advanced communication options, positions the company as a responsive and forward-looking provider in the global automation market. These new products are not just incremental updates; they are strategic enhancements designed to empower businesses of all sizes to achieve greater efficiency, control, and competitiveness in an increasingly automated world.
For more detailed information on the IronHorse ACM Series AC drives and the ACN-ECAT module, interested parties are encouraged to visit automationdirect.com.
