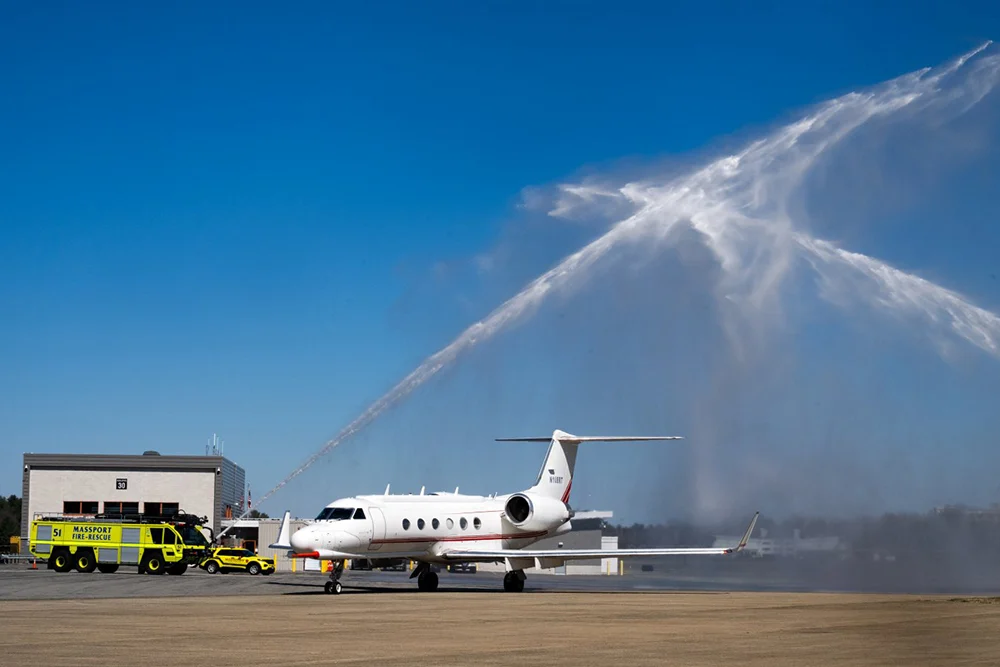

After a seven-year journey of extensive modifications and an unprecedented commitment to innovation, MIT Lincoln Laboratory’s Gulfstream IV (G-IV) aircraft has successfully returned from Canada. This highly specialized research platform, operated and maintained by the Laboratory’s Tactical Defense Systems Group and Flight Test Facility (FTF), has undergone the most significant and complex airborne test bed modernization in Lincoln Laboratory history. The transformation from a standard business jet into a crucial asset for the U.S. Air Force’s Air Vehicle Survivability Evaluation (AVSE) program is now complete, ensuring its readiness to support critical research for decades to come. The ambitious undertaking was a collaborative effort, with the Tactical Defense Systems Group and the FTF working in close coordination with Field Aviation, a renowned aerospace company based in Toronto.
David Culbertson, FTF manager, articulated the profound sense of accomplishment felt by the team. "Our team made hundreds of trips to Canada and dedicated countless weekends to keep the project moving along," Culbertson stated. "Seeing the aircraft finally return to the laboratory invoked a sense of pride and satisfaction." This sentiment underscores the dedication and perseverance required to bring such a monumental project to fruition, navigating technical challenges, logistical hurdles, and unforeseen global disruptions.
A Legacy of Airborne Testing and the Need for Evolution
For over four decades, the Tactical Defense Systems Group has been a cornerstone in supporting the U.S. Air Force’s AVSE program. This program is vital for understanding and enhancing the survivability of U.S. aircraft and space assets against an ever-evolving landscape of current and emerging threats. The group has historically relied on sophisticated airborne test beds to conduct these crucial assessments. Since the early 1990s, a modified Gulfstream II (G-II) aircraft served as the primary platform for AVSE research. However, as the G-II approached the end of its operational lifespan, concerns regarding parts availability began to surface.
In 2013, a series of comprehensive studies were initiated to identify a suitable replacement. These investigations meticulously evaluated various aircraft options, ultimately concluding that the Gulfstream IV presented the most advantageous choice. The G-IV offered superior performance and capabilities, including a higher operational ceiling and extended range, crucial for comprehensive threat assessment. Furthermore, its projected long-term sustainability and cost-effectiveness made it a strategically sound investment for the future of the AVSE program. MIT Lincoln Laboratory officially acquired the G-IV in 2015, marking the beginning of its transformation.
Strategic Planning for Long-Term Operational Readiness
A key strategic decision was made early in the modernization process to preemptively address the Federal Aviation Administration (FAA) certification requirements. Recognizing that phased modifications would necessitate repeated and costly recertification processes over the G-IV’s projected operational lifespan of 25 to 30 years, the decision was made to complete all anticipated aircraft modifications concurrently. This approach aimed to streamline future operations and minimize long-term costs and downtime.
Following a rigorous competitive bidding process, Field Aviation was selected to undertake the extensive modifications. Field Aviation possessed a proven track record with Lincoln Laboratory, having previously modified the G-II and other aircraft operated by the laboratory. In December 2018, FTF pilots ferried the G-IV to Toronto, with an initial estimated completion timeline of approximately three to four years.
Navigating Unforeseen Challenges: The COVID-19 Impact and Lincoln Laboratory’s Intervention
The ambitious timeline was inevitably impacted by the global COVID-19 pandemic, which introduced significant disruptions to international travel, supply chains, and contractor operations. These unforeseen circumstances, coupled with shifts in contractor management, extended the modernization period considerably. In response to these challenges, MIT Lincoln Laboratory took a proactive and decisive step to regain control and momentum for the project. The laboratory assumed direct oversight of aircraft modifications, maintenance, and reassembly.
This critical intervention involved a multidisciplinary team of Lincoln Laboratory personnel. Engineers, mechanics, pilots, program managers, and legal experts collaborated seamlessly to navigate complex international regulations, including securing necessary Canadian work permits. A continuous onsite presence was maintained to ensure project continuity and facilitate effective communication and problem-solving.
Senior aircraft mechanic Craig Rowe played an instrumental role as the lead crew chief. His dedication was exemplified by monthly travel to Canada, leading teams of mechanics through the intricate modification process. For his exceptional contributions and leadership during this demanding period, Rowe was recognized with a 2026 MIT Excellence Award for Outstanding Contributor, a testament to his commitment and the vital nature of his role.
A Structural Overhaul: Reimagining the G-IV as a Research Platform
The transformation of the G-IV involved a meticulous process that saw over 2,000 components removed, tracked, and meticulously reinstalled. The revamped aircraft now boasts 12 major modifications, each requiring substantial structural alterations to accommodate advanced research capabilities.
Enhancing Aerodynamic Capabilities with Advanced Pylon Systems
A significant aspect of the modernization focused on enhancing the aircraft’s external payload capacity. Mechanics installed four pylons on the wings, designed to carry external sensor pods weighing anywhere from 200 to over 1,000 pounds. To support this increased load and the associated aerodynamic stresses during flight, the wings underwent extensive structural fortification. This included reinforcing the internal wing structure to withstand the added weight, stress, and complex aerodynamic loads experienced during demanding flight maneuvers.
Furthermore, a fifth sensor pylon was integrated into the forward lower fuselage. This larger pylon is capable of supporting payloads up to 2,000 pounds and accommodating systems measuring nearly 19 feet in length. The development of these pylons was a multi-year endeavor, spanning nearly five years due to the intensive reverse engineering required. This process involved the acquisition and detailed disassembly of a wing from a scrapped G-IV to obtain precise measurements of internal structural components. The installation itself was a lengthy undertaking, taking almost two years, primarily due to the limited access to the inner wing structure, which is typically only accessible through small panels designed for inspection purposes.
Streamlining Sensor Integration and External Access
To facilitate rapid deployment and integration of external antennas and sensor systems, the aircraft’s roof and lower fuselage were modified to create flat, standardized mounting surfaces. This innovation eliminates the need for repeated incursions into the pressurized fuselage, significantly improving operational efficiency and safety during test preparations.
The aircraft’s nose and tail sections were also extended with standardized sensor-mounting interfaces. This strategic enhancement enables the rapid placement of sensors for both forward- and aft-facing test scenarios, offering greater flexibility and versatility in data acquisition. The six-foot nose extension, in particular, necessitated a complete gutting of the cockpit to allow for the reinforcement of the internal structure, ensuring it could adequately bear the weight of the mounting interface and the associated test systems.
Advanced Interior for Onboard Operations and Data Management
The interior of the G-IV underwent a comprehensive refit to support the demands of advanced airborne research. The team installed 14 equipment racks, providing dedicated space for sophisticated instrumentation and computing systems. Workstations for six onboard operators were integrated, offering a collaborative environment for real-time data monitoring and analysis.
A complex network of fiber-optic, Ethernet, and coaxial cables was meticulously laid throughout the aircraft to ensure high-speed data transfer. Advanced liquid- and air-cooling systems were implemented to maintain optimal operating temperatures for sensitive electronic equipment. Critically, a dedicated power-distribution infrastructure was established, separated from the baseline aircraft’s systems for enhanced safety and reliability.
Powering Innovation: A Novel Auxiliary Power Unit
A significant engineering challenge involved generating sufficient electrical power to operate the extensive test systems in flight while adhering to stringent FAA fire-containment standards. The aircraft’s original auxiliary power unit (APU), designed primarily for engine startup assistance, was wholly inadequate for the mission requirements and incapable of sustained airborne operation.
Field Aviation engineers rose to this challenge by designing an entirely new, fireproof titanium enclosure. This robust housing accommodates a larger, more powerful APU capable of producing nearly double the original electrical output, even at the G-IV’s impressive 45,000-foot altitude ceiling. To validate the efficacy of this new system, the Engineering Division at MIT Lincoln Laboratory conducted extensive simulations. These simulations meticulously analyzed the APU inlet airflow to ensure maximum power output throughout the entire flight duration, a critical factor for the success of airborne testing operations.
Broader Implications and Future Outlook
The successful modernization of the G-IV represents a significant leap forward for the AVSE program and for airborne research capabilities more broadly. The enhanced platform provides the U.S. Air Force with an unparalleled asset for evaluating the survivability of its most critical air and space systems against evolving threats, from advanced missile technologies to sophisticated electronic warfare capabilities. The ability to conduct complex, long-duration missions with a highly configurable and robust test bed will enable more realistic and comprehensive threat simulations, leading to improved defense strategies and technological advancements.
The collaborative approach between MIT Lincoln Laboratory, the U.S. Air Force, and industry partners like Field Aviation highlights a successful model for tackling complex, long-term defense research and development projects. The dedication of the personnel involved, overcoming significant challenges including a global pandemic, underscores the resilience and ingenuity inherent in the American defense research ecosystem. As the G-IV embarks on its new chapter of operational service, it stands as a powerful testament to the commitment to maintaining technological superiority and ensuring the safety and effectiveness of U.S. defense assets. The insights gained from its future missions will undoubtedly contribute to the ongoing evolution of aerospace defense for years to come.
