The construction industry, a bedrock of global development and a significant contributor to economic activity, is facing increasing pressure to mitigate its environmental impact. Concrete, the most ubiquitous building material on the planet, stands at the forefront of this challenge. Its production accounts for a substantial portion of global carbon emissions, estimated to be around 8%, a figure comparable to the entire aviation industry. This stark reality has spurred a vigorous search for sustainable alternatives and innovative construction methods. Among the most promising is the 3D printing of concrete, a process that allows for the precise placement of material, layer by layer, much like a colossal robotic icing dispenser. This digital fabrication approach offers the potential to drastically reduce waste and labor by eliminating the need for traditional formwork and ensuring that concrete is deposited only where it is structurally required.
However, a significant hurdle has emerged in the widespread adoption of 3D-printed concrete for complex architectural and engineering designs. While computational tools, particularly topology optimization algorithms, can generate incredibly efficient and material-saving structural designs – often characterized by intricate, web-like geometries – these mathematically perfect forms frequently prove unbuildable with current large-scale concrete printing technology. The limitations of these machines, including the thickness of their nozzles, restricted maneuverability, and the imperative to print in a single, continuous motion, render many of these optimal designs physically impossible to realize.
This critical disconnect between theoretical optimization and practical fabrication has been addressed by a team of researchers at the Massachusetts Institute of Technology (MIT). In a groundbreaking development detailed in a recent publication in the journal Additive Manufacturing, these engineers have devised a novel framework that directly integrates the physical constraints of 3D concrete printers into the design optimization process. This innovative approach ensures that the resulting designs are not only structurally sound and material-efficient but also readily manufacturable by existing printing hardware, minimizing the need for costly and time-consuming manual adjustments.
To validate their groundbreaking framework, the MIT team embarked on the ambitious project of designing, printing, and load-testing a 2.3-meter-long concrete bridge. The results of this experiment provided compelling evidence that it is, in fact, the limitations of current printing hardware, rather than the intrinsic properties of concrete itself, that currently dictate the ultimate lightness and efficiency achievable in 3D-printed structures.
"We were encountering a significant number of obstacles when attempting to translate these highly optimized designs into something that could actually be manufactured," explained Hajin Kim-Tackowiak, a postdoctoral researcher in MIT’s Department of Civil and Environmental Engineering (CEE) and a co-first author of the study. "The mathematically ideal shapes, with their delicate, intricate features, presented what felt like insurmountable gaps when confronted with the realities of large-scale printing. These were not minor imperfections; they were chasms that prevented us from realizing the designs."
Designing for Manufacturability: A Collaborative Approach
The path to developing this integrated design framework was paved with close collaboration and direct engagement with the realities of industrial-scale 3D printing. The MIT researchers actively participated in the Autodesk Research Residency Program, gaining invaluable insights by working directly with the engineers and operators of large-scale printing machines at Autodesk’s Technology Center in Boston.
"During our interactions, the team at Autodesk would point to certain sharp angles in our initial designs and express concerns about the safety and feasibility of printing such features," recalled Kim-Tackowiak. "Their practical expertise was instrumental in pinpointing the precise limitations that needed to be addressed."
Through these dialogues, three paramount constraints governing the printing process emerged: the minimum required thickness of each extruded concrete bead, the minimum turning radius of the printer’s nozzle, and the necessity for the printing path to be continuous without interruption. The MIT team meticulously translated each of these practical limitations into precise mathematical rules that were subsequently incorporated into their optimization framework.
In contrast to older, sequential design methodologies, where the optimal shape is determined first and then adapted for manufacturing, often requiring extensive post-processing and lengthy computational cycles, the MIT framework generates fully printable designs in a remarkably short timeframe. The researchers reported that their system could produce optimized designs in approximately two minutes using a standard laptop. Furthermore, when a minor adjustment to the bridge’s size was necessitated on the day of printing, the team was able to rerun the optimization and obtain an updated, printable design within a mere five to ten minutes, highlighting the framework’s agility and responsiveness.
"Achieving this level of speed is a relatively recent development in computational design," noted Zane Schemmer, a PhD student in CEE and the study’s other co-first author. "The mathematical techniques underpinning our method, specifically mixed-integer optimization, were long considered computationally prohibitive for problems of this scale and complexity. Go back five to ten years, or even just three years ago, and the solvers we relied on simply couldn’t handle these kinds of problems. This entire field of inquiry was often avoided because it was deemed an impractical avenue. However, with advancements in algorithms and increased computational resources, we are now beginning to unlock the potential of these powerful optimization tools."
The Concrete Bridge: A Testbed for Innovation

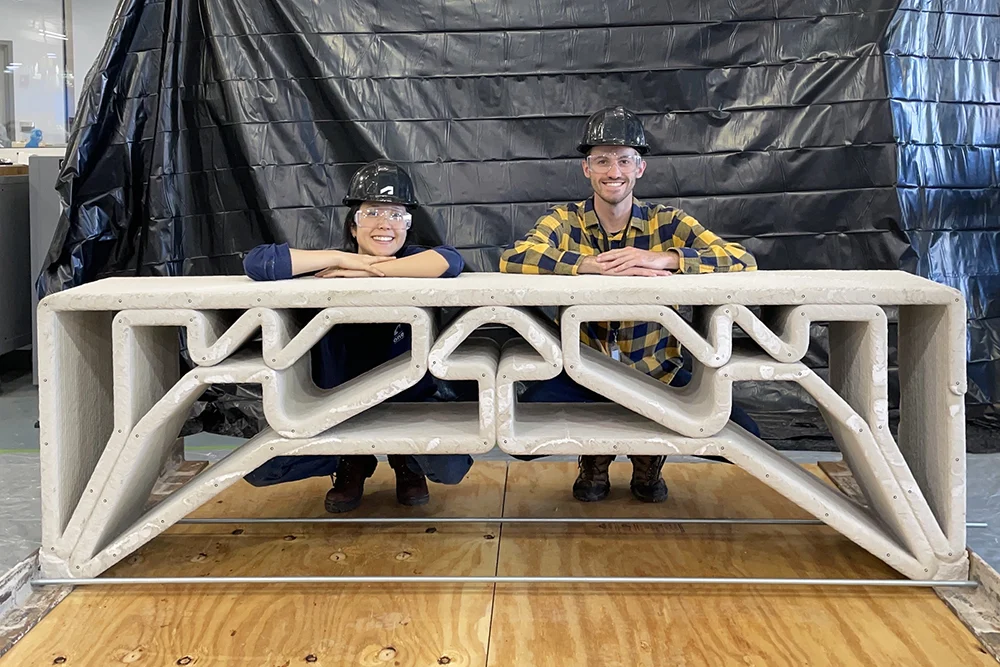

The culmination of the MIT researchers’ efforts was the construction of a 2.3-meter-long concrete bridge, a tangible demonstration of their framework’s efficacy. This impressive structure was fabricated at Autodesk’s facility using readily available mortar and required approximately 30 minutes of printing time.
"The bridge itself weighed roughly 900 pounds," stated Josephine Carstensen, the senior author of the study and the Gilbert W. Winslow (1937) Career Development Professor in Civil Engineering. "During load testing, it successfully supported over 2,000 pounds distributed across its span with negligible deformation, a performance that closely aligned with our computational simulations."
However, the rigorous testing of the bridge yielded a surprising and significant revelation. "What we discovered was that our resulting design was exceedingly over-engineered," Kim-Tackowiak explained. "From zero to an enormous load capacity, the design was almost entirely dictated by the ‘can I build it or not’ constraints imposed by the printing hardware. It was only after exceeding a substantial load threshold that the underlying physics of material strength began to influence the design. This clearly indicated that the current limitations of 3D printing technology, rather than the concrete’s structural capacity, were the primary determinant of how lightweight and efficient the structure could ultimately be."
Implications and Future Directions: A Roadmap for Printer Evolution
The ability of the MIT framework to identify the mathematically optimal design, while simultaneously accounting for real-world fabrication constraints, offers a powerful new tool for quantifying the impact of each hardware limitation on material usage.
"With mixed-integer optimization, we are able to pinpoint the global optimum – the absolute best solution possible – rather than settling for a merely good or locally optimal solution," Carstensen elaborated. "Because we are confident in finding the most efficient design, we can also precisely quantify the benefits of potential hardware improvements. If we had a machine capable of performing certain additional functions, we can calculate the resulting reduction in material consumption. This provides a clear roadmap for printer manufacturers."
The researchers’ analysis revealed that the width of the printed bead was the most critical factor influencing material efficiency. The bridge was constructed using a 4-centimeter bead. Their simulations indicated that a hypothetical printer capable of extruding a mere 1-centimeter bead could reduce material usage by as much as 76 percent, while still maintaining ample safety margins. This finding was particularly surprising to Carstensen, who had initially anticipated that the continuous printing path constraint would have the most significant impact.
This data-driven insight offers a direct guide for the evolution of 3D concrete printing hardware. Modest improvements in printer capabilities, particularly in the precision and fineness of the extruded material, could unlock substantial gains in structural efficiency and significantly reduce the carbon footprint associated with concrete construction.
A key factor enabling the design of the compression-optimized bridge was the inherent strength of concrete under compressive forces. "Concrete performs exceptionally well when subjected to forces that push it together, but it is considerably weaker when subjected to tensile forces that pull it apart," explained Schemmer. "Our design strategy ensured that every component of the bridge was under compression, meaning no part of the concrete was being subjected to tension."
The material savings derived from this approach are twofold: reduced material consumption due to optimized design and the complete elimination of formwork, an advantage that becomes even more pronounced for unique, one-off structures. Carstensen envisions immediate applications in disaster relief scenarios, stating, "In times of crisis, we can rapidly deploy new infrastructure without the lengthy and resource-intensive process of building molds."
The bridge’s pure compression-only nature, while a testament to the design’s optimization for specific forces, also highlighted its inherent limitations. After withstanding over 2,000 pounds during testing, the bridge dramatically failed when a worker attempted to lift one corner to clear debris. This breakage was not a reflection of a design flaw but rather a stark demonstration of the principle at play: concrete’s vulnerability to tensile stress. The lifting action introduced tensile forces into parts of the bridge that were designed solely for compression, leading to its fracture. "It was optimal in one specific way, but it was certainly not optimal in all potential scenarios," acknowledged Kim-Tackowiak.
This observation has naturally led the MIT team to their next research frontier: reinforced concrete. "We recognize that a structure made solely of unreinforced concrete may not always be the most practical or versatile solution," Kim-Tackowiak stated. "Therefore, we are moving towards integrating our design framework into the realm of reinforced concrete, which is the standard in construction today. However, the challenge of precisely incorporating reinforcing materials, such as rebar, into a 3D-printed concrete structure is presenting its own unique set of complex engineering hurdles."
The research was generously supported by the National Science Foundation and further bolstered by the MIT Center for Advanced Production Technologies. In addition to Kim-Tackowiak, Schemmer, and Carstensen, the published paper includes contributions from Pittipat Wongsittikan, a PhD student in the MIT Building Technology Architecture program, and Jackson Jewett, who holds both MEng ’18 and PhD ’25 degrees from MIT and is a former MIT postdoc. Their collective work represents a significant stride towards realizing the full potential of 3D-printed concrete as a sustainable and efficient construction method for the future.
