Researchers at the Massachusetts Institute of Technology (MIT) have unveiled a groundbreaking, low-cost design for specialized electronic nozzles, known as triaxial electrospray emitters. This innovative technology promises to revolutionize the large-scale, efficient manufacturing of advanced materials, including time-release drug-delivery particles and self-healing composites. The development overcomes significant limitations in current microfabrication techniques, paving the way for broader accessibility and application of this sophisticated technology.
The Power of Precision: Triaxial Electrospray Explained
At its core, triaxial electrospray technology utilizes precisely controlled electrical fields to dispense three distinct liquids from microscopic nozzles. This process generates a stable, continuous stream of droplets, each meticulously composed of three separate fluid layers. When these liquid droplets solidify, they form multilayered microparticles with tailored properties.
The potential applications are vast and impactful. For instance, in the realm of pharmaceuticals, these triaxial emitters can create drug-delivery nanoparticles with a three-layer structure. The outermost layer might be designed to slowly degrade in the acidic environment of the stomach, revealing a second material. This intermediate layer then governs the release rate of a core material, which carries the therapeutic agent to a specific target within the intestines. This controlled release mechanism is crucial for optimizing drug efficacy, minimizing side effects, and improving patient compliance.
Beyond pharmaceuticals, the technology holds immense promise for the development of self-healing materials. Imagine composite materials embedded with microcapsules that, upon damage, rupture and release a healing agent. The layered structure enabled by triaxial electrospray allows for the precise encapsulation of multiple components, such as a resin and a catalyst, within a single microparticle. When a crack propagates through the material, these microcapsules break, releasing their contents and initiating a repair process, thereby extending the lifespan and reliability of structures and components.
Overcoming Manufacturing Hurdles with 3D Printing
Historically, the fabrication of miniature arrays of electrospray emitters has been a complex, costly, and time-consuming endeavor. These devices typically require intricate microfabrication processes performed within highly specialized semiconductor cleanrooms. Such environments demand significant capital investment and rigorous contamination control, severely limiting the scalability and widespread adoption of this promising technology.

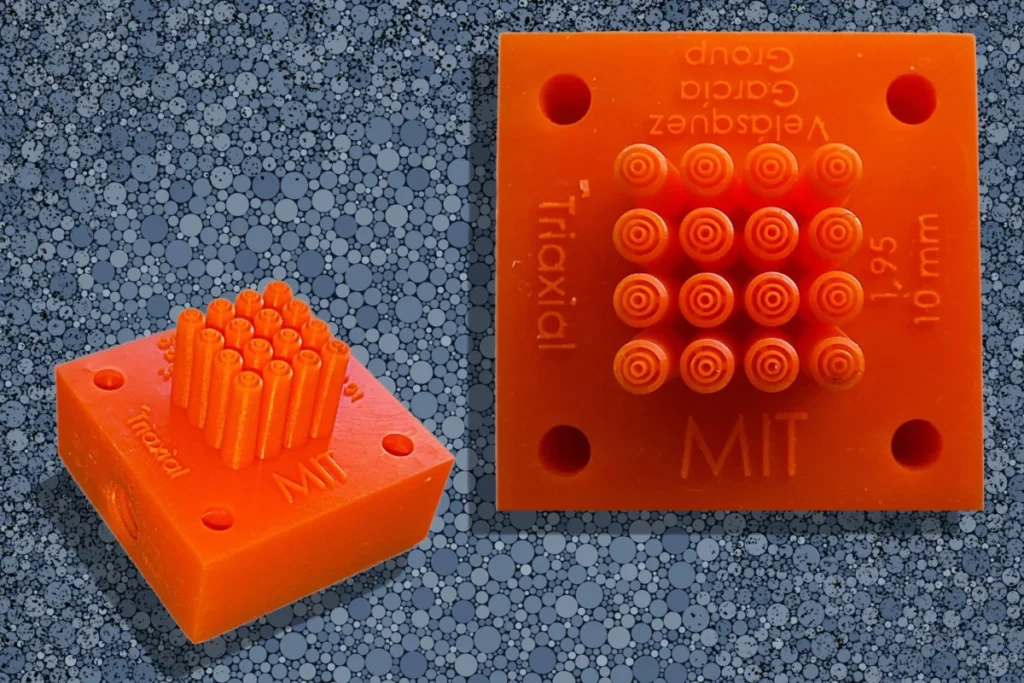

The MIT team, led by Dr. Luis Fernando Velásquez-García, a principal research scientist at MIT’s Microsystems Technology Laboratories (MTL), has ingeniously circumvented these traditional barriers. They have successfully 3D-printed arrays of triaxial electrospray emitters, each comprising 16 nozzles packed within an area of approximately one square centimeter. This remarkable feat of additive manufacturing has enabled the creation of intricate, three-dimensional microchannel networks that uniformly distribute liquid to each nozzle.
The beauty of this approach lies in its efficiency. The entire fabrication process is a single step, taking mere hours to produce complex emitter arrays that would otherwise take weeks or months to manufacture using conventional methods. This dramatic reduction in production time and cost is a significant breakthrough, democratizing access to advanced microfluidic technologies.
A Leap in Uniformity and Scalability
Rigorous testing of the 3D-printed arrays has confirmed their ability to generate uniform, three-layered droplets at a significant scale. This uniformity is a critical factor for high-throughput manufacturing, ensuring consistency in the properties of the resulting microparticles. Such consistency is paramount for applications ranging from biosensors, designed to detect specific chemical substances with high sensitivity, to artificial cells engineered for tissue regeneration and therapeutic purposes.
"We couldn’t make a device like this in a semiconductor cleanroom," stated Dr. Velásquez-García, the senior author of the paper detailing this advance, published in Virtual and Physical Prototyping. "This is only possible because they are 3D-printed. The particles these devices generate, whether they are used for a self-healing composite or to deliver medicine, can have a big impact in many applications. We want to democratize this technology so the benefits can touch many more people."
Bryan Ivan Quintanar-Abarca of the Technological Institute of Monterrey in Mexico, the lead author of the study, contributed significantly to this research, highlighting the collaborative nature of scientific advancement.
The Mechanics of Electrospray: A Precise Dance of Fluids
Electrospray emitters operate on a fundamental principle: applying a high voltage to a liquid as it exits a nozzle. This electrical charge causes the liquid to break apart into a fine mist of extremely small droplets. Triaxial devices elevate this capability by incorporating three concentric nozzles. These nozzles simultaneously emit three immiscible, or non-mixable, liquids. The result is a stream of layered droplets, which, upon solidification, yield compound microparticles with distinct, well-defined layers.
Consider a biosensing particle: one layer could house a specific chemical marker for detecting a particular pollutant, another for a viral antigen, and a third for a biological enzyme. Electrospray technology excels at producing these microdroplets far more rapidly and at smaller scales than many alternative techniques.
The effectiveness of electrospray devices is closely tied to miniaturization. Smaller emitters require lower voltages to generate droplets, leading to more energy-efficient operation. While a single emitter’s output might be modest, the creation of arrays with multiple emitters is essential for achieving high production volumes without compromising the uniformity of the droplets.
The Novelty of 3D-Printed Triaxial Arrays
The traditional reliance on semiconductor cleanrooms for multi-emitter electrospray devices has imposed constraints on the design flexibility of these components. These cleanroom processes often limit the achievable shapes and sizes of device elements, hindering the creation of highly complex geometries. Prior to this MIT research, there were no documented reports in the open literature of miniaturized triaxial electrospray arrays, underscoring the pioneering nature of this work.
"When you build a triaxial array, you need to find a way to create geometries that have many integrated parts and extremely fine structures in the smallest footprint possible. And you need to ensure the devices will work uniformly," explained Dr. Velásquez-García.
To achieve this intricate design, the researchers employed a sophisticated 3D-printing technique known as vat photopolymerization. This method utilizes light to selectively solidify thin layers of liquid resin, building the complex device layer by layer. The extreme precision of this process allowed the researchers to fabricate layers as thin as 25 micrometers, a mere fraction of the width of a human hair. This capability was crucial for constructing the complex internal geometry required for the triaxial electrospray emitter.
Refining the Design for Optimal Performance
The fabricated array, slightly larger than a U.S. penny, features a sophisticated internal network of coiled channels. These channels are meticulously designed to transport liquid to the 16 nozzles. The helical nature of these microchannels plays a vital role in maintaining a uniform spray of microdroplets across all the nozzles, while simultaneously ensuring the device remains as compact as possible.
"In a sense, the emitters in the array never learn they have company, or otherwise there would be cross-talking and causing interference between them. We achieved uniformity because of the work that went into our designs," Dr. Velásquez-García emphasized.
A significant fabrication challenge involved creating these microscopic channels without the need for support structures, which could potentially clog the device. Furthermore, ensuring the complete removal of any uncured resin before use was paramount. The microchannels are engineered to precisely funnel liquid to the concentric nozzles, which must be perfectly aligned to facilitate consistent and accurate microdroplet emission.
The ability to rapidly iterate on designs is a cornerstone of 3D printing’s advantage. "We were able to aggressively optimize the design because we could iterate in a much timelier manner. This ability to exquisitely refine designs is a key advantage of 3D printing," Dr. Velásquez-García noted.
The research team explored multiple design architectures, systematically adjusting liquid flow rates to identify the optimal combination for maximizing the stability and consistency of the emitted microdroplets. A particularly insightful finding was the significant role played by the viscosity of the middle liquid layer in achieving droplet stability. This layer acts as a crucial buffer, preserving the integrity and thickness of each individual fluid layer within the droplet.
Moreover, the researchers demonstrated that by fine-tuning flow rates and applied voltages, they could precisely control the thickness of each microdroplet layer. This level of control empowers scientists to design drug-delivery particles with exquisitely tailored layers, ensuring that medication is released at the exact intended time and rate.
Future Trajectories and Broader Impact
"By making such intricate devices more practical, we can empower others to pursue entrepreneurial and scientific advances," Dr. Velásquez-García stated, underscoring the democratizing potential of their work.
Looking ahead, the MIT team plans to further refine their fabrication processes and designs. Their future objectives include achieving even smaller dimensions for the emitters and integrating conductive or dielectric materials into the devices. These advancements will pave the way for the development of even more sophisticated and versatile electrospray emitter arrays with enhanced functionalities.
This pioneering research was supported, in part, by the Tecnológico de Monterrey – MIT Nanotechnology Program, a testament to the fruitful collaborations fostered between these leading institutions. The implications of this breakthrough extend far beyond academic curiosity, promising tangible advancements in healthcare, materials science, and beyond, making advanced manufacturing technologies more accessible and impactful for society.
