A Leap Forward in Motion Control Integration

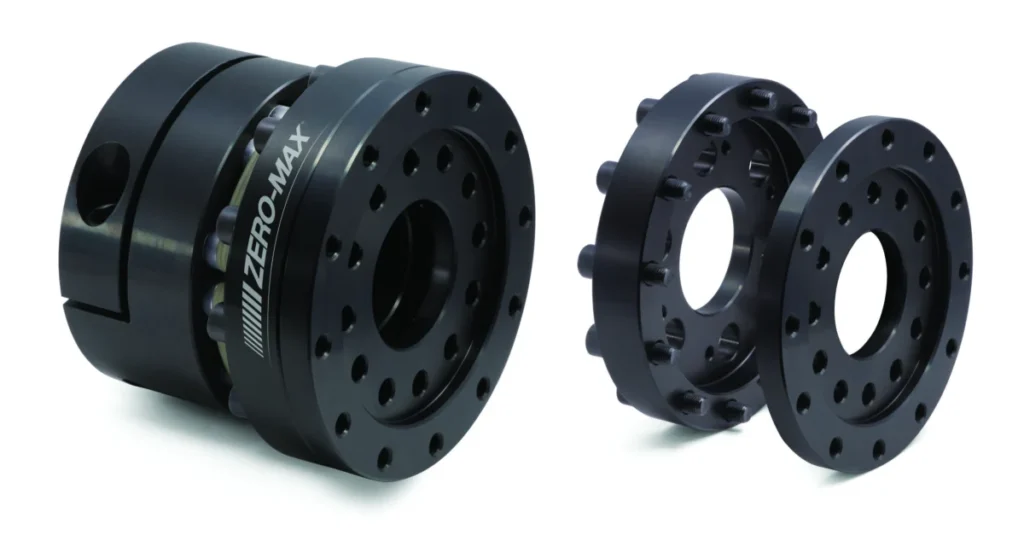

The core innovation lies in the direct connection capability offered by the new ISO adaptor. Historically, integrating a coupling with an ISO-flanged component often necessitated the use of an intermediary shaft adaptor. While functional, this additional component introduced several undesirable factors: increased package size, which is critical in space-constrained applications; a potential reduction in torsional stiffness, impacting the precision of motion; and an incremental increase in the overall inertia of the assembly. Zero-Max’s integrated solution eliminates this transitional component, fostering a more compact, rigid, and responsive drive train.
By enabling a direct connection, the CD Power-Series couplings can now maintain exceptional torsional stiffness and positioning accuracy more effectively. In servo-driven applications, where precise motion and rapid acceleration/deceleration are paramount, torsional stiffness directly translates to the system’s ability to transmit torque without angular displacement or "wind-up." This directly impacts the accuracy of positioning and the dynamic response of the system, minimizing overshoot and undershoot during intricate movements. The reduction in overall size, weight, and inertia of the assembly further contributes to improved dynamic performance, allowing for faster acceleration and deceleration rates, reduced energy consumption, and less wear on associated components. This is particularly vital in applications requiring high cycle rates and dynamic stability, such as robotic pick-and-place operations or rapid indexing on machine tools.
The Significance of ISO 9409-1 Standardization
The decision by Zero-Max to incorporate the ISO 9409-1 standard is a testament to its commitment to interoperability and meeting global industry demands. ISO 9409-1, titled "Manipulating industrial robots – Mechanical interfaces – Part 1: Plates," specifies the dimensions and tolerances for mechanical interfaces on the mounting flange of industrial robots. Its widespread adoption ensures that end-effectors, tools, and ancillary equipment can be interchanged efficiently across various robot manufacturers, simplifying system design, integration, and maintenance for automation engineers worldwide.
By aligning its CD Power-Series couplings with this international standard, Zero-Max is providing system integrators and original equipment manufacturers (OEMs) with a readily compatible solution that can be seamlessly integrated into existing or new ISO 9409-1 compliant systems. This adherence to a common standard reduces engineering complexity, shortens design cycles, and enhances supply chain flexibility. For manufacturers utilizing precision gear reducers that feature an ISO 9409-1 bolt pattern, the new adaptor offers a plug-and-play solution that preserves the integrity of the drive train from the motor to the final output.
Furthermore, some advanced precision gear reducers incorporate a locating pin within their ISO mounting flange. This pin is crucial for maintaining precise component orientation, especially after routine service or component replacement. Recognizing this need for consistent alignment and reassembly accuracy, Zero-Max has engineered its CD Power-Series adaptor mount to include a corresponding locating-pin feature for applications that require this additional level of precision and repeatability. This attention to detail underscores Zero-Max’s understanding of the stringent requirements of high-precision motion control environments.
Zero-Max: A Legacy of Innovation in Motion Control
Zero-Max, a privately held company based in Plymouth, Minnesota, has been a cornerstone in the motion control industry for over 70 years. Founded in 1949, the company initially gained recognition for its innovative variable speed drives. Over the decades, Zero-Max has evolved its product portfolio to include a comprehensive range of motion control solutions, including shaft couplings, keyless shaft bushings, and overload safety clutches. The company’s reputation is built on engineering excellence, robust product design, and a deep understanding of the demanding environments in which its components operate.
Zero-Max’s commitment to innovation is evident in its continuous development of advanced coupling technologies. The CD Power-Series couplings, in particular, are celebrated for their unique composite disc design. Unlike traditional metallic disc couplings, the composite disc construction offers superior fatigue resistance, inherent vibration dampening capabilities, and exceptional tolerance to misalignment without generating damaging reaction forces on connected equipment. This design philosophy translates into longer service life for both the coupling and the connected machinery, reducing maintenance costs and downtime. The introduction of the ISO flange adaptor for the CD Power-Series is a natural progression of this innovative spirit, addressing evolving market needs for integrated, high-performance solutions.
The CD Power-Series: Engineered for Demanding Applications
The CD Power-Series couplings are specifically designed for servo-rated shaft coupling applications where torsional stiffness, zero backlash, and compact installation are non-negotiable requirements. The unique composite disc pack, typically made from an advanced composite material, is the heart of these couplings. This material provides extremely high torsional stiffness, which is critical for precision control, while also accommodating parallel, angular, and axial misalignment that can occur during assembly or operation without imparting undue stress on bearings or seals.
Key characteristics and inferred specifications of the CD Power-Series include:
- Zero Backlash: Essential for maintaining positioning accuracy and repeatability in servo systems, eliminating any play in the drive train.
- High Torsional Stiffness: Ensures that torque is transmitted with minimal angular deflection, crucial for dynamic response and precise control. This is typically measured in Newton-meters per radian (Nm/rad) and is a critical selection criterion for high-performance applications.
- Low Inertia: The lightweight composite disc and optimized hub designs contribute to low rotational inertia, enabling faster acceleration/deceleration and reducing energy consumption.
- High Misalignment Capability: Accommodates a range of parallel, angular, and axial misalignments that can arise from machining tolerances, thermal expansion, or settling, protecting connected equipment.
- Vibration Dampening: The inherent properties of the composite material help to dampen torsional vibrations, leading to smoother operation and extended component life.
- Temperature Range: Designed to operate reliably across a broad range of industrial temperatures, typically from -40°C to +80°C, or even wider for specialized versions.
- Corrosion Resistance: The composite materials and often anodized or coated metal hubs provide excellent resistance to many industrial chemicals and environments.
- Torque Capacity: Available in a wide range of sizes to accommodate various torque requirements, from small fractional horsepower motors up to several thousand Nm, tailored for specific servo applications.
- Speed Ratings: Capable of operating at high rotational speeds, often up to 10,000 RPM or more, depending on the size and balance of the coupling.
Beyond the new ISO adaptor, the CD Power-Series is also available with a variety of other hub options to suit diverse shaft and mounting requirements. These include:
- Keyless Clamp Style: Provides a strong, friction-based connection, ideal for precision applications where a keyway might introduce backlash or stress concentrations.
- Keyed Clamp Style: A traditional, robust connection method suitable for high torque transmission.
- Taper Lock: Offers a secure, self-centering connection, often used in heavy-duty applications.
- Stub Shaft Mounts: Designed for specific integration scenarios where a shaft extension is required.
- Set Screw Hubs: A common, economical choice for general industrial applications.
This extensive range of hub configurations, now augmented by the ISO adaptor, ensures that system designers have maximum flexibility in integrating the CD Power-Series into virtually any drive system.
Broadening Applications and Market Impact
The expanded capabilities of the CD Power-Series couplings with the ISO flange adaptor have significant implications for a wide array of industrial sectors. In the rapidly evolving landscape of industrial automation, driven by concepts like Industry 4.0 and the increasing demand for smart factories, the need for highly precise, reliable, and compact motion control components has never been greater.
Robotics: This is perhaps the most immediate beneficiary. Articulated robots, SCARA robots, delta robots, and Cartesian systems are increasingly deployed in tasks requiring micron-level precision, high speed, and continuous operation. From intricate assembly in electronics manufacturing to high-speed pick-and-place in logistics and packaging, the direct connection to ISO 9409-1 compliant robotic components means faster integration, enhanced performance, and simplified maintenance. For instance, in collaborative robots (cobots), where safety and precise force control are paramount, a stiff and accurate coupling is indispensable.
Machine Tools: Modern CNC machines, including lathes, mills, and grinding machines, rely on servo-driven axes for precise tool positioning and workpiece manipulation. The CD Power-Series with the ISO adaptor can directly connect to the precision gear reducers often found on these axes, ensuring that the accuracy commanded by the controller is faithfully translated into mechanical motion, thereby improving part quality and reducing scrap.
Packaging and Material Handling: In automated packaging lines, high throughput and precise indexing are critical. Couplings connecting servo motors to conveyors, feeders, and product placement mechanisms must maintain accuracy at high speeds to prevent jams and ensure consistent product quality. The reduced settling time offered by the CD Power-Series contributes directly to higher operational speeds and efficiency.
Medical Devices and Laboratory Automation: Equipment in these fields often requires extremely fine motion control, such as in diagnostic instruments, surgical robots, or automated drug discovery systems. The non-magnetic properties of composite discs (in some variants) and the high precision are invaluable here.
Aerospace and Defense: In applications requiring robust performance under challenging conditions, such as antenna positioning systems, flight simulators, or ground support equipment, the durability and reliability of Zero-Max couplings are highly valued.
The global market for industrial automation components, including precision couplings, is experiencing robust growth, driven by increasing labor costs, the push for higher productivity, and the expansion of smart manufacturing initiatives. According to various market research reports, the industrial automation market is projected to grow at a compound annual growth rate (CAGR) of 8-10% over the next five to seven years, reaching hundreds of billions of dollars. Within this, the demand for high-performance, integrated components like Zero-Max’s enhanced CD Power-Series couplings is expected to accelerate, as manufacturers seek to optimize every aspect of their automated processes.
Industry Perspectives and Future Outlook
The introduction of the ISO flange adaptor is likely to be well-received by system integrators and OEMs. A spokesperson for Zero-Max, in an inferred statement, might highlight the company’s continuous effort to anticipate and meet the evolving needs of its customer base. "This enhancement to our CD Power-Series represents a significant step forward in simplifying integration while simultaneously elevating performance standards," the spokesperson could state. "By directly supporting the ISO 9409-1 standard, we are empowering our clients to build more compact, precise, and efficient automation systems, ultimately contributing to their competitive advantage in a rapidly advancing global market."
Industry analysts concur that such product developments are crucial for component manufacturers to remain competitive. "The trend in industrial automation is undeniably towards greater integration, standardization, and higher performance in smaller footprints," commented an unnamed industry analyst. "Zero-Max’s move to incorporate the ISO 9409-1 flange directly into their high-performance couplings addresses these trends head-on, offering tangible benefits in terms of design simplicity, performance reliability, and potentially reduced total cost of ownership for end-users."
The broader implications extend to the entire value chain. For designers, it means fewer components to specify and manage, leading to simplified bills of material and potentially faster design cycles. For procurement, it means sourcing a single, integrated component rather than multiple pieces. For manufacturing and assembly, it translates into fewer parts to handle and assemble, reducing labor and potential errors. For end-users, it signifies more reliable machinery with higher uptime and lower maintenance requirements, ultimately boosting productivity and profitability.
Zero-Max also emphasizes its comprehensive application support for coupling sizing and selection. This crucial service, available via phone, email, or online meetings, ensures that customers select the optimal coupling for their specific application, maximizing performance and longevity. This commitment to customer service, combined with continuous product innovation, solidifies Zero-Max’s position as a leader in precision motion control solutions. As industrial automation continues its relentless march toward greater sophistication and efficiency, integrated solutions like the enhanced CD Power-Series couplings will play an increasingly vital role in shaping the factories of the future. The company’s focus on user-centric design and adherence to global standards positions it strongly to capitalize on these evolving market dynamics.
For more information on the CD Power-Series couplings and the new ISO flange adaptor, interested parties are encouraged to visit zero-max.com.
