A groundbreaking study by researchers at the Massachusetts Institute of Technology (MIT) has introduced a novel class of mechanical metamaterials, dubbed "bifur-circuits," capable of dynamically transforming into an unprecedented array of shapes while maintaining intrinsic electronic intelligence. This innovation promises to revolutionize the design of interactive objects, reconfigurable antennas, and smart hardware by embedding sensing capabilities directly within their physical structure, eliminating the need for bulky mechanical components. The research, which will be formally presented at the ACM Symposium on User Interface Software and Technology, showcases prototypes ranging from a multi-functional chair that converts into a table with integrated storage to advanced antennas that can adjust their frequencies in real-time.
The Dawn of Intrinsically Intelligent Hardware
At the core of this breakthrough are mechanical metamaterials – sophisticated, three-dimensional structures composed of repeating units whose unique geometries allow them to form complex shapes under mechanical stress. Unlike conventional materials, metamaterials are engineered at a microscopic level to exhibit properties not found in nature, such as negative refractive index or, in this case, precise and programmable deformation. When subjected to forces like squeezing, pushing, or pulling, these structures can bend or twist in highly predictable and controllable ways.
A notable subset, "auxetic" metamaterials, are particularly intriguing. Counter-intuitively, these materials expand perpendicularly when stretched, rather than narrowing, a property that has captivated material scientists for decades. Previous work by the MIT team successfully leveraged auxetic metamaterials to construct reconfigurable antennas. These earlier prototypes could switch between three distinct shapes, enabling the antenna to dynamically adjust its operating frequency range without requiring complex, external moving parts – a significant leap towards more versatile communication and sensing devices. However, the researchers quickly encountered a limitation: these auxetic structures could only achieve a fixed, albeit limited, number of configurations. This inherent constraint prompted the team to explore new avenues for expanding the design space and functional versatility of these shape-changing systems.
Addressing Limitations: The Genesis of Bifur-Circuits
The challenge lay in vastly increasing the number of potential configurations without escalating mechanical complexity. This quest led to the development of bifur-circuits, a sophisticated evolution of auxetic metamaterials. What sets bifur-circuits apart is their ability to achieve a multitude of shapes based on how their modular units are interconnected and rotated. More critically, these units are also designed to be electrically modular, integrating conductive materials in such a way that electrical connections are seamlessly maintained throughout the entire structure, regardless of how it is twisted, pressed, or rotated into new configurations. This seamless electrical continuity is paramount, allowing the structure to "sense" its current shape and relay that information to an electronic display or control system.
Marwa AlAlawi, a mechanical engineering graduate student and the lead author of the paper detailing these devices, underscored the transformative potential. "Metamaterials can make complex mechanical assemblies easy to manufacture just by using repeating units," AlAlawi explained. "Our work expands on this design space. If we think of mechanical metamaterials as building blocks, then our work is one way to take advantage of their geometry to embed intrinsic intelligence into hardware, which could open many possibilities." This perspective highlights a paradigm shift from traditional hardware, where intelligence is typically added through external sensors and processors, to hardware that inherently possesses self-awareness of its physical state.
Harnessing Mechanical Bifurcation for Exponential Versatility
The key to bifur-circuits’ expanded reconfigurability lies in leveraging a principle known as mechanical bifurcation. This phenomenon describes a sudden, often dramatic, change in a mechanism’s behavior when a force applied to it crosses a critical threshold – a "tipping point." A common example is the buckling of a plastic ruler when gently bent: once the force reaches a certain magnitude, the ruler abruptly snaps into a new stable state.

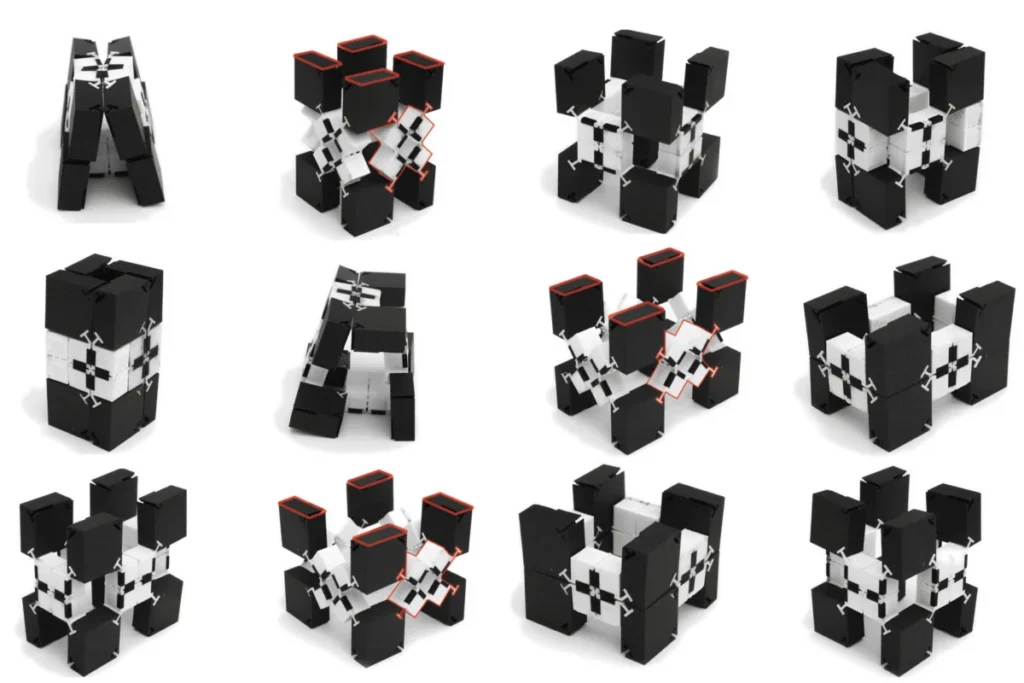

In bifur-circuits, this principle is meticulously engineered. When connected blocks within the structure are rotated in specific ways around a pivot point, they trigger a bifurcation event. This allows connected blocks to form a far greater number of stable configurations than a single, isolated block could achieve on its own. The genius of the design is that by adding more bifur-circuit units to a structure, the number of potential configurations increases exponentially. This means that even a modest increase in physical components can lead to a geometric explosion in functional versatility, offering unparalleled adaptability. "Bifurcation allows us to significantly expand on this reconfigurability space," AlAlawi noted. "Just adding one extra unit gives us so many more combinations out of the same structure." This exponential growth in configurability is a critical enabler for the wide range of applications envisioned by the research team.
Engineering Challenges and Robust Solutions
The journey to developing bifur-circuits was not without its technical hurdles. One of the most significant challenges involved incorporating a conductive material that was not only flexible enough to withstand repeated bending and twisting but also efficient in allowing the flow of electricity. Achieving this delicate balance was crucial for ensuring the continuous electrical connectivity that underpins the system’s embedded intelligence. "The conductive material was a constraint we had to work around in the design process, and it dictated how the sensing between blocks would happen," AlAlawi revealed, highlighting the iterative nature of the design process.
Through meticulous engineering, the team perfected their design, creating structures that proved remarkably robust. In rigorous durability tests, the reconfigurable structures were subjected to more than 10,000 compression cycles. Crucially, these extensive tests demonstrated no degradation in electrical connectivity, a vital indicator of the technology’s readiness for real-world applications where reliability and longevity are paramount. This robust performance suggests that bifur-circuits can withstand significant physical stress and repeated transformations without compromising their integrated electronic functions.
To further accelerate the adoption and development of bifur-circuit applications, the researchers also developed a user-friendly construction and simulation tool. This intuitive software streamlines the design process, allowing engineers and designers to conceptualize and test bifur-circuit configurations with ease. The tool can then generate instructions for a multimaterial 3D printer, enabling the fabrication of complex, reconfigurable objects in a single pass. This integrated design-to-fabrication workflow significantly lowers the barrier to entry for innovators looking to leverage this new class of intelligent metamaterials.
Demonstrations and Broader Implications
The versatility of bifur-circuits was vividly demonstrated through several compelling prototypes. One notable example was a chair designed to sense its geometry. When physically transformed into a tea table, the structure instantaneously recognized its new configuration and communicated this change, potentially activating corresponding digital interfaces or functionalities. Another demonstration involved a shape-shifting controller that could launch different video games based on its current physical arrangement, showcasing a novel paradigm for human-computer interaction where physical form directly dictates digital function.
The implications of bifur-circuits extend far beyond smart furniture and gaming. The technology holds immense promise across diverse sectors:
- Interactive Rehabilitation Tools: Imagine physical therapy devices that dynamically adjust their resistance or form based on a patient’s progress, providing personalized and adaptive support.
- Modular Soft Robots: Bifur-circuits could enable the creation of highly adaptable grippers and robotic limbs that can change their shape to manipulate objects of varying sizes and fragility, enhancing the dexterity and versatility of soft robotics.
- Reconfigurable Antennas for Advanced Communications: Building on earlier work, bifur-circuits can create antennas for 5G, satellite communication, and IoT devices that dynamically adjust their frequency, beam patterns, and polarization in response to changing environmental conditions or communication needs. This eliminates the need for complex, failure-prone mechanical steering mechanisms, leading to more robust and efficient wireless systems.
- Emergency Response and Disaster Relief: The rapid deployment of reconfigurable shelters that can adapt their shape and size to different terrains or respond to evolving environmental conditions after a natural disaster represents a critical application.
- Smart Infrastructure and Adaptive Architecture: Buildings and urban spaces could incorporate elements that dynamically reconfigure, optimizing for light, ventilation, or space utilization based on real-time needs.
- Personalized Consumer Electronics: Devices could morph to better fit user ergonomics or adapt to different modes of operation, offering a new level of customization and user experience.
- Manufacturing and Assembly: Simplified production of complex mechanical assemblies, as suggested by AlAlawi, could lead to more efficient and cost-effective manufacturing processes, particularly for products requiring high degrees of customizability or functionality.
A Collaborative Effort and Future Outlook
The research is a testament to interdisciplinary collaboration. Marwa AlAlawi, from MIT’s Mechanical Engineering department, led the charge, supported by co-senior authors Ticha Sethapakdi, an electrical engineering and computer science (EECS) graduate student at MIT, and Stefanie Mueller, an associate professor in MIT’s departments of EECS and Mechanical Engineering, who also leads the Human-Computer Interaction Group at the Computer Science and Artificial Intelligence Lab (CSAIL). Their extensive network of collaborators includes researchers from other departments at MIT, the University of Tokyo, and the University of Michigan, highlighting the global scientific interest and collective effort behind this innovation.
Looking ahead, the research team is eager to explore an even broader spectrum of applications for bifur-circuits. Their future endeavors include integrating more advanced interactivity into these structures and investigating additional metamaterial shapes and geometries to further expand the design possibilities. The ultimate vision is to create truly universal mechanical building blocks.
"Bifur-circuits are one step toward developing mechanical building blocks with integrated intelligence," AlAlawi concluded, casting a forward-looking gaze on the trajectory of this research. "It would be interesting to build on this work and come up with building blocks that allow us to create a structure with any form or shape we want, and which are structurally stable and can be actuated." This ambition points towards a future where physical objects are not static constructs but dynamic, intelligent entities capable of profound adaptation and interaction, blurring the lines between hardware and software.
This pioneering work was made possible, in part, through generous funding from Japan’s Science and Technology Agency and the Bahrain Crown Prince International Scholarship Program, underscoring the international support for cutting-edge research poised to reshape our technological landscape. As bifur-circuits move from the lab to real-world deployment, they promise to unlock a new era of interactive, intelligent, and infinitely adaptable hardware.
