In 2022, the global construction sector was a significant contributor to environmental challenges, accounting for over 7 percent of total carbon emissions. This stark reality underscores the urgent need for innovative solutions within the building and infrastructure industries. A key area of focus has been the optimization of material usage, a pursuit that has seen the emergence of techniques like topology optimization. While this powerful computational method holds the promise of drastically reducing the amount of material required for structural designs—potentially by as much as 90 percent, translating to multi-gigaton reductions in building-related emissions—its widespread adoption in large-scale engineering projects has been hampered by practical limitations.
Traditionally, topology optimization has been largely confined to research laboratories, primarily utilized for applications such as 3D printing where complexity is more readily accommodated. The fundamental challenge hindering its integration into the design of buildings, bridges, and other substantial infrastructure lies in the constructability of the resulting designs. Engineers and contractors are inherently bound by stringent timelines and budgetary constraints, and designs generated by standard topology optimization algorithms often prove too intricate and unconventional to be efficiently and economically built using conventional construction methods. This disconnect between theoretical material savings and practical implementation has been a persistent barrier to realizing the full environmental potential of this technology.
Addressing this critical gap, researchers at the Massachusetts Institute of Technology (MIT) have developed a groundbreaking framework that bridges the divide between advanced computational design and real-world construction feasibility. This innovative approach, detailed in a recent publication in the journal Automation in Construction, empowers users to impose specific constraints on algorithmically generated structures, thereby limiting their complexity and enhancing their buildability.
A New Era for Structural Design Optimization
The core innovation of the MIT framework lies in its ability to allow users to define practical limitations on the generated designs. For instance, engineers can now set parameters to control the number of components that converge at any given point in a structure, thereby simplifying connection details. They can also specify the minimum size of individual structural elements, ensuring that parts are substantial enough to be handled and assembled using standard construction practices. This granular control over design complexity is pivotal in transforming theoretically efficient structures into practically achievable ones.
Senior author Josephine Carstensen, MIT’s Gilbert W. Winslow (1937) Career Development Professor in Civil Engineering, emphasized the integrated nature of their solution. "There’s an interplay between the materials you’re using, the constructability of designs, and the optimization of the structure," she stated. "You need to be able to address all three at the same time. That’s what we tried to do here." This holistic approach recognizes that optimal material usage cannot be achieved in isolation; it must be intrinsically linked to the practicalities of the construction process and the inherent properties of the materials employed.
The researchers demonstrated the efficacy of their framework by designing various steel, wood, and multi-material truss structures. These structures are fundamental components in supporting loads in buildings and bridges. Their simulations revealed that the carbon emissions associated with material selection and usage varied significantly depending on the constraints applied, highlighting the direct link between design choices and environmental impact. The ultimate goal of this research is to pave the way for topology optimization to become a standard tool in the real-world construction industry.
Professor Carstensen further elaborated on the historical disconnect: "In the literature, there’s sometimes been a disconnect between the carbon savings you can achieve on a computer and the realistic carbon savings you can achieve for built structures—especially when it comes to design technologies like topology optimization. The problem lies in the lack of constructability of designs. These designs have been perceived as too difficult to make with conventional methods, so they are never even attempted. That’s what is exciting about our approach: We can add constraints so that you will never be in a situation where the design that comes out is too hard to make."
The research paper’s first author is Zane Schemmer, a PhD student in civil and environmental engineering at MIT, who played a pivotal role in conceptualizing and developing the framework.
The Obstacles to Industry Adoption
The concept of topology optimization, which leverages computational algorithms to determine the optimal distribution of material within a given design space for maximum strength at minimum weight, has existed for decades. However, its application has often resulted in intricate, web-like structures that pose significant challenges for conventional construction.
"A big question Josephine and I were asking is why isn’t industry using it?" Schemmer recalled. "What are the obstacles that prevent industry from designing things more efficiently, and how can we fill the gaps between research and real life?" This inquiry into the practical barriers to adoption drove their research.
While several recent efforts have aimed to simplify the use of topology optimization, Schemmer and Carstensen sought to synthesize these advancements and introduce novel capabilities, particularly the design of multi-material structures, which has been another area of difficulty in the field.
Integrating Material Science and Constructability
The sustainability imperative extends beyond merely reducing material volume; it encompasses the efficient deployment of materials based on geographical availability, cost, and their associated carbon footprints. "A big aspect of sustainability going forward will be not only using less material, but also implementing materials efficiently based on considerations like where you are in the world, your access to materials, and each of their associated carbon costs," Schemmer explained.
To achieve this, the MIT team employed mixed integer algorithms, a class of mathematical tools adept at making binary decisions regarding material selection and component connections. This ensures that designs are composed of discrete materials rather than hypothetical hybrid substances. "You can’t have a part that’s 72 percent timber and 28 percent steel," Schemmer illustrated. "Instead, it says, ‘This truss or cable is going to be made out of this,’ and then based on that decision, how do we make sure all of these connections meet their strength standards?"
Crucially, the framework integrates material properties into the design process. For example, it recognizes that while steel is excellent for compressive loads in struts, it is unsuitable for tensile loads in cables. The model also incorporates more realistic representations of how different components connect, a significant improvement over previous methods that often oversimplified these critical interfaces.
"In 3D printing, the way things come together is easy," Carstensen noted. "In construction, that’s not the case. If you’re building with timber there’s a certain rule set, versus steel has a different rule set." The MIT framework acknowledges and codifies these distinct construction rule sets for different materials, ensuring that designs are not only structurally sound but also amenable to established building techniques.
Furthermore, users can fine-tune the complexity of their designs by specifying parameters such as the maximum number of connections allowed at each joint and the minimum angle between connected components. The inclusion of minimum part size limits further enhances the practical constructability of the generated structures.
"It’s tough to give a contractor these complex, intricate designs because it’s going to be super difficult to build," Schemmer observed. "A lot of times contractors won’t pick up a project like that to begin with." The MIT framework directly addresses this by ensuring that the output is inherently buildable.

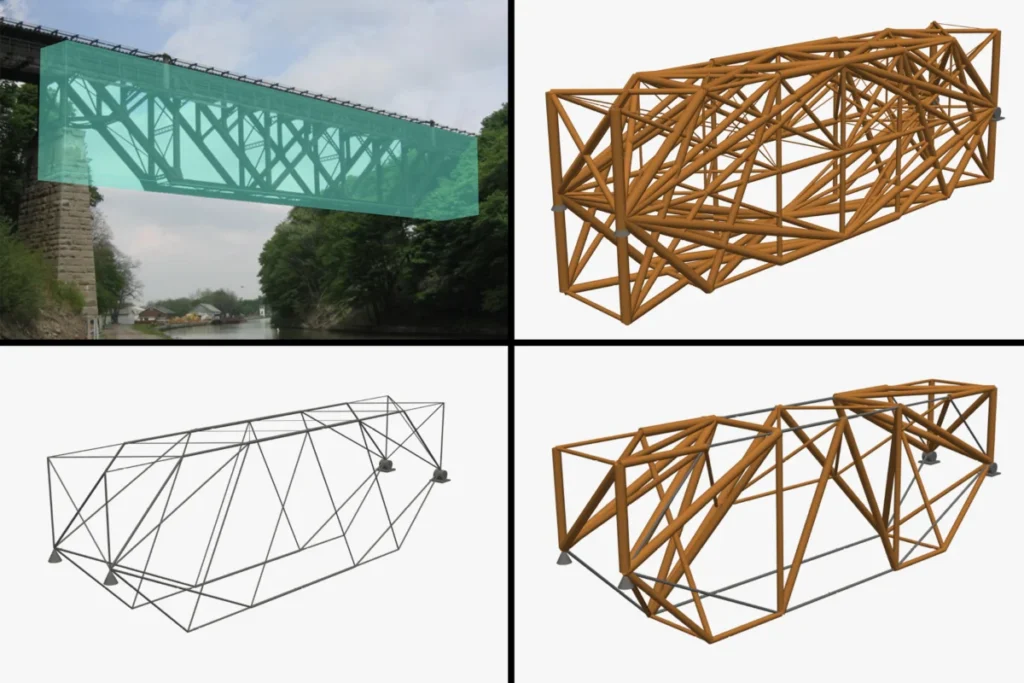

To validate their approach, the researchers compared structures designed using their constrained optimization method with those produced by conventional topology optimization. The differences were substantial, fundamentally altering how the structures would be built. As a case study, they analyzed the truss design of the Lockport "Upside-Down Bridge" near Buffalo, New York. By applying individual constraints, such as minimum angles for part connections or minimum part sizes, they gained insights into how each constraint influenced the final structural forms and their potential constructability.
Finally, the team generated truss designs utilizing wood exclusively, steel exclusively, and a combination of wood and steel. This analysis demonstrated the trade-offs inherent in different material choices regarding environmental impact and constructability, offering a nuanced perspective on sustainable design. "We saw how the system knew that you could design a bridge of pure steel, but that might not be best from a carbon standpoint," Schemmer remarked. "Or you could design a bridge out of purely timber, but that might not be the strongest. But these materials can work together, so you use timber for the carbon savings and steel where you need extra strength, and there’s a balance you can find in these structures."
Bridging the Gap: From Research to Real-World Application
While the MIT framework is more computationally intensive than some alternative methods, the researchers highlighted its practical feasibility. They successfully ran the programs on a MacBook Pro, suggesting that the computational demands are well within the reach of most civil engineering firms.
"It’s computationally a little tougher to solve, but there’s a lot of tools coming out nowadays that make these problems a lot more feasible," Schemmer stated. "This approach has been avoided by industry in the past, but now we think it’s a practical way to solve problems dealing with variable constraints."
The researchers are optimistic that with greater computational resources, their approach can be scaled to design much larger and more complex structures across a wider array of materials, extending beyond homes, small buildings, and bridges to encompass major infrastructure projects.
Looking ahead, Professor Carstensen indicated that the team plans to construct scaled-down physical models of structures designed by their framework. This empirical validation will further confirm the accuracy of their computational predictions. Additionally, they aim to incorporate more constraints into the model to streamline its integration into the workflows of civil engineers tasked with designing the world’s infrastructure.
The motivation behind this research is deeply rooted in addressing the climate crisis. "As a structural engineer by training, I was never taught how to design for low-carbon," Schemmer admitted. "To tackle a problem as big as climate change, addressing the built environment is a great place to start. One of the most tangible things we can do is work at the layer of construction, at the design stage, because that’s a fundamental step that we can control. There’s a lot of decisions we make early on that lead us to use extra material we don’t need."
This work was made possible through funding from the MIT Morningside Academy for Design, underscoring the institution’s commitment to fostering innovative solutions for pressing global challenges. The development of this practical topology optimization framework represents a significant stride towards a more sustainable and resource-efficient future for the construction industry.
Broader Implications and Future Directions
The implications of this research extend far beyond theoretical material savings. By making topology optimization designs more constructible, the MIT framework has the potential to:
- Significantly Reduce Embodied Carbon: Embodied carbon, the emissions associated with the extraction, manufacturing, and transportation of building materials, is a substantial component of the construction sector’s environmental footprint. Reduced material usage directly translates to lower embodied carbon.
- Lower Construction Costs: While initial design optimization might require more computational effort, the use of less material can lead to substantial cost savings in material procurement, transportation, and potentially labor for simpler construction processes.
- Enhance Structural Performance: Topology optimization, when properly constrained, can lead to structures that are not only lighter but also more resilient and efficient in distributing loads, potentially leading to improved safety and longevity.
- Foster Material Innovation: The ability to design with multiple materials in an optimized way encourages the exploration and efficient use of sustainable and recycled materials, further contributing to environmental goals.
- Democratize Advanced Design: By making complex optimization techniques more accessible and practical, this framework could empower a wider range of engineering firms to adopt more sustainable design practices, rather than limiting them to highly specialized research institutions or large corporations.
The researchers’ commitment to building physical prototypes further solidifies the credibility of their findings and provides a tangible link between computational design and real-world performance. This iterative process of design, simulation, and physical testing is crucial for the eventual widespread adoption of such advanced engineering tools. As the global focus on climate change intensifies, innovations like the MIT framework offer a clear and actionable path towards a more sustainable built environment, starting at the fundamental stage of design. The integration of environmental considerations directly into the optimization process, coupled with practical constructability constraints, marks a pivotal moment in the evolution of structural engineering.
