A groundbreaking advancement in material science has emerged from Penn State University, where researchers have developed a novel fabrication technique to create highly adaptable, multifunctional "smart synthetic skin." This innovative material, inspired by the remarkable capabilities of cephalopods like octopuses, can be programmed to perform a diverse array of tasks, ranging from concealing and revealing information to enabling dynamic camouflage and supporting the development of sophisticated soft robotic systems. The findings, published in the prestigious journal Nature Communications, have been recognized with an Editors’ Highlight, underscoring their significant scientific merit and potential impact.
The core of this breakthrough lies in a new approach to material design and fabrication led by Hongtao Sun, an assistant professor of industrial and manufacturing engineering (IME) at Penn State. Unlike conventional synthetic materials, which are typically engineered for a singular purpose and possess fixed behaviors, this smart skin is constructed from a programmable hydrogel. Hydrogel, a soft, water-rich material, serves as the foundation for a material that can be dynamically tuned to respond to various external stimuli, including heat, solvents, and physical stress. This responsiveness allows for adjustments in its appearance, mechanical properties, surface texture, and even its ability to change shape, offering unprecedented versatility.
A Biomimetic Approach: Learning from the Ocean’s Masters
The inspiration for this advanced synthetic material draws directly from the natural world, specifically from the astonishing skin adaptability of cephalopods. Octopuses, squids, and cuttlefish are renowned for their ability to instantaneously alter their skin’s color, pattern, and texture, enabling them to communicate, evade predators, and ambush prey with remarkable efficacy.
"Cephalopods utilize a complex interplay of muscles and nerves to achieve dynamic control over their skin’s appearance and texture," explained Sun, the principal investigator of the research project. "We sought to emulate this biological marvel in a synthetic, soft material by developing a 4D-printing system that captures that concept."
The term "4D printing" is employed because the resulting printed objects are not static entities. Instead, they possess the inherent capability to actively change and adapt their form and function in response to specific environmental conditions. This additive manufacturing process, when combined with the unique properties of hydrogels and the encoded digital instructions, unlocks a new paradigm in material engineering. Sun, who also holds affiliations with Penn State’s biomedical engineering, material science and engineering departments, and the Materials Research Institute, highlighted that this research builds upon earlier work by his team on 4D-printed smart hydrogels, which focused on integrating mechanical properties with programmable transitions between flat and three-dimensional forms.
Halftone-Encoded Printing: Imprinting Digital Instructions
The key to achieving this intricate level of adaptability lies in a sophisticated fabrication method known as halftone-encoded printing. This technique involves translating digital image or texture data into a binary code of ones and zeros, which is then directly embedded within the hydrogel material. This process is conceptually similar to how halftones are used in traditional printing and photography to create continuous tones from discrete dots.
By encoding these digital patterns within the hydrogel matrix, the researchers can precisely dictate how specific regions of the smart skin will react to different stimuli. The printed patterns act as a set of "digital instructions" that govern the material’s behavior. For instance, when exposed to variations in temperature, the presence of specific liquids, or mechanical forces, certain areas of the material might be programmed to swell, shrink, or soften to a greater extent than others. Through meticulous design of these halftone patterns, the team can engineer the material’s overall macroscopic behavior with remarkable control.
"In simple terms, we are printing instructions directly into the material," Sun elaborated. "These instructions essentially tell the skin how to react when something changes in its surrounding environment." This paradigm shift moves beyond passive materials to actively responsive ones, opening up a vast landscape of potential applications.
Concealing and Revealing Information: A New Era of Digital Security and Camouflage
One of the most compelling demonstrations of the smart skin’s capabilities is its ability to dynamically conceal and reveal visual information on demand. Haoqing Yang, a doctoral candidate in IME and the lead author of the Nature Communications paper, emphasized the significant implications of this functionality.

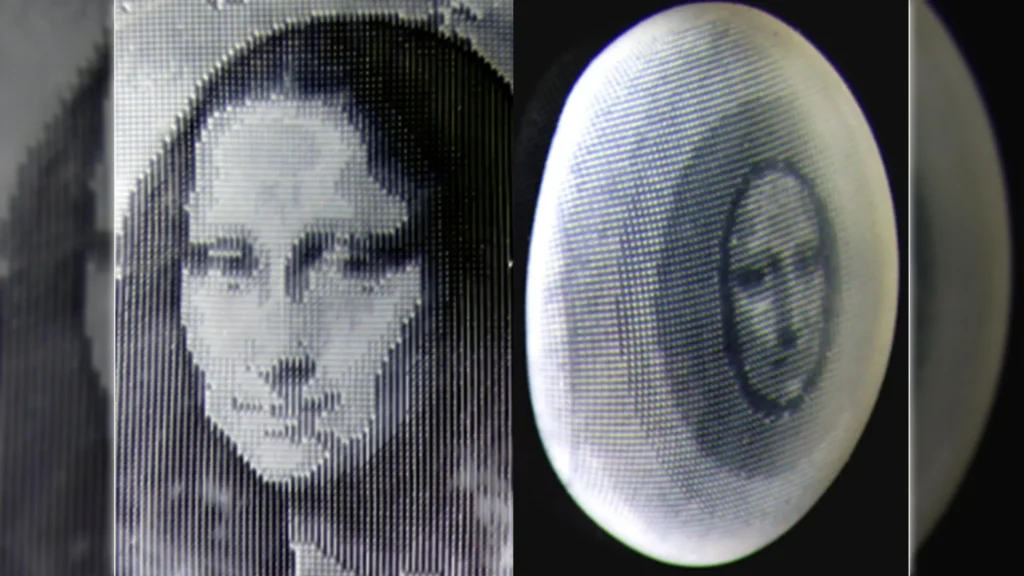

In a striking visual experiment, the research team encoded an image of Leonardo da Vinci’s Mona Lisa into a thin film of the smart hydrogel. When this film was exposed to ethanol, a common solvent, it became transparent, rendering the embedded image completely invisible. The hidden masterpiece then reappeared with remarkable clarity only after the film was submerged in ice water or gradually warmed.
Yang noted that the Mona Lisa was used purely as a representative example, illustrating the principle of information concealment. The halftone-encoded printing technique is versatile enough to embed virtually any image or pattern into the hydrogel. This opens up exciting possibilities for advanced camouflage systems, where surfaces could seamlessly blend into their surroundings by altering their appearance in response to environmental cues. Furthermore, the technology holds immense potential for information encryption, allowing sensitive messages or data to be hidden and revealed only under specific, predetermined conditions.
Adding another layer of security and versatility, the researchers also demonstrated that concealed patterns could be detected not only visually but also through mechanical interaction. By gently stretching the material and employing digital image correlation analysis to study its deformation patterns, they could discern the presence of hidden designs. This means that information could be accessed or verified through physical manipulation, offering a robust alternative or complement to visual revelation.
Shape-Shifting and Multifunctionality: A Single Material, Multiple Transformations
Beyond its visual adaptability, the smart synthetic skin exhibits remarkable flexibility in its ability to change shape. According to Sun, the material can readily transform from a simple flat sheet into complex, bio-inspired three-dimensional forms with intricate surface textures. A significant advantage of this technology is that such transformations do not necessitate the use of multiple layers or different constituent materials, a common limitation in many existing shape-changing materials.
Instead, the entire process of shape and texture alteration is orchestrated by the digitally printed halftone patterns within a single, monolithic sheet of hydrogel. This elegant solution allows the material to replicate the sophisticated effects observed in cephalopod skin with unprecedented simplicity.
The research team further showcased the potential for integrating multiple functions within a single material. By carefully designing the halftone patterns, they successfully encoded the Mona Lisa image into flat films that subsequently transformed into three-dimensional shapes. As these films curved into dome-like structures, the hidden image gradually emerged, demonstrating that changes in shape and visual appearance can be coordinated and synchronized within one material.
"Much like how cephalopods seamlessly integrate body shape and skin patterning, our synthetic smart skin can simultaneously control its visual appearance and its physical deformation, all within a single, soft material," Sun emphasized. This ability to achieve integrated functionality without resorting to complex multi-material assembly is a significant leap forward in the field of smart materials.
Implications and Future Directions: A Platform for Innovation
The implications of this breakthrough are far-reaching, spanning multiple scientific and industrial domains. The development of a scalable and versatile platform for precise digital encoding of multiple functions within a single adaptive material promises to revolutionize fields such as advanced manufacturing, intelligent systems, and biomimetic engineering.
The researchers envision a future where this smart synthetic skin could be integrated into a wide range of applications. In the realm of defense and security, it could lead to highly effective adaptive camouflage for vehicles and personnel, as well as sophisticated anti-counterfeiting measures and secure data storage. In robotics, the material’s soft, adaptable nature could pave the way for more dexterous and human-like robots capable of interacting safely and intuitively with their environment. Biomedical devices could also benefit from this technology, with potential applications in advanced prosthetics, smart bandages that monitor and respond to wound conditions, or even implantable sensors.
"This interdisciplinary research, situated at the nexus of advanced manufacturing, intelligent materials, and mechanics, unlocks new avenues with broad implications for stimulus-responsive systems, biomimetic engineering, advanced encryption technologies, biomedical devices, and much more," Sun stated.
The study involved several key contributors from Penn State, including doctoral candidates Haotian Li and Juchen Zhang from IME, and Tengxiao Liu, a lecturer in biomedical engineering. Collaborative efforts also extended to H. Jerry Qi, a professor of mechanical engineering at the Georgia Institute of Technology, who contributed to the project.
The successful development of this programmable smart synthetic skin represents a significant step forward in our ability to engineer materials that can actively sense, respond, and adapt to their surroundings. By bridging the gap between biological inspiration and advanced manufacturing techniques, Penn State researchers have not only created a fascinating new material but have also laid the groundwork for a future where materials are as dynamic and intelligent as the natural world itself. The ongoing research aims to further refine the scalability and versatility of this platform, promising even more innovative applications as the technology matures.
