Researchers from ETH Zurich and EPFL have introduced a groundbreaking particle detection strategy that promises to revolutionize the search for elusive particles like neutrinos and dark matter candidates, while also holding significant implications for medical imaging. Published recently in Nature Communications, this innovation, developed under the PLATON project, leverages advanced light field camera technology and artificial intelligence to reconstruct the three-dimensional paths of elementary particles within large, unsegmented blocks of scintillator material. This approach directly addresses the escalating complexity and cost associated with conventional segmented detectors, which are increasingly challenged by the demands of modern high-resolution experiments.
The Enduring Challenge of Particle Detection
The quest to understand the universe’s fundamental constituents often hinges on detecting particles that rarely interact with ordinary matter. Neutrinos, for instance, are notoriously difficult to observe, passing through light-years of lead without interaction. Similarly, hypothesized dark matter particles, which are believed to constitute about 27% of the universe’s mass, remain undetected due to their weak interactions. To capture the faint signals produced by these particles, physicists typically employ massive detectors, striving for both larger volumes and enhanced spatial resolution. However, scaling up traditional detector designs often leads to prohibitive complexity, cost, and logistical challenges.
Conventional particle detectors, particularly those used to reconstruct the three-dimensional (3D) trajectories of elementary particles, rely heavily on segmented scintillators. When a charged particle traverses a scintillator, it generates tiny flashes of visible light. To pinpoint the particle’s precise location and trajectory, these scintillators are traditionally divided into millions of small, active sections. Each section is then coupled with optical fibers that collect the photons and guide them to highly sensitive photodetectors, such such as photomultiplier tubes (PMTs) or silicon photomultipliers (SiPMs), which count the individual photons.
While this segmented approach has achieved remarkable precision, it presents significant scalability hurdles. For example, the T2K neutrino-oscillation experiment in Japan utilizes a detector comprising approximately two tons of sensitive material, meticulously assembled from about two million individual scintillator cubes and 60,000 optical fibers. Similarly, at CERN and the Paul Scherrer Institute, experiments like LHCb and Mu3e push the boundaries of spatial resolution, achieving sub-millimeter precision by deploying millions of thin scintillating optical fibers. These systems, while demonstrating the pinnacle of segmented detector capabilities, simultaneously underscore a critical and growing problem: the manufacturing, precise assembly, and electronic readout of millions of individual components become a formidable technological and financial bottleneck as detectors grow larger. The sheer volume of components not only inflates material costs but also demands highly specialized, time-consuming fabrication processes and intricate wiring, pushing the budgets of large-scale physics experiments into the hundreds of millions, if not billions, of dollars.
A Paradigm Shift: The PLATON Innovation
Recognizing these escalating limitations, a collaborative team of researchers at ETH Zurich and EPFL has embarked on a radically different strategy. Instead of segmenting the detector into myriad tiny units, their proposed system, dubbed PLATON (Plenoptic Advanced Tracking Of Neutrinos), utilizes advanced camera technology to reconstruct the light’s origin within a large, unsegmented block of scintillator material. This innovative concept aims to achieve high-resolution 3D particle imaging while drastically simplifying the detector’s physical construction.
The core development team includes PhD student Till Dieminger, senior scientist Dr. Saúl Alonso-Monsalve, and Professor Davide Sgalaberna from ETH Zurich, alongside colleagues in Professor Sgalaberna’s group. They collaborated with members of the Advanced Quantum Architecture Lab at EPFL in Lausanne, led by Professor Edoardo Charbon, who contributed expertise in advanced sensor technology. Their combined effort culminated in the design, development, and testing of the first prototype, marking a significant departure from established particle tracking methodologies.
Leveraging Light Field Photography for Physics
The PLATON detector draws its fundamental inspiration from plenoptic cameras, commonly known as light field cameras – a technology more typically found in consumer electronics or specialized industrial imaging. Unlike conventional cameras that primarily record the intensity of incoming light, a light field camera captures not only intensity but also crucial information about the direction from which the light originates. This unique capability allows it to recover depth information and reconstruct a scene in three dimensions from a single exposure.
The technological linchpin of a light field camera is a micro-lens array (MLA) positioned between the camera’s main lens and its imaging sensor. This MLA comprises an array of microscopic lenses, each acting as a tiny, independent camera. Each micro-lens captures the same scene, but from a slightly different perspective. When the data from all these individual micro-lenses are computationally combined, the system can reconstruct a comprehensive "light field," which precisely describes the intensity, position, and direction of all incoming light rays.
For particle detection, this directional information is particularly invaluable, especially given that the scintillation light produced by weakly interacting particles can be extremely faint – sometimes just a handful of photons. To address this challenge, PLATON pairs plenoptic cameras with Single-Photon Avalanche Diode (SPAD) array sensors. SPAD sensors are highly sensitive detectors capable of registering individual photons, making them ideal for environments with very low light levels. This combination allows PLATON to potentially reconstruct particle tracks even when only a minimal amount of light is available, a feat previously unexplored with light field cameras in the realm of particle physics.
The specific SPAD array sensor, known as SwissSPAD2, was developed by the EPFL team. Raytrix GmbH, a company specializing in light field technology, designed the micro-lens array and expertly integrated it directly onto the SwissSPAD2 sensor, creating the complete plenoptic imaging system for the PLATON prototype. A crucial feature of SwissSPAD2 is its gated photon detection capability. This allows the sensor to record photons only within precisely defined time windows, enabling researchers to focus on periods when genuine scintillation light is most likely to be present, effectively filtering out random background noise and other spurious signals, thereby enhancing the signal-to-noise ratio critical for faint particle traces.
Prototype Development and Validation: A Chronology of Progress

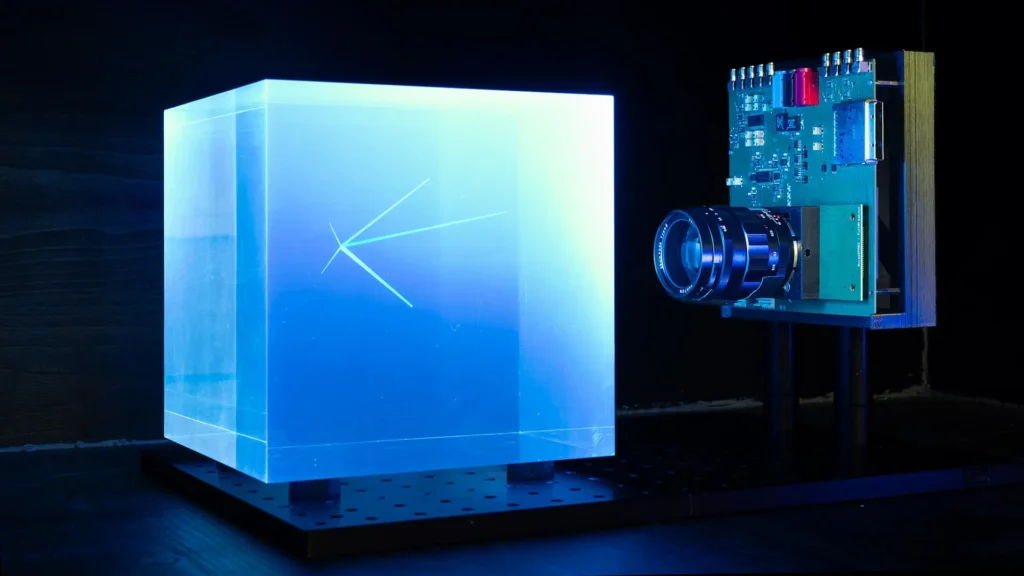

The PLATON project, an initiative funded by the Swiss National Science Foundation (SNSF), commenced with a clear objective: to demonstrate the feasibility of this novel detection paradigm. The ETHZ-EPFL team meticulously built a proof-of-concept detector, integrating the custom micro-lens array with the SwissSPAD2 SPAD imaging sensor.
The first phase of validation involved rigorous laboratory experiments designed to characterize PLATON’s spatial resolution under various light conditions. Researchers tested the prototype’s ability to localize light sources with photon counts ranging from several hundred down to an astonishingly low five detected photons. This extreme sensitivity test highlighted the system’s potential for detecting the faintest of signals. Subsequently, the team evaluated the prototype’s capacity to detect electrons and reconstruct their positions within a block of plastic scintillator. These electrons were generated using a strontium-90 radioactive source, providing a controlled and reproducible source of charged particles.
Crucially, throughout these diverse test conditions, the experimental laboratory measurements consistently showed a close agreement with the detailed simulations performed by the team. This strong concordance provided the researchers with high confidence that their theoretical models accurately describe the detector’s performance, laying a robust foundation for future development. The successful prototype demonstration and the extensive series of simulations were formally described in their publication in Nature Communications, marking a significant milestone in the project’s timeline and bringing this innovative concept to the global scientific community. The results from this initial demonstrator have already provided invaluable insights, directly shaping the design and development plans for the next, more advanced version of PLATON.
Advancements in the Next-Generation PLATON System
Building upon the success of the initial prototype, the research team is actively developing an upgraded PLATON system, focusing on key areas for enhanced performance. A primary improvement targets the SPAD array sensor, aiming for both higher photon detection efficiency and the capability to provide sub-nanosecond timing for individual photons. In the current prototype, photons are assigned to predefined, fixed time windows. The upgraded version will assign a precise timestamp to each detected photon. This granular timing information is critical; it will enable the system to more accurately determine the exact origin point of each photon, significantly improving the precision of particle track reconstruction by allowing for a more dynamic and detailed 3D mapping of the light field.
Concurrently, the plenoptic camera itself is undergoing optimization to expand its field of view and maximize light collection efficiency. Simulations presented in the Nature Communications paper strongly suggest that these combined enhancements—improved photon detection efficiency, sub-nanosecond timing, and optimized optics—will collectively lead to substantial improvements in PLATON’s spatial resolution, pushing its capabilities closer to the stringent demands of cutting-edge particle physics experiments.
Artificial Intelligence for Enhanced Reconstruction
Perhaps one of the most exciting aspects of the upgraded PLATON system is the integration of advanced artificial intelligence (AI) for image processing and event reconstruction. The team has incorporated a novel neural network (NN) based method, utilizing a Transformer architecture. This architecture, famously employed in large language models (LLMs) for processing natural language, has been adapted to analyze patterns among the scintillation photons recorded by the detector.
Instead of processing words and sentences, this specialized Transformer examines the intricate correlations in the spatial and temporal distribution of photons. It is designed to identify complex patterns in where and when photons appear, allowing it to reconstruct the original particle interaction with unprecedented detail. The application of such a sophisticated AI model represents a significant leap in how raw detector data can be interpreted, moving beyond traditional algorithmic approaches.
Simulations conducted with this AI-enhanced system indicate that an unsegmented PLATON detector with a volume of (10x10x10)cm³ could realistically achieve a spatial resolution below 1mm. Furthermore, these simulations suggest that the system could identify neutrino interactions that produce final-state low-momentum protons with both high purity and high efficiency. This means the detector would be adept at selecting the desired, rare neutrino events while effectively rejecting a vast number of unrelated background signals, a critical capability for discovery-driven experiments. Researchers involved in the project, such as Dr. Alonso-Monsalve, express considerable optimism regarding the AI’s ability to extract subtle, complex patterns from faint signals, potentially unlocking insights previously obscured by noise or data complexity. This integration underscores a broader trend in scientific research where AI is becoming an indispensable tool for data analysis in high-energy physics and beyond.
Scaling Up: Towards Meter-Scale Detectors and Beyond
A key advantage of the PLATON concept lies in its inherent scalability, a factor that plagued segmented detectors. To assess this, the researchers extended their simulations to consider how the technology might perform in a much larger detector. Due to the immense computational resources required for full neutrino simulations of a one-cubic-meter block of unsegmented scintillator, the team modeled a simplified point-like source of photons within such a volume.
The results from these simulations are particularly encouraging. They suggest that a detector of this scale, approximately 100 times larger than the current simulated volume, could achieve a spatial resolution of a few millimeters. This performance would place it on par with state-of-the-art plastic scintillator detectors currently in operation. The remarkable aspect of this finding is that PLATON would achieve this level of performance without the need for dividing the scintillator into millions of individual pieces, eliminating the associated manufacturing, assembly, and readout complexities. This simplification translates directly into significant reductions in both material costs and construction time for large-scale experiments.
The authors are confident that further improvements to the optical design, combined with ongoing advancements in SPAD sensor technology and AI algorithms, could eventually enable sub-millimeter resolution in PLATON-type detectors with volumes exceeding 1m³. This prospect is highly significant for the future of particle physics, as it offers a pathway to constructing massive, high-resolution detectors that are more cost-effective and simpler to build than their segmented counterparts, potentially accelerating discoveries in fields like neutrino astronomy and the search for dark matter. The Swiss National Science Foundation, through its funding of such ambitious projects, signals a strategic commitment to supporting high-risk, high-reward research that can fundamentally alter the landscape of scientific instrumentation.
Broader Impact and Beyond Particle Physics
The implications of PLATON extend far beyond the realm of neutrino experiments and particle colliders. The history of particle physics is replete with examples of fundamental research yielding transformative technologies that find widespread applications in society. The World Wide Web, for instance, was conceived at CERN to facilitate information sharing among physicists, and proton therapy, a precise cancer treatment, emerged from advances in particle accelerators and radiation physics. The ETH Zurich researchers believe PLATON could become another such example.
Because PLATON is uniquely designed to reconstruct the precise 3D position of faint light signals, it holds the potential to significantly improve a wide range of imaging systems across various scientific and medical disciplines. A particularly promising application lies in Positron Emission Tomography (PET), a widely used medical imaging method. PET scans track radioactive tracers introduced into the body to visualize metabolic activity in organs and tissues, aiding in cancer diagnosis, neurological studies, and cardiology.
Recognizing this immense potential, Dieminger, Alonso-Monsalve, and Sgalaberna have already filed three separate patents involving the use of PLATON technology in PET. These patents cover both innovative scanner designs and advanced image-processing techniques, including the sophisticated neural network developed by Alonso-Monsalve. The implications for PET are substantial: PLATON’s superior spatial resolution and photon detection efficiency could lead to PET scanners that offer higher image clarity, faster acquisition times, reduced radioactive dose for patients, or the ability to detect smaller, earlier-stage pathologies. Such advancements would be met with great interest from the medical community, potentially paving the way for future clinical trials and widespread adoption.
Beyond PET, the technology’s ability to precisely localize faint light signals in 3D could benefit other fields requiring high-resolution imaging, such as industrial quality control, security screening, and even environmental monitoring. In essence, PLATON represents not just a new tool for fundamental physics, but a versatile imaging platform with the capacity to foster innovation across a diverse array of scientific and technological applications. This interdisciplinary potential underscores the value of investing in curiosity-driven research, where breakthroughs in one field can serendipitously catalyze progress in many others.
