The landscape of physics research frequently shifts, sometimes propelled by entirely novel theoretical frameworks, other times by groundbreaking inventions. Yet, a potent catalyst for advancement often lies in the ingenious recombination of existing technologies, yielding capabilities far exceeding the sum of their individual components. This strategic approach is now poised to revolutionize the challenging field of particle detection, particularly for elusive weakly interacting particles, and offers transformative potential for medical imaging.
The Enduring Challenge of Weakly Interacting Particles
The quest to understand the fundamental building blocks of the universe often hinges on detecting particles that, by their very nature, are notoriously difficult to observe. Neutrinos, for instance, are incredibly abundant yet interact so rarely with ordinary matter that trillions pass through our bodies every second without leaving a trace. Similarly, candidates for dark matter, such as WIMPs (Weakly Interacting Massive Particles), are hypothesized to interact only gravitationally and through the weak nuclear force, making their direct detection a monumental challenge. These particles hold crucial keys to understanding cosmic evolution, stellar processes, and the very fabric of the universe.
Current detection methods for these elusive particles, and indeed for high-energy particles in collider experiments that require precise energy measurements (calorimetry), typically rely on vast, intricate detectors. To increase the probability of capturing the faint signals these particles produce, scientists have historically pursued two main avenues: building colossal detectors and enhancing their spatial resolution. Both paths, however, lead to instruments of immense complexity, escalating costs, and significant logistical hurdles.
The Complexities of Conventional Particle Detectors
At the heart of most particle physics experiments is the need to meticulously reconstruct the three-dimensional (3D) trajectories of elementary particles as they traverse large volumes of dense material. Scintillators are a common material employed for this purpose. When a charged particle passes through a scintillator, it excites the material, causing it to emit tiny flashes of visible light. These light signals, though faint, provide critical information about the particle’s path and its interactions within the detector medium.
To achieve the necessary precision in pinpointing a particle’s location, conventional scintillator-based detectors are typically segmented into a multitude of small, active sections. Each section acts as an individual detection unit. Optical fibers are then deployed to collect the photons produced in each segment, channeling this light to sensitive photon-counting devices like photomultiplier tubes (PMTs) or silicon photomultipliers (SiPMs). These devices register the photons, allowing researchers to infer the particle’s trajectory.
While highly precise, this segmented approach faces formidable scaling challenges. Consider the T2K neutrino-oscillation experiment in Japan, which utilizes a detector comprising approximately two tons of sensitive material. This massive detector is constructed from an astonishing two million individual scintillator cubes and interwoven with 60,000 optical fibers. Similarly, at CERN, the LHCb experiment, and at the Paul Scherrer Institute, the Mu3e experiment achieves sub-millimeter spatial resolution by employing millions of thin scintillating optical fibers. These examples unequivocally demonstrate the remarkable capabilities of segmented detectors. However, they also starkly illustrate the inherent limitations: manufacturing, assembling, and precisely reading out millions of discrete components represent a significant technological and financial bottleneck, one that only intensifies as detectors grow larger to meet the demands of future experiments. The sheer volume of individual connections, calibration points, and data channels contributes to exorbitant costs and maintenance complexities.
A Radical Departure: Unsegmented Detection with Plenoptic Imaging
Recognizing these escalating challenges, a collaborative team of researchers from ETH Zurich and EPFL in Switzerland has pioneered a fundamentally different strategy. Instead of fragmenting the detector into an astronomical number of individual units, their approach leverages advanced camera technology to reconstruct the origin of light within a large, unsegmented block of scintillator material.
Led by PhD student Till Dieminger, senior scientist Dr. Saúl Alonso-Monsalve, Professor Davide Sgalaberna and his group at ETH Zurich, in conjunction with members of the Advanced Quantum Architecture Lab at EPFL in Lausanne, headed by Professor Edoardo Charbon, the team developed and successfully tested the first prototype of this innovative detector. This proof-of-concept, and an extensive series of corroborating simulations, were recently detailed in the prestigious scientific journal Nature Communications, marking a significant milestone in detector technology.
Turning Light Field Photography into a Precision Physics Tool
The core inspiration for this novel detector, named PLATON (Plenoptic Tracker for Neutrino Oscillations), stems from plenoptic cameras, commonly known as light field cameras. Unlike conventional cameras that primarily record the intensity of light striking a sensor, light field cameras capture not only intensity but also crucial information about the direction from which the light originates. This unique capability allows them to recover depth and reconstruct a scene in three dimensions, a feature previously underutilized in particle physics.
The technology relies on a micro-lens array (MLA) positioned strategically between the camera’s main lens and its imaging sensor. This MLA consists of a vast grid of microscopic lenses, each acting as a tiny, independent camera. Each micro-lens records the same scene from a slightly different perspective. By combining and processing the information gathered from all these individual lenses, the system can reconstruct a comprehensive "light field," which precisely describes the intensity, position, and direction of all incoming light rays.
For particle detection, this directional information is particularly invaluable, especially given that the light signals produced within a scintillator by a passing particle can be exceedingly faint. The true breakthrough comes when these plenoptic cameras are paired with Single-Photon Avalanche Diode (SPAD) array sensors. SPADs are highly sensitive detectors capable of registering individual photons. This combination allows PLATON to potentially reconstruct intricate particle tracks even when light levels are incredibly low, opening new avenues for detecting weakly interacting particles that produce minimal scintillation. Despite their promise, the application of light field cameras to particle tracking had remained an unexplored frontier until the PLATON project.
Inside the PLATON Prototype: Precision and Timing

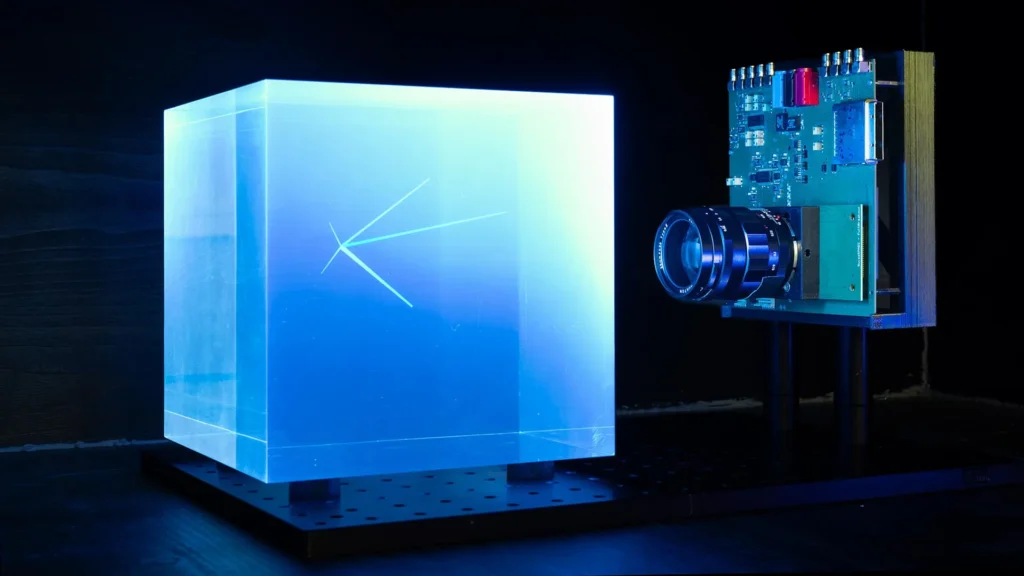

The PLATON project, supported by the Swiss National Science Foundation (SNSF), brought together interdisciplinary expertise to realize this vision. The ETHZ-EPFL team constructed a proof-of-concept detector by meticulously integrating a micro-lens array with a cutting-edge SPAD imaging sensor. The sensor, known as SwissSPAD2, was developed in-house by the EPFL team, demonstrating their deep expertise in advanced photon detection. Raytrix GmbH, a specialist in light field technology, designed the custom MLA and precisely mounted it directly onto the SwissSPAD2 sensor, creating a fully integrated plenoptic imaging system tailored for particle physics.
A key feature of the SwissSPAD2 sensor is its capability for gated photon detection. This allows the sensor to record photons only within precisely defined, ultra-short time windows. This timing control is critical for several reasons: it enables researchers to focus on the fleeting periods when genuine scintillation light is most likely to be present, effectively filtering out pervasive random background noise and other spurious signals that could otherwise obscure the faint particle events. This temporal discrimination significantly enhances the signal-to-noise ratio, which is paramount in experiments searching for rare interactions.
Rigorous Testing and Promising Early Results
The research team conducted extensive laboratory experiments to rigorously test PLATON’s spatial resolution. These tests covered a wide range of light levels, from several hundred detected photons down to an astonishingly low count of just five photons. This demonstrated the system’s remarkable sensitivity and its potential for operation in extremely light-starved environments.
Beyond basic light detection, the researchers also evaluated the prototype’s ability to detect actual charged particles and reconstruct their positions within a block of plastic scintillator. For this, they used a strontium-90 source, which emits electrons (beta particles). The results were highly encouraging: across all test conditions, the detailed simulations developed by the team closely matched the real-world laboratory measurements. This strong correlation provides substantial confidence in the accuracy and predictive power of their theoretical models, ensuring that the detector’s performance is well understood. These initial results from the demonstrator prototype have already been instrumental in shaping the development plans for the next, more advanced version of PLATON.
The Next Generation: Enhanced Sensitivity and AI-Powered Reconstruction
The research team is not resting on its laurels but is actively developing the next iteration of the PLATON system, focusing on several key enhancements. A new SPAD array sensor is under development, designed to significantly improve photon detection efficiency—the probability that an incoming photon is registered. Crucially, this upgraded sensor will also provide sub-nanosecond timing resolution for individual photons. While the current system assigns photons to fixed time windows, the future version will provide each detected photon with its own precise timestamp. This added temporal information is expected to be a game-changer, allowing the system to determine with much greater accuracy the exact origin point of each photon, thereby substantially improving the reconstruction fidelity of complex particle tracks.
Concurrently, the plenoptic camera itself is being optimized to expand its field of view and maximize light collection. Simulations presented in the Nature Communications paper suggest that these combined improvements in photon detection, timing, and optical design are poised to further enhance PLATON’s already impressive spatial resolution capabilities.
A particularly exciting development involves the integration of artificial intelligence (AI) for sophisticated image processing. The team has incorporated a novel image-processing method based on a neural network (NN), specifically adapting a Transformer architecture. This architecture is renowned for its success in large language models (LLMs) like GPT-3, where it excels at identifying complex patterns and relationships within sequences of data. In PLATON’s application, instead of analyzing words, this Transformer examines intricate patterns among the scintillation photons recorded by the detector. It is meticulously designed to identify subtle correlations in the spatial and temporal distribution of photons, enabling it to reconstruct the original particle interaction with unprecedented precision.
Simulations using this AI-enhanced system indicate that an unsegmented PLATON detector with a modest volume of (10x10x10) cm³ could realistically achieve a spatial resolution below 1 mm. Furthermore, these simulations suggest that the system could identify neutrino interactions that produce low-momentum protons in the final state with both high purity (minimizing false positives) and high efficiency (maximizing true positives). This capability is critical for neutrino oscillation experiments, where isolating specific interaction channels from a background of noise is paramount.
Scaling Up: Towards Cubic Meter Detectors
Looking ahead, the researchers also explored the scalability of this technology for much larger detectors. Due to the immense computational resources required, full neutrino simulations for a one-cubic-meter block of unsegmented scintillator were not feasible. Instead, they modeled a simplified point-like source of photons within such a large volume. The results were highly encouraging, suggesting that a PLATON detector of this size could achieve a spatial resolution of a few millimeters. This performance would place it on par with, or even surpass, current state-of-the-art plastic scintillator detectors, many of which rely on complex segmentation.
The significance of this result cannot be overstated: PLATON would achieve this high performance without the need to divide the scintillator into millions of individual pieces, thus circumventing the manufacturing, assembly, and readout bottlenecks that plague conventional designs. The authors are confident that further refinements to the optical design and other system components could eventually enable sub-millimeter resolution in PLATON-type detectors with volumes exceeding one cubic meter, unlocking possibilities for next-generation neutrino observatories and dark matter searches.
Beyond Particle Physics: A Broad Spectrum of Applications
The ETH Zurich researchers envision that the PLATON technology’s utility will extend far beyond the specialized realms of neutrino experiments and particle colliders. Its fundamental ability to precisely reconstruct the three-dimensional position of faint light signals makes it a versatile tool with the potential to significantly improve a wide array of imaging systems across various scientific and medical disciplines.
One of the most immediate and impactful applications is in positron emission tomography (PET), a widely used medical imaging method. PET scans track radioactive tracers introduced into the body to visualize metabolic activity and blood flow, revealing the function of organs and tissues. PET is crucial for diagnosing cancers, heart disease, and neurological disorders. Current PET scanners face limitations in terms of spatial resolution, sensitivity, and speed, which PLATON’s capabilities could directly address.
To secure this future, Dieminger, Alonso-Monsalve, and Sgalaberna have already filed three separate patents specifically covering the use of PLATON technology in PET. These patents encompass both innovative scanner designs that leverage plenoptic imaging principles and advanced image-processing techniques, including the sophisticated neural network developed by Alonso-Monsalve. By offering enhanced resolution and potentially faster, more sensitive imaging with reduced patient dose, PLATON could lead to earlier disease detection, more accurate diagnoses, and improved treatment monitoring in clinical settings.
The history of particle physics is replete with examples of fundamental research yielding unforeseen technological spin-offs that profoundly impact society. The World Wide Web, for instance, was initially conceived at CERN to facilitate information sharing among high-energy physicists. Similarly, proton therapy, a highly precise form of cancer treatment, grew directly from advances in particle accelerators and radiation physics. PLATON stands poised to become another compelling example of how pushing the boundaries of fundamental physics can inadvertently create groundbreaking technologies with profound scientific and medical applications, underscoring the enduring value of investing in basic research.
