In 1985, a modest advertisement in the pages of Scientific American offered a tantalizing prospect: up to $10,000 from the Innovative Design Fund to support the development of "clever prototypes" in areas as diverse as clothing, home decor, and textiles. This call to innovation resonated with William Freeman PhD ’92, an electrical engineer then at Polaroid and now a distinguished professor at MIT. Freeman envisioned a revolutionary fastening mechanism, a three-sided zipper, that transcended the conventional role of simply closing flat surfaces. His concept proposed a dynamic system capable of seamlessly transitioning objects like chairs, tents, and purses between soft and rigid states, thereby enhancing their packability and ease of assembly.
Freeman’s initial design, meticulously documented, bore a striking resemblance to a traditional zipper but with a triangular configuration. He ingeniously devised a method of attaching belts to narrow wooden "teeth," allowing a slider to encircle the tripartite structure and fasten the three strips into a rigid triangular tube. Though his proposal was ultimately unsuccessful in securing funding from the Innovative Design Fund, Freeman’s pioneering spirit led him to patent his prototype, carefully storing it in his garage with the prescient hope that it might one day find practical application. Little did he know that nearly four decades would pass before his concept would be revisited and propelled into the forefront of advanced material science and robotics.
The Revival of a Three-Sided Vision at MIT CSAIL
The dormant potential of Freeman’s three-sided zipper was unearthed by researchers at the MIT Computer Science and Artificial Intelligence Laboratory (CSAIL). Driven by the ambition to create objects with "tunable stiffness" – the ability to dynamically alter their rigidity – the CSAIL team recognized the limitations of prior approaches. Existing methods for achieving adjustable stiffness were often irreversible or required cumbersome manual assembly. To overcome these hurdles, they embarked on a project to develop an automated design tool and an adaptable fastener, which they christened the "Y-zipper."
This innovative system comprises two key components: a sophisticated software program that empowers users to customize the design of three-sided zippers, and a 3D printer capable of fabricating these bespoke fasteners using advanced plastics. The Y-zipper’s potential applications are vast and transformative, ranging from the practical enhancement of camping equipment and medical gear to the intricate demands of robotics and the expressive possibilities of art installations. Its core advantage lies in its ability to facilitate more convenient and rapid assembly of complex structures.
Jiaji Li, an MIT postdoc and CSAIL researcher who serves as a lead author on the open-access paper detailing this project, elaborated on the significance of Freeman’s initial concept and the subsequent advancements. "A regular zipper is great for closing up flat objects, like a jacket, but Freeman ideated something more dynamic," Li explained. "Using current fabrication technology, his mechanism can transform more complex items. We’ve developed a process that builds objects you can rapidly shift from flexible to rigid, and you can be confident they’ll work in the real world."
Unlocking Dynamic Assembly: The Mechanics and Versatility of the Y-Zipper

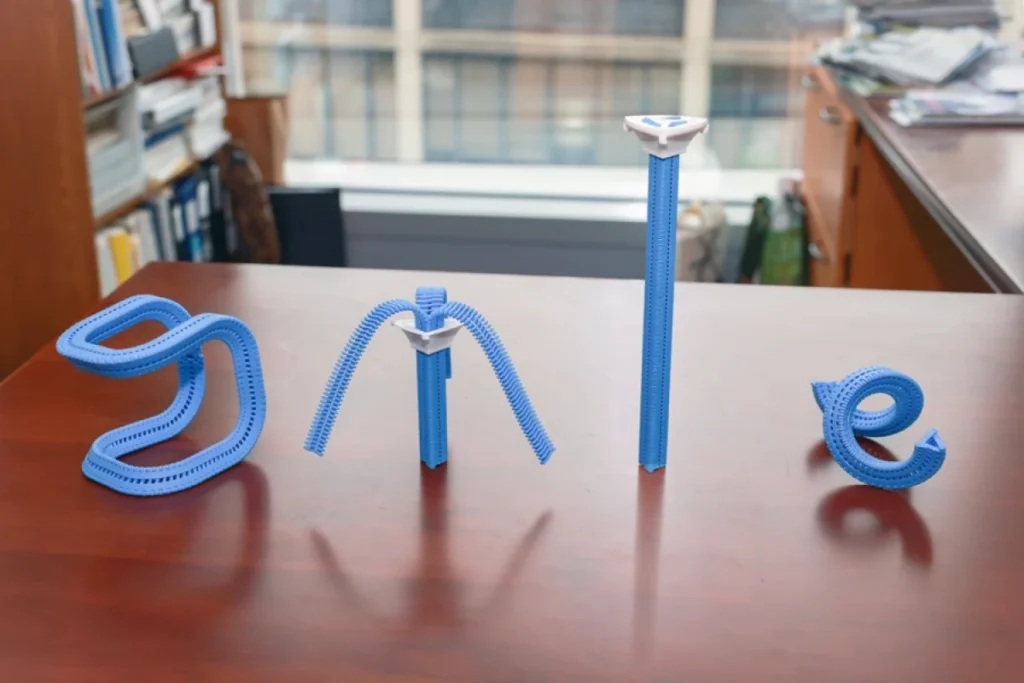

The true ingenuity of the Y-zipper lies in its capacity for customizable form and function. Through CSAIL’s intuitive software, users are granted granular control over the fastener’s appearance when engaged. They can precisely define the length of each of the three strips and dictate the direction and angle at which these strips will bend. Furthermore, the software offers a selection of four fundamental motion "primitives" that govern the zipper’s final zipped-up form: straight, bent (resembling an arch), coiled (mimicking a spring), or twisted (akin to a screw thread).
The resulting Y-zipper exhibits a remarkable ability to "shape-shift" in real-world applications. When unzipped, it can unfurl into a configuration reminiscent of a squid with three extended tentacles. Upon zipping, it consolidates into a more compact and rigid structure, such as a rod. This inherent flexibility holds significant promise for practical scenarios, particularly in fields where portability and rapid deployment are paramount.
A compelling illustration of this benefit is in the context of camping. Pitching a tent, a task that can typically consume several minutes, can be dramatically accelerated with the Y-zipper. The process, which might otherwise take up to six minutes, can be reduced to a mere one minute and 20 seconds. By attaching each arm of the Y-zipper to the sides of a tent and supporting the structure from above, the zipper’s mechanism can effectively "pop" the canopy into place, facilitating swift and effortless tent assembly. This streamlined process could be a game-changer for outdoor enthusiasts, emergency responders, and anyone seeking to optimize setup time in variable conditions.
Beyond Recreation: Medical, Robotic, and Artistic Applications
The Y-zipper’s potential extends far beyond recreational activities, offering profound implications for medical interventions and advanced robotics. In the medical domain, the ability to create flexible yet adjustable wearables is of immense value. The research team demonstrated this by wrapping a Y-zipper around a wrist cast. This innovation allows a patient to loosen the cast during the day for comfort and then zip it up at night to provide necessary support and prevent further injury. This adaptability transforms what might otherwise be a rigid, potentially uncomfortable device into a highly personalized and responsive aid, tailored to a patient’s evolving needs.
Furthermore, the Y-zipper system can empower users to construct sophisticated technology that responds to simple commands. By integrating a motor with the Y-zipper, the zipping process can be automated, paving the way for the creation of adaptive robotic systems. An example is an adaptive robotic quadruped, whose leg dimensions could be dynamically altered. The robot could extend its limbs by tightening the Y-zippers for taller stances, or retract them by unzipping for a lower profile. Such rapid adjustments would be invaluable for robots navigating challenging and uneven terrains, such as those found in canyons or forests, enabling them to explore environments previously inaccessible.
The Y-zipper’s capacity for controlled movement also opens avenues for dynamic art installations. The CSAIL team has already showcased this by creating a long, winding flower sculpture that "bloomed" as a static motor actuated the Y-zipper, demonstrating the artistic potential of this novel fastening technology. This fusion of engineering and aesthetics suggests a future where functional objects can also serve as captivating artistic expressions.
Durability Under Scrutiny: Material Science and Stress Testing
While the creative and functional possibilities of the Y-zipper were evident, a critical question remained: its durability. Could these 3D-printed fasteners withstand the rigors of daily use and repeated actuation? To address this, the CSAIL team conducted a series of rigorous stress tests, meticulously evaluating the performance and longevity of the Y-zipper under various conditions.
The initial phase of testing focused on the inherent properties of polylactic acid (PLA) and thermoplastic polyurethane (TPU), two commonly employed plastics in 3D printing. Through a machine designed to apply bending forces, researchers determined that PLA offered superior strength, capable of bearing heavier loads, while TPU exhibited greater flexibility. This understanding of material characteristics is crucial for selecting the appropriate plastic for specific Y-zipper applications, ensuring optimal performance and longevity.
A more dynamic assessment involved utilizing an actuator to continuously open and close the Y-zipper, simulating prolonged usage and identifying its breaking point. The results were remarkably encouraging. After an impressive 18,000 cycles of zipping and unzipping, the Y-zipper finally succumbed. This exceptional durability, as revealed by subsequent 3D simulations, can be attributed to the fastener’s intrinsic elastic structure, which effectively distributes stress across the entire mechanism, preventing localized failure points.
Future Horizons: Expanding Capabilities and Uncharted Territories
Despite the significant progress achieved, Li and his colleagues are already envisioning future iterations of the Y-zipper that push the boundaries of its capabilities. Their aspiration is to develop even more robust three-sided zippers by employing stronger materials, such as metals. Such an advancement would unlock the potential for larger-scale projects, enabling the fabrication of Y-zippers suitable for substantial structures and industrial applications, a feat not yet achievable with their current 3D printing platform.
The potential applications of the Y-zipper continue to expand into unexplored frontiers. Li speculates about its utility in space exploration, where its tentacle-like arms could be integrated into spacecraft for the precise acquisition of rock samples from distant celestial bodies. Imagine a robotic arm equipped with Y-zippers, capable of gently yet firmly grasping geological specimens for analysis.
Moreover, the Y-zipper’s ability to facilitate rapid assembly could prove invaluable in humanitarian efforts. Embedded within structures designed for emergency situations, these fasteners could enable relief workers to quickly erect shelters and medical tents in the aftermath of natural disasters or during rescue operations. The speed and simplicity of assembly offered by the Y-zipper could significantly reduce response times and improve the efficacy of aid delivery in critical moments.
The innovative potential of the Y-zipper has garnered external recognition from experts in the field. Guanyun Wang, an assistant professor at Zhejiang University who was not involved in the research, lauded the project’s ingenuity. "Reimagining an everyday zipper to tackle 3D morphological transitions is a brilliant approach to dynamic assembly," Wang commented. "More importantly, it effectively bridges the gap between soft and rigid states, offering a highly scalable and innovative fabrication approach that will greatly benefit the future design of embodied intelligence."
The research paper detailing the Y-zipper was co-authored by Jiaji Li and William Freeman, alongside Tianjin University PhD student Xiang Chang. The MIT CSAIL team contributing to this work included PhD student Maxine Perroni-Scharf, undergraduate Dingning Cao, recent visiting researchers Mingming Li (Zhejiang University), Jeremy Mrzyglocki (Technical University of Munich), and Takumi Yamamoto (Keio University), as well as MIT Associate Professor Stefanie Mueller, a CSAIL principal investigator and senior author on the paper. The research received partial support from a postdoctoral research fellowship from Zhejiang University and the MIT-GIST Program.
This groundbreaking work was formally presented at the ACM’s premier event, the CHI conference on Human Factors in Computing Systems, held in April, where it captivated the attention of the human-computer interaction community and beyond, signaling a new era for adaptable and dynamic material design. The journey from a 1980s advertisement to a cutting-edge fabrication technology underscores the enduring power of innovative ideas and the collaborative spirit of scientific inquiry.
