Xeryon, a prominent Belgian manufacturer renowned for its cutting-edge precision piezo motor technology, has officially unveiled the XRT-U-35, an ultra-compact rotation stage engineered to meet the stringent demands of high-precision positioning systems across a multitude of advanced industries. This innovative device leverages Xeryon’s proprietary Crossfixx ultrasonic piezo technology, seamlessly integrating a remarkably low-profile housing with an impressive 40 mNm of torque output, setting a new benchmark for power density in its class.
The Dawn of Miniaturization: Xeryon’s Vision and Piezoelectric Prowess
The introduction of the XRT-U-35 is not merely another product launch but a testament to the ongoing evolution of precision motion control, a field where Xeryon has firmly established itself as a leader. Founded on the principles of innovation and excellence, Xeryon has dedicated its research and development efforts to harnessing the unique properties of piezoelectric materials to create motors that defy conventional limitations of size, speed, and accuracy. The company, rooted in Belgium’s vibrant technology landscape, has consistently pushed the boundaries of what is possible with piezo technology, catering to sectors where even micron-level precision is paramount.
At the heart of Xeryon’s offerings, and particularly the XRT-U-35, lies the piezoelectric effect. Discovered by Pierre and Jacques Curie in 1880, this phenomenon describes the ability of certain materials to generate an electric charge in response to mechanical stress, and conversely, to undergo mechanical deformation when subjected to an electric field. Piezoelectric motors exploit this latter effect, translating minute deformations into precise, controlled motion. Unlike traditional electromagnetic motors that rely on magnetic fields and intricate windings, piezo motors achieve motion through direct friction between a ceramic stator, vibrating at ultrasonic frequencies, and a rotor. This fundamental difference confers several critical advantages:
- Exceptional Precision: Piezo motors offer virtually infinite resolution, allowing for movements down to the nanometer or microradian scale, far surpassing the capabilities of many conventional motor types.
- Compactness and High Power Density: Their design eliminates the need for bulky coils and magnets, enabling significantly smaller form factors while delivering considerable force or torque.
- Non-Magnetic Operation: Crucially for sensitive environments, piezo motors generate no magnetic fields, making them ideal for use near electron microscopes, MRI scanners, or quantum computing setups where electromagnetic interference (EMI) is intolerable.
- Self-Locking Capability: When power is removed, the frictional contact between the stator and rotor inherently locks the motor in position, providing excellent stability without consuming energy.
- Absence of Backlash: Since there are no gears, there is no mechanical play or backlash, ensuring highly repeatable and accurate positioning.
- Silent and Smooth Operation: The high-frequency vibrations are typically beyond the range of human hearing, resulting in exceptionally quiet operation, and the direct drive mechanism eliminates vibrations associated with gear trains.
- Vacuum Compatibility: Many piezo motors are inherently compatible with ultra-high vacuum environments, a prerequisite for advanced scientific research and semiconductor manufacturing.
Xeryon’s patented Crossfixx ultrasonic piezo technology refines these principles further. By optimizing the design of the ultrasonic stator and the drive electronics, Crossfixx technology maximizes the transfer of vibrational energy into rotational motion, resulting in higher torque and speed capabilities within an even smaller footprint. This proprietary innovation is a key differentiator, enabling products like the XRT-U-35 to achieve performance metrics previously thought unattainable in such compact dimensions.
Unpacking the XRT-U-35: A Symphony of Precision and Power

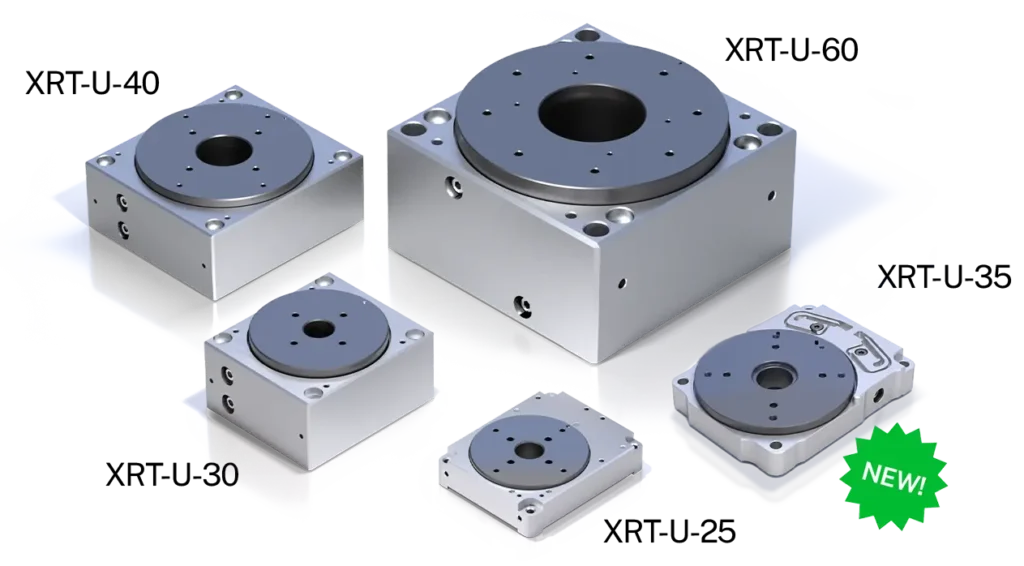

The XRT-U-35 rotation stage epitomizes Xeryon’s mastery in miniature motion control. Its physical dimensions are striking: a mere 9 mm in height and 36 mm in width. This incredibly low-profile and compact design is a direct response to the pervasive industry trend towards miniaturization, where space inside complex instruments is at an absolute premium. Engineers designing advanced optical benches, integrated sensor arrays, or compact robotic end-effectors are constantly battling spatial constraints. The XRT-U-35 offers a powerful solution, allowing for the integration of high-precision rotational movement into previously impossible spaces without compromising performance.
Despite its diminutive size, the XRT-U-35 boasts a formidable 40 mNm of torque. This impressive power output is achieved through a sophisticated dual-motor configuration, where two of Xeryon’s ultrasonic piezo motors work in concert to drive optical and mechanical assemblies with exceptional force and stability. To put 40 mNm into perspective, it represents a significant capability for rotating components such as lenses, mirrors, prisms, sensors, or small robotic joints with accuracy and repeatability. This high torque-to-volume ratio is a critical feature, distinguishing the XRT-U-35 from other compact stages that often sacrifice power for size.
Beyond its static force, the dynamic performance of the XRT-U-35 is equally impressive. The rotation speed is fully adjustable, ranging from an infinitesimally slow 0.01°/s, allowing for extremely fine and deliberate adjustments, up to a rapid 1080°/s (three full revolutions per second). This expansive dynamic range is achieved without the need for traditional gearboxes or additional mechanical transmission elements. The elimination of gears is a cornerstone of the XRT-U-35’s superior performance, as it directly translates to:
- Zero Backlash: Ensures precise and repeatable positioning without any inherent play in the system.
- Reduced Wear and Maintenance: Gears are common points of failure and wear in mechanical systems. Their absence significantly extends the service life and reduces maintenance requirements.
- Lower Noise and Vibration: Gear trains introduce mechanical noise and vibration, which can be detrimental in sensitive applications. The direct drive piezo mechanism inherently operates more smoothly and quietly.
- Enhanced Reliability: Fewer moving parts generally lead to a more robust and reliable system.
The ultrasonic piezo drive technology employed in the XRT-U-35 is inherently free from magnetic fields. This characteristic is not merely a bonus but a fundamental requirement in numerous cutting-edge applications, including:
- Electron Microscopy: Where external magnetic fields can severely distort images.
- Magnetic Resonance Imaging (MRI): Where precision positioning is needed within the strong magnetic fields of an MRI scanner.
- Quantum Computing Research: Where delicate quantum states can be perturbed by even minute electromagnetic interference.
- High-Energy Physics Experiments: Where sensitive detectors require non-magnetic components.
Furthermore, the design ensures quiet operation and exceptionally low vibration, crucial for maintaining the integrity of sensitive experiments and ensuring comfort in human-interactive systems. The absence of internal components subject to mechanical wear, such as brushes or bearings found in traditional motors, contributes to an outstanding service life rated above 10 million revolutions. This longevity translates directly into reduced downtime, lower operational costs, and greater confidence in the reliability of critical systems. The self-locking position hold feature, active even when power is off, adds another layer of security and energy efficiency, preventing drift and maintaining the desired orientation without continuous power consumption.
A thoughtful design inclusion is the 8 mm H7 central aperture that runs through the stage. This feature allows engineers to route essential elements—such as electrical cables for power or data, delicate optical fibers for signal transmission, or precisely aligned laser beams—directly through the axis of rotation. This capability significantly simplifies the integration of the XRT-U-35 into complex and compact systems, eliminating the need for cumbersome external cable management or convoluted optical paths that could otherwise add bulk, complexity, and potential points of failure. The standardized mechanical interface further enhances its plug-and-play potential, ensuring seamless integration into existing or newly designed equipment.
Addressing Critical Industry Demands: Applications and Market Trends
The development and release of the XRT-U-35 are directly aligned with several overarching trends in modern technology and manufacturing. The relentless drive towards miniaturization, increased automation, and the demand for ever-higher levels of precision across industries have created a significant market need for components like this rotation stage. The compact form factor and standardized mechanical interface make the XRT-U-35 particularly well-suited for applications that require 40 mNm of torque within severely limited installation spaces, often characterized by high performance and reliability requirements.
The XRT-U-35 is poised to make a substantial impact across a diverse array of high-tech sectors:
- Optical Systems and Photonics: Essential for precise beam steering, filter wheel positioning, optical fiber alignment, and general optical component manipulation in advanced microscopy (e.g., confocal, super-resolution), spectroscopy, laser micromachining, and adaptive optics systems. Its non-magnetic nature is a distinct advantage in environments with sensitive detectors.
- Medical and Life Sciences: Ideal for surgical robotics, diagnostic imaging equipment, laboratory automation, micro-fluidic systems, and endoscopes where space is critically constrained, and non-magnetic, low-vibration operation is paramount for patient safety and diagnostic accuracy.
- Semiconductor Manufacturing: Crucial for wafer inspection, photolithography, micro-assembly of integrated circuits, and probe stations where nanometer-scale precision and vibration-free motion are prerequisites for yield and quality.
- Metrology and Inspection: Employed in high-resolution measurement systems, quality control platforms, and coordinate measuring machines (CMMs) to accurately position samples or sensors for precise analysis.
- Aerospace and Defense: Applicable in satellite instrumentation, drone payloads, miniature gimbals for cameras or sensors, and precision targeting systems where compact size, low weight, and robust performance are vital.
- Research and Development: An invaluable tool in academic and industrial laboratories for various experiments requiring precise angular positioning, such as material science investigations, quantum physics setups, and new product prototyping.
- Robotics: For miniature robotic arms, grippers, and end-effectors where precise angular articulation is required in tight spaces, enabling more dexterous and compact robotic solutions.
The confluence of these industry trends—miniaturization, automation, and the pursuit of ultimate precision—creates a fertile ground for technologies like the XRT-U-35. As systems become smaller and more integrated, the demand for components that can deliver high performance without occupying excessive volume only intensifies.
A Competitive Edge: Why Piezo Stands Out
In the broader landscape of motion control, Xeryon’s XRT-U-35 operates within a competitive environment that includes traditional stepper motors, servo motors with gearboxes, and voice coil actuators. While each technology has its niche and advantages, the XRT-U-35’s piezoelectric foundation provides a distinct competitive edge for specific applications. Stepper motors offer good holding torque and open-loop control but can suffer from resonance issues and limited resolution. Servo motors, particularly with high-resolution encoders, provide excellent dynamic performance but often require gearboxes to achieve high torque in small packages, introducing backlash and wear. Voice coil actuators offer very smooth motion but are typically limited to shorter strokes and lower forces in rotary configurations.
The XRT-U-35 differentiates itself by combining the best attributes of precision motion control – ultra-high resolution, zero backlash, non-magnetic operation, and self-locking capabilities – in a package that traditional motor technologies struggle to match at this size and torque output. Its ability to deliver 40 mNm of torque without gears or magnetic fields in a 9mm high housing positions it uniquely in the market, making it the preferred choice for applications where these specific characteristics are non-negotiable. Xeryon’s proprietary Crossfixx technology further solidifies this position, offering a performance envelope that sets it apart from other piezo-based solutions as well.
Shaping the Future: Implications and Xeryon’s Role
The introduction of the XRT-U-35 carries significant implications for various technological advancements. By making high-precision, high-torque rotational motion accessible in such a compact and specialized form factor, Xeryon is effectively empowering engineers and researchers to design and build instruments that were previously constrained by the physical limitations of existing motion control solutions.
A representative from Xeryon, in discussing the product’s potential, might emphasize how the XRT-U-35 will accelerate innovation in miniaturized optical systems, enabling the creation of more portable and powerful diagnostic tools in medicine, or more compact and capable satellites for space exploration. They would likely highlight the commitment to pushing the boundaries of piezo technology, ensuring that industries can continue their trajectory towards greater precision and efficiency. Industry analysts, observing the trajectory of high-tech manufacturing and scientific research, would likely concur, suggesting that products like the XRT-U-35 address a critical and growing gap in the market, facilitating breakthroughs in fields as diverse as quantum computing and advanced surgical robotics. The ability to integrate such a powerful and precise component into increasingly dense electronic and mechanical assemblies will undoubtedly lead to new generations of smarter, smaller, and more capable devices.
The XRT-U-35 is more than just a component; it is an enabler. It represents Xeryon’s ongoing dedication to providing innovative solutions that help drive progress in critical scientific and industrial applications. As the demand for precision, miniaturization, and reliability continues to grow, Xeryon’s position as a leader in piezo motor technology ensures that it will remain at the forefront of shaping the future of motion control.
For more detailed specifications and integration guidelines, interested parties are encouraged to visit xeryon.com.
