In this back-to-basics primer, we outline the essential elements of an automated motion system, whether it’s a piece of robotics or machine design dedicated to a specific routine. The intricate world of automated motion systems serves as the fundamental engine driving modern industrial and consumer technology, underpinning everything from high-precision manufacturing to the ubiquitous automation found in everyday life. These sophisticated assemblies are indispensable for achieving the levels of precision, speed, and reliability demanded by today’s advanced applications across diverse sectors. A comprehensive understanding of their core components, fundamental design principles, and operational intricacies is therefore paramount for engineers, developers, and stakeholders navigating the increasingly complex and interconnected landscape of automation. This article aims to provide a foundational yet enriched exploration of motion system design, elucidating the critical distinctions between various automation types and detailing the key parameters that govern their successful and efficient implementation.
The Foundational Elements: Electric Motors and System Components

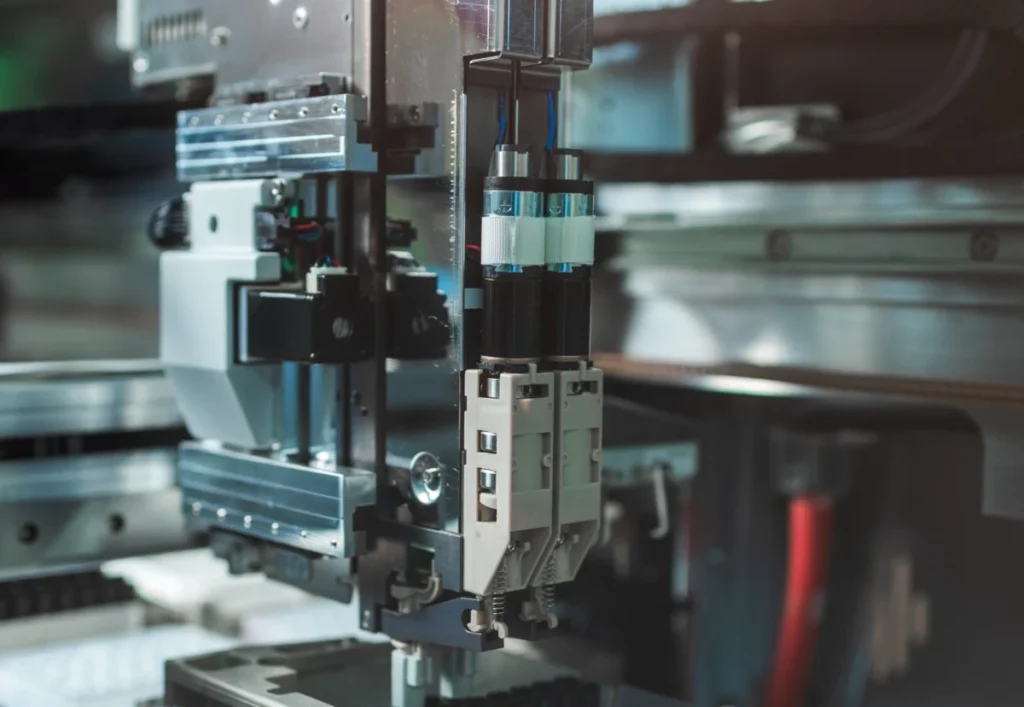

At its core, every automated motion system is an electric-motor-driven design, meticulously constructed around two primary categories of components: the electromechanical actuators, which provide the direct motive force, and the array of mechanical elements responsible for transmitting and transforming this force into the desired motion. The harmonious interaction and precise integration of these components are what ultimately determine the system’s overall performance, efficiency, longevity, and suitability for its intended tasks. While the original text indicated a list, these essential components broadly encompass the electric motor itself, alongside various mechanical transmission elements such as gearboxes, linear guides, ball screws, belts, and pulleys.
The motion control industry typically distinguishes between two interconnected, yet distinct, design philosophies: power-transmission designs and motion systems. Power-transmission designs are engineered with a primary focus on delivering substantial raw torque or force and high speed, characterized by a robust construction where mechanical components dominate the build to handle significant loads and achieve high throughput. These systems are commonly deployed in applications where sheer power and continuous, rapid movement are the overriding requirements, such as heavy-duty conveyor systems in logistics hubs or large-scale material handling operations in mines. In stark contrast, motion systems are defined by their emphasis on highly precise positioning and intricately controlled motion profiles. This involves the meticulous definition of parameters such including speeds, accelerations, jerk (the rate of change of acceleration), sophisticated speed-torque profiles, and repeatable homing routines across the machine’s various axes. Such systems are indispensable for applications demanding extreme accuracy, high repeatability, and complex trajectory execution, including advanced robotic assembly lines, sophisticated medical diagnostic equipment, and high-resolution metrology systems.
Both power-transmission designs and motion systems are pervasive, forming the often-unseen infrastructure that powers a myriad of consumer products, sophisticated office automation equipment, critical medical devices, and intricate laboratory automation setups. Within the vast industrial sector, they constitute the bedrock of discrete factory automation, a crucial distinction from what is known as process or analog automation.
Differentiating Automation: Discrete vs. Process
The clear differentiation between discrete and process automation is fundamental to understanding the specific domains where motion systems predominantly operate and excel. Discrete automation is characterized by the handling, machining, assembling, testing, capping, wrapping, packaging, labeling, counting, scanning, and transporting of individual, separate workpieces or distinct products. In these environments, each item typically undergoes a sequence of well-defined, discrete operations before reaching its completed state. Prime examples include the highly automated assembly lines in automotive manufacturing, the intricate production of electronics, the complex sorting and movement systems in automated warehousing and logistics centers, and the high-speed precision of modern packaging lines. The defining characteristic here is the manipulation of individual, identifiable units, which necessitates precise start-stop capabilities, accurate positioning, and highly repeatable movements.
Conversely, process automation is concerned with the continuous flow and batch processing of materials, often involving liquids, gases, or bulk solids within uninterrupted systems. This encompasses a wide range of operations such as continuous chemical reactions, precise temperature regulation, accurate metering of ingredients, and continuous flowing operations that are generally difficult to halt and restart without significant disruption. Industries heavily reliant on process automation include mining, energy generation (both fossil fuels and nuclear power plants), oil and gas extraction and refining, bulk food processing, large-scale pharmaceutical and chemical manufacturing, glass and ceramic production, textile manufacturing, and wood and paper processing. In these contexts, the primary emphasis is on monitoring and regulating continuous variables rather than the precise positioning of discrete objects.
Given this fundamental distinction, modern motion system designs are intrinsically and almost exclusively associated with discrete automation. Their core function is to facilitate the precise placement, manipulation, and transport of individual workpieces or products, thereby fulfilling the stringent requirements for accuracy, speed, and repeatability that are the hallmarks of contemporary manufacturing and assembly operations.
Critical Parameters in Motion System Design
The engineering process for an automated motion system is a systematic and multi-faceted endeavor, beginning with a thorough and rigorous analysis of the physical dynamics inherent to the application.
Phase 1: Quantifying Loads, Inertias, and Friction
The initial and arguably most pivotal step in automated motion design is the meticulous documentation and quantification of the loads that need to be moved, the various inertias involved within the system, and the frictional forces that the motorized axis must reliably overcome. Inertia, a fundamental physical property, represents an object’s inherent resistance to any change in its state of motion—specifically, its resistance to acceleration or deceleration. The total system inertia encompasses not only the mass of the workpiece or payload but also the combined inertia of all moving parts within the axes themselves.
This total inertial value can vary dramatically depending on the specific architectural configuration of the system. In direct-drive systems, which typically employ torque motors or linear motors, intermediate mechanical components are minimized or eliminated, resulting in relatively low reflected inertia. However, when an electric motor is coupled with a gearset for speed reduction and torque multiplication, or when other mechanical power transmission elements are integrated, the reflected inertia can increase substantially.
Key mechanical components that significantly influence the overall inertial values include:
- Gearsets: These are critical for speed reduction and torque multiplication, fundamentally altering the inertia reflected back to the motor shaft. The gear ratio is a crucial parameter, often manipulated to achieve "inertia matching" for optimal servotuning and dynamic response.
- Belt-and-pulley systems: As "tangential forms of power transmission," these systems are used to transfer motion over distances. The inertias of the pulleys, in addition to the driven load, are significant contributors to the total reflected inertia.
- Rack-and-pinion sets: These mechanisms convert rotary motion into linear motion, introducing their own inherent mass and frictional characteristics to the overall system inertia.
- Chain-and-sprocket sets: Similar in function to belt drives but typically more robust, these systems are used for heavy-duty power transmission and can introduce considerable inertia.
- Linear actuators: Incorporating various screw types such as leadscrews, ballscrews, or roller screws, these components convert the motor’s rotary motion into precise linear movement. Each screw type possesses distinct efficiency, friction, and inertial properties that must be carefully accounted for in the design calculations.
Engineers are tasked with accurately summing the inertias of all axis components and precisely calculating the equivalent inertia reflected back to the axis’s motor shaft. This calculation is absolutely vital for the correct selection and sizing of an appropriately powerful motor and its corresponding drive. A particularly complex and common scenario arises in designs involving changing inertia, such as robotic axes performing dispensing tasks where the payload mass continuously decreases, or machining operations where material is removed. In such dynamic situations, the motion controls may necessitate advanced servotuning capabilities, often incorporating adaptive algorithms, to dynamically compensate for these varying dynamics and maintain consistent, precise control throughout the operation.
Phase 2: Defining Motor Output Force or Torque
Once the required mechanisms, their frictional characteristics, and their inertias are meticulously quantified, the subsequent logical step is to accurately define the necessary motor output force (for linear motors) or, more commonly, the output torque (for rotary motors). This critical parameter is fundamental for the proper selection and sizing of the electric motor designated for each axis within the design.
A servo axis’s motor must be capable of delivering sufficient torque throughout the entirety of its predefined move profile. This includes:
- Acceleration torque: The instantaneous torque required to overcome the combined inertia and frictional forces to accelerate the load to the desired operating speed within the specified time.
- Constant torques: The steady-state torques necessary to overcome dynamic friction and external loads during the constant velocity "run phases" of the motion profile.
- Deceleration torques: The torques required to bring the load to a controlled stop, often involving the regeneration of kinetic energy back to the drive.
Accurate torque calculation is paramount. An undersized motor will inevitably struggle to meet performance requirements, leading to potential overheating, premature wear, and system failures. Conversely, an oversized motor represents an unnecessary capital expenditure and can lead to increased energy consumption and reduced system efficiency. This phase also necessitates a careful consideration of the motor’s continuous and peak torque capabilities, ensuring it can handle both steady-state operational demands and transient peak loads during aggressive acceleration and deceleration phases.
The Central Intelligence: Motion and Motor Controls
The orchestration of various motor actions within an automated system is meticulously commanded by system motor controls or motion controls, two technological domains that have experienced significant convergence over the past two decades. Both types of electronic systems function by accepting low-power input signals, interpreting these commands, and subsequently prompting the actuation-level electrical output necessary to drive the involved motors.
Employing a biological analogy, motion controllers effectively serve as the system’s "brains." These are sophisticated computing units specifically designed to:
- Monitor: Continuously receive and process real-time feedback data from sensors and encoders regarding the current position, velocity, and other critical operational parameters of the axes.
- Command: Generate precise motion trajectories based on programmed routines and send corresponding control commands to the motor drives.
- Integrate: Coordinate the synchronized movements of multiple axes, ensuring harmonious and complex operational sequences, as seen in multi-axis robotic systems.
Much like the nervous systems of biological organisms, motion controllers can be configured for various system architectures:
- Single-axis control: Managing the movement of an individual, solitary axis.
- Multi-axis control: Synchronizing the movements of several axes to perform intricate tasks, a common requirement in advanced robotics, CNC machines, and complex material handling systems.
- Centralized control: An architecture where the main controllers, motor drives, and other complementary electronics are housed together within a single control cabinet.
- Distributed drive-based control: An increasingly popular approach where control intelligence is decentralized, often with smart drives incorporating integrated control capabilities located closer to the motors they govern.
The strategic choice between centralized and distributed control is often a key decision made during the iterative design process. For machines with numerous axes spread over a large operational footprint, decentralized motion control can offer substantial advantages. This approach can significantly reduce wiring complexities and associated costs, while also allowing for smaller, more modular control cabinets that simplify installation and maintenance. In contrast, for compact machine installations, the economies of scale and simplified troubleshooting associated with traditional centralized control often present a more beneficial solution.
Irrespective of the chosen control architecture, each motor’s drive (which functions as the motor control or amplifier) must possess the inherent capability to provide sufficient acceleration and continuous current to rigorously satisfy the motion design’s duty-cycle requirements. This encompasses the electrical power required to both dynamically move the load and efficiently dissipate any heat generated during deceleration. Ultimately, this capability is determined by the Root Mean Square (RMS) current or acceleration current, while meticulously accounting for any increase in the motor’s winding resistance due to thermal effects. Modern drives frequently incorporate advanced thermal models and protection algorithms to safeguard the motor and ensure reliable, long-term operation.
Precision and Performance: Servosystems and Motion Profiles
Motion system designs that adopt a closed-loop control architecture, universally known as servosystems, represent the pinnacle of dynamic and precise motion control. These systems are inherently characterized by their ability to achieve rapid accelerations and decelerations and to operate robustly and efficiently in all four design quadrants. The "four quadrants" concept in industrial motion signifies that a design can precisely control an axis across all positive and negative torques and speeds (i.e., forward motion, forward braking, reverse motion, and reverse braking). This comprehensive, full-range control is absolutely essential for applications demanding highly dynamic, reversible, and precise movements.
The sizing of such servosystems necessitates a holistic, integrated systems approach that concurrently accounts for mechanical, electrical, and software parameters. The drives responsible for supplying power to the axes’ servomotors must be capable of delivering all necessary continuous (RMS) and acceleration (peak) currents. This ensures that the system can consistently meet its rigorous performance specifications under a wide array of operating conditions, ranging from rapid point-to-point positioning to sustained, high-speed continuous movements. The seamless integration of high-resolution feedback devices (like encoders) and sophisticated control algorithms is paramount for achieving the tight control loops and minimal error inherent in high-performance servosystems.
Environmental Considerations in Motion System Design
The specific operational environment is a paramount factor that critically influences component selection, material choices, and the overall robustness and longevity of a motion system. When a motion design is destined to operate in challenging industrial conditions—be it environments characterized by extreme heat, pervasive dust, frequent washdown procedures, vacuum conditions, explosive atmospheres, or ultra-clean requirements—the power-transmission, electromechanical, and electronic components must be meticulously selected for their inherent ruggedness and specific protective features.
Manufacturers provide comprehensive ratings that explicitly indicate a component’s ability to withstand anticipated conditions. Key environmental considerations include:
- Temperature resistance: Components must be engineered to function reliably across a specified ambient temperature range, resisting degradation from both extreme heat and severe cold.
- Ingress Protection (IP) ratings: These internationally recognized standards (e.g., IP67 for dust-tight and temporary immersion, IP69K for high-pressure, high-temperature washdown) quantify a component’s resistance to solid particulate and liquid ingress, which is critical for dusty factory floors or hygiene-sensitive washdown areas.
- National Electrical Manufacturers Association (NEMA) ratings: Predominantly used in North America, NEMA ratings provide similar protection classifications, often with additional considerations for hazardous (explosion-risk) locations.
- Corrosion resistance: Materials suitable for frequent washdown environments or exposure to corrosive chemicals are essential, frequently involving stainless steel, specialized plastics, or protective coatings.
- Vacuum compatibility: For applications in cleanrooms or space, components must be specifically designed to minimize outgassing and particulate generation, which could contaminate the environment.
- Explosion proofing: In environments containing flammable gases, vapors, or combustible dust, components must meet stringent national and international standards (e.g., ATEX, UL) to
