DM3D, a leading contract manufacturer and metal additive manufacturing (AM) solutions provider, is spearheading a transformative shift in the aerospace and space industries through its pioneering laser direct metal deposition (DMD) technology. This innovative approach enables the production of large, complex metal components, including those for high-profile clients like NASA, significantly accelerating production timelines and reducing costs. The company’s strategic pivot from traditional manufacturing to advanced metal AM, driven by its proprietary Direct Energy Deposition (DED) systems, underscores a growing trend towards additive solutions for critical applications.
From Tooling to Takeoff: DM3D’s Evolution in Manufacturing
Established in 2013 with a facility in Auburn Hills, Michigan, DM3D initially focused on tool and die building and refurbishment, primarily serving the automotive sector. However, the inherent challenges of one-off custom work and the increasing trend of offshoring in the tool and die industry, coupled with a burgeoning interest in the aerospace market, prompted President Bhaskar Dutta to steer the company towards metal additive manufacturing. This decision was underpinned by Dutta’s extensive, over two-decade-long experience with AM technologies.
Dutta recognized a significant opportunity to scale metal AM production for the demanding requirements of space and aerospace clients. This foresight led DM3D to develop its own DED technology and patent its Direct Metal Deposition (DMD) systems, specifically engineered for large-format additive manufacturing (LFAM). These advanced systems are not only integral to DM3D’s internal production capabilities but are also offered to other additive manufacturers, further disseminating this cutting-edge technology. The company’s Auburn Hills facility now serves as a comprehensive hub, encompassing production, packaging, shipping, and a significant portion of post-processing, facilitated by an array of in-house CNC and EDM machines. For exceptionally large parts, DM3D strategically outsources finishing to specialized partners, ensuring a complete end-to-end solution.
The Power of Direct Metal Deposition (DMD)
DM3D’s expertise lies in its ability to process a diverse range of metals, including stainless steel, Inconel, and various alloys such as aluminum, titanium, and copper. At the heart of its advanced capabilities is its patented laser DMD technology, meticulously designed to handle this broad spectrum of metallic materials. This process is particularly adept at fabricating intricate geometries, which are often challenging or impossible to achieve through conventional manufacturing methods.
DMD operates as a metal AM process that employs a focused laser energy source to precisely melt and deposit metal powder or wire in a layer-by-layer fashion. The fundamental steps of this additive process involve:
- Material Feeding: Fine metal powder or wire is precisely fed into the build area.
- Laser Melting: A high-powered laser beam scans the powder or wire, melting it to a molten state.
- Deposition and Fusion: The molten metal is deposited onto the substrate or previously formed layer, fusing with it to create a solid structure.
- Layer-by-Layer Construction: This cycle of melting and deposition is repeated, building the component incrementally according to the digital design.
- Controlled Environment: The entire process is typically conducted within a controlled atmosphere to prevent oxidation and ensure material integrity.
This systematic approach allows for the creation of highly complex and customized parts with unparalleled precision and material efficiency.
Large Format Additive Manufacturing for Niche Industries
Industries requiring low volumes of large, complex parts often face significant cost and lead time challenges with traditional manufacturing. Additive manufacturing, particularly LFAM, presents a compelling solution by drastically reducing these barriers. DM3D initially identified the space and aerospace sectors as prime candidates for this technology due to their inherent low-volume, high-complexity part requirements.
“There was a lead time reduction with the elimination of the tool and die making process,” stated Bhaskar Dutta. “For low-volume production and prototyping, additive manufacturing is very cost-effective.” This strategic focus allowed DM3D to leverage AM’s advantages in cost savings and accelerated development cycles.
The company has since made significant contributions to the space industry, producing some of the largest additively manufactured metal components for rocket engines. Notably, DM3D collaborated with NASA on a candidate part for the RS-25 engine: a nozzle liner measuring an impressive 111 inches in height with a 97-inch-diameter base. This monumental component was fabricated using a custom-designed multi-nozzle DMD system, specifically engineered for this demanding application.

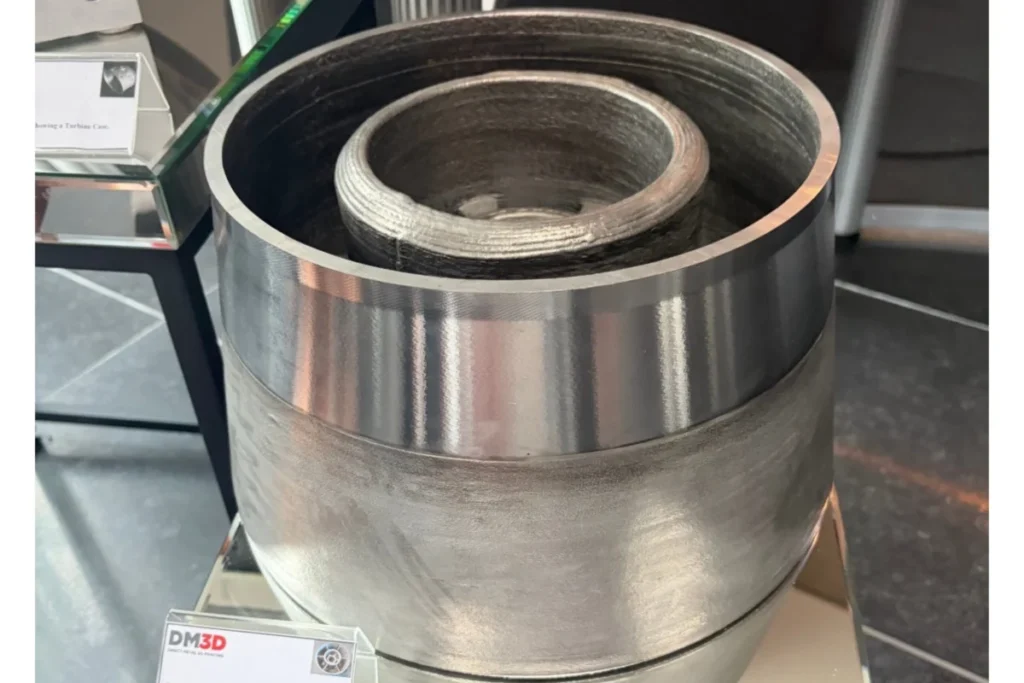

A nozzle jacket 3D printed from Inconel for NASA.
Advanced Simulation and Validation Drive Success
The production of such critical components involves rigorous testing and validation. Following the initial design phase for the RS-25 engine nozzle liner, DM3D and NASA engaged in comprehensive simulations using ANSYS 3D simulation software. These simulations meticulously analyzed the part’s potential thermal behavior, stress distribution, and distortion throughout the entire build process. This predictive modeling is crucial for ensuring the structural integrity and performance of the final part.
After the simulation phase, the nozzle liner was 3D printed using DM3D’s advanced DED technology. Upon completion, the fabricated liner underwent a structured light geometric inspectional scan, a highly precise method for verifying dimensional accuracy and surface finish against the digital model.
The application of AM for producing this nozzle liner yielded substantial benefits. DM3D reported a reduction of over 50% in lead time and a 25% decrease in cost compared to conventional manufacturing methods. The company’s proprietary multi-nozzle DMD system played a pivotal role in achieving these efficiencies. By employing two simultaneously operating process heads, the system effectively doubled the throughput. Furthermore, the system’s modular design allows for the addition of two more process heads, offering a scalable solution for even higher production demands.
A Strategic Future: Expanding Capabilities and Market Reach
DM3D has strategically positioned itself as a comprehensive, one-stop-shop for AM services and solutions, catering to a diverse range of industries. As a relatively small company, DM3D exercises careful selection of the applications it undertakes, prioritizing resource optimization and focusing on areas where its advanced capabilities can deliver the most significant impact.
Looking ahead, DM3D is focused on expanding its technological repertoire and market reach. The company aims to achieve qualification for wire-based DED technology, a complementary additive process that can offer different material deposition rates and cost efficiencies for certain applications. Additionally, DM3D is actively working towards qualifying titanium parts for production. The increasing difficulty manufacturers face in sourcing titanium castings makes this a strategically important capability expansion. By broadening its material and process expertise, DM3D is poised to serve an even wider array of critical applications within the aerospace, defense, and other high-demand sectors. This forward-thinking approach solidifies DM3D’s role as an innovator in the rapidly evolving landscape of metal additive manufacturing.
