The increasing complexity and specialized demands of modern industrial and technological landscapes are continually pushing the boundaries of mechanical engineering. In this intricate ecosystem, the gearbox, a seemingly humble component, plays a pivotal role in transmitting power and optimizing mechanical advantage. While standard, off-the-shelf gearboxes serve a vast array of general applications, an emerging consensus among design engineers and industry leaders points to the critical necessity of custom-engineered solutions for high-stakes, performance-driven environments. This shift underscores a broader trend towards highly specialized, integrated systems that prioritize unparalleled performance, reliability, and efficiency over generic applicability.
The Limitations of Off-the-Shelf Solutions
The fundamental challenge with standard gearboxes lies in their inherent compromise. Designed for broad market appeal and cost-effectiveness, they often represent a ‘one-size-fits-most’ approach. This compromises optimal system performance in applications where space, weight, specific environmental resistance, or precise operational parameters are non-negotiable. Chris Handcock, Design Lead at Electro Mechanical Systems, a prominent player in the field of customized electro-mechanical solutions, articulates this dilemma: "Fully custom gearboxes are typically specified when the compromises associated with off-the-shelf products are unacceptable. Constraints around space, weight, or cost often mean standard gearboxes meet individual requirements but fail to optimize overall system performance." This sentiment is echoed across various sectors, highlighting a growing recognition that true innovation often necessitates bespoke mechanical solutions.
Market research further substantiates this trend. According to the Worldwide Industrial Single-stage Gearbox Market Research Report 2026, Forecast to 2032, a significant majority—more than 60% of end users—express a clear preference for customizable options that precisely align with their unique operational requirements. This data point is not merely a preference but a reflection of evolving industry standards where marginal gains in efficiency, longevity, and operational integrity can translate into substantial competitive advantages and cost savings over the lifecycle of a product or system.
Driving Factors for Customization: Beyond Standard Specifications
The need for custom gearboxes extends far beyond basic dimensional constraints. Several critical factors necessitate a tailored approach:
-
Specialized Materials and Environmental Resilience: Many cutting-edge applications operate in extreme or highly specific environments that demand materials or features simply unavailable in stock products. Harsh chemical environments, vacuum conditions, extreme temperatures, or applications requiring non-magnetic properties all call for bespoke material selection. For example, enhanced ingress protection (IP ratings) against dust and liquids, non-outgassing materials for vacuum or cleanroom environments, or application-specific lubricants designed for high loads, extreme temperatures, or food-grade safety are common requirements that standard offerings cannot meet.
-

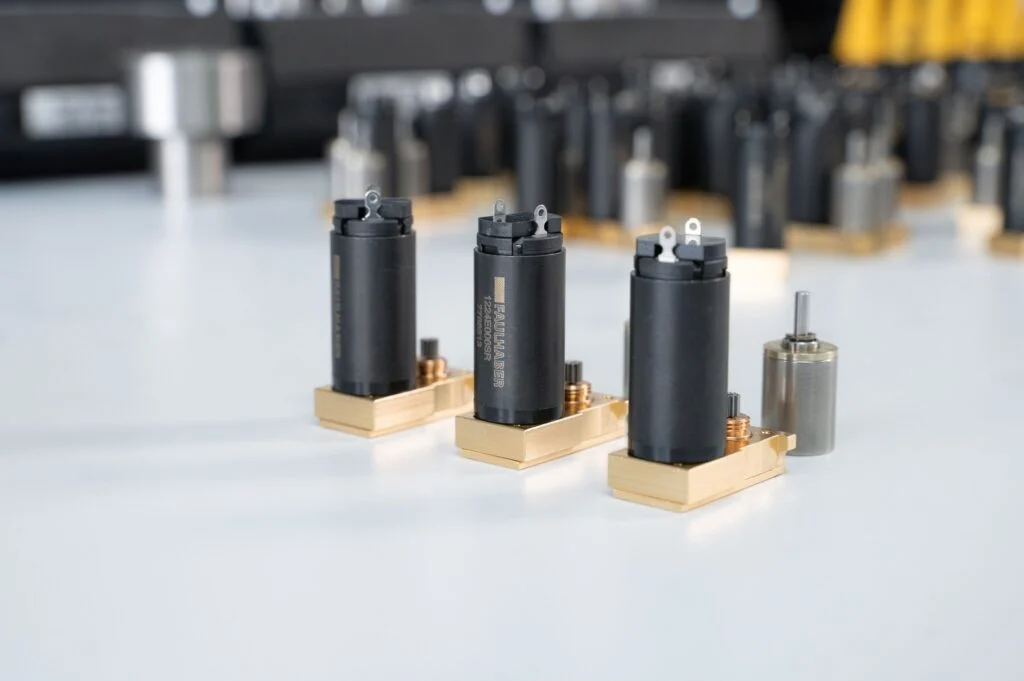

Functional Integration and System Consolidation: A significant advantage of custom design is the ability to integrate multiple functions into a single, compact gearbox unit. This consolidation can simplify procurement, reduce overall assembly time and complexity, minimize the number of interfaces, and ultimately enhance system reliability by reducing potential points of failure. Instead of assembling several disparate components, a single, integrated custom gearbox can perform the combined roles, leading to a more streamlined and robust solution.
-
Performance Optimization: In many cases, the goal isn’t just to "fit" a gearbox, but to optimize the entire drive system for maximum performance. This could mean achieving higher torque density in a smaller footprint, minimizing backlash for ultra-precise positioning, improving energy efficiency, or extending service life under arduous duty cycles. These performance parameters are often interdependent and require a holistic design approach that considers the gearbox in concert with the motor and the broader application.
Industry Spotlights: Where Customization Shines
The applications benefiting most from custom gearbox design span a diverse array of high-tech industries, each presenting its unique set of challenges:
-
Medical Technology: This sector epitomizes the demand for non-negotiable precision, reliability, and specialized material requirements. Devices ranging from surgical robots and diagnostic equipment to handheld instruments require gearboxes made from non-corrosive, biocompatible materials, often with smooth, cleanable surfaces to meet stringent sterilization protocols. Furthermore, the imperative for lightweight design, particularly in portable or handheld medical devices, necessitates innovative material selection and compact designs that cannot be achieved with standard components. The trade-offs between performance, size, and cost in medical applications demand meticulous system-level decision-making, where isolated component optimization is insufficient.
-
Aerospace and Defense: In aviation, space exploration, and defense systems, every gram of weight saved and every millimeter of space optimized translates into enhanced fuel efficiency, increased payload capacity, or improved operational agility. Gearboxes in these domains must withstand extreme temperature fluctuations, high G-forces, vacuum conditions, and often require specific vibration dampening properties. Materials like titanium alloys or advanced composites are often employed for their superior strength-to-weight ratios and resilience in harsh environments. Reliability is paramount, as component failure can have catastrophic consequences.
-
Robotics and Automation: The rapid advancements in industrial automation and collaborative robotics demand gearboxes that offer high precision, minimal backlash, and compact designs. As robots become more agile and capable of intricate tasks, the gearboxes powering their joints must deliver smooth, repeatable motion with high torque density. Customization allows for the precise tailoring of gear ratios, bearing configurations, and housing designs to optimize robot kinematics and dynamic performance.
-
Renewable Energy: Wind turbines and solar tracking systems require robust gearboxes capable of operating reliably in challenging outdoor conditions for decades. Custom designs can optimize for specific torque requirements, environmental sealing against harsh weather, and materials that resist corrosion and fatigue over extended operational lifetimes, maximizing energy capture and minimizing maintenance downtime.
The Design and Development Journey: A Collaborative Endeavor
The journey from a conceptual need to a fully realized custom gearbox is an iterative and deeply collaborative process. It typically begins long before fully defined specifications are available, often with a system-level understanding of the application.
-
Initial System Definition: Design engineers rarely arrive with complete, finalized specifications. Instead, the process commences with a comprehensive definition of the application through physical modeling and theoretical calculations. This involves meticulously analyzing expected loads, operational speeds, duty cycles (the pattern of activity over time), and desired service life. Understanding these fundamental parameters is crucial for laying the groundwork for an optimized design.
-
Reverse Engineering and Performance Analysis: In scenarios where an existing solution is underperforming or failing, reverse engineering offers invaluable insights. By analyzing the real-world performance of an existing system, particularly one operating with off-the-shelf gearboxes pushed beyond their datasheet limits, engineers can identify critical quality or reliability issues. This often involves instrumenting the system with sensors to capture operating data, such as torque, speed, temperature, and vibration. This empirical data allows suppliers to assist design engineers in developing accurate, refined specifications that not only address performance shortcomings but also fit within the existing design’s spatial and behavioral constraints.
-
Iterative Design and Simulation: With a clear understanding of the operational envelope, the design process moves into iterative stages involving advanced CAD modeling and computational simulation. Tools like Finite Element Analysis (FEA) are employed to analyze individual components—such as gear tooth stresses, shaft deflections, or housing strength—under various load cases. While simulations are powerful, their accuracy is heavily dependent on the quality of input data and the complexity of the models. Many real-world phenomena, such as complex duty cycles, shock loading, thermal variations, and environmental factors, remain challenging to model with absolute precision.
Navigating the Trade-offs: Cost, Performance, Size, and Weight
Customization, while offering unparalleled benefits, inherently involves a balancing act of competing demands. The most prominent trade-offs revolve around cost versus performance, and performance versus size or weight. Design engineers are perpetually seeking high torque density, compact packaging, and an extended service life, all at a competitive price point. Managing these often-conflicting requirements is central to successful custom gearbox development.
Mike Guilliford, author of Apex Dynamics’ "Servo Gearbox Secrets," underscores the escalating importance of precision in contemporary gearbox technology: "The demand for higher accuracy, efficiency, and reliability in components across industries is increasing… and [the importance of] gearbox selection is often underestimated." This highlights that while cost is a major consideration, under-specifying or compromising on precision can lead to far greater long-term expenses in terms of maintenance, downtime, and lost productivity.
To mitigate cost implications, custom gearing suppliers often employ strategies such as:
- Component Reduction: Streamlining the design to minimize the number of individual parts.
- Strategic Customization: Only designing fully bespoke parts when absolutely warranted, otherwise leveraging highly optimized proprietary components.
- Functionality Simplification: In some cases, carefully simplifying non-critical functionalities to achieve a better balance between cost and essential performance.
The Interplay with Motor Selection: The gearbox is not an isolated entity; its design is intrinsically linked to the motor it pairs with. High-performance motors can deliver significant power within tight spatial constraints, but their cost must be weighed against the gearbox design. The ultimate solution is almost always a system-level compromise, where the motor and gearbox are optimized as a cohesive unit. For instance, a motor capable of high power output might need to operate at a lower speed for extended life, necessitating a gearbox ratio that shifts the operating point accordingly. This dictates choices in bearing arrangements, lubrication strategies, and housing design, all of which are selected to support the optimized operating conditions.
Mastering Size, Weight, and Avoiding Over-Specification:
Constraints on size and weight are particularly challenging, especially when the available envelope is fixed. Maintaining performance within such limitations may necessitate adjustments like carefully reducing safety factors or optimizing material selection. This is achieved through detailed verification calculations, ensuring that critical components like gear teeth and bearings remain robust even with reduced margins.
Safety factors are crucial for accounting for real-world uncertainties—load variations, thermal effects, manufacturing tolerances—that cannot be perfectly simulated. Typically, gear teeth and bearings are designed with safety margins ranging from 1.5 to 2 times the expected operating load, ensuring stresses remain well below material yield limits. These margins are meticulously reviewed and refined during prototyping and testing, allowing for strategic reinforcement if needed.
Material choice plays an equally critical role. While commercial-grade steels offer cost-effectiveness and are well-understood, demanding applications in medical and aerospace sectors frequently require lighter, corrosion-resistant, or higher strength-to-weight ratio materials. Stainless steels, titanium alloys, or advanced polymers are examples that enable compact, lightweight designs. However, these materials often present greater challenges in verification and manufacturing, making rigorous prototyping and testing indispensable for confirming their performance under operational conditions.
Validating Gearing Performance: Simulation, Prototyping, and Real-World Testing
The validation of a custom gearbox design is a multi-faceted process involving simulation, prototyping, and rigorous testing. The effectiveness of each stage hinges on a thorough understanding of the intended operating conditions.
While computational simulation is invaluable for analyzing individual components or simplified load cases (e.g., gear tooth stresses under known loads), its limitations become apparent with complex applications. Many real-world duty cycles involve dynamic shock loading, significant thermal variation, and environmental factors that are exceptionally difficult to model with absolute accuracy. Consequently, the utility of simulation outputs is directly proportional to the accuracy of the use data available, which is often incomplete in early development stages.
This underscores the critical importance of production-representative prototyping and real-world validation. Leading suppliers focus on developing prototypes that are intended to operate precisely as they would in service, rather than mere proof-of-concept models optimized solely in software. By validating gearboxes within the customer’s actual application environment, issues can be identified that would be nearly impossible to predict through simulation alone. This includes subtle failures that manifest only under specific environmental conditions or unique operational scenarios.
Testing is frequently accelerated to condense years of operational life into shorter timeframes, utilizing representative loads, speeds, and control electronics. This approach allows for a realistic assessment of performance, durability, and failure modes, while accounting for the multitude of variables present in actual use. Depending on the project scope, suppliers may validate specific aspects of the design internally, while design engineers conduct broader, system-level testing to confirm overall integration and performance.
This comprehensive validation strategy aligns perfectly with the overarching goal: designing the gearbox as an integral part of a complete drive system, rather than an isolated component. Custom drive solutions enable the gearbox to be precisely matched to the motor’s operating characteristics, whether the primary objective is maximum power density, superior efficiency, or an extended lifecycle. For example, selecting a gearbox ratio that shifts the motor’s operating point for optimal longevity, coupled with appropriate bearing arrangements, lubrication strategies, and housing design, creates a truly harmonized system.
Seamless Integration and Future Implications
At the mechanical interface level, a significant benefit of custom design is the ability to create housings that integrate directly with the customer’s subsystem. This eliminates the need for cumbersome adaptor plates or secondary fixtures, which are often necessary with off-the-shelf gearboxes. Such consolidation not only improves alignment and reduces assembly complexity but also enhances overall system robustness, resulting in a gearbox that functions seamlessly within its intended application.
The trend towards custom gearbox solutions is indicative of a broader industry evolution. As technology advances and applications become more specialized, the demand for highly optimized, integrated mechanical components will only intensify. This paradigm shift from generic parts to bespoke engineering solutions is not merely about meeting current needs but about enabling the next generation of innovation across critical sectors. Companies that master the art and science of custom gearbox design and manufacturing, like Electro Mechanical Systems, are positioned at the forefront of this industrial transformation, driving efficiency, reliability, and groundbreaking performance in an increasingly complex world.
