Massachusetts Institute of Technology (MIT) researchers have achieved a significant breakthrough in microfabrication with the development of a low-cost, 3D-printed design for specialized electronic nozzles, known as triaxial electrospray emitters. This innovation promises to democratize the efficient and scalable manufacturing of sophisticated materials, including time-release drug-delivery particles and self-healing composites. The new design overcomes the prohibitive costs and lengthy production times traditionally associated with creating such intricate devices, paving the way for broader applications across various scientific and industrial fields.
The core technology, triaxial electrospray, leverages electricity to precisely control the expulsion of three distinct liquids from microscopic nozzles. This process generates a continuous stream of liquid that forms distinct, concentric layers. As these layered liquids exit the nozzles, they coalesce into multilayered droplets. Upon solidification, these droplets transform into microparticles with carefully engineered internal structures, offering unprecedented control over their properties and functionalities.
H2: Precision Microparticle Manufacturing for Advanced Applications
The potential applications of these triaxial electrospray emitters are vast and transformative. For instance, in the realm of pharmaceuticals, they can be utilized to create multi-layered drug-delivery nanoparticles. An example scenario illustrates how an outer layer might be designed to slowly degrade within the stomach environment, exposing a subsequent material. This intermediate layer then orchestrates the controlled release of a core therapeutic agent, which is ultimately delivered to a specific target region within the intestines. This level of precision in drug delivery can significantly enhance therapeutic efficacy, minimize side effects, and improve patient compliance.
Beyond medicine, these microparticles hold promise for advanced materials. Self-healing composites, for example, could incorporate microcapsules containing healing agents. When a crack forms, these capsules rupture, releasing the healing substance and autonomously repairing the damage, thereby extending the lifespan and improving the durability of materials used in aerospace, automotive, and construction industries. Furthermore, the technology is adaptable for biosensors, capable of detecting specific chemical substances with high sensitivity, and for creating artificial cells crucial for tissue regeneration initiatives.
H2: Overcoming Fabrication Bottlenecks with 3D Printing
Historically, the creation of miniature arrays of electrospray emitters has been a complex and expensive undertaking. It typically necessitates highly specialized and time-consuming microfabrication processes conducted within semiconductor cleanrooms. These environments, with their stringent dust control and controlled atmospheric conditions, are essential for creating the extremely fine features required, but they also impose significant cost barriers and limit the speed of innovation.

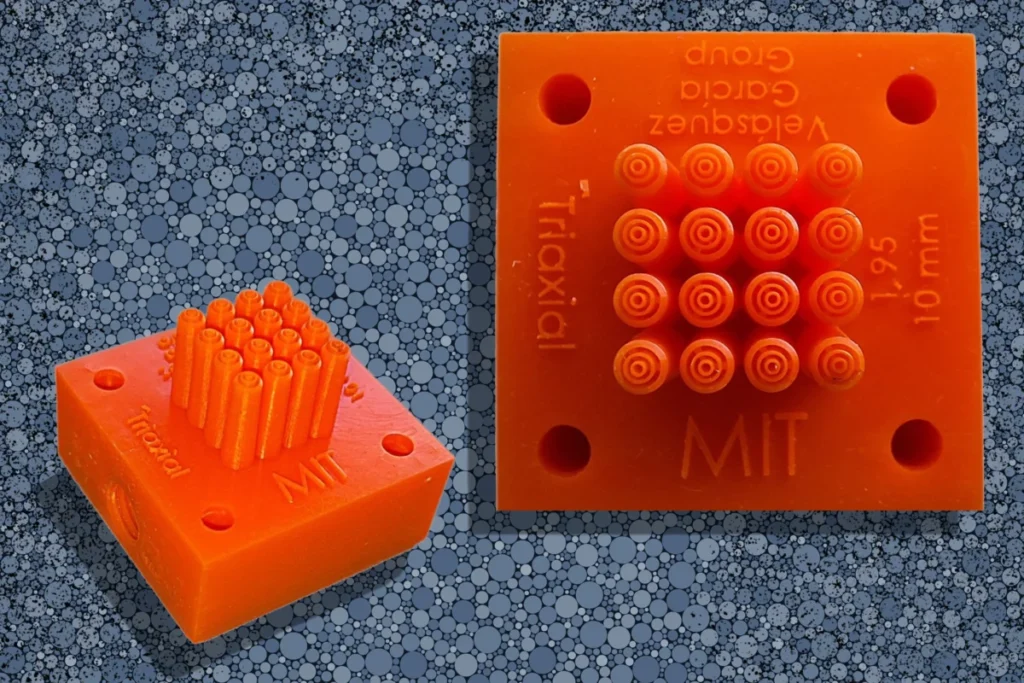

To circumvent these limitations, the MIT research team has pioneered the use of 3D printing to fabricate arrays of triaxial electrospray emitters. Their innovative approach has yielded devices featuring 16 nozzles densely packed within an area of approximately one square centimeter. Each 3D-printed device incorporates an intricate internal architecture of three-dimensional microchannels. This sophisticated network is meticulously designed to ensure a uniform and consistent supply of the three immiscible liquids to each individual nozzle.
The beauty of their method lies in its efficiency. The entire fabrication process is a single step, taking mere hours to produce these complex emitter arrays. This represents a dramatic reduction in manufacturing time compared to traditional methods, which can take weeks or even months.
H3: Validation and Performance Metrics
Rigorous testing of the 3D-printed arrays has confirmed their capability to generate uniform, three-layered droplets at scale. The uniformity of these droplets is paramount for the high-throughput manufacturing of layered microparticles, ensuring consistent quality and predictable performance across large production batches. The researchers reported that their 3D-printed devices consistently produced microdroplets with minimal variation in size and layer integrity.
Luis Fernando Velásquez-García, a principal research scientist at MIT’s Microsystems Technology Laboratories (MTL) and the senior author of the paper detailing this advancement, emphasized the transformative nature of their fabrication technique. "We couldn’t make a device like this in a semiconductor cleanroom," Velásquez-García stated. "This is only possible because they are 3D-printed. The particles these devices generate, whether they are used for a self-healing composite or to deliver medicine, can have a big impact in many applications. We want to democratize this technology so the benefits can touch many more people."
The research, appearing in the journal Virtual and Physical Prototyping, is a collaborative effort with lead author Bryan Ivan Quintanar-Abarca from the Technological Institute of Monterrey in Mexico.
H2: The Electrospray Mechanism: A Deeper Dive
Electrospray emitters operate on a fundamental principle: applying a high voltage to a liquid as it emerges from a nozzle. This electric field induces a surface charge on the liquid, leading to the formation of a stable, conical jet that then breaks down into a fine spray of extremely small droplets. The triaxial design enhances this process by incorporating three concentric nozzles, each dispensing a different, immiscible liquid. This arrangement ensures that the liquids remain separate as they are ejected, forming layered droplets that can be precisely controlled.
The ability to create microparticles with distinct layers is crucial for applications requiring tailored functionalities. For instance, a biosensing particle could be engineered with three different chemical markers, each encapsulated within its own layer. The electrospray technique’s efficiency in producing smaller microdroplets at a high rate far surpasses many alternative methods.
H3: The Importance of Miniaturization and Array Design
Miniaturization is a key factor in the effectiveness of electrospray devices. Smaller emitters require lower voltages to initiate droplet formation, leading to reduced energy consumption and improved control. However, the output from a single emitter is inherently limited. To achieve industrially relevant production rates, arrays of emitters are essential. The challenge lies in scaling up without compromising the uniformity and precision of the generated droplets.
Traditional semiconductor fabrication methods impose constraints on the achievable geometries and sizes of the components within multi-emitter electrospray devices. The MIT researchers’ literature review revealed no prior reports of miniaturized triaxial electrospray arrays, underscoring the novelty and significance of their work.
Velásquez-García elaborated on the design challenges: "When you build a triaxial array, you need to find a way to create geometries that have many integrated parts and extremely fine structures in the smallest footprint possible. And you need to ensure the devices will work uniformly."
H2: 3D Printing: Enabling Complex Geometries with Unprecedented Precision
The research team employed a sophisticated 3D printing technique known as vat photopolymerization. This additive manufacturing process utilizes light to selectively cure and solidify thin layers of liquid resin. By building the device layer by layer, researchers can construct incredibly complex internal structures that would be impossible to achieve through subtractive manufacturing or conventional microfabrication.
This highly precise process enabled the researchers to fabricate layers as thin as 25 micrometers, a dimension significantly smaller than the width of a human hair. This level of detail was critical for creating the intricate internal geometry required for the triaxial electrospray emitter.
H3: Innovative Channel Design for Uniformity
The resulting 3D-printed array, slightly larger than a U.S. penny, houses an elaborate network of coiled internal channels. These channels are specifically engineered to transport the three distinct liquids to the 16 nozzles. The helical design of these microchannels plays a vital role in ensuring a uniform spray of microdroplets across all nozzles. This design not only promotes uniformity but also contributes to the overall compactness of the device.
"In a sense, the emitters in the array never learn they have company, or otherwise there would be cross-talking and causing interference between them," explained Velásquez-García. "We achieved uniformity because of the work that went into our designs."
A significant challenge in 3D printing such microfluidic devices is fabricating the fine channels without the need for support structures, which could potentially clog the device and obstruct liquid flow. The researchers also had to ensure that any uncured resin was meticulously removed before the array was put into operation. The precise alignment of the concentric nozzles was another critical factor, ensuring that microdroplets were emitted consistently and without distortion.
H3: Iterative Design and Material Property Optimization
The iterative nature of 3D printing proved to be a significant advantage, allowing for rapid prototyping and design refinement. "We were able to aggressively optimize the design because we could iterate in a much timelier manner," Velásquez-García noted. "This ability to exquisitely refine designs is a key advantage of 3D printing."
Through the testing of multiple architectural configurations, the researchers identified the optimal combination of liquid flow rates that maximized the stability and consistency of the emitted microdroplets. A surprising finding from their experiments was the paramount importance of the viscosity of the middle liquid. It was discovered that the viscosity of this intermediate layer plays the most significant role in maintaining droplet stability, as it helps to preserve the integrity and thickness of each individual layer within the microdroplet.
Furthermore, the team demonstrated that by carefully adjusting flow rates and applied voltages, they could precisely control the thickness of each layer within the microdroplets. This capability is directly translatable to designing drug-delivery particles with tailor-made layers, ensuring that medications are released at precisely the intended time and rate.
H2: Future Directions and Broader Impact
The implications of this research extend beyond immediate applications. By making the fabrication of such intricate devices more accessible and cost-effective, the MIT team aims to empower a wider community of scientists and entrepreneurs. "By making such intricate devices more practical, we can empower others to pursue entrepreneurial and scientific advances," Velásquez-García articulated.
Looking ahead, the researchers plan to further refine their fabrication processes and device designs. Their future goals include achieving even smaller dimensions for the nozzles and microchannels, as well as integrating conductive or dielectric materials into the devices. These advancements could lead to the development of even more sophisticated and versatile electrospray emitter arrays with enhanced functionalities.
The research was supported in part by the Tecnológico de Monterrey – MIT Nanotechnology Program, highlighting a successful international collaboration in pushing the boundaries of advanced manufacturing and its applications. This breakthrough signals a new era in the precision manufacturing of microparticles, with the potential to revolutionize drug delivery, create novel materials, and advance diagnostic technologies.
