Researchers at the Massachusetts Institute of Technology (MIT) have unveiled a groundbreaking, low-cost design for specialized electronic nozzles, known as triaxial electrospray emitters. This innovation promises to significantly enhance the efficiency and scalability of producing advanced materials, including time-release drug-delivery particles and self-healing composites. The development, detailed in the latest issue of Virtual and Physical Prototyping, bypasses the traditionally expensive and time-consuming cleanroom fabrication methods, opening new avenues for widespread application of this sophisticated technology.
The core of this advancement lies in the precise manipulation of liquids at the microscale. Triaxial electrospray emitters leverage electrical fields to meticulously dispense three distinct liquids from microscopic nozzles. This controlled process generates a steady, layered stream of fluid that can then solidify into multi-layered microparticles. Such precision is crucial for applications requiring highly controlled material properties. For instance, a drug delivery system could be designed with an outer layer engineered to erode slowly in the digestive tract, exposing a second, release-controlling material. This, in turn, would govern the release of a core payload, delivering medication to a specific target within the intestines with unprecedented accuracy.
Traditionally, the creation of miniaturized electrospray emitter arrays has been a bottleneck. It necessitates intricate microfabrication processes conducted within highly controlled semiconductor cleanrooms. These environments are characterized by stringent dust control and specialized equipment, making them inherently expensive and time-consuming. The complexity and cost associated with these facilities have historically limited the widespread adoption and accessibility of advanced electrospray technologies.
Overcoming these limitations, the MIT team has ingeniously employed additive manufacturing, specifically 3D printing, to create arrays of triaxial electrospray emitters. Their innovative approach allows for the fabrication of arrays containing up to 16 nozzles within a compact area of approximately one square centimeter. Each of these 3D-printed devices incorporates an intricate network of three-dimensional microchannels. This sophisticated internal architecture ensures the uniform and consistent supply of liquids to each nozzle, a critical factor for achieving uniform particle production at scale.
The new one-step fabrication process developed by the MIT researchers offers a dramatic improvement in manufacturing speed and efficiency. It reportedly takes only a few hours to produce these complex emitter arrays, a stark contrast to the weeks or months often required for traditional microfabrication. When subjected to rigorous testing, the 3D-printed arrays demonstrated their capability to generate uniform, three-layered droplets consistently and at a high throughput. This uniformity is paramount for the large-scale manufacturing of layered microparticles, which are essential for a diverse range of applications, from highly sensitive biosensors capable of detecting specific chemical substances to artificial cells designed to facilitate tissue regeneration.
"We couldn’t make a device like this in a semiconductor cleanroom. This is only possible because they are 3D-printed," stated Luis Fernando Velásquez-García, a principal research scientist at MIT’s Microsystems Technology Laboratories (MTL) and the senior author of the study. He emphasized the transformative potential of this technology, noting, "The particles these devices generate, whether they are used for a self-healing composite or to deliver medicine, can have a big impact in many applications. We want to democratize this technology so the benefits can touch many more people."
The collaborative research effort included lead author Bryan Ivan Quintanar-Abarca from the Technological Institute of Monterrey in Mexico, highlighting an international dimension to this scientific advancement.
A Precise Process for Microparticle Fabrication
Electrospray technology fundamentally relies on applying a high voltage to a liquid as it exits a nozzle. This electrical charge induces the liquid to break apart into a fine, steady stream of extremely tiny droplets. The triaxial design builds upon this principle by incorporating three concentric nozzles. These nozzles are engineered to emit three immiscible (non-mixable) liquids simultaneously. The result is the formation of layered droplets, which, upon solidification, yield compound microparticles with distinct, precisely defined layers.
The potential applications of this layered microparticle fabrication are vast. For instance, a biosensing particle could be constructed with three different chemical markers, each embedded within a separate layer. The ability of electrospray emitters to produce smaller microdroplets at a much higher rate than alternative techniques makes them particularly attractive for developing highly sensitive diagnostic tools.
Miniaturization is a critical factor in the performance and efficiency of electrospray devices. Smaller emitters require lower voltages to initiate droplet formation, leading to reduced energy consumption and greater control. However, the output of a single emitter is inherently limited. Therefore, to achieve significant droplet production volumes without compromising uniformity, arrays of multiple emitters are essential.
The traditional manufacturing route for multi-emitter electrospray devices, as mentioned, involves semiconductor cleanrooms. While these facilities excel at producing highly precise components, they impose limitations on the achievable shapes and sizes of device elements. Furthermore, the open literature reveals a scarcity of previous reports detailing miniaturized triaxial electrospray arrays, underscoring the novelty and pioneering nature of MIT’s work.
"When you build a triaxial array, you need to find a way to create geometries that have many integrated parts and extremely fine structures in the smallest footprint possible. And you need to ensure the devices will work uniformly," Velásquez-García explained.
Leveraging 3D Printing for Intricate Designs
To meet these stringent design requirements, Velásquez-García and his colleagues turned to vat photopolymerization, a sophisticated 3D printing technique. This method utilizes light to selectively solidify layers of liquid resin, enabling the step-by-step construction of highly complex three-dimensional structures. This high-resolution printing process allowed the researchers to fabricate layers as thin as 25 micrometers, a dimension significantly smaller than the width of a human hair. This capability was instrumental in creating the intricate internal geometry necessary for a functional triaxial electrospray emitter.

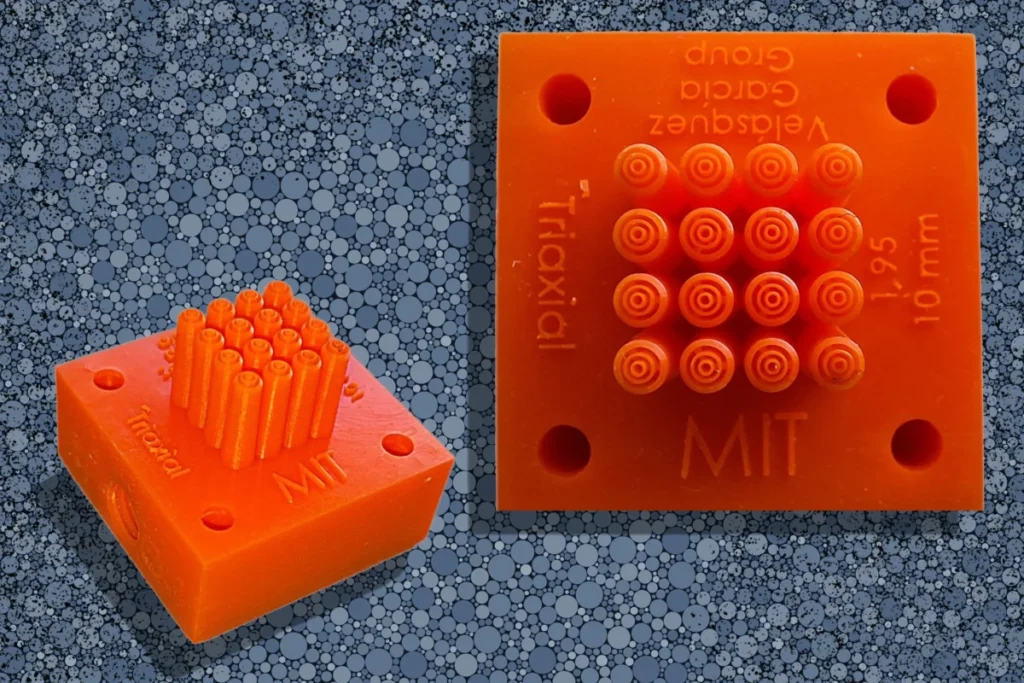

The resulting 3D-printed array, roughly the size of a U.S. penny, features a sophisticated internal network of coiled channels. These helical microchannels are designed to guide and deliver liquid to the 16 integrated nozzles. The coiled design serves a dual purpose: it helps maintain uniform liquid flow and spray characteristics across all nozzles, thereby ensuring consistent droplet generation, while also contributing to the overall compactness of the device.
"In a sense, the emitters in the array never learn they have company, or otherwise there would be cross-talking and causing interference between them. We achieved uniformity because of the work that went into our designs," Velásquez-García remarked, highlighting the successful isolation of each emitter’s operation.
A significant fabrication challenge involved creating these extremely fine microchannels without the need for support structures. Such supports, if not properly removed, could clog the delicate channels and render the device inoperable. The 3D printing process allowed for the precise fabrication of these channels, and careful post-processing steps were implemented to ensure all uncured resin was removed before the array was put into use. The accurate alignment of the concentric nozzles is also critical for the consistent emission of microdroplets, a feat made achievable by the precision of the 3D printing method.
Refining Design Through Iteration
The ability to rapidly prototype and iterate on designs is a key advantage offered by 3D printing. Velásquez-García noted, "We were able to aggressively optimize the design because we could iterate in a much timelier manner. This ability to exquisitely refine designs is a key advantage of 3D printing." The researchers explored multiple architectural configurations and liquid flow rate combinations to identify the optimal parameters for stable and consistent microdroplet emission.
During their investigations, they made an interesting discovery regarding liquid viscosity. They found that the viscosity of the middle liquid layer plays a particularly crucial role in droplet stability. This is because the middle layer’s viscosity helps maintain the integrity and thickness of each distinct layer within the microdroplet, preventing them from mixing or deforming prematurely.
Furthermore, the study demonstrated that by precisely adjusting flow rates and applied voltages, the thickness of each layer within the microdroplets could be meticulously controlled. This level of fine-tuning is directly translatable to the design of advanced drug-delivery particles, allowing scientists to engineer specific layer thicknesses that correspond to desired drug release profiles, ensuring medication is delivered at the exact intended time.
"By making such intricate devices more practical, we can empower others to pursue entrepreneurial and scientific advances," Velásquez-García stated, underscoring the democratizing potential of their innovation.
Looking ahead, the MIT research team plans to further refine their fabrication processes and device designs. Their future objectives include achieving even smaller dimensions for the emitter arrays and integrating conductive or dielectric materials. These enhancements are expected to pave the way for the development of more sophisticated and versatile electrospray emitter arrays with expanded functionalities.
This pioneering research was made possible, in part, by funding from the Tecnológico de Monterrey – MIT Nanotechnology Program, fostering a collaborative environment for cutting-edge scientific exploration. The implications of this work extend far beyond the laboratory, promising to accelerate advancements in medicine, materials science, and diagnostics by making high-precision microfabrication more accessible and affordable.
