In an era defined by the exponential growth of artificial intelligence and the massive data requirements of global server networks, researchers at Seoul National University and the University of Seoul have announced a landmark breakthrough in the field of optical hardware. The collaborative team has successfully developed a programmable photonic integrated circuit (PIC) capable of slowing the speed of light on demand and reconfiguring its transmission properties. This innovation, led by Professors Namkyoo Park and Sunkyu Yu of Seoul National University’s Department of Electrical and Computer Engineering, alongside Professor Xianji Piao from the University of Seoul, addresses one of the most persistent hurdles in the transition from electronic to optical computing: the inability to easily delay and store optical signals.
The findings, recently published in the prestigious international journal Advanced Science, arrive at a critical juncture for the semiconductor industry. As generative AI models like Large Language Models (LLMs) scale in complexity, the underlying hardware infrastructure is reaching a breaking point. Conventional electronic semiconductors, which rely on the movement of electrons through copper or silicon traces, are plagued by high energy consumption and heat generation. Furthermore, they face physical limits regarding data transmission speeds, often referred to as the "interconnect bottleneck." Optical computing, which utilizes photons instead of electrons, offers a theoretical solution by providing near-instantaneous data transfer with significantly lower power requirements. However, the inherent speed of light—approximately 300,000 kilometers per second—has historically made it difficult to manage, particularly when signals need to be synchronized or temporarily stored in a buffer.
The Challenge of the Optical Buffer
In traditional electronic computing, information is stored in capacitors or transistors that can hold an electrical charge. In the world of photonics, "holding" information is far more complex because a photon cannot be stopped without being absorbed and destroyed. To create a functional optical computer, engineers must find ways to "slow" light, effectively creating a delay that allows the processor to synchronize different data streams or perform memory-related tasks.
Until now, most devices designed to slow light have relied on a phenomenon known as coupled-resonator-induced transparency (CRIT). This technique uses the interference between multiple optical resonators to create a narrow transparency window where the "group velocity" of light is significantly reduced. While effective in a laboratory setting, traditional CRIT-based devices have been hampered by their rigidity. Once a photonic chip is manufactured, its physical dimensions and the properties of its resonators are fixed. If an engineer needs a longer delay or a different frequency range, the entire chip must be redesigned and refabricated, a process that is both costly and time-consuming.

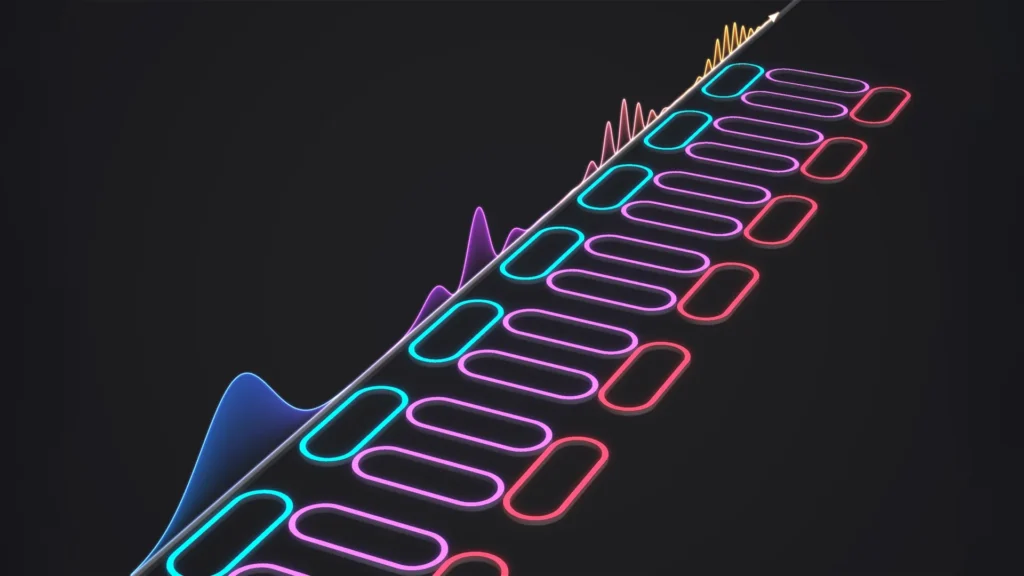

The South Korean research team identified this lack of adaptability as a major obstacle to the practical implementation of optical AI servers. To overcome this, they developed a design that treats the "bright mode" and "dark mode"—the two primary optical states within a resonator system—as a single, unified degree of freedom. By integrating two controllable loop couplers into the circuit, the researchers created a programmable architecture that allows for real-time adjustment of how light behaves within the chip.
A New Architecture for Programmable Light
The core innovation of the SNU and UoS team lies in the introduction of these loop couplers, which act as adjustable valves for the optical signals. By tuning these couplers, the researchers demonstrated that they could manipulate the bandwidth and shape of the passband—the range of frequencies that can pass through the circuit—while simultaneously controlling the time delay of the signal.
This level of control is unprecedented in the field of integrated photonics. In numerical simulations and theoretical demonstrations, the team showed that the speed of optical pulses could be adjusted dynamically while the circuit was in operation. This means that a single chip could be reconfigured to handle different types of data or different processing requirements on the fly, much like how software can change the function of a general-purpose CPU.
Furthermore, the research addressed the efficiency of signal transmission. One of the common trade-offs in slow-light devices is that as the signal is delayed, it often loses strength or suffers from distortion. The new programmable design allows for the optimization of transmission efficiency alongside the delay, ensuring that the integrity of the data is maintained even as its speed is manipulated. The system even demonstrated the ability to perform frequency conversion—changing the color of the light—without the need for additional, specialized components.
Proven Reliability Through Advanced Simulation
To ensure that their design could be translated into a physical product, the researchers conducted exhaustive three-dimensional electromagnetic simulations. They modeled the device on a silicon nitride (Si3N4) photonic integrated circuit platform. Silicon nitride is a preferred material in the industry because it offers a wide transparency range and lower optical loss compared to traditional silicon-on-insulator (SOI) platforms, making it ideal for high-performance computing and telecommunications.
A significant portion of the study was dedicated to "real-world" stressors. The team evaluated how the circuit would perform in the presence of manufacturing imperfections and operational hazards, including:
- Material Losses: The natural absorption of light by the circuit materials.
- Resonator Quality Variations: Minor differences in the manufacturing of the ring resonators.
- Backscattering: Unwanted reflections that can interfere with signal clarity.
- Thermal Crosstalk: The heat generated by one component affecting the performance of another.
- Phase Errors: Misalignments in the timing of the light waves within the loop couplers.
The results of these simulations were highly positive, indicating that the proposed structure is robust enough to operate reliably under realistic conditions. This suggests that the transition from a theoretical model to a mass-produced commercial chip is a viable path forward.
Implications for AI and Data Center Infrastructure
The potential impact of this technology on the global tech landscape is profound. Currently, data centers are estimated to consume nearly 2% of the world’s total electricity, a figure that is projected to rise as AI adoption increases. By replacing energy-hungry electronic interconnects with programmable photonic circuits, the industry could see a dramatic reduction in power consumption and cooling requirements.
In an AI context, the ability to synchronize signals is paramount. Large-scale neural networks require massive amounts of data to be moved between memory and processing units simultaneously. The SNU-developed chip could serve as a "traffic controller" for these data streams, using its programmable delay lines to ensure that every piece of information arrives at the processor at the exact nanosecond required. This would eliminate the "wait states" that currently slow down AI training and inference.
Beyond AI, the researchers highlighted several other industries that could benefit from programmable PICs:
- Autonomous Driving: LiDAR systems, which use light to map the environment, require precise control over signal timing and frequency to improve resolution and range.
- Quantum Computing: Quantum systems rely on the delicate manipulation of individual photons. Programmable delay lines are essential for synchronizing quantum gates and managing entanglement.
- 6G Communications: Next-generation wireless networks will operate at much higher frequencies, requiring ultra-fast, low-latency signal processing that only photonics can provide.
- Miniaturized Sensors: By combining multiple optical functions onto a single chip, manufacturers can create smaller, more affordable sensors for medical diagnostics and environmental monitoring.
The Road Ahead: Large-Scale Integration
Professor Namkyoo Park emphasized that this research is merely the beginning. "This study is significant in that it proposes a new design principle that allows the flow of light within photonic integrated circuits to be reconfigured as needed, greatly enhancing design flexibility," he stated. The team’s next objective is to scale this technology, moving from individual components to large-scale programmable photonic integrated circuits based on silicon photonics.
The co-first authors, Dr. Seungkyun Park and Ph.D. student Beomjoon Chae, noted that the breakthrough came from re-evaluating established physics. "We realized that reinterpreting conventional photonic resonator physics from a different perspective can serve as a starting point for discovering new functionalities," they said. Their focus now shifts toward experimental validation and the implementation of practical devices that can be integrated into existing semiconductor fabrication workflows.
The research was a multi-institutional effort, receiving significant backing from the South Korean government. Support was provided by the Ministry of Science and ICT through several initiatives, including the Innovative Research Center (IRC) program, the Basic Research Laboratory (BRL) program, and the Young Researcher Program. Additionally, Dr. Seungkyun Park’s contributions were supported by the InnoCORE program (PICORE Center) at KAIST.
As the semiconductor industry searches for a successor to the current electronic paradigm, the work of the SNU and UoS researchers provides a compelling roadmap. By turning the "fixed" nature of light into a programmable variable, they have laid the groundwork for a future where optical computers are not just a theoretical possibility, but a practical, scalable reality. The ability to control the speed and shape of light on a single, programmable chip may well be the key that unlocks the next generation of high-performance, energy-efficient computing.
