Global demand for electricity is rising fast, driven by an unprecedented surge in energy-hungry data centers supporting artificial intelligence, coupled with the rapid expansion of manufacturing capabilities worldwide. This escalating demand is placing immense pressure on existing power systems, necessitating solutions that go beyond merely generating additional electricity. The critical challenge now lies in how to manage, convert, and deliver power with dramatically greater efficiency and at a lower cost. In response to this pressing global imperative, researchers at the U.S. Department of Energy’s National Renewable Energy Laboratory (NREL) have developed a groundbreaking silicon carbide (SiC) based power module, known as the Ultra-Low Inductance Smart (ULIS) module, poised to redefine energy conversion and delivery across a multitude of sectors.
The Intensifying Global Energy Imperative
The world stands at a pivotal moment in its energy trajectory. Projections from institutions like the International Energy Agency (IEA) indicate a significant increase in global electricity consumption in the coming years. Data centers, the backbone of the digital economy and the engine rooms for artificial intelligence, are emerging as particularly voracious consumers. Estimates suggest that their electricity demand could double or even triple by the end of the decade, accounting for a substantial portion of new power requirements. Simultaneously, the global push for reshoring manufacturing, the electrification of transportation, and the ongoing development of smart cities further exacerbate the strain on power grids. Meeting this demand through conventional means alone, such as building more power plants, is increasingly unsustainable from both economic and environmental perspectives. A more intelligent approach, rooted in maximizing the utility of existing energy supplies through radical efficiency improvements, has become paramount.
NREL’s Breakthrough: The ULIS Power Module
NREL’s ULIS power module represents a significant leap forward in power electronics, the critical technology that regulates and converts electricity between different systems. Power electronics are ubiquitous, found in everything from electric vehicle chargers and renewable energy inverters to industrial motors and data center power supplies. The efficiency of these components directly impacts energy consumption and overall system performance. ULIS is designed to dramatically improve how electricity is converted and delivered, offering record-breaking efficiency, higher power density, and a manufacturing process engineered for cost-effectiveness.
At its core, ULIS leverages advanced silicon carbide (SiC) semiconductors, a class of wide-bandgap materials known for their superior performance compared to traditional silicon-based devices. SiC components can operate at higher voltages, temperatures, and frequencies, leading to smaller, lighter, and more efficient power converters. The global SiC market is experiencing rapid growth, projected to reach multi-billion-dollar valuations by the mid-2020s, driven by its adoption in electric vehicles, industrial power, and renewable energy. ULIS capitalizes on these inherent advantages, achieving five times the energy density of earlier designs while occupying a fraction of the physical space. This miniaturization and enhanced power output empower manufacturers to build equipment that is not only smaller and lighter but also substantially more energy efficient. The module, rated at 1200 volts and 400 amps, is ideally suited for demanding applications ranging from hyperscale data centers and modern electrical grids to compact microreactors and next-generation heavy-duty platforms, including advanced aircraft and military vehicles.
Technical Deep Dive: Unpacking ULIS’s Innovation
The exceptional performance of ULIS stems from several interwoven innovations, chief among them its ultra-low parasitic inductance and a revolutionary physical design.
The Critical Role of Ultra-Low Inductance: Parasitic inductance refers to the unwanted electrical resistance that inherently slows down changes in electrical current and limits the efficiency of power conversion. In high-frequency power electronics, even small amounts of parasitic inductance can lead to significant energy losses, heat generation, and electromagnetic interference. ULIS achieves an exceptionally low parasitic inductance, reducing this resistance by an impressive seven to nine times compared to the most advanced silicon carbide power modules available today. This dramatic reduction is a cornerstone of its breakthrough performance.
By minimizing inductance, ULIS enables the system to switch electrical current extremely quickly and efficiently. This "fast switching" capability means that more of the available electricity is converted into usable power, with less energy wasted as heat during the conversion process. Consequently, ULIS can extract significantly more value from the same energy supply, positioning it as a powerful tool in addressing escalating global energy demands. Faisal Khan, NREL’s chief power electronics researcher and the principal investigator for the ULIS project, emphasizes the significance: "We consider ULIS to be a true breakthrough. It’s a future-proofed, ultrafast power module that will make the next generation of power converters more affordable, efficient, and compact."
Record-Breaking Efficiency and Power Density: The combination of SiC semiconductors, ultra-low inductance, and an optimized design translates directly into unparalleled efficiency and power density. Power density, the amount of power a device can handle per unit volume or weight, is crucial for applications where space and weight are at a premium, such as aerospace or portable power systems. The ability of ULIS to achieve five times the energy density while maintaining a compact footprint means that more power can be processed in a smaller package, leading to overall system miniaturization and enhanced performance. For instance, in data centers, this could mean more computing power in the same rack space with lower cooling requirements.
A Radical Redesign: Engineering for Performance and Cost-Effectiveness
Many of ULIS’s performance gains are directly attributable to a completely novel physical design and manufacturing approach that challenges conventional wisdom in power module construction.
From Stacked Boxes to Flat Pancakes: The Design Journey: Traditional power modules typically involve stacking semiconductor devices within relatively bulky, box-like packages. This conventional architecture often creates bottlenecks for current flow and contributes to higher parasitic inductance. The NREL team, however, embarked on a radical redesign. Early concepts explored complex three-dimensional shapes, including intricate "flower-like" structures and hollow cylinders, aiming to optimize current paths. However, these ambitious designs proved too expensive and difficult to manufacture economically.

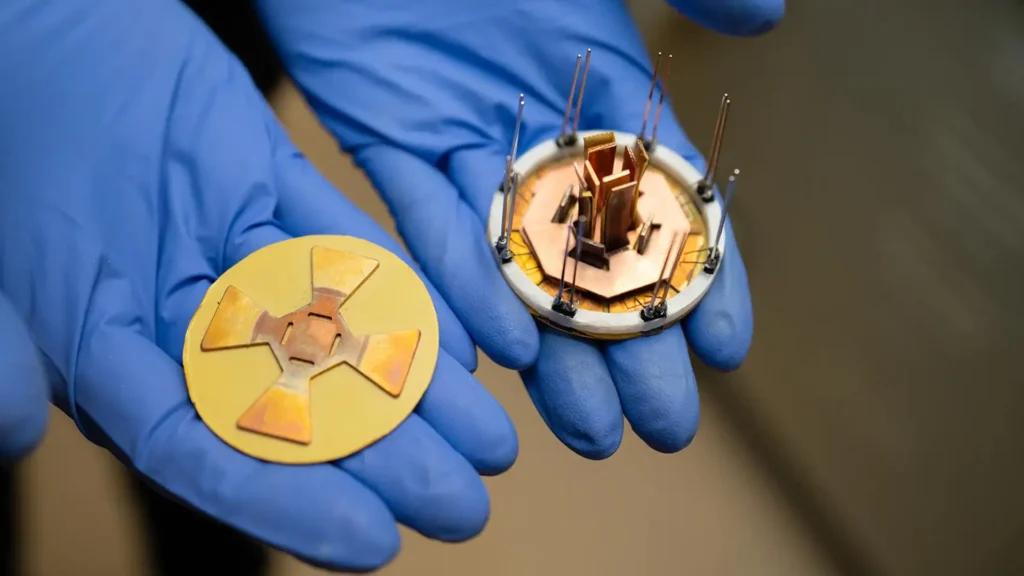

The breakthrough arrived when the team simplified the concept into a nearly two-dimensional structure. Sarwar Islam, another NREL power electronics researcher, proposed a flattened, octagonal layout, a departure from the traditional stacked approach. This disk-shaped structure allowed for a greater density of components within a smaller footprint, simultaneously reducing overall size and weight. More critically, its innovative current routing actively minimizes magnetic interference, leading to cleaner electrical output and superior overall efficiency. Shuofeng Zhao, an NREL power electronics researcher who designed ULIS’s flux cancellation architecture, highlighted the challenge: "Our biggest concern was that the device switches off and on very quickly, and we needed a layout that wouldn’t create a chokepoint within the design." The team’s ingenuity led to what Zhao playfully described as "squishing it flat, like a pancake," resulting in a low-cost, high-performing design that was far easier to fabricate.
Manufacturing Innovation and Cost Reduction: The innovative design was matched by equally innovative fabrication methods. Joshua Major, also part of the NREL power electronics team, developed new processes that enabled the intricate ULIS structure to be produced using only in-house tools and facilities. This internal capability dramatically streamlined the development process and kept manufacturing costs in check, demonstrating the practicality of the design. The result is a module that combines the electrical advantages often associated with more complex three-dimensional systems with the inherent cost-effectiveness and scalability of flat manufacturing techniques.
Flexible Materials for Enhanced Adaptability: ULIS also distinguishes itself through its choice of materials. Conventional power modules often bond copper directly to rigid ceramic bases for electrical conduction and heat management. While effective, this approach inherently limits flexibility and increases the module’s overall rigidity and weight. In contrast, ULIS bonds copper to Temprion, a flexible polymer. This strategic material choice yields a thinner, lighter, and more adaptable structure. Furthermore, the bonding process, utilizing only heat and pressure, and the fact that its components can be machined with widely available equipment, contribute significantly to cost reduction. This shift in material science translates into manufacturing costs falling into the hundreds of dollars, rather than the thousands associated with more traditional, complex power modules.
Wireless Control: A New Paradigm for Integration: A particularly forward-looking feature of ULIS is its ability to operate wirelessly. The module can be controlled and monitored without the need for physical cables, effectively functioning as a self-contained unit. This modular, "Lego-like" design facilitates seamless integration into a vast array of systems, from individual data center servers to complex components within advanced aircraft and military vehicles. This wireless capability reduces wiring complexity, improves reliability by eliminating potential cable failures, and enhances installation flexibility. A patent for this low-latency wireless communication protocol, spearheaded by Sarwar Islam, is currently pending, underscoring its novel nature and potential impact.
Built for Resilience: Reliability in Extreme Environments
Beyond its efficiency, ULIS has been meticulously engineered for unwavering reliability, particularly in the most demanding environments. According to Faisal Khan, the module’s lightweight yet powerful design incorporates advanced self-monitoring capabilities, allowing it to anticipate component failures before they occur. This predictive diagnostics feature is especially crucial for high-risk applications where operational integrity is paramount. For instance, in aviation, where aircraft operate at altitudes of 30,000 feet, or in military operations within dynamic combat zones, early detection of potential component failure can be the decisive factor between mission success and catastrophic loss. This embedded intelligence elevates ULIS from a mere power converter to a smart, resilient system critical for safety and operational continuity. "ULIS was a truly organic effort, built entirely in-house here at NREL," Khan stated, expressing enthusiasm for real-world demonstrations of its robust strengths.
Beyond Today: Future-Proofing Power Electronics
One of ULIS’s most significant strategic advantages is its inherent adaptability. While it currently harnesses the power of advanced silicon carbide semiconductors, the design was intentionally conceived to evolve with future technological advancements. The module can be readily adapted for next-generation semiconductor materials, including gallium nitride (GaN) and gallium oxide (GaO), the latter of which has yet to reach widespread commercial use but holds immense promise. This "future-proofed" architecture ensures that ULIS will remain at the forefront of power electronics innovation, capable of integrating even more advanced materials as they mature. This foresight supports a central, overarching goal: to deliver unparalleled efficiency and dependability as societies become increasingly reliant on robust and reliable electricity infrastructure.
Broadening Impact: Where ULIS Promises Transformation
ULIS is anticipated to have a profound and transformative impact across multiple critical sectors, offering tangible benefits that address current limitations and unlock future possibilities.
Revolutionizing the U.S. Power Grid: In the sprawling U.S. power grid, electricity undergoes numerous conversions before reaching consumers. This process often relies on large, lower-frequency equipment that is inherently less efficient, leading to significant energy losses. ULIS’s fast switching capabilities promise to dramatically improve the efficiency of these conversions. Furthermore, its ability to tolerate high operating temperatures can reduce the need for extensive cooling systems and potentially lower long-term maintenance costs for grid infrastructure, contributing to a more resilient and cost-effective electrical network.
Enabling Next-Generation Aviation: The aviation industry is undergoing a significant paradigm shift towards electrification. ULIS’s ability to move electricity quickly and conserve energy is critical for enabling lighter and more powerful converters. This is particularly vital for the burgeoning market of electric vertical takeoff and landing (eVTOL) aircraft. By providing efficient, compact, and lightweight power electronics, ULIS could play a pivotal role in making eVTOL aircraft more practical, commercially viable, and safer for urban air mobility and other applications. Its self-monitoring capabilities also offer an added layer of safety in critical flight systems.
Paving the Way for Fusion Energy: While commercial fusion energy remains a long-term development goal, these advanced systems will undoubtedly require compact, reliable, and highly efficient pulsed power components. ULIS’s ultralow inductance and durable design make it exceptionally well-suited for the unique and demanding challenges of fusion energy research and eventual deployment. Its ability to handle high power densities and rapid switching will be invaluable in controlling and managing the immense energy involved in fusion reactors.
Impact on Data Centers and AI Infrastructure: Given the exponential growth of data centers and AI, ULIS’s impact here cannot be overstated. By improving the efficiency of power conversion within data centers, ULIS can significantly reduce their overall energy footprint, lowering operational costs and contributing to sustainability goals. Its high power density allows for more compact power delivery systems, freeing up valuable space for computing hardware. The reduced heat generation also means lower cooling requirements, a major operational expense for data centers. Analysts suggest that even a few percentage points of efficiency gain in data center power conversion could translate into billions of dollars in annual savings globally, along with substantial reductions in carbon emissions.
The Road Ahead: Commercialization and Licensing
The development of ULIS by NREL represents a triumph of collaborative research and innovative engineering. The project’s success is a testament to the scientific rigor and ingenuity of its dedicated team, including Faisal Khan, Shuofeng Zhao, Sarwar Islam, and Joshua Major, whose diverse expertise converged to bring this vision to fruition.
As industries worldwide continue to pursue more reliable electricity infrastructure, advanced artificial intelligence capabilities, and next-generation vehicles, the NREL ULIS power module is now available for licensing. This crucial step marks the transition from groundbreaking research to real-world application, inviting commercial partners to integrate this transformative technology into their products and systems. The availability for licensing signals NREL’s commitment to facilitating the widespread adoption of ULIS, ensuring its benefits are realized across critical sectors that are shaping the future of energy and technology. Industry observers anticipate that the commercialization of ULIS could spur significant advancements in power electronics manufacturing and integration, fostering a new wave of energy-efficient products and systems.
Expert Perspectives and Industry Outlook
Industry analysts are quick to point out the potential for ULIS to disrupt existing markets. "The combination of ultra-low inductance, high power density, and a cost-effective manufacturing process makes ULIS a compelling proposition," notes one power electronics expert, who requested anonymity due to ongoing market analysis. "For companies looking to push the boundaries of efficiency in data centers, electric vehicles, or defense applications, this could be a game-changer. The ‘future-proofed’ design also offers a significant advantage, reducing the risk of technological obsolescence." Observers also highlight that such advancements are crucial for national energy security and for achieving ambitious climate goals. "Improving power conversion efficiency by even a few percentage points across an entire grid or industrial sector can have a massive impact on overall energy consumption and greenhouse gas emissions," stated an energy policy advisor. "Innovations like ULIS are precisely what’s needed to build a more sustainable and resilient energy future."
In conclusion, NREL’s ULIS power module is not merely an incremental improvement; it is a foundational innovation poised to address one of the most pressing challenges of our time: meeting escalating global electricity demand with unprecedented efficiency and reliability. By combining cutting-edge material science, radical design principles, and intelligent features, ULIS offers a compelling pathway to a future where power is managed more intelligently, sustainably, and cost-effectively across every facet of our increasingly electrified world.
