The world of 3D printing, a transformative technology enabling the rapid creation of everything from intricate movie props and complex medical implants to architectural models and bespoke consumer goods, is poised for a significant leap forward in user experience. Traditionally, the digital tools guiding this additive manufacturing process have prioritized functional previews, leaving designers and makers to grapple with unexpected aesthetic outcomes—differences in color, texture, or shading that can lead to costly and time-consuming reprints. Addressing this long-standing challenge, researchers from the Massachusetts Institute of Technology (MIT) and other leading institutions have unveiled VisiPrint, an innovative, artificial intelligence-powered preview tool designed to place aesthetic fidelity at the forefront of the 3D printing workflow.

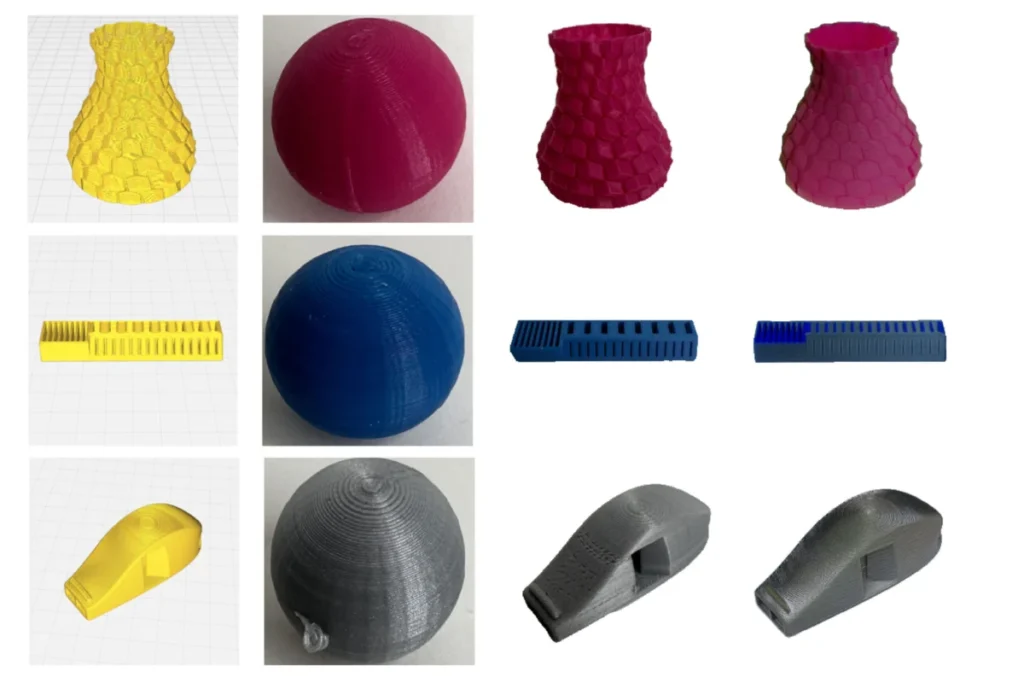

VisiPrint offers a streamlined, intuitive approach for users seeking to visualize the final appearance of their 3D-printed objects. The system operates by accepting two primary inputs: a screenshot of the digital object generated by standard 3D printing software, often referred to as "slicer" software, and a single image representing the intended print material. This material image can be sourced from online repositories or captured directly from a physical sample. Leveraging these inputs, VisiPrint automatically generates a highly realistic rendering of the fabricated object, accurately predicting its visual characteristics.
This groundbreaking system goes beyond simple color matching. VisiPrint meticulously considers a range of material properties, including glossiness and translucency, and crucially, accounts for the subtle yet impactful ways the 3D printing fabrication process itself can alter a material’s appearance. This holistic approach aims to bridge the gap between the digital design and the tangible reality of the printed object, ensuring that what users see in the preview is a faithful representation of what they will hold in their hands.
The Challenge of Aesthetic Realism in 3D Printing
The fabrication process in common 3D printing technologies, particularly Fused Deposition Modeling (FDM), involves melting a filament of plastic and extruding it layer by layer. This molten state and subsequent cooling, combined with the precise path traced by the printer’s nozzle and the height of each deposited layer, can significantly influence the final visual properties of the material. For instance, a smooth, glossy filament might exhibit a more matte finish after being extruded and solidified, or subtle variations in layer deposition could create unique textural patterns. These nuances have historically been difficult for software to predict accurately, leading to discrepancies between the digital model and the physical print.
"3D printing can be a very wasteful process," explains Maxine Perroni-Scharf, an electrical engineering and computer science (EECS) graduate student at MIT and lead author of the paper detailing VisiPrint. "Some studies estimate that as much as a third of the material used goes straight to the landfill, often from prototypes the user ends up discarding. To make 3D printing more sustainable, we want to reduce the number of tries it takes to get the prototype you want. The user shouldn’t have to try out every printing material they have before they settle on a design." This sentiment underscores the economic and environmental imperative behind VisiPrint’s development.
VisiPrint: An AI-Driven Solution
At the core of VisiPrint’s functionality lies a sophisticated interplay of two artificial intelligence models. The first is a computer vision model tasked with extracting critical visual features from the provided material sample image. These features encompass not just color but also surface characteristics like roughness and reflectivity, which are crucial determinants of a material’s perceived appearance.
These extracted features are then fed into a generative AI model. This model is responsible for synthesizing the final rendering. It computes the object’s geometry and structural composition, importantly, while also incorporating the specific "slicing" pattern—the precise path the printer nozzle will follow during fabrication. This integration of the slicing pattern is a key innovation, ensuring that the rendering reflects how the material will be deposited, layer by layer, and how this process will influence its texture and shading.
The researchers employed a specialized "conditioning" method to ensure the generative model adheres strictly to the constraints of the 3D printing process. This involves meticulously adjusting the model’s internal parameters to guide its output, ensuring it accurately follows the slicing pattern and respects the physical realities of material extrusion. This conditioning method leverages a depth map, which preserves the object’s overall shape and shading, and an edge map, which delineates internal contours and structural boundaries.
"If you don’t have the right balance of these two things, you could end up with bad geometry or an incorrect slicing pattern," Perroni-Scharf notes. "We had to be careful to combine them in the right way." This delicate balance is essential for producing previews that are both aesthetically accurate and structurally plausible.
A User-Centric Design
Beyond its sophisticated AI, VisiPrint is designed with user-friendliness in mind. The research team has developed an intuitive interface that simplifies the process of uploading images and evaluating the generated previews. This interface is accessible to a broad range of users, from hobbyists to seasoned professionals. For more advanced users, VisiPrint also offers the flexibility to adjust multiple settings, allowing for fine-tuning of aesthetic elements, such as the influence of specific colors on the final appearance.
It is important to note that VisiPrint is intended to complement, rather than replace, the functional previews provided by slicer software. VisiPrint focuses on aesthetics and does not assess printability, mechanical feasibility, or the likelihood of print failure. This distinction highlights its specific role in enhancing the design iteration process.
Validation and Impact
To gauge the effectiveness of VisiPrint, the researchers conducted a user study that pitted the system against other preview methods. The results were overwhelmingly positive. Nearly all participants reported that VisiPrint provided superior overall appearance and a more accurate textural representation compared to existing solutions. Furthermore, the VisiPrint preview generation process averaged approximately one minute, a performance that was more than twice as fast as competing methods.
"VisiPrint really shined when compared to other AI interfaces," Perroni-Scharf stated. "If you give a more general AI model the same screenshots, it might randomly change the shape or use the wrong slicing pattern because it had no direct conditioning." This direct conditioning, as described earlier, is what imbues VisiPrint with its exceptional accuracy and reliability.
Potential Applications Across Industries
The implications of VisiPrint’s aesthetic-focused previews are far-reaching, with significant potential to revolutionize workflows in various sectors:
- Dentistry: In the realm of restorative dentistry, temporary crowns and bridges often need to be aesthetically matched to a patient’s existing teeth. VisiPrint could empower dentists and dental technicians to preview the precise color and translucency of these prosthetics before fabrication, ensuring a more natural and satisfactory outcome for patients. This could reduce the need for adjustments and reprints, improving patient comfort and clinician efficiency.
- Architecture and Product Design: For architects and product designers, creating accurate physical models is crucial for presenting designs and assessing their visual impact. VisiPrint can help them visualize how different materials will look in the final model, enabling better decision-making regarding aesthetics, material selection, and client presentations. This could lead to more informed design choices and fewer costly revisions late in the design cycle.
- Consumer Goods and Prototyping: For businesses developing consumer products, the visual appeal is paramount. VisiPrint can aid in rapidly prototyping products with accurate material aesthetics, allowing for faster market testing and iterative design improvements. This could accelerate product development cycles and reduce the risk of launching products that fail to meet consumer aesthetic expectations.
- Education and Hobbyist Use: By making the 3D printing process more predictable and less prone to aesthetic errors, VisiPrint can lower the barrier to entry for students and hobbyists, encouraging greater experimentation and creativity in additive manufacturing.
Looking Ahead: Towards Greater Sustainability and "What You See Is What You Get"
The researchers are not resting on their laurels. Future work for VisiPrint includes addressing potential artifacts that can arise with extremely fine details in models and expanding its capabilities to allow users to optimize aspects of the printing process beyond just material color. This could include control over surface finishes or the impact of different infill patterns on visual appearance.
"It is important to think about the way that we fabricate objects," Perroni-Scharf emphasizes. "We need to continue striving to develop methods that reduce waste. To that end, this marriage of AI with the physical making process is an exciting area of future work."
The vision of achieving a "what you see is what you get" (WYSIWYG) experience for 3D printing echoes the transformative impact of similar technologies in desktop publishing during the 1980s. Patrick Baudisch, a professor of computer science at the Hasso Plattner Institute, who was not involved in the research, commented on this parallel: "’What you see is what you get’ has been the main thing that made desktop publishing ‘happen’ in the 1980s, as it allowed users to get what they wanted at first try. It is time to get WYSIWYG for 3D printing as well. VisiPrint is a great step in this direction."
This research was supported by grants from the MIT Morningside Academy for Design Fellowship and an MIT MathWorks Fellowship, highlighting the institutional commitment to advancing cutting-edge technologies that address real-world challenges. The work on VisiPrint represents a significant stride toward a more efficient, sustainable, and aesthetically satisfying future for 3D printing, empowering creators to bring their visions to life with unprecedented accuracy and confidence. The team’s findings are slated for presentation at the prestigious ACM CHI Conference on Human Factors in Computing Systems, underscoring the academic and professional significance of their contribution.
