In a breakthrough that challenges more than 140 years of established physics, researchers at Carnegie Mellon University have identified an unconventional magnetic response that fundamentally alters the scientific understanding of the Hall effect. This foundational principle, which has long served as a cornerstone for studying the electrical and magnetic behavior of materials, was previously believed to operate only under specific geometric conditions. The new findings, recently published in the prestigious journal Nature Materials, demonstrate that the Hall effect can occur even when magnetic fields are applied in a direction once thought to be impossible for such a response.
The discovery, led by a multidisciplinary team from Carnegie Mellon’s Department of Physics and the Lab for Investigating Quantum Materials, Interfaces and Devices (LIQUID), could pave the way for a new generation of electronic components. By enabling the detection of magnetic fields across multiple dimensions within a single, ultrathin device, this research promises to simplify the architecture of sensors used in everything from autonomous vehicles and aerospace technology to advanced medical imaging and consumer electronics.
The Evolution of a Fundamental Principle
To understand the magnitude of this discovery, one must look back to 1879, when American physicist Edwin Hall first observed the phenomenon that now bears his name. Hall discovered that when a magnetic field is applied perpendicularly to a conductor carrying an electric current, the magnetic field exerts a transverse force on the moving charge carriers. This force, known as the Lorentz force, pushes the electrons or holes to one side of the material, creating a measurable voltage across the conductor.
For over a century, this "Hall voltage" has been the primary tool for characterizing materials. It allows scientists to determine the density of charge carriers, their polarity (positive or negative), and their mobility. The standard Hall effect has become ubiquitous in modern life; it is the operating principle behind the sensors that tell a smartphone its orientation, the anti-lock braking systems in automobiles, and the brushless DC motors found in computer fans and industrial machinery.
However, a long-standing axiom in condensed matter physics held that the Hall effect—specifically the "anomalous" Hall effect found in magnetic materials—was strictly tied to a magnetic field or magnetization that is perpendicular to the plane of the electric current. If the magnetic field was oriented "in-plane" (parallel to the current’s path), the traditional Hall response was expected to vanish. The Carnegie Mellon team has now proven that this limitation is not a law of nature, but rather a consequence of the symmetries present in the materials traditionally used by scientists.
Breaking Symmetry: The Path to Discovery
The research team, led by Associate Professor of Physics Simranjeet Singh, set out to challenge the theoretical boundaries of the Hall effect by manipulating the symmetry of quantum materials. In physics, symmetry dictates which phenomena are possible. For a traditional Hall effect to occur, the material’s structure must allow for a specific type of mathematical "asymmetry" when subjected to a magnetic field.
"For a long time, the consensus was that the Hall effect only worked when the magnetic field was applied perpendicular to the plane of the film," explained Singh. "We have shown that this is not the case. By carefully selecting materials with the right internal symmetry, you can generate a robust Hall response even when the magnetic field is in-plane."
The team’s success was rooted in their choice of materials and the use of "van der Waals heterostructures"—layered materials that are only a few atoms thick. The researchers focused on a material called tantalum iridium telluride (TaIrTe4). This material possesses a unique crystal structure that lacks certain symmetries, making it a prime candidate for hosting a multidimensional Hall effect. However, TaIrTe4 is not naturally magnetic.
To overcome this, the researchers employed a technique known as the magnetic proximity effect. They placed a nanometer-thin layer of TaIrTe4 in direct contact with a layer of chromium germanium telluride (CGT), a known ferromagnetic material. Because the two materials were placed in such close proximity, the magnetic properties of the CGT "leaked" into the TaIrTe4. This created a hybrid system where the TaIrTe4 retained its unique electronic symmetry but gained the magnetic characteristics necessary to produce an anomalous Hall response.
Experimental Success and Theoretical Validation

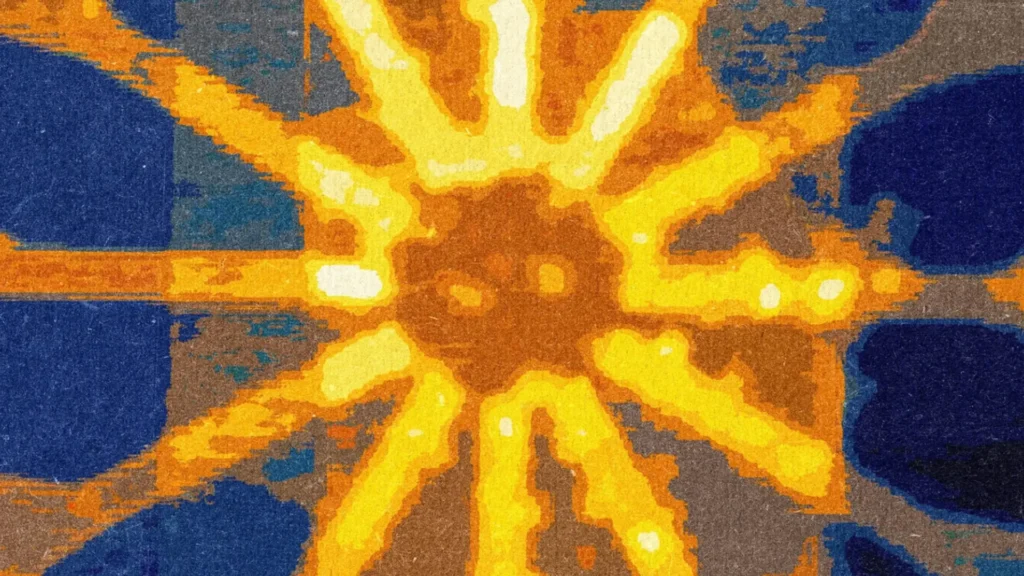

The fabrication of these devices was a feat of precision engineering. Working with Associate Professor Jyoti Katoch, an expert in the fabrication of two-dimensional quantum materials, the team created devices that were atomically thin. This process required a controlled environment to prevent oxidation and degradation of the sensitive layers.
The team, which included postdoctoral researchers I-Hsuan Kao and Ravi Kumar, conducted rigorous testing on these heterostructures. They observed that when the CGT layer became ferromagnetic at low temperatures, the TaIrTe4 layer exhibited two distinct Hall signals: the conventional signal from a perpendicular field and a second, unconventional signal resulting from an in-plane magnetic field.
This second signal confirmed the existence of the "in-plane anomalous Hall effect," a phenomenon that had been predicted by theorists but never before captured in a laboratory setting. "People had proposed this idea, but it was incredibly difficult to find a material with the right symmetry to actually demonstrate it," Singh noted. "We found that material and then engineered its magnetism to prove the theory."
To explain the mechanics behind this response, Assistant Professor Shubhayu Chatterjee provided theoretical modeling. His analysis revealed that the pairing of TaIrTe4 and CGT reduced the overall symmetry of the system, allowing for enhanced spin-orbit coupling at the interface. Spin-orbit coupling is a quantum mechanical interaction between an electron’s motion and its magnetic moment (spin), and it is the primary engine behind the anomalous Hall effect. Chatterjee’s models showed that these coupling terms are what allow the in-plane magnetization to deflect the flow of electrons, creating the measured voltage.
Implications for the Future of Sensing Technology
The practical implications of this discovery are substantial, particularly for the field of magnetometry. Currently, measuring a magnetic field in three dimensions (vector magnetometry) requires multiple sensors oriented in different directions. This adds bulk, complexity, and cost to electronic devices.
With the discovery of the in-plane Hall effect, it is now theoretically possible to create a single, ultrathin sensor capable of measuring magnetic fields along multiple axes simultaneously. "This broadens the potential application of these materials significantly," Singh said. "You can achieve multidimensional magnetic sensing with one sensor only. This simplifies device architecture and could lead to more compact and efficient electronics."
Beyond consumer electronics, the findings have significant ramifications for:
- Autonomous Systems: Improved vector sensors could provide more precise navigation and positioning data for drones and self-driving cars, which rely on magnetic signatures to orient themselves in environments where GPS may be unreliable.
- Medical Imaging: High-sensitivity, multidimensional magnetic sensors are critical for advanced diagnostic tools, such as those used to map the magnetic fields produced by the human heart or brain.
- Spintronics: The ability to manipulate and detect in-plane magnetization is a key goal in spintronics, a field of electronics that uses the spin of electrons rather than just their charge to store and process information. This could lead to faster, non-volatile memory for computers.
Chronology of the Research and Next Steps
The journey toward this discovery followed a meticulous timeline:
- Theoretical Prediction: For several years, theorists in the condensed matter community suggested that certain low-symmetry materials could host in-plane Hall effects.
- Material Selection (2022-2023): The CMU team identified TaIrTe4 as the ideal candidate due to its specific crystal lattice.
- Fabrication and Interface Engineering (Late 2023): The LIQUID lab successfully created the TaIrTe4/CGT heterostructures using van der Waals assembly techniques.
- Data Collection (Early 2024): Experiments at cryogenic temperatures confirmed the presence of the in-plane signal.
- Publication (2024): The findings were peer-reviewed and published in Nature Materials, signaling a formal shift in the scientific understanding of the Hall effect.
The research team is now focused on moving this technology from the laboratory to the real world. A primary challenge is temperature. The current experiments were conducted at low temperatures where CGT exhibits ferromagnetism. For the technology to be viable for everyday use, the researchers must find material combinations that exhibit the same in-plane Hall response at room temperature.
"This truly demonstrates the power of building atomically precise heterostructures of emergent two-dimensional quantum materials," said Katoch. "Our next goal is to refine these materials to obtain on-demand electronic and magnetic properties that function in ambient conditions."
As the LIQUID team continues to investigate new material combinations, the scientific community is already beginning to weigh the impact of this "symmetry-breaking" discovery. By proving that a century-old assumption was merely a subset of a much larger physical reality, Carnegie Mellon researchers have opened a new chapter in the study of quantum materials, one where the dimensions of measurement are limited only by the creativity of the material’s design.
