For decades, the bedrock of digital data storage has been the principle of magnetic fields manipulating tiny magnetic regions to represent binary 1s and 0s. This venerable method, while robust, inherently consumes significant energy and imposes fundamental limits on the speed at which these bits can be switched. Now, a groundbreaking development from engineers at the University of California San Diego (UCSD) signals a paradigm shift, demonstrating a novel approach that harnesses specially engineered light to rewrite magnetic information, potentially ushering in an era of unprecedented data storage capabilities.
This pivotal research, published in Nature Communications, showcases the viability of optical switching in magnetic materials far thicker than previously thought possible, crucially achieving helicity-independent magnetization reversal. This breakthrough directly addresses long-standing challenges in the field, paving the way for magnetic memory that is not only faster and denser but also remarkably more energy-efficient than current technologies.
The Limitations of Traditional Magnetic Storage
The digital age, characterized by an exponential surge in data generation and consumption, places immense pressure on existing data storage technologies. Hard Disk Drives (HDDs), the workhorses of mass storage, rely on read/write heads generating magnetic fields to align domains on platters. While cost-effective, their mechanical nature inherently limits access speeds and introduces latency. Solid-State Drives (SSDs), leveraging NAND flash memory, offer superior speed and durability by eschewing moving parts, but face challenges with endurance (limited write cycles) and scaling to ever-larger capacities without significant cost increases.
Emerging memory technologies, such as Magnetoresistive Random-Access Memory (MRAM), represent an effort to combine the speed of RAM with the non-volatility of flash. MRAM utilizes the tunneling magnetoresistance effect, where the resistance of a magnetic tunnel junction changes depending on the relative magnetization of its two ferromagnetic layers. While promising, MRAM still largely relies on electrical currents to generate magnetic fields for switching, which, similar to HDDs, incurs energy costs and speed constraints. The fundamental issue remains: magnetic fields, by their nature, are energy-intensive to generate and dissipate, and the inductive delays associated with them cap switching speeds. As data centers grapple with skyrocketing energy consumption and the need for instant access to vast datasets, these limitations become increasingly critical.
The Elusive Promise of All-Optical Switching (AOS)
The concept of using light to manipulate magnetism, known as all-optical switching (AOS), has captivated researchers for years as a potential solution to these energy and speed bottlenecks. Light, traveling at immense speeds, offers the theoretical possibility of ultrafast data manipulation without the need for cumbersome magnetic coils or high electrical currents. However, turning this theory into practical application has been fraught with difficulties.
Early experiments in AOS, while demonstrating the feasibility of light-induced magnetization reversal, were severely constrained. A significant hurdle was the material thickness: optical switching was typically observed only in ultrathin magnetic stacks, often limited to no more than three atomic layers. Beyond this minimal thickness, the effect would diminish or disappear entirely, severely restricting the physical design of memory devices and potentially compromising their ability to reliably retain information over time. Furthermore, these early methods often required a specific polarization of light (i.e., circularly polarized light with a particular helicity) to induce switching, adding another layer of complexity and limiting flexibility in system design. These restrictions rendered AOS largely a laboratory curiosity, far from practical implementation in commercial storage solutions.
UCSD’s Innovative Approach: Engineering Light, Not Material
Instead of continuing the arduous search for new magnetic materials that could overcome these inherent restrictions, the UCSD team took a radically different and highly innovative approach: they chose to change the light itself. As Muhammad Waleed Khalid, the lead researcher and a PhD student at UCSD, explained, "We’ve optically engineered the light to change the physics that’s happening in the material at the micro- and nanoscale." This philosophy represents a significant departure from conventional materials science, where the focus often lies on synthesizing novel compounds with desired properties. Here, the researchers demonstrated that by precisely shaping and shrinking the light beam, they could fundamentally alter how a known material responds to optical stimuli.

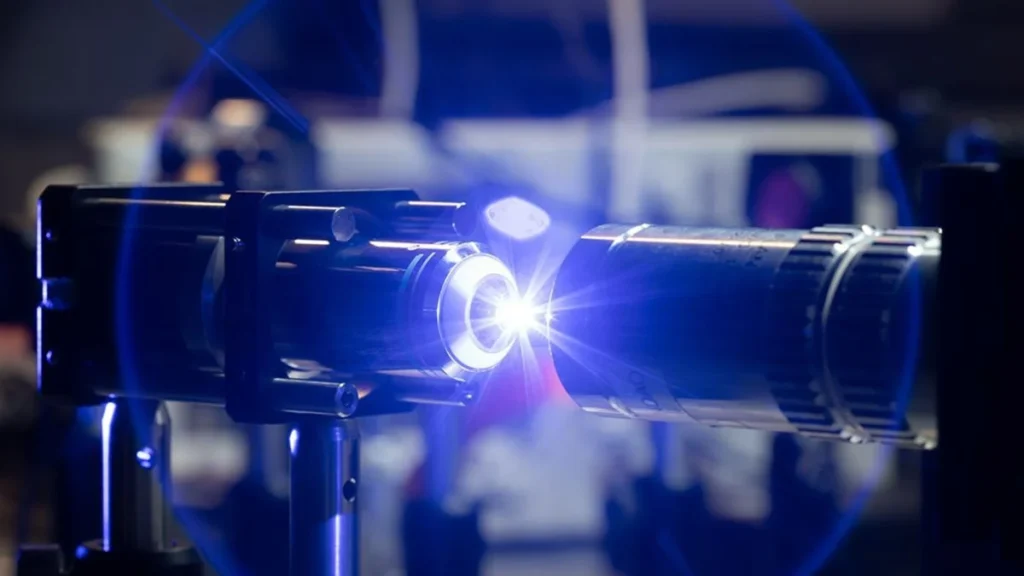

The core of their technique involved using an ultrafast laser and meticulously engineering its beam. The energy of the laser pulse was concentrated into an extremely small region, a process akin to focusing a magnifying glass to a pinpoint. The critical discovery came when this focused spot was reduced below a threshold of 1.36 micrometers. At this nanoscale dimension, the optical switching became helicity-independent, meaning the polarization of the light no longer dictated the magnetic reversal. This was a monumental breakthrough, eliminating one of the most significant constraints of previous AOS methods. By precisely shaping the beam, the UCSD engineers could modulate both the local heating effects and the optical torques exerted on the magnetic material, thereby dictating its magnetization response to the light.
Unlocking New Possibilities: Thicker Materials, Helicity Independence
To validate their innovative approach, the researchers tested it on a magnetic material composed of nine alternating layers of platinum and cobalt. This specific multilayer structure is commonly used in magnetic recording due to its perpendicular magnetic anisotropy, which is crucial for high-density storage. The choice of a nine-layer stack was deliberate and highly significant, as it represented a material substantially thicker than the three-layer limit observed in earlier optical switching experiments. Successfully demonstrating switching in such a robust, multilayer material instantly expanded the practical scope of AOS.
The experiments confirmed that this thicker material could indeed undergo helicity-independent magnetization reversal. This achievement signifies a major leap forward, overcoming two of the most formidable barriers that had previously confined all-optical switching to theoretical discussions and highly specialized laboratory setups. The ability to switch magnetism in thicker materials opens up possibilities for more robust and thermally stable memory bits, essential for long-term data retention and reliability in real-world applications. Furthermore, the helicity independence simplifies the optical system design, as complex polarization control mechanisms would no longer be a prerequisite for data writing.
The Mechanics of Ultrafast Optical Switching
The process of magnetic switching itself occurs through a precise sequence of ultrafast laser pulses. The initial pulses are meticulously delivered to concentrate enough energy into a minuscule spot, rapidly heating that localized region. This intense, localized thermal energy is sufficient to create a reversed magnetic area within the material. Following this initial reversal, additional laser pulses are applied. These subsequent pulses are designed to cause the newly switched region to expand, effectively "growing" the magnetic domain until it reaches a stable, well-defined state. This two-step process allows for precise control over the size and location of the switched magnetic bits.
Muhammad Waleed Khalid further elaborated on the capabilities enabled by their specialized equipment: "Working with a specialized laser allowed us to optically engineer the beam to have a certain shape and size. That gave us the room to explore more fundamental physics, which cannot be done with conventional beam lasers." This statement underscores the synergy between advanced laser technology and fundamental physics research, where the ability to precisely manipulate light at the nanoscale unlocks entirely new phenomena and potential applications.
Transformative Potential: Speed, Density, and Energy Efficiency
The implications of this breakthrough for data storage are profound and far-reaching. The researchers estimate that optical switching could ultimately be more than 1,000 times faster than current methods that rely on external magnetic fields. This staggering increase in speed could revolutionize everything from data center operations and cloud computing to high-performance computing, artificial intelligence, and edge devices, where latency is a critical bottleneck. Imagine processors that can access and write data with nearly the speed of light, fundamentally altering computational architectures.
Beyond speed, the optical approach also promises significantly higher data density. Since the precise location of the switched magnetic region is determined by where the tightly focused light deposits its energy, shrinking the laser beam further could allow magnetic information to be packed exponentially more densely. Abdoulaye Ndao, a senior researcher and professor at UCSD Jacobs School of Engineering, emphasized this point: "The smaller the size of the beam, the smaller and more dense the optical memory." This could lead to storage devices with capacities far exceeding current capabilities, enabling the storage of exabytes of data in increasingly smaller footprints. Furthermore, by eliminating the need for energy-intensive magnetic coils, this optical method inherently offers a pathway to substantially more energy-efficient memory, a crucial factor in mitigating the growing energy consumption of the digital infrastructure.
Navigating Scientific Skepticism and Validation
The path to this discovery was not without its challenges. The unusual and unprecedented results initially encountered by the team were so different from what the scientific community had previously observed in all-optical switching that they faced considerable skepticism. Khalid recounted, "The effects we were seeing were so new and unusual that we had a difficult time convincing others in the field that our discovery was not a one-time fluke. We spent a lot of time and effort repeating and verifying our experiments to substantiate our work to the optics community." This rigorous process of repeated experimentation and verification underscores the scientific integrity of their findings and the groundbreaking nature of their work, which fundamentally challenged existing paradigms.
This period of intense scrutiny and validation ultimately strengthened the credibility of their discovery, demonstrating that their method of optically engineering light truly yielded novel and reproducible physical effects. It highlights a common aspect of scientific progress: truly revolutionary findings often face initial resistance because they push the boundaries of established knowledge.
From Laboratory to Commercialization: The Road Ahead
While the UCSD breakthrough represents a monumental stride in fundamental research, the proposed technology is still several steps away from being integrated into commercial storage devices. The primary hurdle lies in the specialized ultrafast laser currently required for their experiments. Such lasers, while essential for the proof-of-concept, are complex, expensive, and difficult to miniaturize for integration into compact computer chips or consumer electronics.
Recognizing this, the researchers are actively exploring pathways to bridge the gap between laboratory success and commercial viability. One key area of ongoing research involves investigating alternative magnetic materials that could produce similar optical switching effects with lasers that are more compatible with existing electronic systems. This would entail finding materials that respond effectively to less powerful, more conventional, and more easily miniaturized laser sources.
Additionally, the team is dedicated to further shrinking the laser beam, with ambitious targets of reaching a few hundred nanometers. This would be achieved by leveraging advanced optical structures designed to confine light into even smaller spaces, potentially pushing the boundaries of what is physically possible in terms of data density. If successful, such extreme miniaturization would not only enhance storage capabilities but also provide an unprecedented means to study and ultimately control magnetism at scales far smaller than those currently accessible with conventional magnetic switching techniques. This ongoing research promises to unlock new realms of understanding in nanoscale magnetism and spintronics.
A Glimpse into the Future of Data Storage
The work by the UCSD team signifies a pivotal moment in the evolution of data storage. By demonstrating that the physics of light-matter interaction can be fundamentally altered through sophisticated optical engineering, they have opened up entirely new avenues for controlling magnetic properties. As Professor Ndao succinctly put it, "Instead of designing a new material to enable optical switching, we redesigned the light itself and showed new properties that were not previously thought to be possible." This philosophy of manipulating the tool rather than constantly seeking new materials offers a powerful new paradigm for technological innovation.
The long-term implications of this research are vast. Faster, denser, and more energy-efficient magnetic memory could transform everything from personal computing and mobile devices to global data infrastructure, artificial intelligence, and scientific supercomputing. As the world continues to generate ever-increasing volumes of data, innovations like this will be crucial for managing, processing, and storing information sustainably and efficiently. While commercialization remains a future goal, this breakthrough firmly establishes a credible and exciting path toward a new generation of opto-magnetic data storage, promising to reshape our digital landscape for decades to come.
