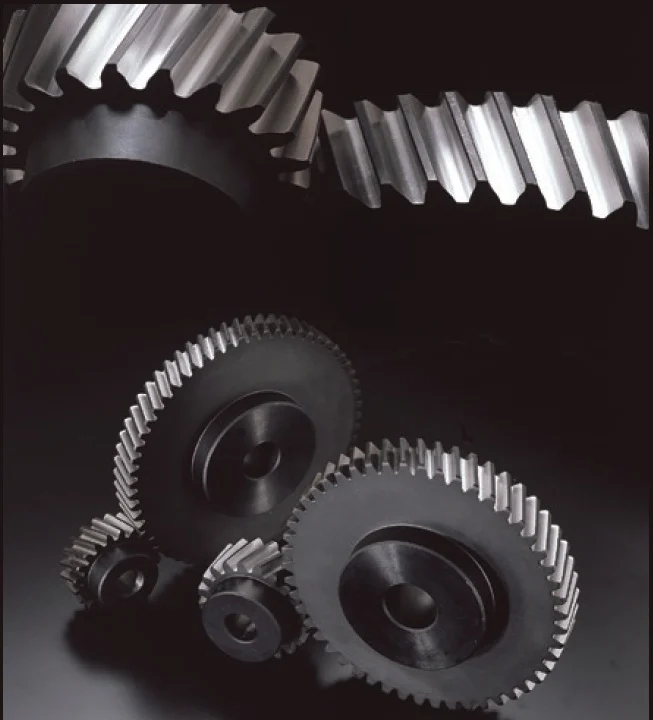

KHK USA Inc., a distinguished factory-owned distributor specializing in KHK metric gears, has officially announced the launch of its innovative Ground Helical Rack Series. This new line, encompassing the KRHG, KRHGF, and KRHGFD models, is engineered to meet the stringent demands of modern precision motion systems. These advanced racks are specifically designed for critical applications within machine tools, high-speed automation equipment, and sophisticated precision positioning systems where unwavering accuracy and exceptionally quiet operation are paramount to performance. The introduction of this series marks a significant advancement in the availability of high-performance, off-the-shelf components for complex mechanical designs, addressing a growing industry need for both precision and efficiency.
Engineering Excellence and Material Science
The newly introduced Ground Helical Racks are meticulously crafted from SCM440 alloy steel, a material renowned for its high strength, toughness, and excellent fatigue resistance, making it ideally suited for demanding industrial environments. To further enhance their mechanical properties and ensure long-term durability, these racks undergo a rigorous multi-stage manufacturing process. This process includes comprehensive thermal refining, which optimizes the material’s microstructure for improved strength and rigidity, followed by induction hardening. Induction hardening selectively hardens the tooth surfaces, significantly boosting wear resistance while maintaining a tougher, more resilient core. This combination of treatments ensures that the racks can withstand continuous high-stress operations without succumbing to premature wear or deformation.
Beyond material selection and heat treatment, the racks are subjected to precision grinding, achieving a superior finish that adheres to the exacting standards of JIS Grade N6, equivalent to KHK Grade 1. This level of precision grinding is critical for achieving the specified accuracy, ensuring consistent surface quality, and optimizing the engagement and contact patterns with mating helical pinions. The result is a component that not only performs with exceptional positional accuracy but also operates with minimal friction and noise, contributing to the overall efficiency and lifespan of the motion system. The ground finish is a key differentiator, enabling smooth motion, critical for applications requiring fine control and repeatability.
Addressing Critical Market Needs: The Drive for Precision
The global manufacturing landscape is undergoing a profound transformation, driven by an insatiable demand for higher precision, increased automation, and greater operational efficiency across diverse sectors. Industries such as robotics, semiconductor manufacturing, medical device production, aerospace, and advanced machine tooling are continuously pushing the boundaries of what is achievable, necessitating components that can deliver sub-micron level accuracy and reliability.
Traditional motion systems often face challenges related to backlash, noise generation, and accelerated wear, particularly under high-speed or heavy-load conditions. Backlash, the lost motion in a mechanical system due to clearances between components, can significantly compromise positional accuracy. Noise, a common byproduct of imperfect gear meshing, not only indicates energy loss but can also contribute to system fatigue and an uncomfortable working environment. Furthermore, the lead times associated with custom-manufactured precision components can often stall project timelines, increase costs, and introduce supply chain vulnerabilities.
KHK USA’s Ground Helical Rack Series directly addresses these critical pain points. By providing an off-the-shelf solution that meets stringent precision standards, KHK empowers engineers to overcome common design hurdles. The helical design inherently offers smoother, quieter operation compared to spur gears due to the gradual engagement of teeth. When combined with the precision grinding of JIS N6, this translates into significantly reduced backlash, enhanced positional accuracy, and a remarkable reduction in operational noise. The availability of these high-performance components as standard stock items is a strategic advantage, allowing for rapid prototyping, streamlined production, and reduced reliance on lengthy and costly custom fabrication processes.
Product Configuration and Versatility
The Ground Helical Rack Series offers a comprehensive range of configurations to suit various system designs and load requirements. Available in modules from M1 to M6, the series caters to a wide spectrum of power transmission and precision motion needs, from lighter-duty applications requiring fine pitch gears to more robust systems demanding higher torque capacity.
Standard lengths of 100 mm, 500 mm, and 1,000 mm provide flexibility for engineers to select the appropriate rack length for their specific application, whether it involves short, precise movements or extended linear travel. The modular nature of these racks also facilitates seamless integration into existing or new mechanical architectures, promoting design efficiency and reducing the need for extensive customization. The precise dimensions and consistent quality across the series ensure reliable interchangeability and predictable performance when paired with KHK helical pinions. While specific models like KRHG, KRHGF, and KRHGFD are mentioned, their individual differentiating features (e.g., mounting holes, specific tooth profiles, or end-machining variations) would typically cater to diverse mounting and application requirements, offering further versatility to designers.
A Chronology of Precision: KHK’s Legacy and Innovation
KHK USA Inc. operates as the American arm of Kohara Gear Industry Co., Ltd. (KHK), a venerable Japanese manufacturer with a long-standing reputation for producing high-quality metric gears. KHK’s journey began decades ago, establishing itself as a pioneer in the gear industry by consistently delivering precision-engineered components. Their commitment to innovation and quality has allowed them to adapt to evolving industrial demands and maintain a competitive edge in a global market.
The development of the Ground Helical Rack Series is not an isolated event but rather a culmination of extensive research and development, building upon KHK’s rich legacy in gear manufacturing. The process likely involved:
- Market Research and Needs Assessment (Early 2020s – present): Identifying the increasing demand for higher precision, quieter operation, and faster availability of components in advanced manufacturing and automation. This would involve close collaboration with system integrators, machine builders, and end-users.
- Material Science and Manufacturing Process R&D (Ongoing): Investing in the optimization of SCM440 alloy steel processing, thermal refining, and induction hardening techniques to achieve superior material properties. This also includes refining grinding methodologies to consistently meet JIS Grade N6 standards.
- Design and Prototyping (Mid-2020s): Engineering the rack geometries, tooth profiles, and mounting configurations for the KRHG, KRHGF, and KRHGFD models. Extensive prototyping and testing would have been conducted to validate performance characteristics such as accuracy, load capacity, noise levels, and wear resistance under simulated operating conditions.
- Quality Assurance and Standardization (Mid-to-Late 2020s): Ensuring that the production processes consistently meet KHK’s internal quality benchmarks and international standards like JIS. Establishing clear product specifications and ensuring compatibility with existing KHK helical pinions.
- Strategic Launch (Late 2020s / Early 2030s): The public announcement by KHK USA Inc. signifies the culmination of these efforts, making the product line available to the broader market. This strategic launch emphasizes KHK’s commitment to providing readily available, high-performance solutions.
This timeline underscores KHK’s proactive approach to innovation, continually refining its product portfolio to anticipate and meet the evolving needs of advanced industries.
Supporting Data and Industry Standards Explained
The adherence to JIS Grade N6 (KHK Grade 1) is a critical indicator of the superior quality and precision of these racks. The Japanese Industrial Standards (JIS) are a set of widely recognized and respected standards for industrial activities in Japan. For gears, these standards define accuracy grades based on parameters such as pitch error, runout, tooth profile error, and helix angle error. JIS N6 represents a very high level of precision, indicating extremely tight tolerances and minimal deviations from the ideal tooth geometry.
In practical terms, a JIS N6 grade translates to:
- Reduced Backlash: Minimizing the clearance between meshing teeth, leading to more direct and accurate transmission of motion.
- Improved Positional Accuracy: Ensuring that the output position precisely matches the intended input, crucial for applications like CNC machine tools, robotic arms, and medical imaging equipment.
- Lower Noise and Vibration: The smooth, consistent tooth contact afforded by high precision significantly reduces excitation and resonance, resulting in quieter operation and less wear.
- Extended Service Life: Accurate tooth meshing distributes loads more evenly, preventing localized stress concentrations and extending the operational life of both the rack and its mating pinion.
For context, other prominent international gear standards include AGMA (American Gear Manufacturers Association) and DIN (Deutsches Institut für Normung). While their grading systems differ, JIS N6 is comparable to high-precision grades within these frameworks, underscoring the world-class quality of KHK’s offering.
The use of SCM440 alloy steel, a chromium-molybdenum steel, is deliberate. Its composition provides an excellent balance of strength, hardness, and machinability. When subjected to thermal refining (quenching and tempering), its tensile strength and yield strength are significantly increased. Induction hardening then selectively hardens the tooth surface to typically 50-60 HRC (Rockwell Hardness), creating a highly wear-resistant layer while maintaining a ductile core that can absorb shock loads without catastrophic failure. This dual-property approach is essential for components subjected to dynamic loading and abrasive wear.
The global market for precision gears and racks is a multi-billion dollar industry, experiencing steady growth driven by the expansion of automation, robotics, and advanced manufacturing. Market analysis consistently points to an increasing demand for components that offer higher precision, greater durability, and reduced total cost of ownership. KHK’s focus on off-the-shelf, high-precision ground helical racks aligns perfectly with these macroeconomic trends, positioning them favorably within this competitive landscape.
Inferred Statements and Industry Reactions
While specific direct quotes were not provided in the original announcement, it is possible to infer the sentiment and strategic messaging from KHK USA regarding this significant product launch.
A hypothetical statement from a KHK USA product manager, for instance, might articulate: "The introduction of our Ground Helical Rack Series represents a pivotal moment for KHK USA and our commitment to empowering precision-driven industries. We understand the escalating demands for accuracy, quiet operation, and robust performance in modern machine tools and automation systems. By offering these high-precision, ground helical racks as readily available stock items, we are not just providing components; we are offering solutions that dramatically reduce lead times, simplify design processes, and ultimately accelerate our customers’ innovation cycles. Our rigorous adherence to JIS Grade N6, combined with the superior material properties of SCM440 alloy steel and advanced heat treatments, ensures that engineers can rely on KHK for unparalleled quality and performance."
From the perspective of system integrators and design engineers, the availability of such a series would likely be met with enthusiasm. A design engineer at an automation firm might comment, "Finding high-quality, ground helical racks off-the-shelf that meet our stringent precision requirements has historically been a challenge. Custom orders often mean long lead times and higher costs. KHK’s new series, especially with its JIS N6 accuracy and proven material treatment, is a game-changer. It allows us to accelerate our development cycles, bring new machines to market faster, and deliver superior performance to our clients without compromising on quality or budget."
Broader Impact and Implications
The introduction of KHK USA’s Ground Helical Rack Series carries significant implications across several dimensions of industrial manufacturing and technological advancement.
Advancing Manufacturing and Automation: By providing readily available, high-precision components, the series will undoubtedly contribute to the development of more sophisticated and accurate machine tools. This means tighter tolerances in manufactured parts, improved surface finishes, and ultimately, higher quality end products across industries. In automation, it will enable the creation of robots and automated systems with enhanced repeatability and smoother motion profiles, critical for tasks ranging from delicate assembly to high-speed material handling. The quiet operation of these racks will also contribute to more ergonomic and less fatiguing work environments, a growing concern in modern industrial settings.
Streamlining the Supply Chain and Reducing Lead Times: One of the most critical implications is the impact on project timelines and supply chain resilience. In an era where supply chain disruptions are a persistent concern, the "off-the-shelf" availability of high-precision components is a significant advantage. Engineers can integrate these racks into their designs without the uncertainty and extended lead times associated with custom manufacturing. This accelerates prototyping, reduces time-to-market for new products, and allows manufacturers to respond more agilely to market demands. This also translates to reduced inventory holding costs for users, as components can be ordered as needed.
Competitive Landscape and Market Benchmarks: KHK’s move to offer a standard series of ground helical racks at this level of precision could set a new benchmark in the market. It may encourage competitors to elevate their own standard offerings, leading to an overall improvement in the quality and accessibility of precision motion components. This ultimately benefits the end-users by providing more choices and driving innovation across the industry. It solidifies KHK’s position as a leader in metric gear solutions, emphasizing their capability to deliver both custom and standard products at the highest precision levels.
Economic Efficiencies and Innovation: The improved accuracy and durability offered by these racks translate directly into economic benefits. Machines equipped with KHK’s new series will likely experience less downtime due to wear and tear, reducing maintenance costs and increasing operational uptime. The enhanced precision can also lead to reduced material waste and improved product quality, contributing to overall cost savings. Furthermore, by making advanced precision more accessible, the series fosters innovation, allowing engineers to design and implement solutions that were previously cost-prohibitive or technically challenging with less precise components.
In conclusion, the launch of the Ground Helical Rack Series by KHK USA Inc. is a strategic response to the escalating demands for precision, efficiency, and reliability in contemporary industrial applications. By leveraging advanced material science, rigorous manufacturing processes, and a commitment to global quality standards, KHK has delivered a product line that promises to enhance the performance and longevity of critical motion systems. Its immediate availability as a standard stock item positions it as an invaluable resource for engineers and manufacturers striving for excellence in machine tools, automation, and precision positioning, thereby driving innovation and operational efficiency across a multitude of high-tech industries. Further details and specifications are available for review at khkgears.us.
