In a landmark discovery that bridges a decade-old theoretical prediction with cutting-edge experimental physics, researchers at Rice University have demonstrated that the minute, naturally occurring wrinkles in graphene can fundamentally alter the material’s electrical behavior. This phenomenon, known as flexoelectricity, occurs when the mechanical bending of a material induces a spontaneous electrical polarization. The study, published in the prestigious journal Advanced Materials, provides the first definitive experimental evidence that geometry alone—independent of chemical composition—can be used to tune the electronic properties of two-dimensional materials at the atomic scale.
The research represents a significant shift in how materials scientists approach the engineering of ultrathin electronics. For decades, the primary method for modifying a material’s electrical conductivity or charge distribution has been through "doping"—the intentional introduction of chemical impurities—or by layering different materials to create heterostructures. However, the team led by Rice University’s Pulickel Ajayan has shown that by simply manipulating the physical shape and curvature of a single layer of carbon atoms, they can create localized "hotspots" of electrical activity. This discovery paves the way for a new generation of "straintronic" devices, where the function of a sensor or processor is dictated by its structural topology rather than its chemical makeup.
The Science of Flexoelectricity in Two Dimensions
Flexoelectricity is a property traditionally associated with complex crystalline solids, where a gradient of mechanical strain—such as a sharp bend—disturbs the internal symmetry of the atoms, forcing a redistribution of electric charges. While piezoelectricity (electricity generated by uniform pressure) is more commonly known, flexoelectricity is unique because it can occur in a wider variety of materials, provided the bending is sufficiently uneven.

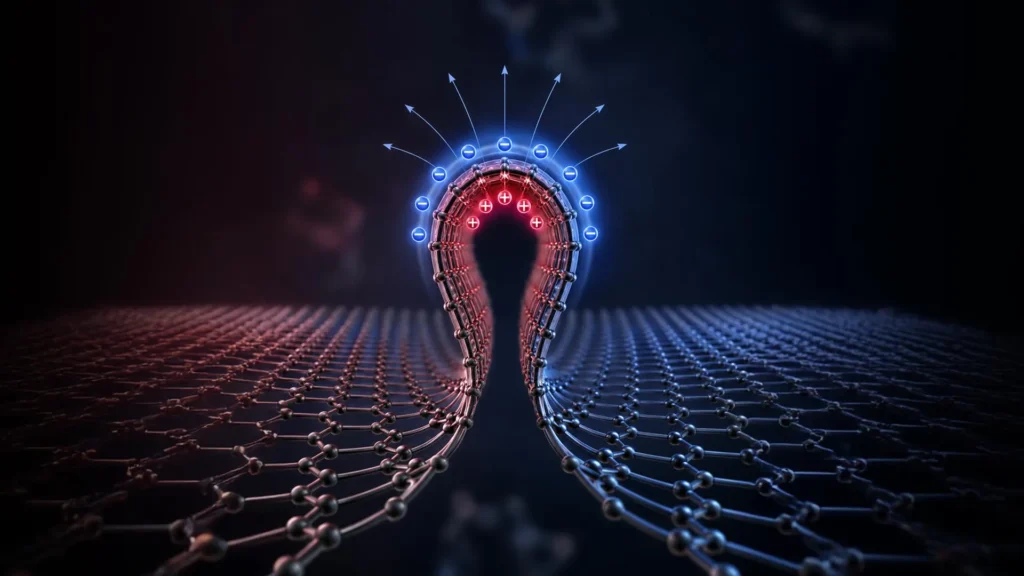

In the context of graphene—a single layer of carbon atoms arranged in a hexagonal honeycomb lattice—the material is famously symmetrical. Under normal, flat conditions, graphene is a superb conductor, but it does not naturally possess an internal electric charge. However, when graphene develops wrinkles, this symmetry is broken. The Rice University study focused on wrinkles that were compressed into regions smaller than a billionth of a meter. At this infinitesimal scale, the curvature becomes so extreme that the electron clouds surrounding the carbon atoms are forced to shift.
Sathvik Ajay Iyengar, a former Rice doctoral student and the study’s lead author, described the effect using a macro-scale analogy. "Imagine bending a flexible ruler, except the bend is squeezed into a space smaller than a billionth of a meter," Iyengar explained. "At that scale, the electrons in graphene shift slightly toward one side, creating two opposite electrical sides like the ends of a tiny battery." This "battery effect" creates a localized dip or peak in electrical potential, effectively turning a simple wrinkle into a functional electronic component.
A Chronology of Discovery: From Theory to Lab
The road to this discovery began in 2008, only four years after graphene was first isolated at the University of Manchester. Vincent Meunier, then a theoretical physicist exploring the quantum mechanics of carbon nanostructures, published a prediction suggesting that the sharp bending of graphene would rearrange its electronic structure. Meunier, who now serves as the P. B. Breneman Chair and head of the Department of Engineering Science and Mechanics at Pennsylvania State University, hypothesized that these curvatures would generate a measurable electrical response.
At the time, Meunier’s theory remained a mathematical curiosity. The technology required to measure electrical currents and potentials across a feature only a few atoms wide simply did not exist in a reliable form. The scientific community had to wait for nearly fifteen years for microscopy and spectroscopy techniques to catch up with the theory.
The breakthrough occurred when Sathvik Ajay Iyengar began re-examining data he had collected alongside Manoj Tripathi, a researcher then at the University of Sussex and currently at South Dakota Mines. While analyzing the electrical signatures of graphene samples, Iyengar noticed persistent anomalies—unusual signals that appeared only at the sites of the sharpest wrinkles. Recognizing that these signals did not correspond to any known chemical contamination, Iyengar reached out to Meunier, his former doctoral co-advisor.
The subsequent collaboration allowed the team to align experimental observations with advanced computer simulations. By using atomic-scale calculations, they were able to confirm that the signals Iyengar had observed were indeed the manifestation of the flexoelectric effect Meunier had predicted in 2008.
Experimental Methodology and Data Analysis
To validate their findings, the researchers employed a multi-modal approach that combined physical measurement with light-based analysis. The team utilized specialized Atomic Force Microscopy (AFM) probes to map the three-dimensional topography of the graphene wrinkles with sub-nanometer precision. Simultaneously, these probes measured the local contact potential difference and current flow at the wrinkle sites.
To ensure the changes were caused by curvature and not by external strain or environmental factors, the researchers used Raman spectroscopy. This laser-based technique allows scientists to observe the vibrational modes of atoms. By measuring how the laser light scattered off the graphene, the team could determine exactly how much the carbon-carbon bonds were being stretched or compressed at the peak of each wrinkle.
The data revealed a startling correlation: the strength of the electrical response was not determined by the height of the wrinkle, but by its "sharpness" or local curvature. The researchers discovered that at the tips of these sharp wrinkles, graphene behaved like a series of "electrical speed bumps." When approximately one volt of electricity was applied to the system, a consistent and measurable current was detected, matching the team’s theoretical models with high fidelity.
Perhaps most significantly, the researchers estimated that the polarization produced by these nanoscale wrinkles was between 100,000 and 10 million times stronger than what is typically observed in larger, bulk flexoelectric systems. This massive amplification is a direct result of the extreme confinement of the strain; because the material is only one atom thick, the relative change in geometry is much more impactful than in a three-dimensional block of material.
Implications for the Future of Electronics and Sensing
The ability to control electricity through geometry opens several new avenues for technological development. In the realm of semiconductor manufacturing, the industry is constantly struggling with the physical limits of Moore’s Law. As transistors become smaller, traditional chemical doping becomes increasingly difficult to control, leading to "noise" and leakage in circuits. Structural tuning via flexoelectricity offers a potential alternative, where the shape of the material itself acts as the gate for electrical flow.
1. Ultrathin Sensors
Because the electrical state of a graphene wrinkle is highly sensitive to its shape, these structures could be used to create sensors capable of detecting minute physical changes. A sensor built on this principle could detect the presence of a single molecule or a slight change in pressure by monitoring the shift in the wrinkle’s electrical potential.
2. Flexible and Wearable Technology
As the demand for flexible electronics grows, understanding how bending affects conductivity is crucial. Instead of trying to eliminate wrinkles in flexible displays or wearable biosensors, engineers could intentionally design specific wrinkle patterns to enhance the device’s performance or to harvest energy from the wearer’s movements through the flexoelectric effect.
3. "Straintronics"
The study contributes to the emerging field of straintronics, which seeks to use mechanical strain as a functional input for logic gates and memory storage. By creating "rows of speed bumps" in a graphene sheet, researchers could potentially direct the flow of electrons along specific paths without the need for traditional copper wiring or complex silicon etching.
Perspectives from the Research Team
The collaborative nature of the study highlights the international effort required to solve fundamental physics problems. Pulickel Ajayan, the Benjamin M. and Mary Greenwood Anderson Professor of Engineering at Rice and a pioneer in the field of nanomaterials, emphasized the transformative nature of the findings.
"Our work shows that even an ordinary wrinkle can become an extraordinary electronic feature when viewed at the atomic scale," Ajayan stated. "By demonstrating that geometry alone can reshape electrical behavior in graphene, we open a new pathway for designing materials whose properties can be controlled through structure rather than chemistry."
For lead author Sathvik Ajay Iyengar, the discovery is a lesson in looking at "imperfections" through a different lens. In the early days of graphene research, wrinkles were often viewed as defects that hindered the material’s legendary conductivity. "Nature already creates these tiny wrinkles for us," Iyengar noted. "Understanding how they influence electrical behavior gives scientists another tool for designing future technologies using the structure of a material itself."
Vincent Meunier reflected on the long journey from his 2008 paper to the current validation. "When Sathvik showed me the measurements he and Manoj had collected, we realized that the unusual signals could provide an experimental connection to an idea we had predicted many years earlier. Bringing the experiments and atomic-scale calculations together allowed us to test that connection directly."
Conclusion and Funding
The study, titled "Flexoelectricity in Graphene Wrinkles," involves a diverse group of contributors, including James McHugh of the University of Manchester, Jonathan Salvage of the University of Brighton, Robert Vajtai of Rice University, and Venkataramana Gadhamshetty of the South Dakota School of Mines and Technology. Alan Dalton of the University of Sussex served as a co-corresponding author alongside Ajayan, Meunier, and Tripathi.
The research was made possible through support from several major scientific bodies, including the Quad Fellowship, the Sussex Strategy Development Fund, the University of Manchester Dame Kathleen Ollerenshaw Fellowship, and the National Science Foundation.
As the scientific community continues to explore the properties of 2D materials, this discovery serves as a reminder that the most profound changes can occur in the smallest of spaces. By mastering the art of the "atomic bend," researchers are no longer just observing the wonders of graphene—they are beginning to shape its very future, one wrinkle at a time.
