A collaborative research team from Seoul National University and the University of Seoul has announced the development of a groundbreaking programmable photonic integrated circuit (PIC) capable of slowing and controlling the speed of light on demand. This technological leap, led by Professors Namkyoo Park and Sunkyu Yu of Seoul National University’s Department of Electrical and Computer Engineering, alongside Professor Xianji Piao from the University of Seoul, addresses one of the most persistent hurdles in the transition from electronic to optical computing: the inability to easily delay or store optical signals. By providing a method to manipulate the temporal characteristics of light within a compact chip, the researchers have opened a new pathway for high-efficiency AI processing, next-generation data centers, and quantum communication systems.
The Scaling Crisis: Why Electronics are Reaching Their Limit
The urgency behind this research stems from the meteoric rise of generative artificial intelligence and large-scale AI models. As platforms like ChatGPT and specialized industrial AI continue to scale, the underlying infrastructure—data centers and high-performance servers—is facing a critical bottleneck. Traditional electronic semiconductors, which rely on the movement of electrons through copper or silicon traces, are struggling to keep pace with the exponential demand for bandwidth.
Electronics face two primary physical limitations: heat and latency. As data transmission speeds increase, the energy required to move electrons rises sharply, leading to significant thermal management issues. Furthermore, electrical signals are prone to electromagnetic interference and resistance-based delays. These challenges have shifted the global focus toward optical computing and silicon photonics. Optical systems use photons—particles of light—to process and transmit information. Photons move significantly faster than electrons and generate negligible heat, promising a future where data centers can handle massive AI workloads with a fraction of the current energy consumption.
However, the greatest advantage of light—its constant, high speed—is also its greatest weakness in a computing context. In traditional electronics, signals can be easily stored in capacitors or delayed through simple circuitry to create memory and buffers. Because light naturally travels at approximately 300,000 kilometers per second in a vacuum and only slightly slower in glass or silicon, it is notoriously difficult to "hold" or synchronize. Without the ability to slow light down or delay its arrival, creating complex optical logic gates and memory buffers remains a significant engineering challenge.
Breakthrough in Light Manipulation: The CRIT Innovation
To solve the synchronization problem, the Seoul-based research team turned to a phenomenon known as coupled-resonator-induced transparency (CRIT). This technique utilizes the interference patterns generated between multiple optical resonators to create a "transparent" window for specific frequencies of light. Within this window, the group velocity of light is significantly reduced—a phenomenon often referred to as "slow light."
While CRIT has been explored in academic circles for years, its practical application has been hampered by a lack of flexibility. Conventional CRIT devices are "hard-wired" during the fabrication process. Once the physical dimensions of the resonators and their coupling distances are etched into the chip, their operational characteristics—such as the specific frequency they handle or the amount of delay they provide—are permanent. If a data center engineer requires a different delay time or a shift in frequency, the entire hardware component must be replaced.

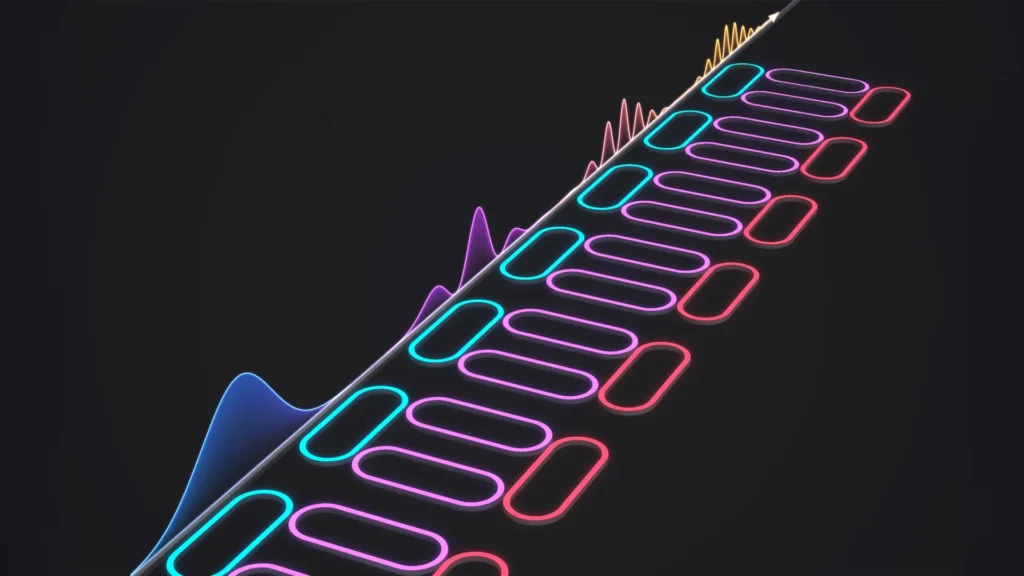

The research team’s innovation lies in a new design principle that treats the two optical states within the CRIT system—the "bright mode" and the "dark mode"—as a single, unified degree of freedom. By integrating two controllable loop couplers into the circuit architecture, the researchers created a programmable platform. This allows the chip to be reconfigured after manufacturing, enabling real-time adjustments to how light behaves as it passes through the circuit.
Technical Specifications and Numerical Validation
The study, published in the prestigious journal Advanced Science, details how the team theoretically and numerically validated their programmable design. The researchers utilized three-dimensional electromagnetic simulations to test the device’s performance on a silicon nitride (Si3N4) photonic integrated circuit platform. Silicon nitride was chosen for its excellent optical properties, including low loss and high compatibility with existing semiconductor manufacturing processes.
A key portion of the research involved testing the chip against real-world variables that often degrade the performance of photonic devices. The team accounted for:
- Material Losses: Ensuring the signal remains strong even when slowed.
- Fabrication Fluctuations: Modeling how slight variations in resonator quality affect the output.
- Thermal Crosstalk: Analyzing how heat generated by nearby components might shift the optical properties.
- Phase Errors: Testing the precision of the loop couplers in maintaining signal integrity.
The simulations proved that the movement of light pulses could be delayed and adjusted dynamically while the circuit was in operation. Crucially, the researchers demonstrated that they could control not only the delay time but also the bandwidth and the shape of the passband. This means the chip can act as a multi-functional tool, capable of performing frequency conversion and signal shaping without needing additional specialized hardware.
Analysis of Implications for AI and Data Infrastructure
The development of a software-defined, programmable optical chip has profound implications for the future of information technology. Currently, data centers are forced to use a mix of optical fibers for transmission and electronic chips for processing, requiring constant "optical-to-electrical-to-optical" (OEO) conversions. These conversions are energy-intensive and introduce latency.
A programmable PIC that can slow and buffer light allows for "all-optical" signal processing. By keeping the signal in the form of light throughout the computing cycle, data centers can eliminate the OEO bottleneck. The ability to synchronize signals on-chip means that different streams of data can be aligned perfectly before being processed by an optical AI accelerator, vastly increasing the efficiency of parallel processing.
Furthermore, the "software-defined" nature of this chip reduces the physical footprint and cost of hardware. Instead of requiring different chips for different optical functions, a single programmable device can be repurposed via software to act as a delay line, a buffer, or a frequency converter. This adaptability is essential for the "dynamic provisioning" required in modern cloud environments, where workloads change from millisecond to millisecond.
Statements from the Research Team
The success of the project is a result of multi-institutional collaboration and support from the South Korean government. Professor Namkyoo Park of Seoul National University emphasized the scalability of the discovery. "This research is significant in that it proposes a new design principle that allows the flow of light within photonic integrated circuits to be reconfigured as needed, greatly enhancing design flexibility," Park stated. "We plan to expand this technology toward large-scale programmable photonic integrated circuits based on silicon photonics and photonic AI technologies."
The co-first authors, Dr. Seungkyun Park and Ph.D. student Beomjoon Chae, highlighted the shift in perspective that led to the breakthrough. "Through this study, we realized that reinterpreting conventional photonic resonator physics from a different perspective can serve as a starting point for discovering new functionalities," they noted. The team is currently moving toward the experimental validation phase, seeking to move the design from high-fidelity simulations to physical prototypes.
Chronology of Development and Future Outlook
The journey toward this programmable chip began with the identification of the "fixed-function" limitation in photonic resonators. Throughout the early 2020s, the research community struggled to find a way to make CRIT systems adaptable without significantly increasing the complexity of the circuit. The Seoul team’s work, supported by the Ministry of Science and ICT through programs like the Innovative Research Center (IRC) and the Young Researcher Program, represents the culmination of several years of theoretical refinement.
Looking ahead, the timeline for commercialization involves several key stages:
- Experimental Validation (Current Phase): Fabricating the silicon nitride prototypes and testing them in laboratory settings to match simulation results.
- Integration with Silicon Photonics: Adapting the programmable CRIT structure to standard silicon-on-insulator (SOI) platforms used by major foundries like TSMC and Intel.
- Scaling to Photonic AI: Incorporating hundreds of these programmable units onto a single chip to create the first fully optical, programmable AI neural network.
Beyond AI and data centers, the researchers anticipate that this technology will become a cornerstone of the 6G communication era and autonomous vehicle safety systems. In 6G, the ability to process ultra-high-frequency signals with precision timing is paramount. In autonomous driving, LiDAR systems could use programmable photonic circuits to better manage the timing of light pulses used to map the environment, leading to higher resolution and faster response times.
As the global semiconductor industry pivots toward photonics to sustain the growth of AI, the work of the Seoul National University and University of Seoul researchers provides a vital missing piece of the puzzle. By mastering the ability to "command" the speed of light, they have set the stage for a new era of adaptable, high-speed, and energy-efficient computing.
