The field of materials science has long sought ways to manipulate the electrical properties of two-dimensional materials without resorting to invasive chemical alterations. Researchers at Rice University have recently achieved a significant breakthrough in this pursuit, demonstrating that the natural, microscopic wrinkles found in graphene can fundamentally change how electricity flows through the material. This discovery provides the first robust experimental evidence for a phenomenon known as flexoelectricity at the atomic scale, a property where the uneven bending of a material induces a localized electric charge. The study, published in the prestigious journal Advanced Materials, suggests a future where electronic devices are tuned not by their chemical composition, but by their physical shape and geometric structure.
This research represents a paradigm shift in "straintronics"—the study of how mechanical strain influences the electrical properties of materials. By proving that geometry alone can reshape electrical behavior, the team has opened a new pathway for the design of sensors, transistors, and energy-harvesting devices that are only a few atoms thick. The implications for the electronics industry are profound, offering a route toward more efficient, ultra-thin components that bypass the limitations of traditional semiconductor doping.
The Mechanics of Flexoelectricity at the Nanoscale
To understand the significance of the Rice University study, one must first understand the nature of graphene and the concept of flexoelectricity. Graphene is a single layer of carbon atoms arranged in a hexagonal lattice, often described as a "honeycomb" structure. Since its isolation in 2004, it has been lauded for its extraordinary strength, thermal conductivity, and electrical mobility. However, because it is so thin, it is prone to wrinkling, much like a sheet of plastic wrap.
In traditional materials science, these wrinkles were often viewed as defects or imperfections that hindered the performance of the material. However, the Rice-led team discovered that when these wrinkles become exceptionally sharp—squeezed into regions smaller than a billionth of a meter—they trigger the flexoelectric effect. Unlike piezoelectricity, which generates electricity from uniform pressure, flexoelectricity arises from a strain gradient. When a material is bent unevenly, the atoms and their associated electrons are shifted out of their usual equilibrium.

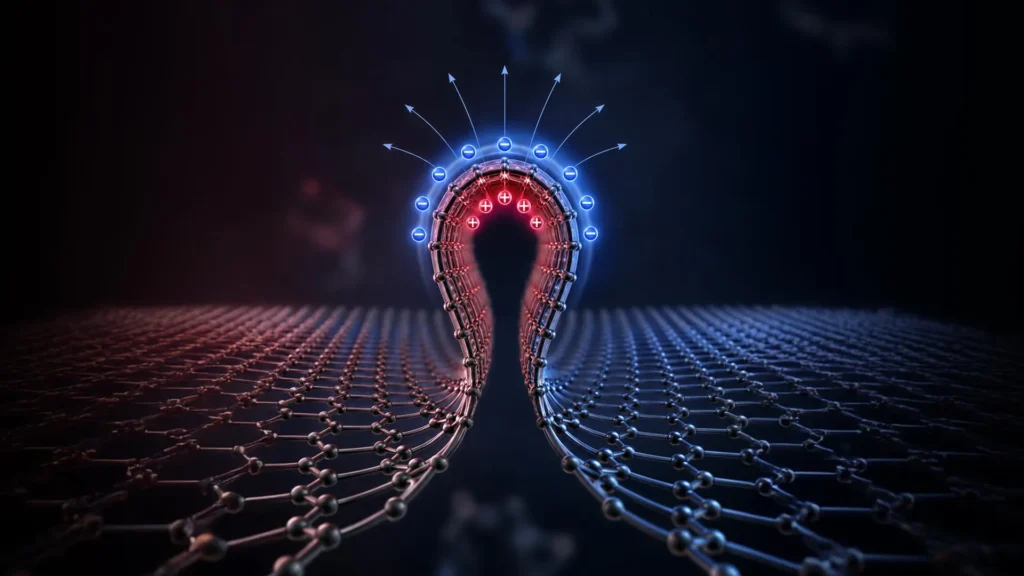

At the sharpest points of a graphene wrinkle, the intense curvature causes electrons to migrate toward one side of the bend. This creates a dipole—a separation of positive and negative charges. Sathvik Ajay Iyengar, a former Rice doctoral student and the study’s lead author, compared this effect to a tiny battery. The electrons shift slightly toward the outer or inner edge of the curve, creating two distinct electrical poles across a space that is almost unimaginably small.
A Decades-Long Scientific Journey: From Theory to Proof
The discovery is not merely a recent observation but the culmination of a theoretical journey that began 16 years ago. In 2008, Vincent Meunier, a theoretical physicist and currently the P. B. Breneman Chair at Pennsylvania State University, predicted that the sharp bending of graphene would lead to a significant rearrangement of its electronic structure. At the time, Meunier’s hypothesis was revolutionary, yet it remained largely unproven because the technology required to measure electrical signals at such a minute scale did not yet exist.
For years, the scientific community struggled to separate the effects of curvature from other variables, such as environmental contamination, substrate interference, or gentler, non-flexoelectric bends. The challenge lay in the fact that graphene’s electrical response is incredibly subtle unless the curvature is extreme.
The breakthrough occurred when Sathvik Ajay Iyengar began re-examining data he had previously collected alongside Manoj Tripathi, a researcher then at the University of Sussex and now at South Dakota Mines. Iyengar noticed peculiar electrical signatures that appeared exclusively at the locations of the sharpest wrinkles. Recognizing that these signals matched the mathematical models proposed by Meunier years earlier, the team began a concerted effort to link the experimental data with atomic-scale calculations. This collaboration between Rice, Penn State, the University of Sussex, and other international institutions allowed the researchers to finally confirm that the "extraordinary electronic features" were indeed the result of the material’s geometry.
Advanced Methodology: Mapping the Atomic Landscape
Proving the existence of flexoelectricity in graphene required a sophisticated suite of analytical tools. The researchers could not rely on standard electrical measurements, as the wrinkles are far too small for conventional probes. Instead, they utilized a combination of specialized microscopy and spectroscopy to build a comprehensive map of the material’s behavior.
- Specialized Microscope Probes: The team used atomic force microscopy (AFM) and variations such as Kelvin Probe Force Microscopy to map the physical topography of the graphene. These probes allowed them to measure the local electrical energy and current at specific points along a wrinkle with nanometer precision.
- Raman Spectroscopy: To understand the mechanical state of the carbon atoms, the researchers employed Raman spectroscopy. This laser-based technique measures the vibrations of atoms. By analyzing how the laser light scattered off the graphene, the team could determine exactly where the material was being stretched (tension) or squeezed (compression). This provided the "strain map" necessary to correlate physical deformation with electrical output.
- Computer Simulations: Theoretical models played a crucial role in validating the findings. By inputting the physical dimensions of the observed wrinkles into high-performance computers, the researchers could simulate electron movement. The fact that the physical measurements closely matched the predicted values gave the team confidence that they were witnessing flexoelectricity rather than an unrelated phenomenon.
By comparing these highly curved "speed bumps" with adjacent areas of flat graphene, the researchers effectively isolated curvature as the sole variable. This control allowed them to rule out external factors, such as the influence of the surface the graphene was resting on, which had plagued previous attempts to study this effect.
Quantitative Findings: The Power of Sharpness
One of the most startling revelations of the study was the sheer magnitude of the electrical response generated by the wrinkles. The researchers found that the polarization—the separation of charges—within these nanoscale wrinkles was between 100,000 and 10 million times stronger than the polarization observed in much larger, macroscopic flexoelectric systems.
This massive amplification is due to the "sharpness" of the bend rather than its height. In the world of the very small, the rate of change in the angle of the material (the gradient) is more important than the total displacement. A wrinkle that is only a few nanometers high but extremely narrow creates a much more intense electrical environment than a large, gentle wave.
The team also identified a specific threshold for current flow. Once approximately one volt of electricity was applied to the system, a consistent and measurable current began to flow across these "electrical speed bumps." This predictability is essential for any future application in digital electronics, where "on" and "off" states must be clearly defined and repeatable.
Broader Implications for the Electronics Industry
The ability to control electricity through structure rather than chemistry (such as doping with phosphorus or boron) represents a significant advancement for the semiconductor industry. As traditional silicon-based electronics approach their physical limits, the industry is looking toward 2D materials like graphene to power the next generation of devices.
1. Ultra-Sensitive Sensors
Because the electrical properties of these wrinkles are so sensitive to their shape, they could be used to create sensors that detect minute physical changes. A sensor made of wrinkled graphene could, in theory, detect the presence of single molecules or microscopic pressure changes by monitoring fluctuations in the flexoelectric current.
2. Flexible and Wearable Electronics
Current flexible electronics often struggle with maintaining consistent performance when bent. By understanding and harnessing flexoelectricity, engineers could design circuits that use bending to their advantage, potentially creating devices that generate their own power or change their functional state based on how the user moves.
3. Energy Harvesting
The discovery that tiny bends can create significant charge separation suggests a new method for energy harvesting at the nanoscale. "Stray" mechanical energy—such as the vibrations of a machine or the movement of a human limb—could be converted into electrical energy by arrays of specifically engineered graphene wrinkles.
4. Bypassing Chemical Doping
In modern manufacturing, changing the electrical properties of a material usually involves "doping," a process of adding impurities. This can be difficult to control at the atomic scale and can weaken the material’s structure. Structure-based tuning allows for a "cleaner" method of customization, keeping the graphene pure while still achieving the desired electrical performance.
A Global Collaborative Effort
The success of this research highlights the importance of international scientific cooperation. The study involved a diverse group of experts from several world-class institutions:
- Rice University: Led by Pulickel Ajayan and Robert Vajtai, the team provided the foundational engineering expertise and advanced microscopy.
- Pennsylvania State University: Vincent Meunier provided the theoretical framework that guided the experimental search.
- University of Sussex & South Dakota Mines: Manoj Tripathi and Sathvik Ajay Iyengar (who bridge these institutions) were instrumental in the initial data discovery and subsequent analysis.
- University of Manchester & University of Brighton: Additional authors, including James McHugh and Jonathan Salvage, contributed to the complex characterization of the graphene samples.
The research was supported by a variety of prestigious organizations, including the Quad Fellowship, the Sussex Strategy Development Fund, the University of Manchester Dame Kathleen Ollerenshaw Fellowship, and the National Science Foundation (NSF). This level of support underscores the global interest in moving graphene from the laboratory to practical, industrial applications.
Conclusion: Turning Imperfections into Innovations
For decades, the goal of nanotechnology was to create perfectly flat, flawless materials. The work of the Rice University team suggests that perfection may have been the wrong goal. By embracing the "imperfections" of graphene—its tendency to wrinkle and fold—scientists have discovered a powerful new tool for electronic design.
"Our work shows that even an ordinary wrinkle can become an extraordinary electronic feature when viewed at the atomic scale," said Pulickel Ajayan. This sentiment captures the essence of the discovery: that the future of technology may not lie in changing what materials are made of, but in how we shape them. As researchers continue to explore the relationship between geometry and electricity, the humble wrinkle may become the most important component in the next generation of ultrathin, high-performance electronics.
