A team of researchers at the Massachusetts Institute of Technology (MIT) has developed a groundbreaking system named FloatForm, which envisions the waterfront not as a static boundary, but as a dynamic, programmable extension of urban environments. This innovative technology utilizes a swarm of small, square robotic boats that can autonomously assemble into larger structures on water, then disassemble and reconfigure into entirely new formations with minimal human intervention. The implications of FloatForm are far-reaching, promising a future where aquatic spaces can be dynamically adapted for a multitude of urban needs, from emergency response to public recreation.
The FloatForm robots, each approximately 21 centimeters square and about the size of a dinner plate, are self-contained units equipped with individual thrusters for propulsion, sensors for environmental awareness, and specialized magnetic latches for connection. This modular design allows them to coalesce into larger, functional structures on demand. The concept moves beyond traditional, fixed waterfront infrastructure, proposing a flexible and responsive approach to urban planning and resource management.
"Our FloatForm project envisions a future where the waterfront becomes a programmable extension of the city, where autonomous boats can self-organize into bridges, platforms, and other useful structures on demand," stated Daniela Rus, the Panasonic Professor of Electrical Engineering and Computer Science at MIT and director of MIT’s Computer Science and Artificial Intelligence Laboratory (CSAIL). She further emphasized the potential of this distributed robotics approach, noting, "This kind of distributed robotics opens new possibilities for mobility, emergency response, public space, and infrastructure on water."
Wei Wang, the lead author of a new paper detailing the project published in Nature Communications and a former MIT research scientist now heading the Marine Robotics Lab at the University of Wisconsin at Madison, elaborated on the transformative potential. "With FloatForm, we are essentially turning static water surfaces into dynamic, programmable spaces," Wang explained. "Imagine an urban environment where public space isn’t fixed, but can autonomously expand, contract, or reconfigure on demand." This vision challenges conventional urban design, which often treats water bodies as passive elements rather than active components of urban functionality.
Alejandro Gonzalez-Garcia, a former researcher with MIT CSAIL and the Senseable City Lab, underscored the modularity and adaptability of the system. "We see it as forming infrastructure on the water, using a modular system to create one larger system," Gonzalez-Garcia said. He highlighted practical applications, such as the rapid deployment of bridges to alleviate traffic congestion during emergencies or the creation of temporary floating markets and stages for events. "If there’s an emergency, you could form a new bridge to alleviate traffic in the city. Or you could create floating markets and floating stages. If you want a more livable city, you want to use the water, too."
The research builds upon the foundation laid by the Roboat project, a collaborative initiative between MIT and the Amsterdam Institute for Advanced Metropolitan Solutions. Roboat explored the use of full-size autonomous vessels in Amsterdam’s canals, aiming to repurpose these historic waterways for modern urban needs like waste collection and transportation, thereby reducing the strain on road networks. Niklas Hagemann, an MIT graduate student in architecture and CSAIL affiliate who has been involved with the project since its early stages, noted the increasing density of urban areas and the potential to leverage underutilized water spaces. "Urban areas are getting denser, so could you expand public space onto water that’s currently underutilized?" Hagemann posited. FloatForm, by scaling down the concept to a more manageable robotic swarm, addresses the complex challenge of coordinating dozens, and potentially thousands, of individual floating robots.
Inspired by Nature: The Ant Raft as a Model for Collective Behavior
The breakthrough in achieving coordinated self-assembly for FloatForm was inspired by a remarkable natural phenomenon: the living rafts formed by fire ants. When faced with flooding, fire ants link their bodies together, forming a resilient raft that can float and survive. Crucially, this complex structure emerges without a central commander; each ant follows simple, local rules, leading to the spontaneous creation of a stable, collective entity.
"Each ant is an independent agent," explained Gonzalez-Garcia, drawing a direct parallel to the robotic system. "We wanted each robot to have its own capabilities, the same way ant colonies form a raft." This biological inspiration led to a fundamental shift in the design philosophy. Unlike many existing self-assembling robot systems, which rely on a central computer to dictate every movement, FloatForm adopts a largely decentralized approach.
This distributed model offers significant advantages. Centralized control systems are prone to single points of failure and become computationally prohibitive as the number of robots increases. The planning complexity scales quadratically, requiring massive processing power for large swarms. Furthermore, a centralized approach often necessitates sequential assembly, leading to most robots idling while waiting for their turn.
FloatForm flips this paradigm. A lightweight central planner is employed only for high-level tasks, such as assigning each robot its final desired position to ensure geometric precision. The robots themselves handle the intricate details of navigation, collision avoidance, and adaptation to environmental disturbances. Coordination occurs through local communication between neighboring robots, allowing the entire swarm to move and assemble simultaneously.
"What we’re trying to do is to have minimal central intervention, and have them all move together at the same time," Gonzalez-Garcia stated. This parallelism is a key differentiator, as the computational burden for FloatForm depends only on the robot’s immediate neighbors, not the total size of the swarm. This characteristic ensures scalability, a critical factor for real-world applications.
Practical Demonstrations and Scalability

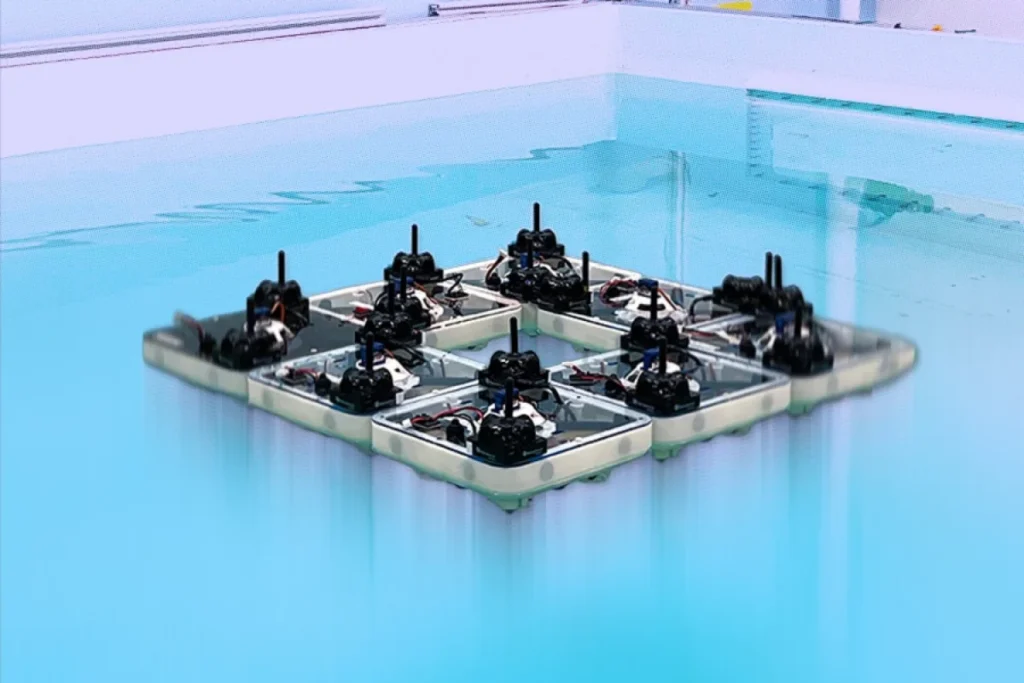

Experimental trials conducted at MIT have demonstrated the efficacy of the FloatForm system. In these tests, a fleet of eight robots repeatedly performed a series of complex maneuvers. They would autonomously gather from random positions into a predefined target shape, securely latch into a rigid structure, then break apart upon command to reassemble into a new configuration. Finally, they would collectively transport themselves across a test pool as a single, cohesive vessel. Each complete cycle typically took between four and eight minutes.
During the collective transport phase, a planner determines the overall trajectory for the assembled structure, while each individual robot calculates its specific contribution to propulsion and steering. "Every robot becomes an actuator," Gonzalez-Garcia explained, highlighting the integrated nature of the system’s movement. Simulations have further validated the framework’s scalability, showing smooth performance with swarms of up to 64 robots.
"The beauty of this largely decentralized approach is that the computation doesn’t get bogged down as the swarm grows," remarked Wang. "Whether you are working with eight boats or 80, the entire fleet coordinates and moves simultaneously. Because the overall assembly time doesn’t significantly increase in principle, the system remains highly scalable."
Beyond computational efficiency, the physical robustness of the assembled structures is also enhanced by the collective. "Our boats become more stable by joining together, like the ant raft, if you have waves or currents," Hagemann noted, emphasizing the system’s resilience in challenging aquatic environments.
The "Origami Handshake": An Innovative Latching Mechanism
The seamless connection and disconnection of the FloatForm robots are facilitated by an ingeniously designed latching mechanism, concealed within each hull. This mechanism utilizes an origami-inspired auxetic structure, which contracts uniformly in all directions when actuated. A single servo motor drives this structure, enabling it to either retract permanent magnets inward to release a connection or extend them outward to securely grasp a neighboring robot.
The magnets are strategically arranged with alternating polarities, ensuring that the robots reliably click into a precise square lattice configuration. A significant engineering achievement of this design is its low power consumption. Once latched, a 3D-printed gearbox holds the mechanism in its state without continuous power draw from the motor. "It uses energy to latch and de-latch, but in between those states, it doesn’t use any energy," explained Hagemann. This energy efficiency is paramount for small robots with limited battery capacity, allowing more power to be allocated to computation and movement. "Because the robots are so small, you can only have a battery so big," added Gonzalez-Garcia. "If they use less energy on latching, they can use more on computation, or on actually moving."
The development process involved overcoming several engineering hurdles. The robots’ four miniature thrusters, arranged in an "X" configuration, provide omnidirectional motion but possess a high thrust-to-inertia ratio, leading to initial challenges with stability and control at low speeds. The team addressed this by incorporating stabilizing fins to increase hydrodynamic drag and carefully tuning the control algorithms to maintain robustness across robots that, at this small scale, exhibit inherent manufacturing variations. The magnetic latching system also presented difficulties, with magnets holding so firmly that robots sometimes required intricate maneuvers to detach.
Transitioning from Lab to Real-World Environments
The FloatForm system has demonstrated a high degree of reliability in controlled settings. Across ten trials, the system achieved mission completion without human intervention 90% of the time with four robots and 70% with eight robots. Even when issues arose, the decentralized architecture proved resilient. A robot that temporarily lost its bearings could autonomously rejoin the structure, and robots caught in formation deadlocks learned to resolve themselves and retry their actions, preventing a complete system failure.
The next critical step for FloatForm is transitioning from the controlled environment of an indoor test tank to the complexities of real canals and harbors. "There’s always a relationship between the size of a boat and the magnitude of the disturbance it can handle," noted Gonzalez-Garcia. "These boats are very small, so in very disturbed water, they cannot work." Scaling up the system will necessitate reinforcing the latches, potentially incorporating mechanical interlocking systems similar to those used in the full-size Roboat project. Additionally, the current ultrasonic indoor positioning system will need to be replaced with more robust outdoor navigation solutions such as GPS or vision-based sensing. The researchers are optimistic, as the core coordination algorithm is designed to be sensor-agnostic, allowing for the integration of different sensing technologies without altering the fundamental logic.
Broadening Horizons: Future Applications and Global Impact
The potential applications for FloatForm extend far beyond urban waterways. The researchers envision its use in various scenarios, including:
- Emergency Response: Creating temporary platforms or bridges to access disaster-stricken areas or reconfigurable docking stations in remote or hard-to-reach locations.
- Infrastructure and Maintenance: Deploying temporary platforms for offshore inspection, repair, and construction projects.
- Environmental Monitoring: Establishing adaptive sensor networks for real-time data collection on water quality, marine life migration patterns, and ecological changes.
- Logistics and Transportation: Developing modular floating docks or delivery systems in port areas or along inland waterways.
- Public Space and Recreation: Creating dynamic and adaptable floating public spaces, event venues, or even temporary recreational areas.
The geographical scope for FloatForm’s deployment is vast. "Venice, the Netherlands, Belgium, the fjords and lakes of Norway, really any city with a river can take advantage of this," said Gonzalez-Garcia. He added that the project not only leverages existing aquatic infrastructure but also prompts a broader question: "Where else can water be used for something more?"
Steven Ceron, an Assistant Professor at the University of Michigan who was not involved in the research, lauded the achievement. "This is an exciting step forward in realizing distributed collective behaviors on water," Ceron commented. "Assembly, self-reconfiguration, and collective motion are difficult enough in dry environments, but achieving these behaviors in a predominantly distributed fashion on water represents a serious additional challenge, and this team has credibly overcome it." Ceron further elaborated on the system’s potential, stating, "By shifting the computational burden onto the robots themselves, they have built a more resilient system that in the near future could enable robot collectives like this to be deployed in open-water environments for search operations, environmental monitoring, and reconfigurable marine infrastructure."
The research team behind FloatForm includes Gonzalez-Garcia, Hagemann, and Wang, with senior authors Carlo Ratti, professor of practice of urban technologies and planning at MIT and director of the Senseable City Lab, and Daniela Rus. Gonzalez-Garcia is also affiliated with the MECO Research Team at KU Leuven. The project received funding from the Amsterdam Institute for Advanced Metropolitan Solutions, with additional support from the University of Wisconsin at Madison. The team also acknowledged the vital contribution of MIT Sea Grant and Professor Michael Triantafyllou for providing the necessary test tank facilities.
The development of FloatForm represents a significant leap forward in the field of swarm robotics and autonomous systems, opening up new possibilities for how we interact with and utilize our planet’s abundant water resources. As this technology matures, the urban waterfront may transform from a passive border into an active, intelligent, and adaptable component of city life.
