Custom Machine & Tool Co. (CMT), a prominent U.S. manufacturer specializing in power transmission and motion control components, has unveiled an advanced interactive 3D catalog designed to significantly streamline the specification and procurement processes for its Concentric Maxi Torque keyless bushings and precision timing pulleys. This innovative digital tool, powered by eCATALOG 3Dfindit by CADENAS, marks a pivotal step in enhancing design engineers’ efficiency by providing immediate access to real-time product configurations and comprehensive 3D CAD and engineering data. The introduction of this platform eliminates traditional bottlenecks, allowing engineers to configure exact part requirements and download 3D CAD models in seconds, fostering faster machine axis design and accelerated product development cycles.
The Digital Transformation Imperative: Streamlining Engineering Workflows
In an era defined by rapid technological advancements and increasing market demands for efficiency, manufacturers are continually seeking ways to empower their design and engineering teams. The traditional process of sourcing industrial components often involved time-consuming manual requests, lengthy communication exchanges with suppliers, and the cumbersome task of converting incompatible CAD file formats. These hurdles frequently led to delays in design cycles, increased potential for errors, and ultimately, higher costs in product development. Custom Machine & Tool Co.’s new interactive 3D catalog directly addresses these challenges, embodying a forward-thinking approach to customer support and operational excellence.
By migrating component data into a dynamic, interactive digital environment, CMT is not merely offering a convenience but rather providing a critical tool that integrates seamlessly into modern engineering workflows. The ability to instantly configure and download 3D models in over 100 native and neutral file formats—including industry standards like NX, Solid Edge, SOLIDWORKS, Catia, Creo, and Autodesk Inventor—means engineers can avoid costly delays associated with waiting for custom files or struggling with format conversions. This immediate access to accurate, high-fidelity digital models allows for direct integration into ongoing projects, enabling design verification, clash detection, and performance simulations with unprecedented speed and accuracy.
Unpacking the Technology: Real-Time Configuration and Broad Compatibility
The technological backbone of CMT’s new catalog is eCATALOG 3Dfindit by CADENAS, a globally recognized leader in digital part catalogs and supplier information. CADENAS specializes in creating and managing electronic product catalogs that offer engineers a vast library of digital components from various manufacturers. Their platform is engineered to deliver precise 3D CAD models and associated metadata, facilitating a streamlined digital engineering process from initial concept to final production. The partnership with CADENAS underscores CMT’s commitment to leveraging best-in-class technology to serve its customer base.
This platform empowers users to navigate CMT’s extensive product line with intuitive search functions and powerful configuration options. Engineers can specify parameters such as diameter, length, bore size, and material, observing in real-time how these choices affect the 3D model. Once the desired configuration is achieved, the corresponding 3D CAD model, along with essential technical specifications, can be downloaded instantly. This capability not only saves valuable design time but also minimizes the risk of specifying incorrect parts, thereby reducing costly rework and material waste in later stages of production. The wide array of supported CAD formats ensures that virtually any engineering firm, regardless of its primary software suite, can benefit from this resource without additional software or conversion utilities.
The Concentric Maxi Torque System: A Deep Dive into Keyless Advantages

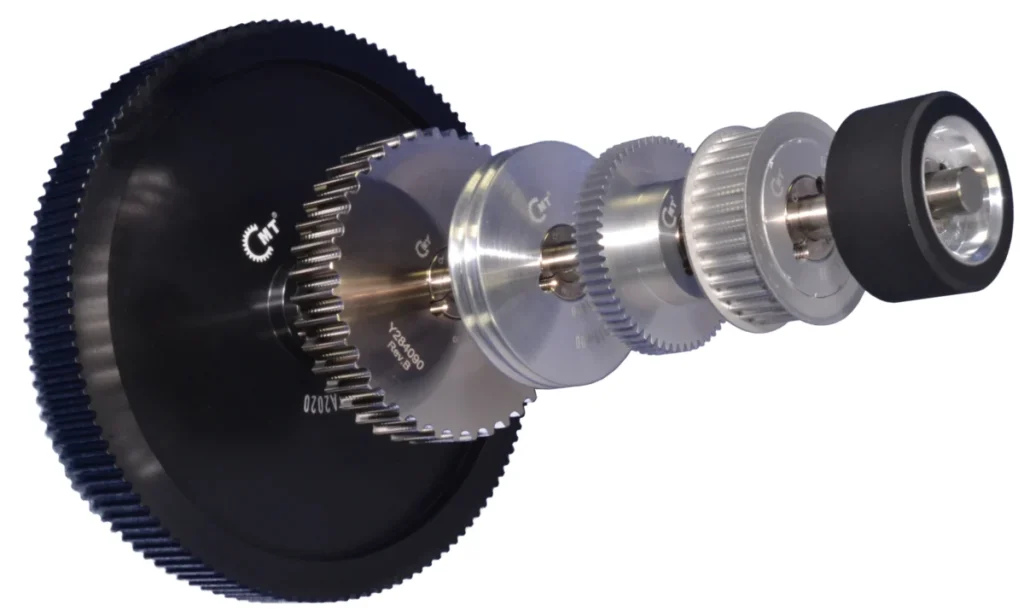

Central to this new catalog are CMT’s Concentric Maxi Torque keyless bushings and precision timing pulleys. The Concentric Maxi Torque system represents a significant advancement in power transmission, offering a superior alternative to traditional keyed shaft-to-hub connections. Historically, keyed connections, while ubiquitous, present inherent limitations. They often suffer from backlash, fretting corrosion, and stress concentrations at the keyway, which can lead to premature wear, reduced torque transmission capability, and challenges in achieving precise angular alignment.
In contrast, the Concentric Maxi Torque system provides a robust, zero-backlash, keyless hub-to-shaft connection. This design utilizes a series of tapered surfaces and clamping forces to create an interference fit between the shaft and the hub, effectively eliminating play and distributing stress evenly around the shaft circumference. This method allows for the secure mounting of pulleys, gears, sprockets, and other rotating components without the need for complex alignment routines or specialized machining of keyways.
Key advantages of the Concentric Maxi Torque system include:
- Enhanced Precision and Concentricity: The uniform clamping force ensures superior concentricity and balance, which is critical for high-speed applications and those requiring minimal vibration. This directly translates to smoother operation and extended component life.
- Higher Torque Transmission: By distributing clamping force evenly, the system can transmit significantly higher torque compared to keyed connections, making it ideal for demanding industrial applications.
- Simplified Installation and Removal: The keyless design facilitates quick and easy installation and removal, reducing downtime during assembly, maintenance, or component replacement. This is particularly beneficial in compact or difficult-to-service machine axes.
- Reduced Shaft Damage: Eliminating keyways removes points of stress concentration, thereby reducing the likelihood of shaft fatigue and damage, leading to greater reliability and longevity of the entire drivetrain.
- Bidirectional Motion Capability: The fully reversible design ensures secure and reliable operation in applications involving bidirectional motion, expanding its versatility across various machinery types.
- Maintenance-Free Performance: Once installed, the Concentric Maxi Torque system remains secure, preventing eventual misalignment and negating the need for frequent adjustments, even in high-stress environments.
This technology is particularly useful in machine axes that are very compact and difficult or impractical to service, such as those driven by stepper motors paired with belts in automated systems. The reliability and precision offered by these components are paramount in applications where space is at a premium and operational integrity is non-negotiable.
A Shift in Sourcing: From Manual Queries to Instant Integration
The evolution of component sourcing mirrors the broader digital transformation across industries. Decades ago, engineers relied on thick paper catalogs, phone calls, and fax machines to obtain product information and place orders. The advent of the internet brought static PDF catalogs and basic online product listings. However, these solutions still required engineers to manually recreate or adapt component models for their CAD software, often leading to discrepancies and design iterations.
CMT’s new interactive 3D catalog represents the next frontier in this evolution. It moves beyond passive information delivery to active, real-time engagement. By offering instantly configurable 3D CAD models, CMT is fundamentally changing the paradigm from "request and wait" to "configure and integrate." This shift translates into tangible benefits for the engineering community:
- Accelerated Design Cycles: What once took hours or even days—contacting sales, waiting for a custom model, converting formats—now takes mere seconds. This drastically reduces the time spent on component selection and integration, allowing engineers to focus more on innovative design and less on administrative tasks.
- Reduced Errors and Rework: Providing accurate, manufacturer-verified 3D models minimizes the risk of design errors stemming from incorrect dimensions, incompatible interfaces, or outdated specifications. This, in turn, reduces costly prototypes and rework during manufacturing.
- Enhanced Collaboration: Standardized and easily accessible digital models facilitate better communication and collaboration among design teams, manufacturing engineers, and procurement specialists.
- Improved Time-to-Market: By compressing the design phase, companies can bring new products to market faster, gaining a critical competitive edge.
The catalog primarily focuses on CMT’s in-stock program, featuring the most common sizes of these crucial components. However, the versatility of the Concentric Maxi Torque system means it is also widely deployed across a diverse range of custom products found in automation, robotics, and general industrial equipment. The digital catalog acts as a foundational resource, providing immediate access to standard configurations while also showcasing the underlying technology that can be tailored for bespoke solutions.
Voices from the Industry: Reactions and Strategic Vision
While specific official statements were not provided in the original brief, the launch of such a sophisticated digital tool allows for logical inferences regarding the perspectives of key stakeholders.
A hypothetical statement from a Custom Machine & Tool Co. executive, perhaps a Vice President of Engineering or Sales, would likely emphasize the company’s unwavering commitment to customer satisfaction and innovation: "At CMT, we are dedicated to empowering engineers with the tools they need to succeed in an increasingly complex design landscape. Our new interactive 3D catalog, powered by CADENAS, is a testament to this commitment. It’s more than just a catalog; it’s a productivity multiplier, enabling our customers to accelerate their design cycles, reduce errors, and bring their groundbreaking products to market faster. This launch reinforces our position at the forefront of power transmission and motion control technology."
Similarly, a representative from CADENAS might highlight the transformative power of their digital platform: "We are proud to partner with Custom Machine & Tool Co. in delivering this cutting-edge solution. The integration of eCATALOG 3Dfindit allows CMT to meet the evolving demands of modern engineering by providing instant, accurate, and actionable digital product data. This collaboration exemplifies how digital catalogs are becoming indispensable tools for manufacturers looking to enhance customer experience and drive digital transformation within their industry."
From an independent industry analyst’s perspective, this development would be seen as a strategic move aligning with broader market trends. An analyst might comment, "The introduction of sophisticated 3D configurators like CMT’s is no longer a luxury but a necessity for component manufacturers. In an era of Industry 4.0 and digital twins, engineers expect immediate access to validated digital models. This initiative not only enhances CMT’s competitive posture but also contributes to the overall efficiency of the manufacturing ecosystem, fostering innovation across various sectors reliant on precision power transmission."
Broader Market Impact and the Future of Industrial Design
The implications of CMT’s new interactive 3D catalog extend far beyond immediate convenience. It represents a significant stride towards the broader vision of Industry 4.0, where interconnected digital tools and data-driven insights optimize every stage of the product lifecycle. By facilitating quicker design iterations and more accurate component integration, CMT is contributing to more agile manufacturing processes.
This digital offering enhances CMT’s competitive advantage by differentiating its customer experience. In a crowded market, ease of doing business and superior technical support are powerful differentiators. Companies that embrace digital solutions to streamline engineering workflows are better positioned to attract and retain customers, particularly those operating at the cutting edge of technological development.
Furthermore, the catalog plays a role in democratizing access to high-quality component data. Smaller engineering firms or independent designers, who may lack the resources for extensive direct communication with suppliers or complex CAD conversions, now have direct access to the same high-fidelity models used by larger enterprises. This levels the playing field, fostering innovation across the entire spectrum of industrial design. The future of component sourcing will undoubtedly see increasing reliance on such intelligent digital tools, moving towards a fully integrated, model-based engineering approach where physical prototypes are minimized and virtual validation becomes the norm. This not only speeds up development but also aligns with growing calls for more sustainable engineering practices by reducing material waste from iterative physical prototyping.
Applications Across Sectors: Precision in Practice
The Concentric Maxi Torque system, now more accessible than ever through the interactive catalog, finds critical applications across a multitude of industries where precision, reliability, and ease of maintenance are paramount. The semiconductor manufacturing industry, for instance, relies heavily on highly precise motion control for wafer handling machines. These machines operate with extremely tight tolerances, where even minor misalignment or vibration can lead to significant yield losses. As highlighted by previous coverage, a wafer-handling machine maximizing performance with a specially clamping belt-pulley and bushing assembly is a prime example of where CMT’s technology excels.
Beyond semiconductor manufacturing, the system is indispensable in:
- Automation and Robotics: For robotic arms, pick-and-place mechanisms, and automated assembly lines, where accurate and repeatable motion is crucial. The ability to handle bidirectional motion efficiently is a key advantage here.
- Medical Devices: In diagnostic equipment, surgical robots, and rehabilitation aids, where precise, quiet, and reliable operation is non-negotiable for patient safety and performance.
- Packaging Machinery: High-speed packaging lines demand durable and low-maintenance power transmission components to minimize downtime and ensure continuous operation.
- Printing and Converting Equipment: Machines requiring precise web tension control and accurate material handling benefit greatly from the Concentric Maxi Torque system’s superior concentricity and torque transmission.
- General Industrial Equipment: Across various manufacturing processes, from material handling to processing equipment, the robust and reliable connection offered by these bushings and pulleys contributes to overall operational efficiency and longevity.
The ability to quickly configure and integrate these components digitally means that engineers developing these sophisticated machines can accelerate their design phases, confident in the accuracy and performance of the chosen parts.
Accessibility and Continued Innovation
Custom Machine & Tool Co.’s commitment to leveraging digital tools is evident not only in the functionality of the new catalog but also in its accessibility. Engineers can directly access CMT’s online CAD configurator at cmtco.com/cad-models, or explore the full range of products and company information at www.cmtco.com. This direct access ensures that the benefits of this advanced digital solution are immediately available to the global engineering community.
This launch is not an endpoint but rather a milestone in CMT’s ongoing journey of innovation and customer support. As technology continues to evolve, so too will the methods of product design and procurement. CMT’s proactive adoption of interactive 3D catalog technology positions it as a forward-thinking leader, poised to meet the future demands of precision manufacturing and motion control, continually empowering engineers to design, innovate, and build the next generation of industrial machinery with unparalleled efficiency and confidence.
