Researchers at the Massachusetts Institute of Technology (MIT) have achieved a significant breakthrough in materials science with the development of a novel aluminum alloy capable of being 3D printed, exhibiting remarkable tolerance to extreme heat, and possessing strength levels that dramatically surpass conventional aluminum. This pioneering material, born from an innovative blend of advanced computational simulations and sophisticated machine learning algorithms, promises to revolutionize industries ranging from aerospace and automotive to advanced computing. Initial testing indicates that the new alloy is an astonishing five times stronger than aluminum produced through standard manufacturing techniques, a leap forward that could redefine the possibilities for lightweight, high-performance components.
The genesis of this transformative alloy can be traced back to a graduate-level course at MIT in 2020, focused on the computational design of high-performance alloys. Professor Greg Olson, a key figure in the project and a Professor of the Practice in MIT’s Department of Materials Science and Engineering, challenged students to conceptualize a 3D-printable aluminum alloy that would exceed the strength of any existing material. This challenge, initially met with extensive but ultimately insufficient modeling, ignited the spark for a more advanced approach.
The Power of Machine Learning in Alloy Design
Traditional methods for discovering new alloys involve a laborious process of trial and error, often requiring the evaluation of millions of potential elemental combinations and their precise ratios. The MIT team, led by Mohadeseh Taheri-Mousavi, then a postdoctoral researcher and now an assistant professor at Carnegie Mellon University, recognized the limitations of this approach when faced with the complex, non-linear relationships that govern material properties. This realization led them to embrace machine learning, a powerful computational tool capable of identifying intricate patterns and correlations within vast datasets that often elude human analysis or conventional simulation models.
"At some point, there are a lot of things that contribute nonlinearly to a material’s properties, and you are lost," explained Taheri-Mousavi in a discussion about the project’s evolution. "With machine-learning tools, they can point you to where you need to focus, and tell you for example, these two elements are controlling this feature. It lets you explore the design space more efficiently."
The machine learning model employed by the MIT engineers was trained on extensive data regarding the properties of various elements and their interactions. This training allowed the algorithm to predict which combinations would yield the desired characteristics. Instead of sifting through over a million possibilities, the machine learning approach dramatically narrowed the search to a mere 40 promising candidates before pinpointing the optimal formula. This streamlined process not only accelerated discovery but also significantly reduced the cost and time associated with traditional materials research.
A New Microstructure for Unprecedented Strength

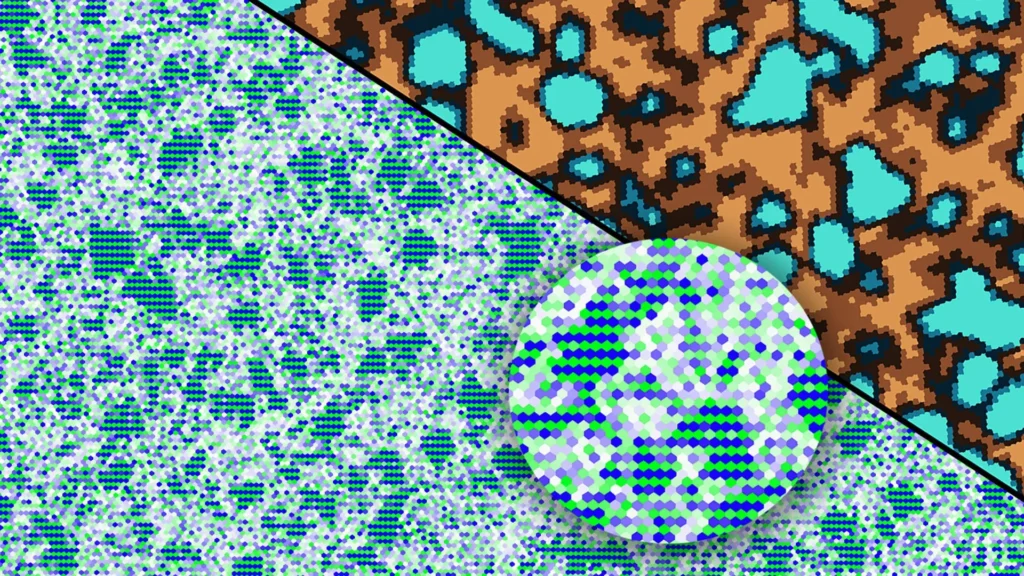

The remarkable strength of aluminum alloys is intrinsically linked to their microstructure, specifically the size, distribution, and density of microscopic features known as "precipitates." Generally, smaller and more densely packed precipitates lead to a stronger metal. The MIT team’s machine learning model was specifically designed to identify elemental compositions that would foster the formation of such fine precipitate structures during the manufacturing process.
The chosen alloy is a sophisticated blend of aluminum with five other carefully selected elements. While the precise composition remains proprietary pending further patent filings, the strategic inclusion of these elements, guided by machine learning, is instrumental in achieving the alloy’s exceptional properties. The process is designed to create a microstructure with a significantly higher proportion of small precipitates compared to conventional aluminum alloys.
3D Printing: The Key to Unlocking the Alloy’s Potential
A critical aspect of this breakthrough is the alloy’s compatibility with additive manufacturing, commonly known as 3D printing. Unlike traditional methods such as casting, which involve slowly cooling molten metal in a mold, 3D printing processes, particularly laser bed powder fusion (LBPF), offer a significantly faster solidification rate. This rapid cooling is crucial for preserving the fine precipitate structure identified by the machine learning model.
In the LBPF process, a thin layer of metal powder is spread across a build platform, and a high-powered laser selectively melts the powder according to a digital design. Once a layer is fused, the platform is lowered, a new layer of powder is spread, and the process is repeated. This layer-by-layer construction, coupled with the rapid solidification enabled by the laser, effectively "freezes" the desired microstructure in place, preventing the precipitates from growing larger and compromising the material’s strength.
John Hart, the Class of 1922 Professor and head of MIT’s Department of Mechanical Engineering, emphasized the synergistic relationship between the new alloy and 3D printing. "Because 3D printing can produce complex geometries, save material, and enable unique designs, we see this printable alloy as something that could also be used in advanced vacuum pumps, high-end automobiles, and cooling devices for data centers," he stated. "Sometimes we have to think about how to get a material to be compatible with 3D printing. Here, 3D printing opens a new door because of the unique characteristics of the process — particularly, the fast cooling rate. Very rapid freezing of the alloy after it’s melted by the laser creates this special set of properties."
Validation and Performance: A New Benchmark for Aluminum
To validate their theoretical design, the researchers collaborated with international partners at Paderborn University in Germany. They commissioned the production of a metal powder based on the newly developed alloy formula. This powder was then used by the German collaborators to print small test samples using their LBPF equipment.
Upon their return to MIT, these printed samples underwent rigorous mechanical testing and microscopic analysis. The results not only met but exceeded the predictions made by the machine learning model. The printed alloy demonstrated a fivefold increase in strength compared to a cast version of the same material. Furthermore, it exhibited a 50% improvement in strength over aluminum alloys that were designed using conventional simulation methods alone.
Beyond its impressive tensile strength, the new alloy also demonstrated remarkable thermal stability. Tests revealed that the material maintained its structural integrity and performance at temperatures up to 400 degrees Celsius (approximately 752 degrees Fahrenheit). This is an exceptionally high threshold for aluminum-based materials, which typically begin to lose significant strength at much lower temperatures. This heat resistance, combined with its superior strength and low weight, positions the alloy as a compelling alternative to more expensive and heavier materials currently used in demanding applications.
Industrial Implications: Redefining Lightweight Design
The potential industrial applications for this groundbreaking material are vast and transformative. In the aerospace sector, a prime example is the manufacturing of fan blades for jet engines. Currently, these critical components are predominantly made from titanium, a material that is over 50% heavier and can be up to ten times more expensive than aluminum. Alternatively, advanced composite materials are employed, which, while strong and light, can also be costly and complex to manufacture.
The introduction of a 3D-printable, high-strength, heat-resistant aluminum alloy could offer a compelling solution. Lighter fan blades would translate directly into significant fuel savings for the aviation industry, reducing operational costs and environmental impact. Mohadeseh Taheri-Mousavi articulated this potential, stating, "If we can use lighter, high-strength material, this would save a considerable amount of energy for the transportation industry."
The benefits extend far beyond aviation. The ability to 3D print complex geometries with this new alloy opens doors for innovation in numerous fields:
- Automotive: Lighter and stronger chassis components, engine parts, and suspension systems could lead to more fuel-efficient and better-performing vehicles.
- Data Centers: Advanced cooling devices and heat sinks requiring intricate designs and efficient heat dissipation could be manufactured more effectively.
- Robotics and Manufacturing: High-precision components for robotic arms and specialized manufacturing equipment could be produced with enhanced durability and reduced weight.
- Medical Devices: Biocompatible versions of this alloy could potentially be used for lightweight and strong implants or surgical instruments.
The flexibility of 3D printing allows for the creation of intricate internal structures and custom designs that are impossible to achieve with traditional manufacturing. This capability, combined with the alloy’s superior properties, could lead to entirely new product designs and performance benchmarks across various sectors.
The Road Ahead: Further Refinement and Future Visions
The research team is not resting on its laurels. They are actively applying the same machine learning methodologies to further refine the alloy’s properties. This includes exploring enhancements to its ductility, corrosion resistance, and fatigue life, tailoring the material for an even broader spectrum of applications.
The success of this project represents a significant paradigm shift in materials discovery and development. By integrating computational power with advanced manufacturing techniques, researchers can now accelerate the creation of materials with precisely engineered properties.
"Our methodology opens new doors for anyone who wants to do 3D printing alloy design," Taheri-Mousavi expressed with optimism. "My dream is that one day, passengers looking out their airplane window will see fan blades of engines made from our aluminum alloys."
This sentiment underscores the tangible impact that fundamental research in materials science can have on everyday life and the broader technological landscape. The development of this novel aluminum alloy is not merely a scientific achievement; it is a foundational step towards a future of lighter, stronger, more efficient, and more sustainable engineered products. The findings of this pioneering work have been published in the prestigious journal Advanced Materials, showcasing the collaborative efforts of researchers from MIT, Paderborn University in Germany, and Carnegie Mellon University, including co-authors Michael Xu, Clay Houser, Shaolou Wei, James LeBeau, and Greg Olson from MIT, alongside Florian Hengsbach and Mirko Schaper from Paderborn University, and Zhaoxuan Ge and Benjamin Glaser from Carnegie Mellon University.
