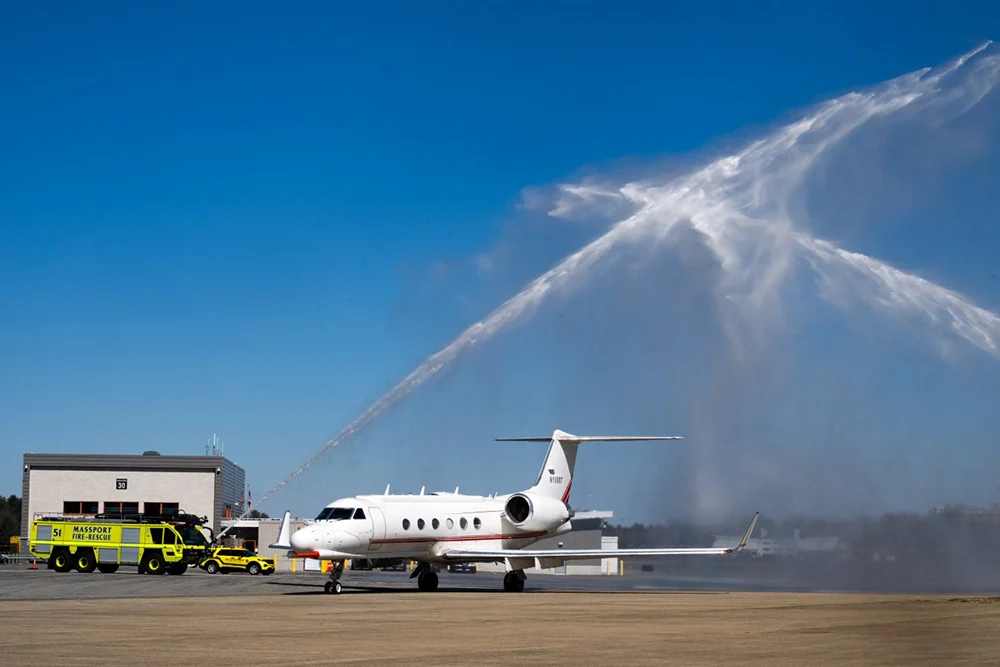

After an extensive seven-year period of significant modifications and upgrades, MIT Lincoln Laboratory’s Gulfstream IV (G-IV) aircraft, a cornerstone of its Tactical Defense Systems Group and Flight Test Facility (FTF), has successfully returned to its home base following its complex overhaul in Canada. This ambitious project, the most substantial and intricate airborne testbed modernization in the laboratory’s history, has transformed a standard business jet into a highly specialized research platform poised to support the U.S. Air Force’s Air Vehicle Survivability Evaluation (AVSE) program for the coming decades. The successful completion of this monumental undertaking was a testament to the collaborative efforts between Lincoln Laboratory’s Tactical Defense Systems Group, the Flight Test Facility, and the Toronto-based aerospace company Field Aviation.
A Legacy of Airborne Threat Assessment
For over four decades, the Tactical Defense Systems Group has been a critical contributor to the AVSE program, a vital initiative dedicated to understanding and countering the evolving threats faced by U.S. aircraft and space assets. This group has consistently leveraged sophisticated airborne test beds to simulate and evaluate survivability against a spectrum of current and emerging threats. Prior to the G-IV’s modernization, the program relied on a modified Gulfstream II (G-II) aircraft, which had been in service since the early 1990s. However, by 2013, the increasing scarcity of spare parts for the aging G-II necessitated a strategic re-evaluation of the program’s future airborne platform.
A comprehensive series of studies was initiated to identify a successor that could meet the program’s demanding requirements for performance, sustainability, and cost-effectiveness. These studies ultimately pinpointed the G-IV as the optimal choice. The G-IV offered distinct advantages, including its superior altitude and range capabilities, ensuring greater operational flexibility and data acquisition potential. Furthermore, its projected long-term sustainability and favorable lifecycle costs made it an economically prudent investment for a program with such a lengthy operational horizon. Recognizing these advantages, MIT Lincoln Laboratory officially acquired the G-IV in 2015, setting the stage for its extensive transformation.
Strategic Planning for Long-Term Operational Viability
To ensure the G-IV could fulfill its role for its anticipated 25 to 30-year operational lifespan without facing recurrent and costly Federal Aviation Administration (FAA) recertification processes, a strategic decision was made to consolidate all planned aircraft modifications into a single, comprehensive project. This approach aimed to streamline the certification pathway and minimize future disruptions. Following a rigorous competitive bidding process, Field Aviation was selected to undertake the extensive modifications. Field Aviation possessed a proven track record with Lincoln Laboratory, having previously modified the G-II and other aircraft in the laboratory’s fleet, making them a trusted partner for this critical endeavor.
In December 2018, FTF pilots ferried the G-IV to Field Aviation’s facility in Toronto, Canada, with an initial projected timeline for the modifications estimated at approximately three to four years. However, the global disruptions caused by the COVID-19 pandemic, coupled with shifts in contractor management, significantly extended this timeline, pushing the project beyond its initial projections.
MIT Lincoln Laboratory Takes the Helm Amidst Challenges
Faced with unforeseen delays and the imperative to bring the valuable research asset back into operational service, MIT Lincoln Laboratory’s team proactively stepped in to assume direct oversight of the aircraft’s modifications, maintenance, and reassembly. This pivot required an unprecedented level of commitment and coordination from a diverse group of laboratory personnel. Engineers, mechanics, pilots, program managers, and legal teams collaborated seamlessly to navigate the complexities of international work permits, maintain a continuous onsite presence in Canada, and ensure the project’s momentum was preserved.
A pivotal figure in this effort was Senior Aircraft Mechanic Craig Rowe, who served as the lead crew chief. Rowe’s dedication was extraordinary; he traveled to Canada monthly, often accompanied by other team members, to oversee critical phases of the work. His tireless commitment and exceptional leadership were instrumental in overcoming the project’s challenges. In recognition of his outstanding contributions, Rowe was honored with a 2026 MIT Excellence Award for Outstanding Contributor, a testament to his pivotal role in the G-IV’s successful return. This period of direct laboratory involvement underscored the organization’s unwavering commitment to the AVSE program and its advanced research capabilities.
A Structural Overhaul: Engineering for Extreme Demands
The transformation of the G-IV from a civilian business jet to a sophisticated airborne research platform involved a meticulous and extensive structural overhaul, requiring the removal, tracking, and reinstallation of over 2,000 individual components. The revamped G-IV boasts 12 major modifications, each necessitating significant structural alterations to accommodate advanced sensor systems and operational requirements.
One of the most prominent modifications involved the wings, which were fortified to support the integration of four external pylons. These pylons are designed to carry sensor pods weighing anywhere from 200 to over 1,000 pounds. The structural reinforcement was critical to withstand the immense weight, stress, and aerodynamic loads these additions would impose during flight operations at high altitudes and speeds. Further enhancing the aircraft’s sensor carrying capacity, a fifth sensor pylon was added to the forward lower fuselage. This pylon is capable of supporting payloads up to 2,000 pounds and accommodating systems nearly 19 feet in length, significantly expanding the range of deployable research instrumentation.
The development of these specialized pylons was a multi-year endeavor, spanning nearly five years. This extended timeline was largely due to the intensive reverse engineering required to design and fabricate components that would seamlessly integrate with the G-IV’s airframe. A particularly innovative, albeit costly, step involved the purchase and disassembly of a scrapped G-IV wing. This allowed engineers to meticulously measure and understand the internal structural components, providing the precise data needed for the custom pylon designs. The subsequent installation of these pylons took almost two years, primarily because access to the inner wing structure was restricted to small inspection panels, demanding intricate and time-consuming workarounds.
To facilitate the rapid mounting and dismounting of external antennas and sensor systems without compromising the aircraft’s pressurized fuselage, the roof and lower fuselage were modified to create flat, standardized mounting surfaces. Furthermore, the aircraft’s nose and tail sections were extended with standardized sensor-mounting interfaces. These extensions enable the swift placement of sensors for both forward- and aft-facing test scenarios, providing crucial flexibility for diverse research objectives. The six-foot nose extension, in particular, necessitated a complete gutting of the cockpit to allow for the reinforcement of the internal structure, ensuring it could bear the substantial weight of the mounting interface and integrated test systems.
Advanced Interior Systems and Power Generation
The interior of the G-IV underwent a similarly comprehensive transformation to create a fully functional airborne laboratory. The team installed 14 dedicated equipment racks to house sophisticated instrumentation and control systems. Workstations for six onboard operators were integrated, providing them with the necessary interfaces and environments to manage and monitor complex experiments in flight. The aircraft was outfitted with an extensive network of fiber-optic, Ethernet, and coaxial cables, forming the backbone of its data acquisition and communication capabilities.
To manage the heat generated by the advanced electronic systems, robust liquid- and air-cooling systems were integrated. Moreover, a dedicated power-distribution infrastructure was developed, meticulously separated from the baseline aircraft’s power systems for enhanced safety and to prevent interference.
A critical challenge in the remodel was the development of a power generation system capable of meeting the substantial electrical demands of the test systems in flight, while simultaneously adhering to stringent FAA fire-containment standards. The aircraft’s original auxiliary power unit (APU), designed primarily for engine startup assistance, was wholly insufficient for the mission requirements and incapable of operating airborne. Field Aviation engineers rose to this challenge by designing an entirely new, fireproof titanium enclosure for a larger APU. This upgraded APU is capable of producing nearly double the original electrical output, ensuring ample power is available up to the G-IV’s maximum altitude ceiling of 45,000 feet. To validate the performance of this critical system, engineers from MIT Lincoln Laboratory’s Engineering Division conducted extensive simulations. These simulations focused on ensuring that the APU’s inlet airflow would consistently allow for maximum power output throughout the entire duration of flight missions, a crucial factor for uninterrupted data collection and operational reliability.
Implications and Future Contributions
The successful modernization of the G-IV represents a significant leap forward for the AVSE program and MIT Lincoln Laboratory’s research capabilities. The enhanced platform provides an unparalleled ability to gather critical data on aircraft and space asset survivability, enabling the U.S. Air Force to stay ahead of evolving threats and maintain its technological edge. The increased range, altitude, and sensor integration capabilities mean that more complex and realistic threat scenarios can be simulated and analyzed with greater fidelity.
The extended operational lifespan of the G-IV, secured through the comprehensive, one-time modification strategy, ensures a stable and reliable research asset for the foreseeable future. This long-term planning minimizes future acquisition and certification costs, allowing for greater investment in research and development. The project’s success also highlights the value of public-private partnerships, demonstrating how collaboration between government research institutions and specialized aerospace companies can achieve complex technological advancements.
The dedication and expertise demonstrated by the MIT Lincoln Laboratory team, particularly during the challenges posed by the pandemic, underscore the organization’s commitment to national security research. The return of the G-IV is not merely the arrival of an aircraft; it signifies the return of a vital tool that will continue to safeguard U.S. defense capabilities for decades to come, ensuring that America’s air and space assets remain resilient in an increasingly complex global security environment. The insights gained from this platform will undoubtedly inform future defense strategies and technological developments, solidifying its importance in the ongoing effort to protect national interests.
