A groundbreaking initiative from the Massachusetts Institute of Technology (MIT) is redefining the potential of urban waterfronts, transforming them from static edges of cities into dynamic, programmable extensions of the urban fabric. Researchers have developed a novel system, dubbed FloatForm, which deploys a swarm of small, autonomous robotic boats capable of self-assembling into larger structures, dismantling them, and reconfiguring into entirely new formations with minimal human intervention. This innovative technology promises to unlock unprecedented possibilities for adaptive infrastructure, emergency response, public space creation, and resource management on water.
The core of the FloatForm system lies in its individual units: compact, square robotic boats, each approximately 21 centimeters per side – roughly the size of a dinner plate. These self-contained vessels are equipped with independent thrusters for maneuverability, an array of sensors for environmental awareness, and magnetic latches that enable them to seamlessly connect with one another. The collective intelligence of these robots allows them to form larger, more complex structures on the water’s surface, akin to a dynamic, aquatic construction site.
This modular approach hints at a future where floating infrastructure is no longer fixed but fluid and responsive to immediate needs. Imagine temporary platforms materializing to aid in disaster relief efforts, floating markets bustling with activity on urban canals, or stages appearing for temporary cultural events and then dissolving back into the water once the celebrations conclude.
"Our FloatForm project envisions a future where the waterfront becomes a programmable extension of the city, where autonomous boats can self-organize into bridges, platforms, and other useful structures on demand," explained Daniela Rus, the Panasonic Professor of Electrical Engineering and Computer Science at MIT and director of MIT’s Computer Science and Artificial Intelligence Laboratory (CSAIL). "This kind of distributed robotics opens new possibilities for mobility, emergency response, public space, and infrastructure on water."
Wei Wang, lead author of a new paper detailing the project and a former MIT research scientist now heading the Marine Robotics Lab at the University of Wisconsin at Madison, elaborated on the transformative potential. "With FloatForm, we are essentially turning static water surfaces into dynamic, programmable spaces," Wang stated. "Imagine an urban environment where public space isn’t fixed, but can autonomously expand, contract, or reconfigure on demand."
The vision extends to creating a more integrated and responsive urban environment. Alejandro Gonzalez-Garcia, a former researcher with MIT CSAIL and the Senseable City Lab, highlighted the practical applications: "We see it as forming infrastructure on the water, using a modular system to create one larger system. If there’s an emergency, you could form a new bridge to alleviate traffic in the city. Or you could create floating markets and floating stages. If you want a more livable city, you want to use the water, too."
The research, published in the prestigious journal Nature Communications, emerges from the collaborative efforts of labs led by Rus and Carlo Ratti, professor of practice of urban technologies and planning at MIT and director of the Senseable City Lab. This work builds upon the foundation laid by their earlier project, Roboat, a joint endeavor with the Amsterdam Institute for Advanced Metropolitan Solutions. Roboat explored the deployment of full-size autonomous vessels on Amsterdam’s historic canals, aiming to repurpose these waterways, which once served as vital commercial arteries, for contemporary urban needs such as waste collection and transportation, thereby alleviating pressure on congested road networks.
"We explored whether the canals could be used for waste collection, or for transport, to offload some of the stress on the roads back onto the water," noted Niklas Hagemann, an MIT graduate student in architecture, CSAIL affiliate, and former Senseable City Lab researcher who has been involved since the project’s inception. "Urban areas are getting denser, so could you expand public space onto water that’s currently underutilized?"
FloatForm represents a significant scaling down of this ambition, focusing on the intricate challenge of coordinating dozens, and ultimately thousands, of smaller floating robots to achieve complex collective behaviors.
Lessons from Nature: The Ant Raft Analogy
The inspiration for FloatForm’s self-organization capabilities stems from an unlikely source: the humble fire ant. These insects are renowned for their ability to survive floods by linking together to form resilient living rafts. Crucially, this remarkable feat is not orchestrated by a central leader; instead, each ant adheres to simple local rules, leading to the emergent formation of a robust and adaptable structure.
"Each ant is an independent agent," said Gonzalez-Garcia, drawing a direct parallel to the robotic units. "We wanted each robot to have its own capabilities, the same way ant colonies form a raft."
This decentralized approach stands in stark contrast to many existing self-assembling robotic systems, which typically rely on a central computer to dictate every movement. Such centralized control systems are inherently vulnerable to single points of failure and become computationally prohibitive as the number of robots increases, often requiring sequential assembly that leaves many robots idle.
FloatForm flips this paradigm. A lightweight central planner intervenes only sparingly, assigning each robot a final target position to achieve geometric precision. The bulk of the operational intelligence resides within the robots themselves. They independently navigate towards their designated locations, avoid collisions with their neighbors, and adapt to external disturbances. Coordination is achieved through localized communication, with each robot exchanging position data with its immediate peers. This distributed architecture allows the entire swarm to move and reconfigure simultaneously, a critical factor for scalability and efficiency.
"What we’re trying to do is to have minimal central intervention, and have them all move together at the same time," explained Gonzalez-Garcia. The computational complexity of FloatForm’s approach is tied only to the local neighborhood of each robot, not the overall size of the swarm, ensuring that performance does not degrade as the system scales.
Dynamic Formations and Collective Transport

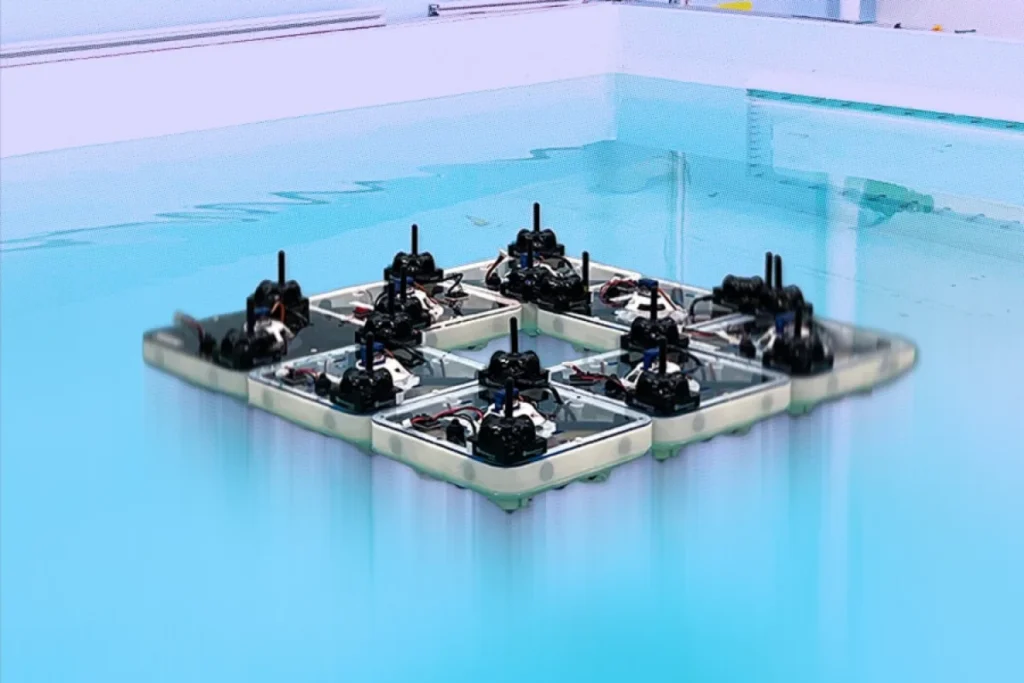

Experimental trials conducted at MIT have demonstrated the system’s efficacy. A fleet of eight robots successfully transitioned from random positions to a designated target shape, forming a rigid structure. They could then break apart on command and reassemble into a new configuration. In a remarkable demonstration of collective transport, the entire swarm could then move across a test pool as a single, unified vessel. Each of these cycles typically took between four to eight minutes. In collective transport mode, a central planner charts the overall trajectory, and each robot independently calculates its contribution to execute the coordinated movement.
"Every robot becomes an actuator," Gonzalez-Garcia elaborated. Simulations have indicated that this framework can smoothly scale to swarms of 64 robots, with the planning complexity remaining manageable.
"The beauty of this largely decentralized approach is that the computation doesn’t get bogged down as the swarm grows," emphasized Wang. "Whether you are working with eight boats or 80, the entire fleet coordinates and moves simultaneously. Because the overall assembly time doesn’t significantly increase in principle, the system remains highly scalable."
Beyond coordination, the physical act of joining together offers tangible benefits. "Our boats become more stable by joining together, like the ant raft, if you have waves or currents," Hagemann pointed out, underscoring the system’s resilience in challenging aquatic environments.
An Ingenious Latching Mechanism
The seamless connection and disconnection of the robotic units are facilitated by an elegantly designed latching mechanism, ingeniously concealed within each hull. This mechanism utilizes a 3D-printed gearbox driven by a single servo motor, which actuates an origami-inspired auxetic structure. This geometry is engineered to contract uniformly in all directions, drawing permanent magnets inward to release, or pushing them outward to engage with a neighboring robot across gaps of 10 to 15 centimeters. The precise arrangement of alternating magnetic polarities ensures that the boats reliably click into a clean, square lattice formation.
A key design feature of this mechanism is its energy efficiency. Once latched or unlatched, the mechanism holds its state without continuous power consumption. "It uses energy to latch and de-latch, but in between those states, it doesn’t use any energy," explained Hagemann. This is particularly crucial for small robots with limited battery capacity, allowing them to dedicate more energy to computation and locomotion.
The development process, however, was not without its engineering hurdles. The four miniature thrusters, arranged in an ‘X’ configuration, provide omnidirectional motion and the ability to turn in place. However, their powerful thrust relative to the robots’ small inertia initially led to twitchy behavior and aggressive spins at low speeds. The team addressed this by incorporating stabilizing fins to increase hydrodynamic drag and by carefully tuning the control algorithms to maintain robustness across robots that, at this scale, exhibit inherent variations. The magnetic latches themselves presented a challenge, as their strong adherence sometimes required the robots to twist free, necessitating further refinement of the de-latching process.
From Controlled Environments to Real-World Application
In controlled laboratory tests, the FloatForm system achieved mission completion without human intervention in 90% of trials with four robots and 70% with eight. The system demonstrated remarkable resilience: a robot that temporarily lost its bearings could autonomously rejoin the structure, and robots encountering formation deadlocks could disengage and retry.
The transition from a controlled indoor tank to the unpredictable conditions of a real canal or harbor presents a new set of challenges. "There’s always a relationship between the size of a boat and the magnitude of the disturbance it can handle," noted Gonzalez-Garcia. "These boats are very small, so in very disturbed water, they cannot work." Scaling up will necessitate reinforcing the latches, potentially incorporating mechanical interlocking systems similar to those used in the full-size Roboat. Furthermore, the current ultrasonic indoor positioning system will need to be replaced with more robust outdoor navigation solutions like GPS or vision-based sensing. Encouragingly, the core coordination algorithm is sensor-agnostic, allowing for flexibility in hardware choices.
The potential applications of FloatForm extend far beyond urban waterways. The researchers envision its use in creating temporary platforms for offshore inspection and maintenance, deploying adaptive sensor networks for studying migratory species, and establishing reconfigurable docking stations for emergency response in remote or hard-to-access areas. Offshore operations, including temporary construction platforms, environmental monitoring, and scientific expeditions, also represent significant potential use cases.
"Venice, the Netherlands, Belgium, the fjords and lakes of Norway, really any city with a river can take advantage of this," said Gonzalez-Garcia. "The project uses spaces where water is already important, but it also raises the question: Where else can water be used for something more?"
Steven Ceron, an Assistant Professor at the University of Michigan who was not involved in the research, lauded the project’s significance. "This is an exciting step forward in realizing distributed collective behaviors on water," Ceron commented. "Assembly, self-reconfiguration, and collective motion are difficult enough in dry environments, but achieving these behaviors in a predominantly distributed fashion on water represents a serious additional challenge, and this team has credibly overcome it. By shifting the computational burden onto the robots themselves, they have built a more resilient system that in the near future could enable robot collectives like this to be deployed in open-water environments for search operations, environmental monitoring, and reconfigurable marine infrastructure."
The research paper was authored by Gonzalez-Garcia, Hagemann, and Wang, with senior authorship from Ratti and Rus. Gonzalez-Garcia also holds an affiliation with the MECO Research Team at KU Leuven. The research received funding from the Amsterdam Institute for Advanced Metropolitan Solutions, with additional support from the University of Wisconsin at Madison. The team expressed gratitude to MIT Sea Grant and Professor Michael Triantafyllou for providing the necessary test tank facilities. The broader implications of this work suggest a future where our interaction with water bodies is not passive but actively shaped by intelligent, adaptable robotic systems, blurring the lines between land and water in the urban landscape.
