Parts emerging from 3D printers, regardless of the material or technology employed, rarely possess the desired surface finish and dimensional accuracy required for their intended applications. These "green" parts often exhibit visible layer lines, residual unfused powder, marks left by support structures, and internal roughness. Addressing these imperfections is not merely an aesthetic concern but a critical step in ensuring the functionality, durability, and biocompatibility of additively manufactured components. This necessitates a robust postprocessing and surface finishing strategy, a domain that has seen significant innovation alongside advancements in AM technologies themselves. The selection of the optimal finishing sequence is a complex decision, intricately tied to the specific material used, the part’s intricate geometry—particularly internal features—the required surface roughness, and the stringent end-use requirements of the final product.
The Imperative of Postprocessing in Additive Manufacturing
The inherent layer-by-layer construction of 3D printing, while offering unparalleled design freedom, inherently introduces surface irregularities. These can range from microscopic imperfections that compromise fatigue life and fluid dynamics to more significant defects that affect fit, form, and function. For instance, in medical implants, a rough surface can hinder osseointegration, while in aerospace components, it can increase drag and reduce aerodynamic efficiency. Similarly, for parts used in demanding industrial applications, surface roughness can lead to premature wear and failure. Consequently, the postprocessing and surface finishing of AM parts have evolved from a secondary consideration to an integral part of the manufacturing workflow.
The industry is witnessing a growing demand for comprehensive postprocessing solutions that can handle the diverse range of materials and geometries produced by additive manufacturing. This includes metals, polymers, ceramics, and composites, each requiring tailored approaches. Furthermore, the increasing complexity of AM designs, such as intricate lattice structures and conformal cooling channels, presents unique challenges for traditional finishing methods. As AM transitions from prototyping to serial production, the efficiency, scalability, and cost-effectiveness of postprocessing techniques become paramount.
Key Postprocessing and Surface Finishing Techniques in Additive Manufacturing
A variety of techniques are employed to refine the surfaces of 3D printed parts, each with its own strengths and limitations. The following are nine of the most prevalent methods currently utilized in the AM industry:
1. Media Blasting (Bead, Sand, or Soda)

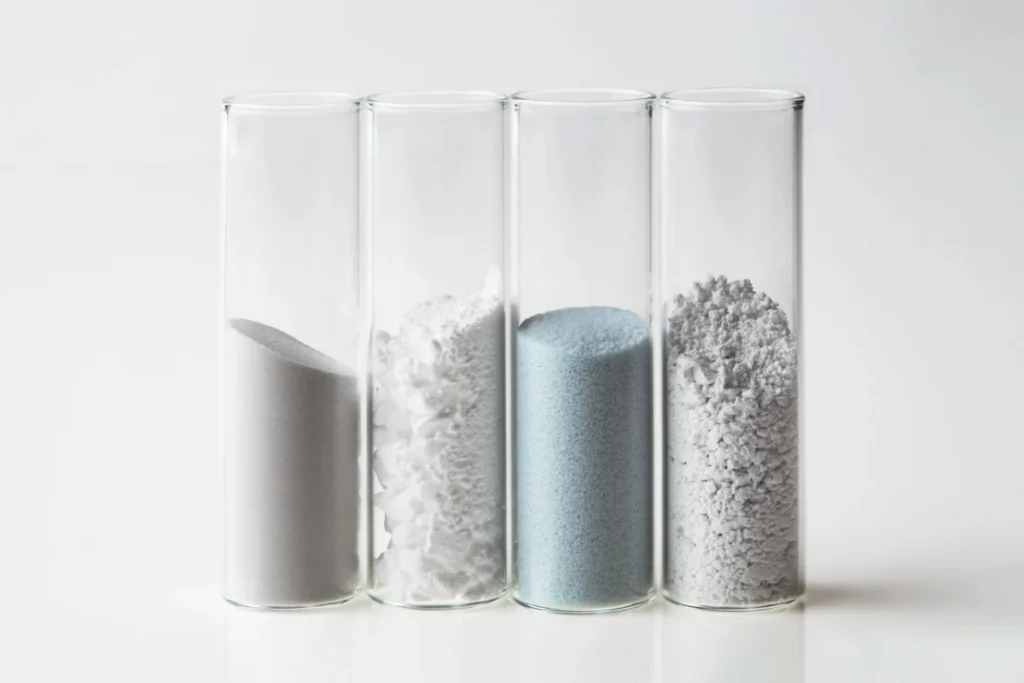

Media blasting is frequently the initial step in postprocessing both metal and polymer AM parts. This process utilizes pressurized media—such as glass beads, sand, or baking soda—to dislodge loose powder, remove minor surface imperfections, and create a uniform matte finish. It is a rapid and cost-effective method, making it a popular choice for initial surface preparation.
Himed’s Hydroxyapatite (HA) Blasting Innovation:
Materials manufacturer Himed has pioneered the use of hydroxyapatite (HA) as an abrasive media for surface finishing. HA is a naturally occurring mineral component of bone and teeth, commonly employed in medical applications as a coating for implants to promote osseointegration. By utilizing HA as an abrasive, Himed’s process not only removes residual powder and surface defects but also simultaneously prepares the surface of medical implants for enhanced biocompatibility. This dual-action approach is particularly beneficial for implants designed for bone regeneration, as the HA particles can adhere to the implant surface, fostering a more favorable environment for cellular attachment and bone growth.
SEM (Scanning Electron Microscope) images provided by Himed illustrate the efficacy of this technique. Before HA blasting, 3D printed Ti64 lattice structures often exhibit loosely adherent material beads, a common artifact of the printing process. Following treatment with Himed’s Apatitic Abrasive, these molten beads are effectively removed, and the surface topography becomes uniformly textured, which is crucial for improving the implant’s integration with surrounding bone tissue. This innovation represents a significant advancement in the postprocessing of medical implants, addressing both functional and biological requirements simultaneously.
2. Abrasive Flow Machining (AFM)
Abrasive Flow Machining (AFM) is a highly effective method for achieving smooth internal surfaces, particularly in complex geometries. In this process, a viscous, abrasive-laden putty is forcibly pumped back and forth through the internal passages of a part. The controlled flow of the abrasive media under pressure effectively deburrs, polishes, and refines internal surfaces that are inaccessible to other finishing methods. AFM is widely adopted for applications such as smoothing the internal channels of fuel nozzles, manifolds, and hydraulic blocks, where precise surface finish is critical for performance and efficiency. The ability of AFM to reach intricate internal features makes it invaluable for components where fluid flow or thermal management is a key consideration.
3. Tumbling and Vibratory Finishing
Tumbling and vibratory finishing are batch processing techniques well-suited for finishing multiple small-to-medium-sized parts simultaneously. In these methods, parts are placed in a barrel or bowl along with abrasive media and a compound. The container is then agitated, causing the media to rub against the parts, thereby deburring, radiusing edges, and smoothing surfaces.
Centrifugal Barrel Tumbling: A Faster Alternative:
Mass Finishing Inc. (MFI) highlights the advantages of centrifugal barrel tumbling as a quicker and quieter alternative to traditional vibratory finishing. This advanced technique operates on the "Ferris Wheel" principle, where barrels containing the parts, media, water, and compound are rotated at high speeds. The centrifugal force generated intensifies the finishing action, significantly reducing processing times compared to vibratory methods. MFI’s HZ-6 centrifugal barrel tumbler, for instance, offers a compact six-liter capacity and a small footprint, enabling high-polished finishes on additive components efficiently. The ability to load one or all four chambers to an estimated 50-80% capacity allows for flexible batch sizes and optimized processing cycles. This method is particularly effective for breaking sharp edges and achieving a consistent surface finish across a batch of parts, crucial for applications demanding tight tolerances and aesthetic appeal.
4. Manual Grinding, Sanding, and Polishing
Despite the advent of advanced automated techniques, manual grinding, sanding, and polishing remain indispensable for certain AM applications. These labor-intensive processes are often critical for large structural parts, prototypes, and for meticulously removing support witness marks—the points where support structures were attached to the part during printing. In low-volume metal AM production, manual finishing frequently represents the most significant cost driver due to the time and skill required. However, for high-precision applications or for achieving a specific aesthetic, skilled manual finishing can deliver superior results where automated methods might fall short.
5. Chemical and Electrochemical Polishing
Chemical and electrochemical polishing offer effective ways to achieve smooth surfaces on both external and internal features of AM parts. These processes involve immersing the parts in specific chemical solutions that selectively dissolve the high points (peaks) of the surface while leaving the lower points (valleys) relatively intact. This action results in a smoother, more uniform surface finish.
Electroform: Sustainable Electrochemical Polishing:
Holdson’s Electroform system exemplifies a modern approach to electrochemical polishing, emphasizing sustainability. This system utilizes recyclable, acid-free electrolytes, thereby eliminating the need for hazardous chemicals. This not only contributes to a safer working environment but also reduces environmental impact. Electroform enables repeatable, high-quality finishes across a diverse range of materials commonly used in AM, including stainless steels, titanium alloys, and nickel-based superalloys. The process is particularly advantageous for complex geometries such as lattice structures, conformal cooling channels found in injection molds, and intricate medical implants, where achieving a uniform and smooth surface is critical for performance and biocompatibility. The ability to achieve such finishes without harsh chemicals marks a significant step towards greener manufacturing practices in the AM sector.
6. Laser Polishing
Laser polishing is a non-contact finishing technique that uses a defocused laser beam to remelt a thin surface layer of the material. Surface tension then acts on this molten layer, pulling it into a smoother, more uniform finish. This method offers several advantages: it requires no consumables, eliminates the need for cleaning media from internal features, and provides a high degree of control over the polishing process. Laser polishing is particularly suitable for small, high-value parts, such as those used in the dental and aerospace industries, where precision and surface integrity are paramount. Its ability to refine surfaces without introducing foreign materials makes it ideal for applications where contamination must be strictly avoided.
7. CNC Machining
While often considered a subtractive manufacturing process, CNC machining plays a vital role in the postprocessing of AM parts, particularly when high precision and specific surface characteristics are required. It is widely employed for critical mating surfaces, bearing journals, sealing faces, and features demanding tight tolerances that may not be achievable directly from the 3D printing process.
Hybrid Manufacturing: The Integration of AM and CNC:
The trend towards hybrid manufacturing, where additive and subtractive processes are integrated within a single machine or workflow, is rapidly gaining traction. Machines that combine directed energy deposition (DED) or laser powder bed fusion (LPBF) with milling capabilities in one setup streamline the production process, reducing lead times and minimizing material handling. Addman Advanced Manufacturing Solutions is a prime example of this integrated approach. They combine their metal AM operations with precision CNC machining for surface finishing. Compact metal parts are additively manufactured using LPBF, and then subsequently finished using a suite of in-house CNC machining options. This synergy allows for the creation of highly complex geometries via AM, followed by precise finishing operations to achieve the exacting specifications required for demanding applications in industries like aerospace and medical devices. This integration represents a significant step towards achieving fully finished parts directly from a single manufacturing hub.
8. Vapor Smoothing
Vapor smoothing is an automated postprocessing technique that significantly enhances the surface finish of 3D printed polymer parts. In this process, clean parts are placed within an airtight vessel containing a solvent. The vessel is then heated to a specific temperature, causing the solvent to vaporize. The resulting vapor permeates the surface of the printed part, smoothing out layer lines and creating a polished finish. This process typically takes a matter of hours and is performed without direct contact with liquid solvents, which can sometimes be problematic for intricate internal features. Automated systems are commonly used for vapor smoothing, offering consistent and repeatable results. While the process is primarily used for polymers, research is ongoing into its application for certain metal alloys.
9. Coatings and Plating
Coatings and plating are applied to AM parts after initial mechanical preparation to enhance their properties or aesthetics. These treatments can serve multiple purposes, including masking minor surface defects, improving wear and corrosion resistance, or providing a uniform cosmetic appearance.
UV Powder Coating: A Scalable Color Solution:
Streamline 3D, in collaboration with powder coating supplier Keyland Polymer, has developed an innovative UV powder coating process specifically for AM parts. This process utilizes UV powder coatings formulated to melt and flow at a relatively low temperature, around 220°F (104°C). This lower curing temperature is crucial for accommodating heat-sensitive substrates commonly used in AM. After the powder melts and flows, it is exposed to UV light, which initiates an immediate curing process. This rapid curing minimizes heat exposure to the part, preventing distortion or degradation. The entire process takes approximately eight minutes, offering a highly scalable solution for achieving vibrant, consistent colors on 3D printed components with a low scrap rate. This advancement opens up new possibilities for customized and aesthetically appealing AM products across various sectors, from consumer goods to automotive components. Other common coatings include anodizing, physical vapor deposition (PVD), and electroless nickel, each offering distinct advantages for material enhancement and surface protection.
The Evolving Landscape of AM Postprocessing
The advancements in postprocessing and surface finishing techniques are critical to the continued growth and adoption of additive manufacturing. As the complexity of AM designs increases and the demand for high-performance parts rises, the need for efficient, scalable, and cost-effective finishing solutions will only intensify. The development of specialized abrasive media, innovative chemical processes, and integrated hybrid manufacturing systems underscores the industry’s commitment to overcoming the inherent challenges of AM part production. The ongoing research and development in this area promise to further bridge the gap between raw 3D printed components and finished, application-ready products, solidifying AM’s position as a mainstream manufacturing technology.
The podcast episode "The Postprocessing Episode: AM Radio #58" further elaborates on the necessity of these processes and showcases how additive manufacturers are tackling various postprocessing challenges. For individuals new to the AM industry or seeking a comprehensive overview, the "New to AM?" microsite, particularly its "AM Workflow" section, offers detailed insights into the entire AM process, including the crucial stages of postprocessing and surface finishing for 3D printed components. These resources highlight the dynamic and ever-evolving nature of this critical aspect of additive manufacturing.
