The landscape of 3D printing, a transformative technology enabling rapid prototyping and the creation of everything from intricate movie props to life-saving medical devices, is on the cusp of a significant evolution. For designers, engineers, and makers worldwide, the ability to accurately predict the final appearance of a 3D-printed object is not merely a matter of aesthetics but a critical factor in efficiency and resource management. Historically, the functional previews generated by most 3D printing software have fallen short, often failing to capture the nuances of color, texture, and shading. This disconnect between digital design and physical output frequently leads to a frustrating cycle of reprints, resulting in wasted time, effort, and precious material. However, a groundbreaking development from researchers at the Massachusetts Institute of Technology (MIT) and their collaborators promises to bridge this gap, introducing an intuitive preview tool that prioritizes visual fidelity.

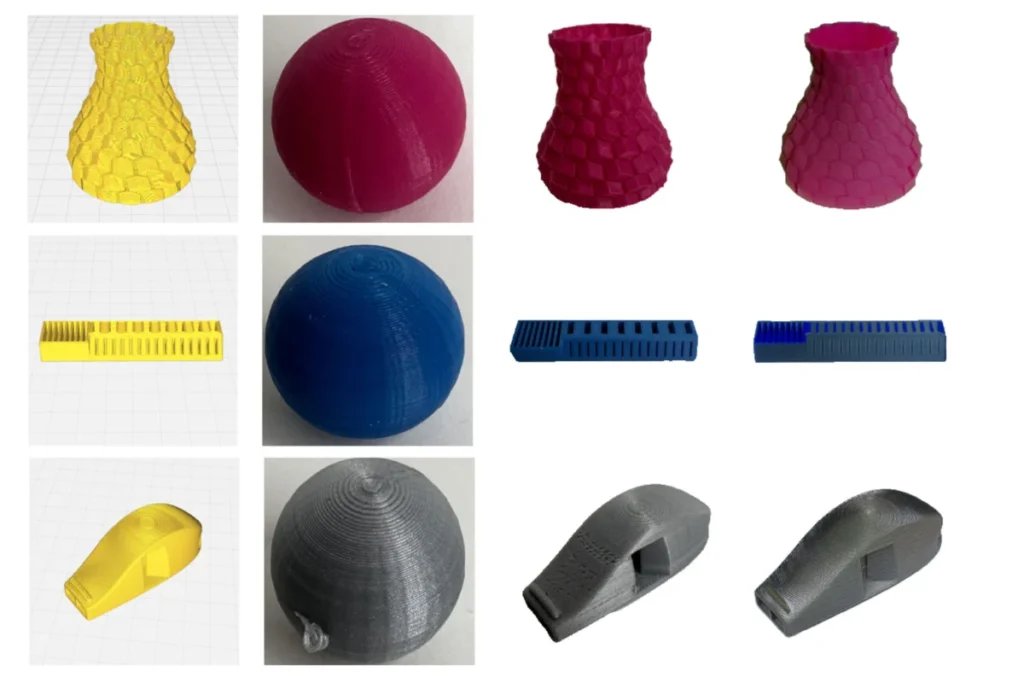

This innovative system, christened VisiPrint, leverages the power of artificial intelligence to generate highly accurate aesthetic renderings of 3D-printed objects. The user experience is designed for simplicity: individuals upload a screenshot of their object from their 3D printing software, often referred to as "slicer" software, alongside a single image of the intended print material. From these two inputs, VisiPrint automatically crafts a realistic visualization of the fabricated object, reflecting how it is likely to appear once printed. This AI-powered solution is engineered for broad compatibility, working seamlessly with a diverse array of 3D printing software and capable of processing any material example. VisiPrint goes beyond basic color matching, meticulously accounting for factors such as gloss, translucency, and the subtle influences that the fabrication process itself imparts on a material’s final look.
The implications of VisiPrint are far-reaching, with potential applications poised to transform several key industries. In the field of dentistry, for instance, clinicians could utilize VisiPrint to ensure that temporary crowns and bridges precisely match the aesthetic of a patient’s natural teeth, enhancing patient satisfaction and reducing the need for remakes. Architects and designers stand to benefit immensely as well, gaining the ability to critically assess the visual impact and material representation of their scale models before committing to physical prints.
Addressing the Wasteful Nature of Prototyping
The drive behind VisiPrint stems from a deep-seated concern for the environmental and economic inefficiencies inherent in current 3D printing practices. "3D printing can be a very wasteful process," states Maxine Perroni-Scharf, an electrical engineering and computer science (EECS) graduate student and the lead author of the paper detailing VisiPrint. "Some studies estimate that as much as a third of the material used goes straight to the landfill, often from prototypes the user ends of discarding. To make 3D printing more sustainable, we want to reduce the number of tries it takes to get the prototype you want. The user shouldn’t have to try out every printing material they have before they settle on a design." This sentiment underscores the core mission of VisiPrint: to empower users with accurate visual information upfront, thereby minimizing the iterative printing cycles that contribute to material waste.
The research, which will be presented at the prestigious ACM CHI Conference on Human Factors in Computing Systems, is the product of a collaborative effort. Perroni-Scharf is joined by fellow EECS graduate student Faraz Faruqi, MIT undergraduate Raul Hernandez, SooYeon Ahn, a graduate student at the Gwangju Institute of Science and Technology, Szymon Rusinkiewicz, a professor of computer science at Princeton University, William Freeman, the Thomas and Gerd Perkins Professor of EECS at MIT and a member of the Computer Science and Artificial Intelligence Laboratory (CSAIL), and senior author Stefanie Mueller, an associate professor of EECS and Mechanical Engineering at MIT, also affiliated with CSAIL.
The Technical Backbone: Fused Deposition Modeling and AI Integration
The researchers meticulously focused their efforts on Fused Deposition Modeling (FDM), the most prevalent form of 3D printing technology. In FDM, a thermoplastic filament is heated to its melting point and then extruded through a fine nozzle, depositing the molten material layer by layer to construct the three-dimensional object. While this method is widely accessible and versatile, it introduces significant challenges in generating accurate aesthetic previews. The very processes of melting the filament and extruding it through the nozzle can subtly alter the material’s inherent color, reflectivity, and texture. Furthermore, the precision with which each layer is deposited, dictated by the nozzle’s path and the layer height, profoundly influences the final object’s surface finish and perceived quality.
VisiPrint tackles these complexities through the synergistic operation of two sophisticated AI models. The system’s intelligence is ignited by the two primary inputs: the digital design blueprint provided by the user’s slicer software and an image capturing the essence of the print material. This material image can be sourced from online repositories or a physical sample.
The first AI component, a computer vision model, acts as an intelligent feature extractor. It meticulously analyzes the material sample image, identifying and quantifying the visual characteristics that are paramount to the object’s eventual appearance. These extracted features encompass a wide spectrum, including color values, surface glossiness, and any inherent textural patterns.
These crucial material attributes are then seamlessly fed into a generative AI model. This second AI component is responsible for computing the object’s geometry and intricate internal structure, crucially incorporating the "slicing" pattern – the precise path the print nozzle will follow as it lays down each layer of material. The generative model then renders the object, applying the material properties to this structured form.
The true innovation of VisiPrint lies in its unique conditioning method. This technique involves a highly refined adjustment of the AI model’s internal parameters. This careful calibration guides the model to adhere strictly to the prescribed slicing pattern while simultaneously respecting the physical constraints and behaviors of the 3D printing process. This ensures that the generated preview is not just a visually appealing image but a faithful representation of what the FDM process can actually achieve with the given material and design.
The conditioning method employs a sophisticated combination of a depth map and an edge map. The depth map meticulously preserves the object’s overall shape and the subtle interplay of light and shadow, providing a foundational understanding of its three-dimensional form. Complementing this, an edge map highlights the internal contours and structural boundaries of the object, reflecting the geometry that will be defined by the deposited material. "If you don’t have the right balance of these two things, you could end up with bad geometry or an incorrect slicing pattern," Perroni-Scharf explains. "We had to be careful to combine them in the right way." This delicate balance is essential for generating previews that are both geometrically accurate and visually representative of the material’s behavior during printing.
A User-Centric Design for Enhanced Accessibility
Beyond its sophisticated AI core, VisiPrint boasts an intuitive and user-friendly interface. The development team prioritized accessibility, ensuring that users of all technical backgrounds can readily leverage its capabilities. The interface allows for straightforward uploading of the necessary images and a clear evaluation of the generated preview. For more advanced users, VisiPrint offers granular control over various settings, enabling them to fine-tune aspects such as the influence of specific colors on the final appearance, offering a level of customization not typically found in standard preview tools.
It is important to note that VisiPrint is designed to complement, rather than replace, the functional previews provided by slicer software. VisiPrint’s primary focus is on aesthetics; it does not predict printability, assess mechanical feasibility, or estimate the likelihood of print failure. This distinction clarifies its role as a visual enhancement tool, adding a crucial dimension to the design and prototyping workflow.
The efficacy of VisiPrint was rigorously evaluated through a comprehensive user study. Participants were tasked with comparing the system against existing preview methods. The results were overwhelmingly positive, with nearly all participants reporting that VisiPrint provided superior overall appearance and a more accurate textural representation compared to conventional approaches. Furthermore, the VisiPrint preview generation process proved remarkably efficient, averaging approximately one minute per preview – more than twice as fast as competing methods.
"VisiPrint really shined when compared to other AI interfaces," Perroni-Scharf observed. "If you give a more general AI model the same screenshots, it might randomly change the shape or use the wrong slicing pattern because it had no direct conditioning." This highlights the specific advantage of VisiPrint’s targeted AI architecture, which is explicitly trained and conditioned for the intricacies of 3D printing.
Looking ahead, the research team is eager to expand VisiPrint’s capabilities. Future development plans include addressing potential artifacts that may arise when previewing objects with extremely fine details. Additionally, they aim to incorporate features that empower users to optimize aspects of the printing process beyond just material color, potentially delving into the effects of print speed, infill patterns, and support structures on the final aesthetic.
"It is important to think about the way that we fabricate objects. We need to continue striving to develop methods that reduce waste," Perroni-Scharf emphasized. "To that end, this marriage of AI with the physical making process is an exciting area of future work." This forward-looking perspective aligns with a broader industry trend towards more sustainable and efficient manufacturing practices.
Patrick Baudisch, a professor of computer science at the Hasso Plattner Institute who was not involved in the research, offered a compelling endorsement of VisiPrint’s significance. "‘What you see is what you get’ has been the main thing that made desktop publishing ‘happen’ in the 1980s, as it allowed users to get what they wanted at first try," Baudisch remarked. "It is time to get WYSIWYG for 3D printing as well. VisiPrint is a great step in this direction." This analogy powerfully encapsulates the potential of VisiPrint to democratize and streamline the 3D printing experience, bringing it closer to the user-friendly predictability of other digital creative tools.
The research behind VisiPrint was made possible through the generous support of various institutions, including an MIT Morningside Academy for Design Fellowship and an MIT MathWorks Fellowship, underscoring the commitment to fostering innovation in design and engineering. As VisiPrint matures, it holds the promise of not only enhancing the aesthetic outcomes of 3D printing but also significantly contributing to a more sustainable and efficient future for fabrication.
