In a world increasingly reliant on automation, understanding the fundamental principles of motion systems is paramount for engineers, designers, and industry professionals. This primer delves into the essential elements that define an automated motion system, whether it’s a sophisticated piece of robotics or a specialized machine designed for a specific routine. At its core, every motion system is an electric-motor-driven design, built upon the synergistic interaction of mechanical power transmission components and sophisticated electronic control and actuation elements.

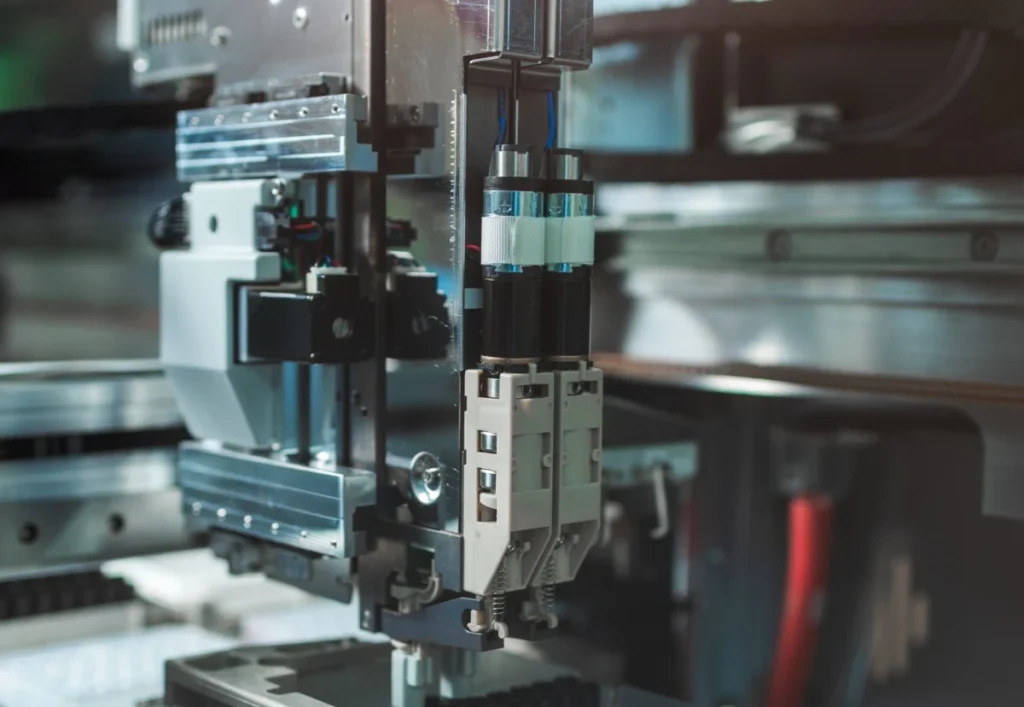

The Foundational Role of Motion Systems
Motion systems are the unseen workhorses behind a vast array of modern technologies, from the precision movements of robotic arms on an automotive assembly line to the delicate operations within medical diagnostic equipment and the rapid sorting mechanisms in automated warehouses. They are instrumental in achieving tasks that require controlled movement, precise positioning, and consistent repeatability, making them indispensable across virtually all industrial sectors and a growing number of consumer applications.
The motion industry typically distinguishes between two primary design philosophies: power-transmission designs and motion systems. Power-transmission designs emphasize raw torque or force and speed, with mechanical components often dominating the build. These systems are optimized for moving heavy loads or achieving high velocities, where the exact positioning might be secondary to the sheer power delivered. In contrast, motion systems place a premium on precise positioning and meticulously controlled motion profiles. These profiles define critical parameters such as speeds, accelerations, jerk (the rate of change of acceleration), speed-torque relationships, and homing routines for a machine’s various axes. This distinction highlights the shift from brute force to intelligent, controlled movement, which is increasingly vital for advanced automation.
These sophisticated design types are integral to myriad consumer products, office automation equipment, medical devices, laboratory automation equipment, and, crucially, in the industrial space, discrete factory automation. This leads to another important differentiation: discrete factory automation versus process or analog automation.
Discrete vs. Process Automation: Where Motion Systems Thrive
Discrete automation, not to be confused with discrete motion control, involves the working, machining, assembling, testing, capping, wrapping, packaging, labeling, counting, scanning, and transporting of separate, individual workpieces or products. Each workpiece might undergo several distinct operations before reaching completion. Industries characterized by discrete automation include automotive manufacturing, electronics production, automated warehousing operations, and packaging. The emphasis here is on handling distinct items with precision and speed, making motion systems an ideal fit.
Conversely, process automation deals with continuous flows, such as vats of liquids, uninterrupted systems of fluids, and batches subject to continuous chemical reactions, temperature controls, metering, and flowing operations that are generally difficult to stop and start. Process automation industries, where these types of operations dominate, include mining, energy (both coal and nuclear), oil and gas, food processing, pharmaceutical and chemical manufacture, glass and ceramic production, plastics, textiles, and wood and paper. While motion components exist within process automation (e.g., for valve actuation or pump control), the overarching control philosophy differs significantly from the precise, start-stop, positioning-focused nature of discrete automation. Motion system designs are fundamentally associated with discrete automation, enabling the precise placement and transport of individual workpieces or products.
Evolution of Motion Control: A Brief Chronology

The journey of motion control began with rudimentary mechanical systems, evolving significantly with the advent of electrical power. Early industrial automation relied heavily on relays and mechanical linkages. The mid-20th century saw the introduction of programmable logic controllers (PLCs), which revolutionized sequential control and laid the groundwork for more sophisticated automation.
The true leap for motion systems came with the development of servomotors and digital electronics in the latter half of the 20th century. Servosystems, with their ability to precisely control position, velocity, and torque, transformed manufacturing. Early servomotors were analog, but the shift to digital signal processors (DSPs) in the 1980s brought unparalleled accuracy and dynamic performance. The 1990s and early 2000s witnessed the rise of specialized motion controllers, often PC-based, capable of coordinating multiple axes with high precision and implementing complex motion profiles. This era also saw the proliferation of industrial communication protocols, moving from proprietary systems to standardized fieldbuses and eventually to real-time industrial Ethernet protocols, which enabled distributed control and greater system integration. Today, motion control is on the cusp of another revolution, integrating artificial intelligence and machine learning to create adaptive, predictive, and even self-optimizing systems.
Key Parameters in Motion System Design: A Deep Dive
The design process for automated motion systems is meticulous, beginning with a thorough documentation of the loads to be moved and the inertias involved, along with the friction the motorized axis will need to overcome without introducing undue sluggishness.
Load and Inertia Analysis: Inertia, an object’s resistance to changes in speed (acceleration or deceleration), is a critical factor. Total inertia includes that of the workpiece load, the axes’ moving parts, and any components like gearboxes or pulleys. This inertia can be relatively low in direct-drive systems, such as torque motors or linear motors, which lack intermediate mechanical components. However, it significantly increases when an electric motor is fitted with a gearset for speed reduction and for inertia matching, a technique used in servotuning to optimize system responsiveness.
Inertial values vary greatly for axes incorporating tangential forms of power transmission like belt-and-pulley, rack-and-pinion, or chain-and-sprocket sets. Similarly, linear actuators utilizing leadscrews, ballscrews, or roller screws each present unique inertial characteristics. Engineers must sum all axis components’ inertias and their reflected values back to the motor shaft. This calculation is crucial for accurate motor sizing and control tuning. A particularly complex scenario involves changing inertias, as seen in robotic axes performing dispensing or machining tasks where the load mass changes over time. In such cases, the motion controls may require advanced servotuning or adaptive control algorithms to compensate for the dynamic changes. Specialized software tools are often employed to simulate and calculate these complex inertial interactions, ensuring optimal system performance.
Motor Output Force and Torque Determination: Following the quantification of mechanisms, friction, and inertia, the next step is to define the required motor output force (for linear motors) or, more commonly, torque (for rotary motors). This allows for the proper sizing of the electric motor for each axis. Beyond the acceleration torque needed to initiate movement, a servo axis’s motor must deliver sufficient continuous torque during run phases and deceleration torque during stopping, all while operating within its thermal limits. Understanding the motor’s torque-speed curve and thermal characteristics is vital to prevent overheating and ensure reliable long-term operation.
Mechanical Power Transmission Components
These components are the physical means by which motor power is translated into controlled motion.

- Linear Actuators:
- Ballscrews: Highly efficient, precise, and capable of high speeds and loads. They use recirculating ball bearings between the screw and nut, reducing friction significantly. Ideal for applications requiring high accuracy and repeatability.
- Leadscrews: Simpler and more cost-effective than ballscrews, but less efficient due to higher friction. Often used in applications where precision is less critical or where self-locking is desired.
- Roller Screws: Offer extremely high load capacity, rigidity, and long life, often exceeding ballscrews. They use threaded rollers as the load-carrying elements, making them suitable for demanding industrial applications.
- Linear Guides: Essential for supporting loads and ensuring smooth, precise linear motion.
- Recirculating Ball/Roller Guides: Provide high load capacity, stiffness, and low friction, commonly paired with ballscrews for precision linear motion.
- Plain Bearings: Simpler, lower cost, but with higher friction and lower precision, suitable for less demanding applications.
- Tangential Drives:
- Synchronous Belt and Pulley Sets: Offer quiet operation, good positioning accuracy, and require minimal lubrication. Used for medium loads and speeds, where precise synchronization is needed.
- Rack and Pinion Sets: Excellent for long travel distances and high loads. They convert rotary motion into linear motion and are common in large gantry systems.
- Chain and Sprocket Sets: Robust and capable of transmitting high torque, often found in heavy-duty conveying and power transmission applications, though less precise than belts or screws for positioning.
- Gearboxes/Reducers: Used to match the motor’s speed and torque characteristics to the load requirements. Types include planetary, helical, and worm gears, each offering different levels of efficiency, backlash, and load capacity. They play a crucial role in reducing reflected inertia and enabling the motor to operate at its most efficient speed range.
Motor and Motion Controls: The Brains of the Operation
The last two decades have seen a significant convergence of system motor controls and motion controls. Both types of electronics accept low-power signals that inform their prompting of actuation-level electrical output to drive the involved motors. In a zoological analogy, motion controllers serve as the system’s "brains" to monitor, command, and integrate the motors, drives, and feedback mechanisms.
Motion controllers are capable of commanding systems arranged for:
- Point-to-point motion: Moving to a specific position and stopping.
- Interpolated (multi-axis) motion: Coordinated movement of multiple axes simultaneously, such as in robotic paths.
- Gearing and camming: Electronic synchronization of axes, mimicking mechanical gears or cams.
- Teach mode: Recording and replaying motion paths.
- Master/slave configurations: One axis controls the motion of others.
The choice between centralized controls (where controls, motors, drives, and complementary electronics are housed together in a cabinet) and distributed drive-based controls is a common decision during the design process. Machines with many axes spread over a large area often benefit from decentralized motion control, which can trim wiring issues and costs, and allow for a smaller main control cabinet. Conversely, compact machine installations may find greater economies and simpler maintenance with traditional centralized control.
Regardless of the control architecture, each motor’s drive (motor control or amplifier) must be capable of providing acceleration and continuous current sufficient to satisfy the motion design’s duty-cycle requirements. This includes power to move the load and dissipate heat generated when slowing the load, ultimately dependent on RMS current or acceleration current while accounting for any increase in the motor’s winding resistance due to heat. Modern drives also incorporate regenerative capabilities, recovering energy during deceleration and feeding it back into the power supply, improving overall energy efficiency.
The Special Case of Servosystems
Motion system designs that take the form of closed-loop systems, known as servosystems, are inherently dynamic machines. They involve quick accelerations and decelerations and operate in all four design quadrants, meaning they control an axis over all positive and negative torques and speeds. Sizing such servosystems necessitates a holistic systems approach that concurrently accounts for mechanical, electrical, and software parameters. The drives supplying power to axes’ servomotors must be capable of delivering all necessary continuous (RMS) and acceleration (peak) currents to ensure precise and responsive control.
A key aspect of servosystems is the use of Proportional-Integral-Derivative (PID) control loops, which continuously compare the actual position/velocity to the commanded target and make adjustments to minimize error. Advanced servosystems incorporate auto-tuning features, which automatically determine optimal PID gains, and adaptive control, which adjusts parameters in real-time to compensate for changing loads or environmental conditions, further enhancing performance and robustness.
Motion System Design Environmental Considerations

The operating environment significantly dictates component selection. Where a motion design will operate in hot, dusty, washdown, vacuum, explosive, or other challenging industrial environments, the power-transmission, electromechanical, and electronic components must be chosen for their ruggedness and specific protective features.
- Washdown Environments: Components require stainless steel construction, IP65/IP67/IP69K ratings for protection against water jets and steam, food-grade lubricants, and corrosion-resistant coatings.
- Dusty Environments: Enclosures with high IP ratings (e.g., IP5X/IP6X) are necessary to prevent ingress of solid particles.
- Explosive Environments: Components must be ATEX or UL HazLoc certified, designed to prevent ignition sources through intrinsically safe circuits, explosion-proof housings, or purged enclosures.
- Vacuum Environments: Special lubricants with low outgassing properties, specific material selections, and sealed designs are critical to prevent contamination and ensure performance.
- Cleanroom Environments: Components must meet ISO cleanliness standards, minimizing particle generation through specialized materials, sealed designs, and low-friction operation.
- Temperature Extremes: Wide operating temperature ranges require components with robust thermal management and materials stable across temperature variations.
These environmental ratings and certifications are crucial for ensuring the reliability, safety, and longevity of motion systems in diverse industrial settings.
Feedback and Connectivity for Precision Motion Designs
Many motion system designs rely heavily on sensors and encoders to accurately track position, velocity, and other axis values during machine operation. Hall-effect sensors, resolvers, incremental and absolute encoders, and various forms of mechanical, optical, and magnetic feedback devices are employed to monitor axis behavior. These devices convert their collected signals into (often digital) data for the motion controls to use in trajectory calculations and error correction. The specific communication protocols supported by the controls partially dictate which feedback devices are allowable in the system, ensuring seamless data exchange.
The increasing complexity of automation and the rise of the Industrial Internet of Things (IIoT) emphasize the importance of robust connectivity. Modern motion systems communicate over real-time industrial Ethernet protocols like EtherCAT, PROFINET, Sercos III, and CIP Motion. These protocols enable high-speed, synchronized data exchange between controllers, drives, and feedback devices, crucial for multi-axis coordination and distributed control. They also facilitate the integration of motion systems into broader factory networks, enabling data analytics, remote monitoring, and predictive maintenance strategies.
Though often overlooked, the cables and connectors transmitting power and data between components are equally critical. They must satisfy specific electrical and physical requirements, including shielding for noise immunity and flexibility for dynamic applications. Cable runs should be kept as short as possible to mitigate issues associated with voltage drop, impedance, and especially electromagnetic interference (EMI), which is particularly problematic when pulse-width modulated (PWM) drives are nearby. This is especially true if feedback data rides over high-speed protocols vulnerable to impedance and noise. Proper grounding and shielding are non-negotiable for system integrity.
The Art and Science of Motion Profiles
Supreme in the world of motion systems are motion profiles – the mathematically defined trajectories that motion controllers command axis drive-and-motor systems to follow. These profiles define sequences of position commands over time, instructing the axis on how and where to position an attached load, as well as specifying necessary accelerations, move times, and dwell times. Motion-controller electronics convert these created trajectories to generate precise torque commands for the drive powering the motor, ensuring smooth and accurate movement.
Common motion profiles include trapezoidal (constant acceleration, constant velocity, constant deceleration) and S-curve (smooth transitions between acceleration and deceleration, reducing jerk). The choice of profile significantly impacts machine performance, throughput, wear and tear on mechanical components, and overall system dynamics. An S-curve profile, for instance, minimizes mechanical shock and vibration, extending component life, but may result in slightly longer cycle times compared to a trapezoidal profile.

Of course, a design’s required accuracy, resolution, and repeatability are just as important as its motion profile.
- Accuracy: How close the actual position is to the commanded position.
- Resolution: The smallest increment of movement the system can detect or command.
- Repeatability: The ability of the system to return to a previously commanded position consistently.
These measures of precision dictate the acceptable level of mechanical backlash and compliance in the system, as well as the sophistication and type of feedback components that may be necessary. High-precision applications often demand advanced linear encoders and stiff mechanical linkages to minimize errors.
Broader Impact and Future Outlook
The sophistication of motion systems has profound implications for global industries. They drive increased productivity, improve product quality, enhance worker safety by automating hazardous tasks, and enable the creation of entirely new products and manufacturing processes. The global motion control market, valued at approximately $15 billion in 2023, is projected to grow steadily, fueled by increasing automation demands in manufacturing, logistics, and emerging fields like autonomous vehicles and advanced robotics.
Looking ahead, the future of motion control is deeply intertwined with advancements in Artificial Intelligence and Machine Learning. AI/ML algorithms are being integrated to enable predictive maintenance, anticipating component failures before they occur, optimizing motion profiles in real-time for maximum efficiency or throughput, and facilitating adaptive control that can learn and adjust to changing conditions. Collaborative robotics, where robots work safely alongside humans, will rely on even more sophisticated and responsive motion control. Miniaturization, energy efficiency, and modular, plug-and-play components are also key trends, alongside the increasing prevalence of software-defined motion systems that offer greater flexibility and easier configuration.
Despite these advancements, challenges remain, including a persistent skill gap in specialized engineering talent and the complexity of integrating diverse systems. However, industry experts anticipate continued innovation, driving motion systems to become even more intelligent, autonomous, and integrated into the fabric of smart factories and interconnected industrial ecosystems, ultimately shaping the next generation of automation.
