The journey into understanding automated motion systems begins with a fundamental grasp of their constituent elements and the principles governing their operation. Whether applied in sophisticated robotics or dedicated machine designs for specific routines, these systems are the backbone of modern automation, driving precision, speed, and efficiency across countless industries. At their core, all motion systems are electric-motor-driven designs, meticulously engineered around two primary categories of components: the mechanical power transmission elements and the sophisticated electrical and control apparatus that dictate their every movement.

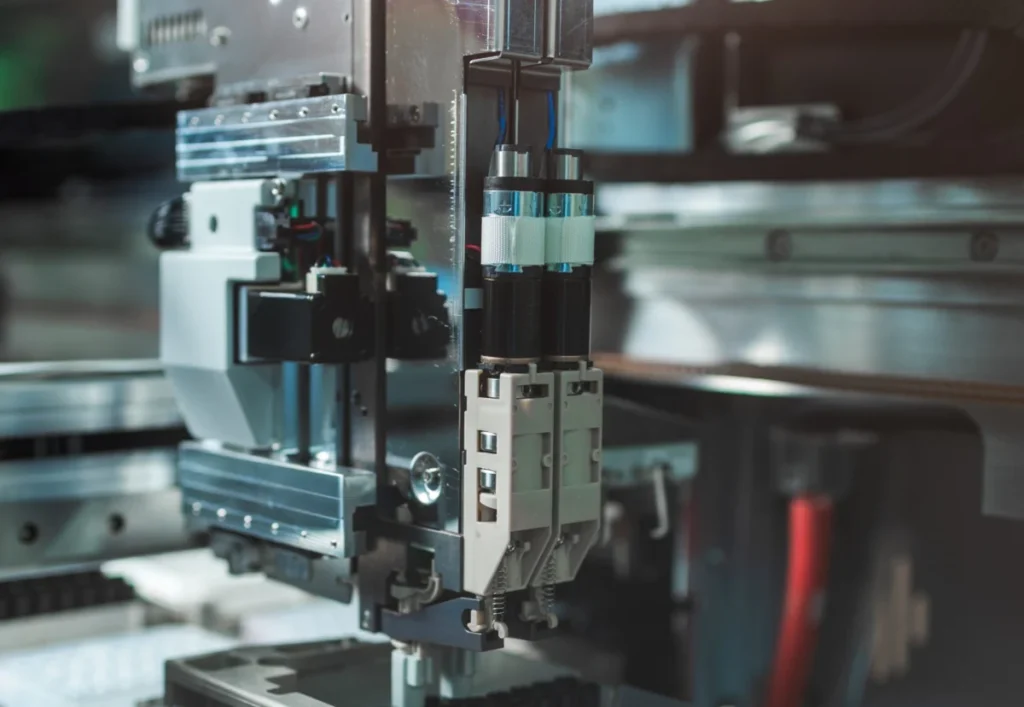

Core Components of Automated Motion Systems
Automated motion systems, essential across a spectrum of applications from consumer electronics manufacturing to advanced medical diagnostics, are fundamentally structured around a harmonious interplay of mechanical and electrical components. The mechanical components translate raw motor power into desired physical motion, while the electrical and control systems provide the intelligence and precision to execute complex trajectories.
- Mechanical Power Transmission Components: These are the physical means by which motion is generated and transferred. They include linear actuators such as leadscrews, ballscrews, and roller screws, which convert rotary motion into precise linear motion. Leadscrews offer simplicity and low cost, suitable for lighter loads and lower speeds. Ballscrews provide higher efficiency, accuracy, and load capacity due to recirculating ball bearings, making them a common choice for demanding applications. Roller screws, the most robust, offer even higher load capacity, stiffness, and life, often used in heavy-duty or critical applications. Tangential drive systems like rack and pinion sets, chain and sprocket sets, and synchronous belt and pulley sets are also critical, offering various combinations of speed, force, and precision. Rack and pinion systems are excellent for long travel distances and high rigidity. Belt and pulley systems offer quiet operation, high speeds, and flexibility, often used in light-to-medium load applications. Beyond these, the mechanical infrastructure includes bearings, linear guides (such as recirculating ball bearings, roller bearings, or plain bearings), and structural elements that ensure stability, rigidity, and smooth operation under dynamic loads.
- Electrical and Control Components: This category encompasses the electric motors (servo, stepper, linear), which provide the motive force. Servo motors offer precise control over position, velocity, and torque, making them ideal for dynamic, high-accuracy applications. Stepper motors are cost-effective for open-loop positioning tasks where high torque at low speeds is required. Linear motors provide direct linear motion without mechanical conversion, offering exceptional speed and acceleration. The motor drives or amplifiers convert control signals into the appropriate power for the motors. The motion controllers serve as the "brain" of the system, orchestrating complex movements and coordinating multiple axes. Feedback devices, such as encoders and resolvers, are also crucial, providing real-time data on position and velocity to ensure accuracy and enable closed-loop control.
Distinguishing Power-Transmission from Motion Systems
The motion industry often delineates between "power-transmission designs" and "motion systems," though both rely on electric motors. This distinction hinges on the primary emphasis of the application and the complexity of control required.
Power-Transmission Designs: These machine builds prioritize the delivery of raw torque or force and speed. In such designs, mechanical components often dominate the build, engineered to withstand significant loads and transfer substantial power efficiently. Examples include heavy-duty conveyors, industrial mixers, and large-scale material handling equipment where the primary objective is to move large quantities or exert considerable force, often with less emphasis on intricate, dynamic positioning. The focus here is on robust mechanical coupling, efficient power transfer, and durability, often employing simpler open-loop control mechanisms or basic speed regulation. While they may incorporate electric motors, the sophistication of their control systems is typically lower compared to dedicated motion systems.
Motion Systems: In contrast, motion systems are characterized by their emphasis on precise positioning and highly controlled motion profiles. These profiles meticulously define critical parameters such as speeds, accelerations, jerk (the rate of change of acceleration), speed-torque relationships, and homing routines for the machine’s various axes. Applications demanding exacting precision, repeatability, and dynamic control, such as robotic arms in assembly lines, CNC machining centers, or sophisticated laboratory automation equipment, fall into this category. The intelligence embedded in the control system and the responsiveness of the electromechanical components are paramount. These systems often employ advanced closed-loop control strategies, leveraging real-time feedback to achieve sub-micron level accuracy and smooth, optimized movements. The global market for motion control systems was valued at approximately USD 15.1 billion in 2022 and is projected to grow at a compound annual growth rate (CAGR) of around 5-7% through 2030, underscoring the increasing demand for precision and automation across industries.
Ubiquitous Applications Across Industries
Both power-transmission and motion systems are integral to a vast array of modern products and industrial processes. They are found at the heart of myriad consumer products, enabling their manufacture and functionality, from the automation in appliance production to the precision movements within hard drives and optical disc drives. Office automation equipment, such as high-speed printers, document scanners, and sorting machines, relies heavily on controlled motion for paper handling and component placement. In the medical field, these systems are vital for diagnostic equipment (e.g., MRI machines, CT scanners), surgical robots, laboratory sample analysis, and prosthetics, demanding uncompromising accuracy, reliability, and safety. Laboratory automation equipment leverages motion systems for high-throughput screening, precise fluid dispensing, sample handling, and analytical processes, significantly accelerating research and development.
In the industrial sector, a crucial distinction exists between discrete factory automation and process or analog automation. Motion system designs are predominantly associated with discrete automation, which involves the working, machining, assembling, testing, capping, wrapping, packaging, labeling, counting, scanning, and transporting of individual, separate workpieces or products. Each workpiece may undergo several distinct operations before completion. Key industries relying on discrete automation include automotive manufacturing (robotics for welding, painting, assembly), electronics production (pick-and-place machines for circuit boards), automated warehousing and logistics operations (sorting, conveying, robotic picking), and packaging lines (filling, sealing, palletizing), where the precise placement and manipulation of individual items are critical for throughput and quality.
Conversely, process automation deals with continuous flows, batches, and uninterrupted systems, typically involving liquids, gases, or bulk solids. This includes vats of liquids, continuous chemical reactions, precise temperature controls, metering, and flowing operations that are inherently difficult to stop and start without significant disruption. Industries where process automation dominates include mining, energy (both coal and nuclear power generation), oil and gas extraction and refining, large-scale food processing (e.g., brewing, dairy), pharmaceutical
