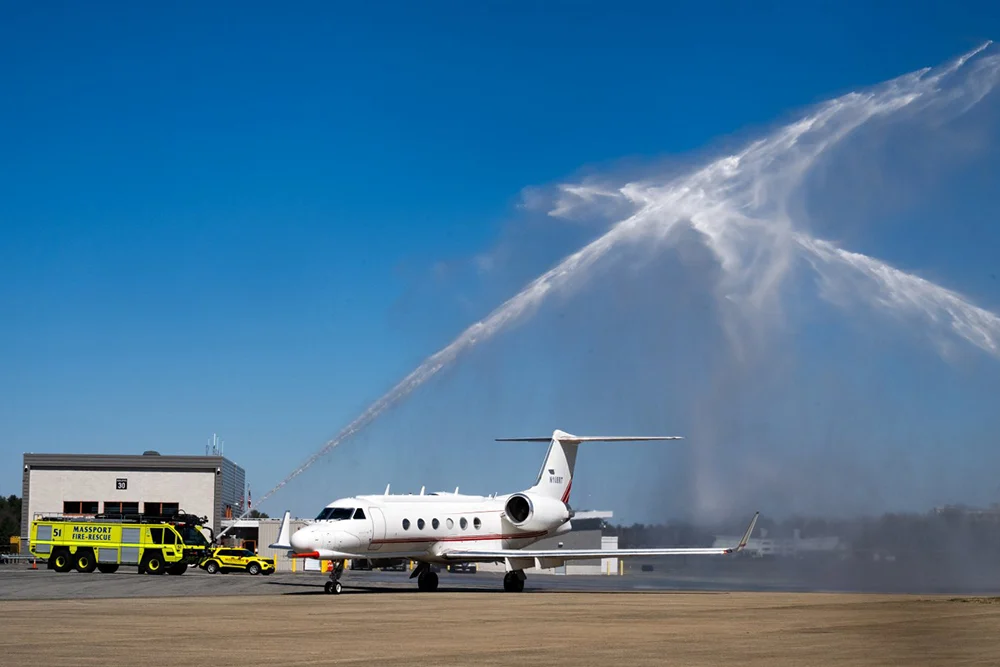

After an exhaustive seven-year period of extensive modifications and upgrades, MIT Lincoln Laboratory’s Gulfstream IV (G-IV) aircraft, a crucial asset operated and maintained by its Tactical Defense Systems Group and Flight Test Facility (FTF), has successfully completed its journey back to its home base from Canada. This monumental undertaking transformed a standard business jet into a highly specialized research platform, poised to support the U.S. Air Force’s Air Vehicle Survivability Evaluation (AVSE) program for decades to come. The project represents the largest and most complex airborne test bed modernization in the history of MIT Lincoln Laboratory, a testament to the dedication and collaborative spirit of the teams involved.
The Tactical Defense Systems Group, in close partnership with the Flight Test Facility and the Toronto-based aerospace company Field Aviation, orchestrated this ambitious endeavor. The journey, marked by hundreds of trips to Canada and countless dedicated weekends, culminated in a moment of profound pride and satisfaction for the team. David Culbertson, FTF manager, eloquently captured this sentiment, stating, "Our team made hundreds of trips to Canada and dedicated countless weekends to keep the project moving along. Seeing the aircraft finally return to the laboratory invoked a sense of pride and satisfaction."
A Legacy of Airborne Testing for National Security
For over four decades, the Tactical Defense Systems Group has been at the forefront of supporting the AVSE program. This vital program leverages sophisticated airborne test beds to rigorously assess the resilience of U.S. aircraft and space assets against a constantly evolving landscape of current and emerging threats. Prior to the G-IV’s comprehensive overhaul, the group had been diligently utilizing a modified Gulfstream II (G-II) for AVSE airborne testing since the early 1990s.
However, by 2013, looming concerns regarding parts availability for the aging G-II necessitated a strategic evaluation for a successor. A series of in-depth studies were initiated to identify the optimal replacement. These studies rigorously analyzed various options, ultimately concluding that the G-IV presented the most advantageous solution. Its superior performance and capabilities, including significantly higher altitude ceiling and extended range, coupled with its long-term sustainability and favorable cost projections, made it the clear choice. MIT Lincoln Laboratory officially acquired the G-IV in 2015, marking the beginning of a new era for the AVSE program.
Strategic Planning for Decades of Operation
To ensure the G-IV’s operational longevity and to circumvent the costly and time-consuming process of repeatedly seeking Federal Aviation Administration (FAA) certification for phased modifications, a strategic decision was made to complete all anticipated aircraft upgrades simultaneously. This approach aimed to establish a robust and certified platform capable of supporting the program’s projected operational lifespan of 25 to 30 years without interruption.
Following a rigorous competitive bidding process, Field Aviation was selected to undertake the extensive modifications. This choice was underscored by Field Aviation’s established track record, having previously modified the G-II and other aircraft for MIT Lincoln Laboratory, demonstrating a deep understanding of the laboratory’s unique requirements. In December 2018, FTF pilots ferried the G-IV to Toronto, with an initial estimated completion timeline of approximately three to four years.
Navigating Unforeseen Challenges and Achieving Remarkable Transformation
The ambitious timeline for the G-IV’s modernization, however, encountered significant unforeseen challenges, most notably the widespread disruptions caused by the COVID-19 pandemic. Coupled with shifts in contractor management, these factors led to an extended stay in Canada. In response to these circumstances, MIT Lincoln Laboratory took decisive action to steer the project back on track and ensure the aircraft’s timely return. The laboratory assumed direct oversight of aircraft modifications, maintenance, and the complex reassembly process.
This critical phase demanded an unprecedented level of interdisciplinary collaboration. Laboratory engineers, skilled mechanics, experienced pilots, dedicated program managers, and legal teams united their efforts, navigating the intricacies of securing Canadian work permits and maintaining a continuous, on-site presence to facilitate progress. Senior aircraft mechanic Craig Rowe emerged as a pivotal figure, serving as the lead crew chief. His unwavering commitment saw him travel to Canada monthly, accompanied by fellow team members, to meticulously oversee the work. For his exceptional contributions and dedication to this complex project, Rowe was deservedly recognized with a 2026 MIT Excellence Award for Outstanding Contributor.
A Structural Overhaul: Engineering for Enhanced Capabilities
The transformation of the G-IV involved a meticulous process of removing, tracking, and ultimately reinstalling over 2,000 individual components. The revamped G-IV now boasts 12 major modifications that necessitated substantial and sweeping structural alterations, fundamentally reconfiguring the aircraft’s capabilities.
Enhanced Payload Capacity and Sensor Integration:
A significant aspect of the structural overhaul involved fortifying the wings to accommodate the integration of four external pylons. These pylons are designed to carry sensor pods weighing anywhere from 200 to over 1,000 pounds. The wing structures were meticulously reinforced to withstand the increased weight, the resultant stresses, and the complex aerodynamic loads experienced during flight operations. Further expanding the aircraft’s sensor deployment capabilities, a fifth sensor pylon was integrated into the forward lower fuselage. This pylon is engineered to support payloads of up to 2,000 pounds and accommodate systems measuring nearly 19 feet in length. The development of these sophisticated pylons spanned nearly five years, a testament to the intensive reverse engineering required. This process involved acquiring and disassembling a wing from a scrapped G-IV to meticulously measure and replicate internal structural components. The installation phase itself was equally demanding, taking almost two years due to the limited access to the inner wing structure, which is typically only accessible through small panels designed for inspection purposes.
Streamlined Sensor Mounting and Extended Reach:
To facilitate the rapid deployment and integration of external antennas and sensor systems, the aircraft’s roof and lower fuselage were modified to create flat surfaces. This innovation allows for swift mounting without requiring repeated incursions into the aircraft’s pressurized cabin, thereby enhancing operational efficiency and safety. The aircraft’s nose and tail sections were also extended with standardized sensor-mounting interfaces. This design enables the rapid placement of sensors for both forward- and aft-facing test scenarios, offering unparalleled flexibility in data acquisition. The six-foot nose extension, in particular, demanded a complete gutting of the cockpit to allow for the reinforcement of the internal structure, ensuring it could bear the significant weight of the mounting interface and the advanced test systems it would support.
Advanced Interior Systems and Crew Support:
The interior of the G-IV has been comprehensively reconfigured to support its new role as a cutting-edge airborne research platform. The cabin now houses 14 dedicated equipment racks, providing ample space for sophisticated instrumentation. Workstations for six onboard operators have been installed, enabling real-time monitoring and control of experimental operations. A complex network of fiber-optic, Ethernet, and coaxial cables has been integrated throughout the aircraft, ensuring high-speed data transfer and communication. To manage the heat generated by these advanced systems, dedicated liquid- and air-cooling systems have been implemented. Furthermore, a separate power-distribution infrastructure has been established, distinct from the baseline aircraft’s systems, to enhance safety and prevent interference.
Powering the Future of Survivability Testing
A critical engineering challenge addressed during the remodel was the development of a robust system to generate sufficient electrical power to operate the extensive test systems in flight, while simultaneously adhering to stringent FAA fire-containment standards. The aircraft’s original auxiliary power unit (APU), designed primarily for engine startup assistance, was wholly inadequate for the mission requirements and could not operate effectively at altitude.
Field Aviation engineers rose to this challenge by designing an entirely new, fireproof titanium enclosure. This enclosure houses a significantly larger APU, capable of producing nearly double the original electrical output, up to the G-IV’s impressive 45,000-foot altitude ceiling. To validate the performance of this critical component, the laboratory’s Engineering Division conducted extensive simulations. These simulations meticulously analyzed the APU inlet airflow, ensuring optimal power output throughout the entire flight duration and under all anticipated operational conditions.
Broader Implications for U.S. Air Force Readiness and Technological Advancement
The successful modernization of MIT Lincoln Laboratory’s G-IV represents a significant advancement for the U.S. Air Force’s Air Vehicle Survivability Evaluation program. The enhanced capabilities of this state-of-the-art airborne test bed will enable more comprehensive and accurate assessments of aircraft vulnerability to evolving threats, including advanced electronic warfare systems, sophisticated missile guidance, and emerging stealth technologies.
The ability to rapidly deploy and test a wider array of sensors, coupled with the increased payload capacity and extended flight endurance, will allow the Air Force to conduct more complex and realistic simulation scenarios. This, in turn, will lead to more informed decisions regarding aircraft design, defensive system development, and operational tactics, ultimately enhancing the survivability and effectiveness of U.S. air assets in contested environments.
Furthermore, the project highlights the critical role of public-private partnerships in advancing national security. The collaboration between MIT Lincoln Laboratory, its internal specialized groups, and industry partners like Field Aviation demonstrates a successful model for tackling complex technological challenges. The dedication of the engineers, mechanics, and program managers involved, particularly in overcoming the unprecedented hurdles presented by the global pandemic, underscores the resilience and commitment of those working to safeguard national interests. The G-IV, now fully revitalized and equipped, stands ready to serve as a cornerstone of U.S. airworthiness and survivability research for years to come.
