The construction industry, a cornerstone of global development, faces a significant environmental challenge with concrete, the planet’s most ubiquitous building material. Its production accounts for a substantial portion of global carbon emissions, prompting an urgent search for sustainable alternatives. One of the most promising innovations is the 3D printing of concrete, a process that meticulously lays down material layer by layer, akin to a colossal robotic icing dispenser. This method offers a dual benefit: it dramatically reduces the labor-intensive need for traditional formwork and precisely places material only where it is structurally required, thereby minimizing waste. However, a critical hurdle has emerged in translating the most efficient, mathematically derived designs into tangible structures. Engineers often employ topology optimization, a sophisticated technique to identify the strongest possible structure using the least amount of material. Yet, the intricate, often delicate, spider-web-like geometries produced by this method frequently exceed the physical capabilities of current large-scale concrete printers. These machines, characterized by their thick nozzles, limited turning radii, and the necessity for continuous printing, struggle to replicate the mathematically perfect, yet physically impractical, designs.
Now, a groundbreaking development from a team of researchers at the Massachusetts Institute of Technology (MIT) promises to bridge this critical gap. Their innovative framework, detailed in a recent publication in the journal Additive Manufacturing, integrates the inherent fabrication limitations of 3D printers directly into the optimization process. This novel approach ensures that the designs generated are not only mathematically optimal for strength and material efficiency but also inherently manufacturable by real-world printing hardware, often requiring minimal or no manual redesign. To demonstrate the efficacy of their framework, the MIT team designed, printed, and load-tested a 2.3-meter concrete bridge. The results of this ambitious project revealed a surprising insight: the primary constraint on achieving lighter, more efficient structures is not the concrete itself, but rather the current limitations of the printing hardware.
"We were finding a lot of cracks you can fall through when it comes to translating these super-optimal designs into manufacturable designs," explains Hajin Kim-Tackowiak, a postdoctoral researcher in MIT’s Department of Civil and Environmental Engineering (CEE) and a co-first author of the study. "Those cracks were like chasms." This sentiment underscores the significant disconnect that previously existed between theoretical perfection and practical application in 3D concrete printing.
Designing for Manufacturability: A Collaborative Approach
The journey to this breakthrough began with a period of intensive collaboration. The MIT research team participated in the Autodesk Research Residency Program, an initiative that provided them direct access to the large-scale printing machines and the expertise of the operators at Autodesk’s Technology Center in Boston. This hands-on engagement was crucial in identifying the specific physical constraints of the printing technology.
"They pointed at some of our sharp angles, and they went, ‘I don’t feel safe printing something like that,’" recalls Kim-Tackowiak, illustrating the practical feedback received from the industry professionals. These candid discussions illuminated three pivotal limitations: the minimum thickness of each printed concrete bead, the permissible sharpness of the printer nozzle’s turns, and the absolute requirement for the printing process to be continuous. The researchers meticulously translated each of these real-world constraints into precise mathematical rules that were then incorporated into their framework.
A Paradigm Shift in Design Generation Speed
The implications of this integrated approach are profound, particularly in terms of design generation efficiency. Conventional methods for creating 3D-printed structures often involve optimizing the shape first and then dedicating considerable time to post-processing, a phase that can extend over several days. In stark contrast, the MIT team’s framework generates fully printable designs in a remarkably short period, typically around two minutes when run on a standard laptop. This speed proved invaluable during the bridge printing process. When a slight adjustment to the bridge’s dimensions was necessary on the day of printing, the team could simply rerun the optimization, yielding an updated design within five to ten minutes.
"Reaching that speed at all is recent," comments Zane Schemmer, a PhD student in CEE and another co-first author of the paper. He attributes this acceleration to advancements in the underlying mathematical techniques. The method relies on mixed-integer optimization, a form of mathematical programming that was historically considered too computationally intensive for such complex applications. "You go back five, 10 years ago, the solver we used, even three years ago, could not solve these problems," Schemmer states. "This field has been avoided, because everyone thinks that’s not an avenue we can go down. But with new algorithms and resources, it’s becoming a way we can start to frame problems." This technological leap opens doors to iterative design processes that were previously unimaginable.
The Concrete Bridge: A Testbed for Real-World Limitations

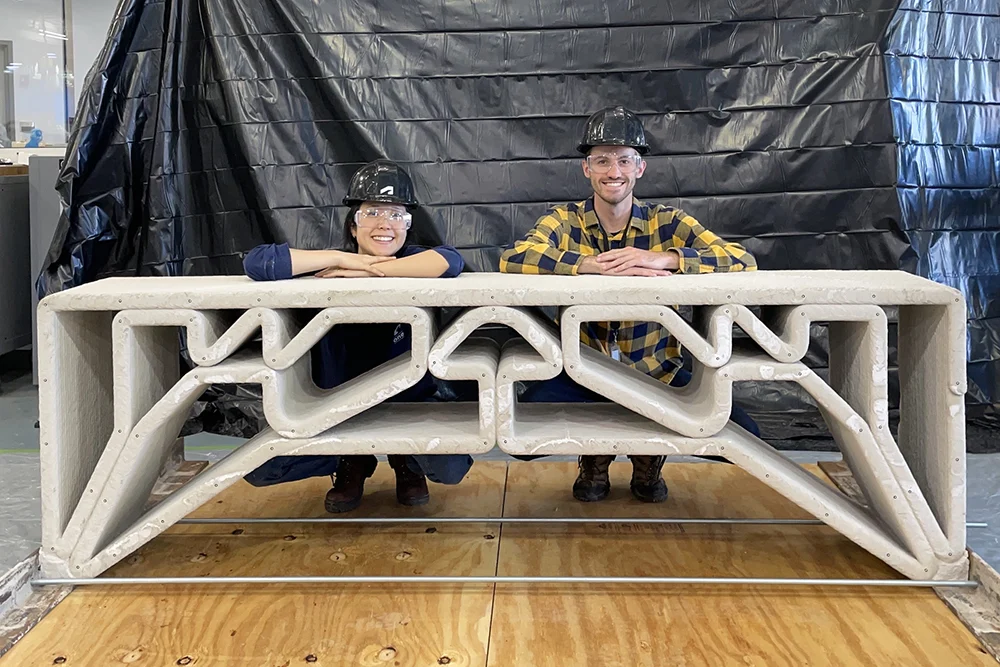

To rigorously validate their innovative framework, the researchers returned to Autodesk’s facility to fabricate a 2.3-meter-long concrete bridge. The construction process itself was swift, with the bridge taking approximately 30 minutes to print using off-the-shelf mortar. The resultant structure, weighing around 900 pounds, underwent rigorous load testing. It impressively supported over 2,000 pounds distributed across its span with negligible measurable deflection, a performance that closely aligned with the team’s computational simulations.
However, the load testing also unveiled the study’s most significant and surprising finding. "What we found was our result was super over-engineered," Kim-Tackowiak admitted. "From zero to 200,000 pounds, your design is entirely driven by these ‘can I build it or not’ constraints. And then, after 200,000 pounds, you can start to think about the physics." This observation powerfully underscores that, with current printing technology, the design efficiency of a concrete structure is predominantly dictated by the physical limitations of the printing hardware, rather than the inherent material strength of the concrete itself.
A Roadmap for Future Printer Development
The ability of the MIT framework to identify the mathematically optimal design under given constraints provides a crucial quantitative measure of the cost, in terms of material usage, associated with each hardware limitation. "With mixed-integer optimization, we can find the global optimum, the best solution there is, as opposed to just a good solution," explains senior author Josephine Carstensen, the Gilbert W. Winslow (1937) Career Development Professor in Civil Engineering. "Because we know we’re finding the best solution out there, we can also quantify: If we had a machine that could do other things, what would that mean for how much material we’re using?"
The analysis revealed that the width of the printed bead was the single most impactful factor influencing material efficiency. The bridge utilized a 4-centimeter bead. The researchers’ calculations indicated that a printer capable of laying a 1-centimeter bead could potentially reduce material consumption by as much as 76 percent, while still maintaining ample safety margins. This outcome was particularly striking for Carstensen. "I thought the continuous path would be the problem, the one that had the highest effect," she stated. "But it wasn’t. It was the bead width."
This revelation offers a clear roadmap for manufacturers of 3D concrete printing hardware. It suggests that modest improvements in machine capabilities, specifically the ability to print finer beads, could unlock substantial gains in material efficiency and, consequently, significantly reduce the carbon footprint associated with concrete construction.
The Power of Compression and Future Horizons
A key factor enabling the design of the MIT bridge was its pure compression-only nature. "With concrete, it’s really good when you push on it, really bad when you pull on it," notes Schemmer. "We’re able to guarantee that every piece of concrete that you see is in compression, there’s no part that’s being pulled on." This design strategy leverages concrete’s inherent strength under compressive forces, while avoiding its weakness in tension.
The material savings are twofold: reduced material consumption and the complete elimination of molds, a benefit that becomes increasingly significant for bespoke or one-off structural components. Carstensen foresees immediate applications in disaster relief scenarios, stating, "You can quickly put up new infrastructure without needing to make formwork."
The bridge’s pure compression design also highlighted its specific vulnerabilities. While it withstood immense compressive loads, its structural integrity was compromised when subjected to tensile forces. This was dramatically illustrated when a worker attempted to lift a corner of the bridge to sweep underneath it. The slight lift introduced tensile stresses in parts of the structure that were not designed to bear them, leading to its fracture. "It’s optimal in one way, but it’s definitely not optimal in every way," Kim-Tackowiak observed.
This limitation points towards the team’s next research objective: reinforced concrete. "We know a pure concrete structure is not necessarily going to be the most optimal thing, so we’re moving it more into the world we live in today, which is reinforced concrete," Kim-Tackowiak explained. However, integrating reinforcement, such as rebar, into the 3D printing process presents its own set of formidable challenges, which the researchers are now actively investigating.
The research was made possible through funding from the National Science Foundation and support from the MIT Center for Advanced Production Technologies. The paper’s co-authors, in addition to Kim-Tackowiak, Schemmer, and Carstensen, include Pittipat Wongsittikan, a PhD student in the MIT Building Technology Architecture program, and Jackson Jewett, who holds both MEng ’18 and PhD ’25 degrees from MIT and is a former MIT postdoc. This collaborative effort signifies a critical step forward in making 3D concrete printing a truly sustainable and practical solution for the future of construction.
