A groundbreaking fabrication technique developed by a research team at Penn State University has paved the way for a new generation of multifunctional synthetic materials, colloquially termed "smart synthetic skin." Led by Assistant Professor Hongtao Sun of Industrial and Manufacturing Engineering (IME), the group has engineered adaptable materials capable of performing a diverse array of tasks, from concealing and revealing information on demand to facilitating adaptive camouflage and supporting advanced soft robotic systems. This innovative approach, detailed in a recent publication in Nature Communications, represents a significant departure from conventional synthetic materials, which are typically designed for a single, narrow function.
The core of this innovation lies in a novel 4D-printing methodology that imbues hydrogel—a soft, water-rich material—with unprecedented programmability. Unlike traditional synthetic substances with fixed physical and visual properties, this smart skin can be precisely tuned to exhibit a spectrum of responses. Researchers have demonstrated that its appearance, mechanical behavior, surface texture, and even its capacity for shape alteration can be dynamically adjusted when exposed to various external triggers, including heat, solvents, or physical stress. This level of adaptability has earned the study a coveted spot on Nature Communications‘ Editors’ Highlights, underscoring its scientific significance and potential impact.
Biomimicry as a Catalyst for Innovation
The conceptual genesis of this smart synthetic skin can be traced to the remarkable biological adaptations of cephalopods, such as octopuses and cuttlefish. These marine invertebrates possess an extraordinary ability to instantaneously modify the color, pattern, and texture of their skin, enabling them to blend seamlessly with their surroundings for camouflage or to communicate complex signals to conspecifics.
"Cephalopods utilize a highly sophisticated interplay of muscles and nerves to achieve dynamic control over their skin’s appearance and texture," explained Sun, the principal investigator of the project. "Inspired by these incredibly adaptable soft organisms, we conceptualized and developed a 4D-printing system to translate that intrinsic biological capability into a synthetic, soft material."
Sun, who also holds affiliations with Penn State’s departments of Biomedical Engineering, Materials Science and Engineering, and the Materials Research Institute, classifies the process as "4D printing" because the resulting printed objects are not static entities. Instead, they possess an inherent capacity to actively change and adapt in response to their surrounding environmental conditions, a characteristic that extends beyond the three spatial dimensions of traditional manufacturing.
Halftone Encoding: Printing Digital Instructions Directly into Material
The key to achieving this sophisticated level of adaptability lies in a technique called halftone-encoded printing. This innovative method translates digital image or texture data into binary code—a series of ones and zeros—which is then directly embedded within the material during the printing process. The underlying principle is analogous to how dot patterns are employed in printed media like newspapers and photographs to construct visual representations.
By meticulously encoding these digital patterns within the hydrogel matrix, the researchers gain the ability to precisely program how the smart skin will react to different stimuli. The specific printed patterns dictate the localized behavior of various regions within the material. For instance, some areas might be programmed to swell or shrink more significantly than others when exposed to temperature fluctuations, immersion in specific liquids, or the application of mechanical forces. This intricate control over localized responses allows for the fine-tuning of the material’s overall functional output.
"In essence, we are printing instructions directly into the material," Sun elaborated. "These embedded instructions serve as a blueprint, dictating precisely how the skin will respond when its environment undergoes a change."
Demonstrating Functionality: Hiding and Revealing Information
One of the most compelling demonstrations of the smart skin’s capabilities is its proficiency in concealing and subsequently revealing visual information. Haoqing Yang, a doctoral candidate in IME and the lead author of the published paper, highlighted this feature as a significant indicator of the smart skin’s broad potential applications.

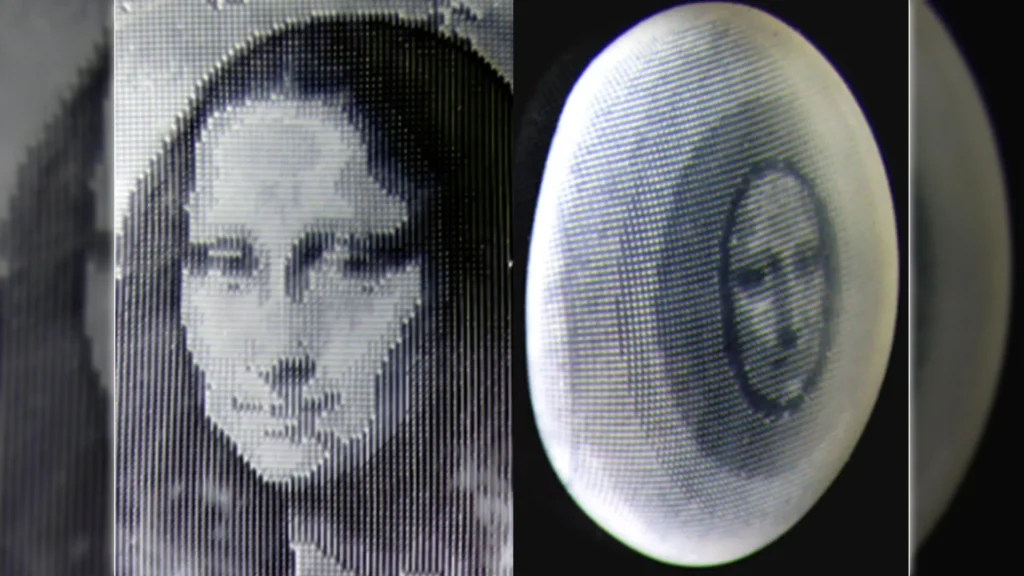

In a striking visual experiment, the research team encoded an image of Leonardo da Vinci’s Mona Lisa into a thin film of the smart hydrogel. Upon exposure to ethanol, a solvent commonly used in laboratories, the hydrogel film became transparent, rendering the embedded image entirely invisible. The hidden masterpiece then reappeared clearly only when the film was subsequently immersed in ice water or when it was gradually heated.
Yang emphasized that the use of the Mona Lisa was purely illustrative. The sophisticated printing technique employed is capable of encoding virtually any image or pattern into the hydrogel, opening up a vast range of possibilities.
"This dynamic capability has profound implications for applications such as adaptive camouflage, where a surface can effectively blend into its background, or for advanced information encryption, where sensitive messages can be hidden and revealed only under precisely defined conditions," Yang remarked.
Furthermore, the researchers demonstrated that concealed information is not limited to visual detection. By gently stretching the material and analyzing its deformation using digital image correlation analysis, they were able to detect the presence of hidden patterns. This suggests that information can be revealed not only through visual cues but also through mechanical interaction, adding an extra layer of security and versatility to the system.
Unifying Shape-Shifting and Texture Control in a Single Material
Beyond its visual capabilities, the smart synthetic skin exhibits remarkable flexibility and an ability to undergo significant shape transformations. According to Sun, the material can transition seamlessly from a flat sheet into complex, bio-inspired three-dimensional forms, complete with intricate surface textures. Critically, this transformation does not necessitate the use of multiple layers or disparate materials, a common limitation in existing shape-changing technologies.
Instead, the control over both shape and texture is derived entirely from the digitally printed halftone patterns within a single, homogeneous sheet of hydrogel. This elegant solution allows the material to replicate sophisticated effects akin to those observed in the skin of cephalopods, which can simultaneously alter both their color patterns and their surface topography.
In a further advancement, the team showcased the ability to integrate multiple functionalities within a single material. By carefully designing the halftone patterns, they were able to encode the Mona Lisa image into flat films that subsequently transformed into three-dimensional structures. As these films curved into dome-like shapes, the hidden image gradually became visible. This coordination of shape change and visual appearance within a single, unified material represents a significant leap forward in adaptive material design.
"Much like how cephalopods exhibit a remarkable coordination between body shape and skin patterning, our synthetic smart skin can simultaneously control its visual appearance and its physical deformation, all within a single, unified soft material," Sun stated.
Expanding the Horizons of 4D-Printed Hydrogels
This latest research builds upon the team’s previous work on 4D-printed smart hydrogels, which was also published in Nature Communications. That earlier study focused on combining the mechanical properties of hydrogels with programmable transitions between flat and three-dimensional forms. In the current investigation, the researchers have significantly expanded this paradigm by employing halftone-encoded 4D printing to integrate an even greater multiplicity of functions into a single hydrogel film.
Looking to the future, the Penn State team aims to develop a scalable and versatile platform that enables precise digital encoding of multiple functions within a single adaptive material. This ambitious goal holds the promise of unlocking a new era of intelligent materials with broad and impactful applications.
"This interdisciplinary research, situated at the confluence of advanced manufacturing, intelligent materials, and mechanics, opens up novel avenues with far-reaching implications," Sun commented. "These include advancements in stimulus-responsive systems, biomimetic engineering, sophisticated encryption technologies, and next-generation biomedical devices, among many others."
The collaborative effort also included contributions from Penn State co-authors Haotian Li and Juchen Zhang, both doctoral candidates in IME, and Tengxiao Liu, a lecturer in Biomedical Engineering. Additionally, H. Jerry Qi, a professor of Mechanical Engineering at the Georgia Institute of Technology, played a key role in the project’s success. The collective expertise of these researchers has culminated in a significant advancement in the field of smart materials, pushing the boundaries of what is possible with synthetic, adaptive technologies. The implications for fields ranging from defense and security to consumer electronics and healthcare are profound, suggesting that the era of truly intelligent, responsive materials is rapidly approaching.
