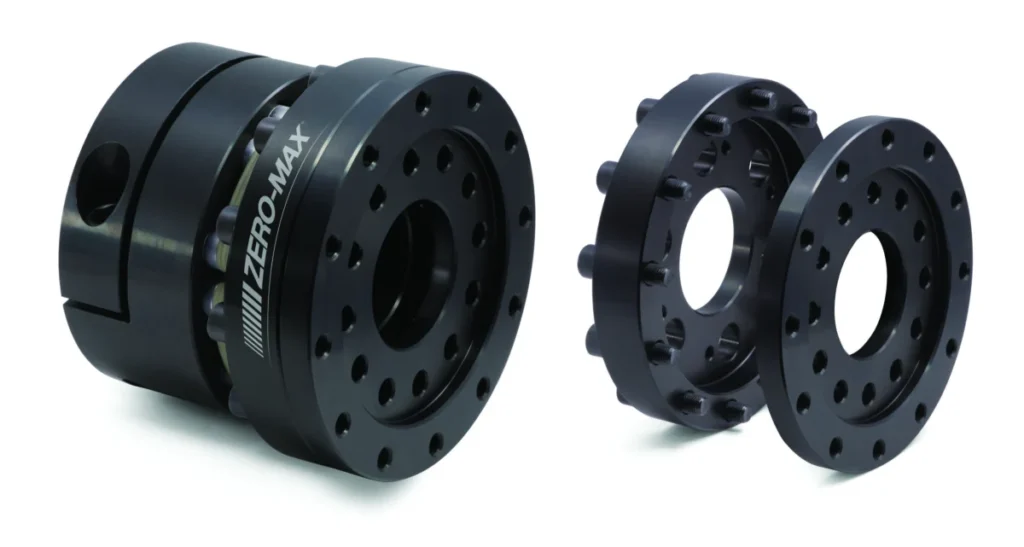

Zero-Max, a recognized innovator in motion control solutions, has announced a significant enhancement to its CD Power-Series flexible shaft couplings with the introduction of an integrated ISO flange adaptor. This development aims to streamline the integration of these high-performance couplings with precision gear reducers, motors, actuators, and advanced robotic equipment, offering a direct and more efficient connection solution for critical industrial applications. The new ISO adaptor mount flange is specifically designed to be compatible with ISO 9409-1 bolt patterns, a globally recognized standard in mechanical power transmission.
The Crucial Role of Flexible Shaft Couplings in Modern Automation
Flexible shaft couplings are indispensable components in virtually every modern automated system, acting as the vital link between a driving and a driven component. Their primary functions include transmitting torque, accommodating misalignment between shafts, and often damping vibration. In high-precision applications, the choice of coupling directly impacts the overall system’s performance, longevity, and accuracy. Without a well-designed coupling, even the most advanced motors and gear reducers can suffer from reduced efficiency, premature wear, and compromised positional accuracy. The CD Power-Series, known for its composite disc technology, has long been engineered to meet the stringent demands of servo-rated applications, where torsional stiffness and precise positioning are paramount.
Addressing Integration Challenges: The ISO 9409-1 Standard
The ISO 9409-1 standard specifies dimensions and tolerances for mechanical interfaces for industrial robots and other automated equipment, ensuring interchangeability and simplifying design and assembly processes across various manufacturers. However, integrating components adhering to this standard with couplings often presented an engineering challenge. Traditionally, achieving compatibility between an ISO-flanged component, such as a precision gear reducer, and a conventional coupling hub often required an additional, separate shaft adaptor. This intermediary component, while functional, introduced several disadvantages. It increased the overall "package size" or footprint of the assembly, added weight, and, critically, could compromise torsional stiffness and introduce backlash, thereby reducing the system’s positioning accuracy.
Zero-Max’s new ISO flange adaptor directly addresses these challenges by integrating the necessary interface into the coupling itself. By eliminating the need for a separate transition component, the new design fosters a more compact, rigid, and efficient mechanical link. This direct connection helps to maintain the inherent torsional stiffness of the CD Power-Series coupling and the precision of the gear reducer, ensuring superior positioning accuracy and responsiveness in dynamic applications.
Enhanced Performance and System Integration Benefits
The direct connection facilitated by the ISO adaptor mount flange offers a multitude of benefits for system designers and end-users. Foremost among these is the enhanced torsional stiffness. In servo applications, where precise control of motion is critical, any ‘wind-up’ or elasticity in the driveline can lead to positioning errors and longer settling times. By providing a direct, rigid connection, the Zero-Max solution minimizes these undesirable effects, leading to faster response times and greater repeatability. This is particularly crucial in indexing and other start-stop applications common in robotics, machine tools, and packaging machinery.
Furthermore, reducing the number of components in an assembly translates directly into a reduction in overall size, weight, and inertia. A smaller footprint is invaluable in space-constrained applications, while reduced weight can improve the energy efficiency and dynamic performance of moving parts. Lower inertia is a significant advantage in systems requiring rapid acceleration and deceleration, contributing to improved control dynamics and reduced wear on motors and actuators.
An additional thoughtful feature offered by Zero-Max is the option to include a corresponding locating-pin feature on the CD Power-Series adaptor mount. Many precision gear reducers incorporate a locating pin in their ISO mounting flange to ensure correct component orientation and maintain alignment, especially after maintenance or service. By offering this complementary feature, Zero-Max ensures seamless integration and sustained precision for applications where such orientation is critical.
Technical Excellence of CD Power-Series Couplings
The CD Power-Series couplings are engineered to excel in the most demanding servo-rated shaft coupling applications. Their design centers around unique composite disc technology, which provides high torsional stiffness while accommodating parallel, angular, and axial misalignment. This combination is essential for protecting bearings in connected equipment from premature wear due to misalignment, a common issue in industrial setups. The couplings are designed for zero backlash, a non-negotiable requirement for precision motion control, ensuring that every command from the control system translates directly into mechanical movement without any lost motion.
While specific torque capacities and maximum speeds vary by model within the series, the CD Power-Series is generally characterized by its ability to handle high torque loads relative to its compact size, offering excellent power density. This makes them suitable for a wide range of applications from small, delicate instruments to heavy-duty industrial machinery. The series is also available with various hub options, including keyed and keyless shaft configurations, catering to diverse shaft and mounting requirements. These options ensure compatibility with a broad spectrum of industrial shafts, further enhancing their versatility.
Application Across Diverse Industries
The enhanced CD Power-Series couplings with the ISO flange adaptor are poised to benefit a broad array of industries where precision, reliability, and efficiency are paramount.
- Robotics: In industrial robots, precise joint movements are critical for tasks like welding, assembly, and pick-and-place operations. The improved torsional stiffness and reduced inertia offered by the new couplings will directly translate into more accurate and faster robot movements, leading to higher throughput and better quality.
- Machine Tools: CNC machines, lathes, and milling machines rely on extreme precision for cutting and shaping materials. The direct connection to precision gear reducers ensures that tool paths are executed with minimal deviation, crucial for achieving tight tolerances and superior surface finishes.
- Packaging Machinery: High-speed packaging lines require synchronized, precise movements for filling, sealing, and labeling. The reduced settling time and accurate positioning capabilities of the CD Power-Series couplings contribute to higher operational speeds and reduced product waste.
- Semiconductor Manufacturing: This industry demands microscopic precision for wafer handling, inspection, and processing. Components like the CD Power-Series couplings are vital for the delicate and highly accurate movements required in cleanroom environments.
- Medical Devices: Equipment such as diagnostic imaging systems, surgical robots, and laboratory automation often feature intricate motion control. The reliability and precision of these couplings are critical for patient safety and diagnostic accuracy.
- Aerospace: From flight simulators to manufacturing processes for aircraft components, precision motion control is fundamental. The robust design and high performance of these couplings make them suitable for demanding aerospace applications.
Zero-Max’s Commitment to Innovation and Customer Support
Zero-Max’s decision to integrate the ISO flange adaptor into its CD Power-Series is a testament to its ongoing commitment to innovation driven by market needs and engineering excellence. The company has a long-standing reputation for developing high-quality motion control components that push the boundaries of performance and reliability. This latest enhancement reflects a keen understanding of the challenges faced by system integrators and machine builders in today’s increasingly complex automation landscape.
A spokesperson for Zero-Max, commenting on the launch, highlighted the strategic importance of this new offering. "Our customers are constantly seeking ways to improve the performance, compactness, and efficiency of their motion control systems," the spokesperson stated. "By offering an integrated ISO flange adaptor, we are not just providing a component; we are offering a streamlined solution that directly addresses critical engineering challenges. This enhancement reduces complexity, saves valuable design time, and ultimately delivers superior performance in the end application. It’s about empowering our clients to build better, more competitive machines."
Zero-Max also emphasizes its robust application support services. Recognizing that coupling sizing and selection can be complex, especially with diverse shaft and mounting requirements, the company provides expert assistance via phone, email, and online meetings. This commitment to customer service ensures that engineers can confidently select and implement the correct coupling solution for their specific application, maximizing the benefits of the new ISO adaptor mount and the entire CD Power-Series line.
Broader Market Implications and Future Outlook
The introduction of the integrated ISO flange adaptor by Zero-Max signifies a broader trend in the industrial automation sector towards greater component integration and standardization. As systems become more complex and demand higher levels of precision and speed, manufacturers are increasingly looking for ‘plug-and-play’ solutions that minimize assembly time, reduce potential points of failure, and optimize performance. This move by Zero-Max is expected to be well-received by system integrators and original equipment manufacturers (OEMs) who prioritize efficiency and reliability in their designs.
Industry analysts suggest that such innovations will further accelerate the adoption of advanced automation technologies. By simplifying the interface between critical components like couplings and precision gear reducers, companies like Zero-Max are lowering the barriers to entry for advanced robotic and motion control solutions, making them more accessible and easier to implement across a wider range of industries. The global market for industrial couplings continues to grow, driven by increasing investment in automation, Industry 4.0 initiatives, and the ongoing demand for higher productivity and quality across manufacturing sectors. Zero-Max’s proactive approach in adapting its product lines to meet evolving industry standards and integration needs positions it strongly within this competitive landscape, reinforcing its role as a key enabler of next-generation industrial automation. This development not only enhances the value proposition of the CD Power-Series but also underscores Zero-Max’s dedication to supporting the ongoing evolution of precision motion control.
